16 Gallon Fresh water tank Camper Horse Trailer Concession Camper RV (T163)


Regular price $55.99

16 Gallon Fresh Water Tank
Camper, RV Concessions Food Trailer

Part#: T163

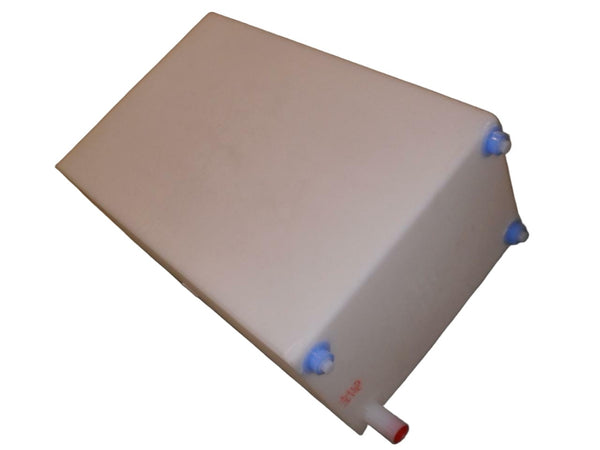

New 16 Gallon water tank, For retro fit into a camper project, or OEM replacement of a exist tank you already have. This tank is NEW, made from F. D. A. Approved Durable Polyethylene material. The one piece construction, stain, corrosion, and rust resistant features make it ideal for installation on campers, trailers, marine products, boats, horse trailers with living quarters, etc.

- Rotational Molded Polyethylene
- About 0.125" Thick
- FDA Approved

- Three standard 3/8" female pipe thread fittings (2 for draining water out, one for vent)

- Tank must be vented to atmosphere.

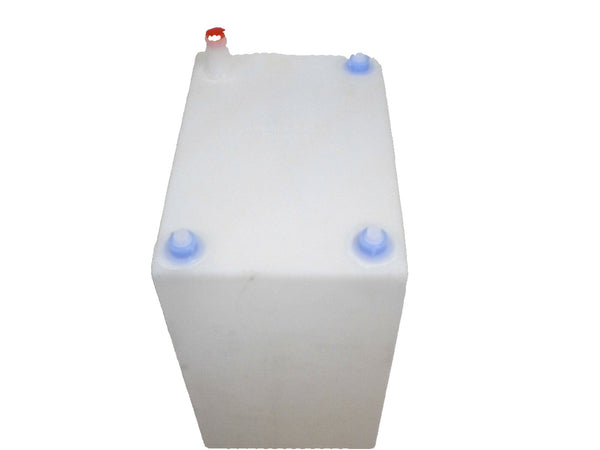

- 3/8" Female pipe thread fittings located on three corners for easy installing no matter which way it is installed.

- One 1 1/4" Gravity hose fill barb to attach a 1.25" hose to (gravity fill only, tank is NOT pressure rated).

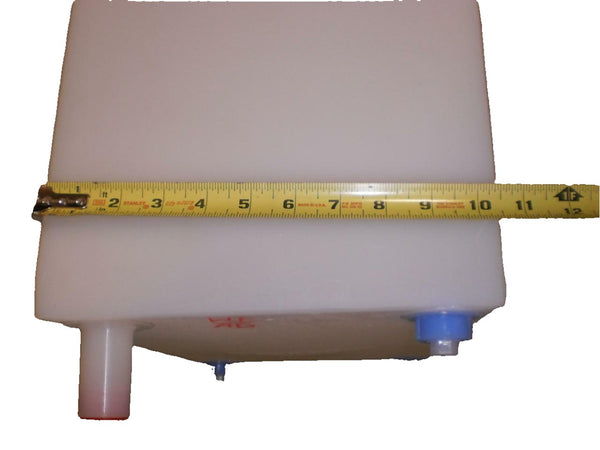

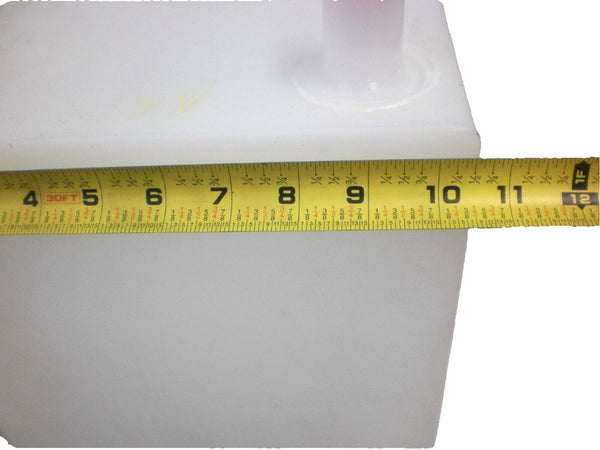

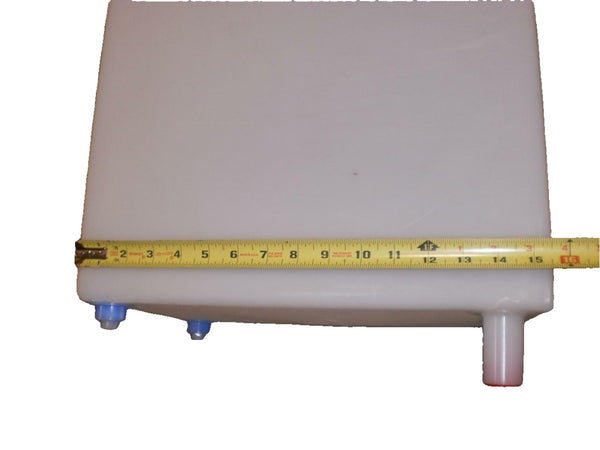

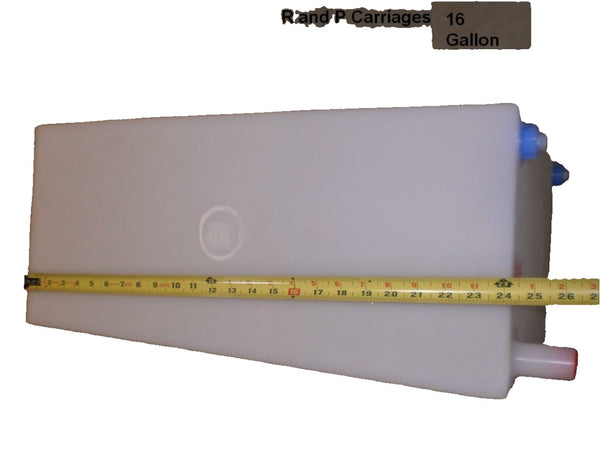

Tank measures 24" Long, x 15" x 10" (tank must lay on it's side, either 15" tall and 10 wide, or 10" tall, and 15" wide)

*These tanks are all based around the standard measurement of 24" x 15" x 10" But all seem to vary within 1/2 an inch over*

I also have available the following tanks sizes

10 Gallon- 17" x 14" x 10"
16 Gallon- 24" x 15.5" x 10.5"
21 Gallon- 39" x 16" x 8"
30 Gallon- 34-1/2" x 17-1/2" x 12"
42 Gallon- 39" x 18" x 14"

Ships UPS, Individually boxed for protection.

The threads on the tank for water connection are common 3/8" pipe thread. Fittings are available at any hardware or home improvement store. i would suggest a 3/8" short pipe nipple and a1/2" to 3/8" pipe bushing, then go with 1/2" pex for the system. There may be a fitting from PEX that goes directly from 3/8" male Pipe Thread directly to 1/2" pex, but if not, the two fittings below will work.  Use a common 3/8" pipe plug, to plug the ports you dont use, if needed.

Use the one port that will be on the upper side of the tank for the Vent.

The fill spout is 1.250" hose nipple. Use the proper size hose and a clamp to connect to it.

Tank stampings may vary per manufacture. They have the same specs and requirements.
