Note: The published Price is picked up in Seneca IL 61360 only. We will gladly ship this axle (in less than one business day!) for an extra charge, call or text us to arrange shipping!
This add is for one replacement axle for a trailer, or camper. This is the width typically used in open trailers that have 74" to 76" wide floor deck (width between fenders) flat bed, Utility trailers, Landscape trailers.
If you have lost a bearing and ruined your spindle, then this is your best bet for fixing your problem. If you are building a trailer, add this, and the hubs or brakes you want us to install to you shopping cart, following the links below

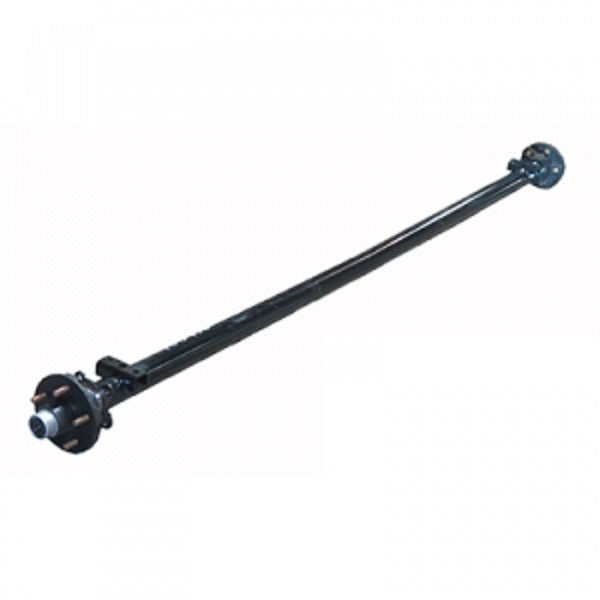

This ad is for the common 89" Hub face axle used on most car trailer and utility trailer. It includes the spring pads, brake flanges and hub with bearings mounted on the spindles.
This axle will come with the "standard" 5 Lug, 5" bolt circle hubs (measures about 4.7" stud center to center) . you MUST specify where you want us to weld the spring seats on! In addition, if you want a "custom" wheel bolt pattern, let us know!

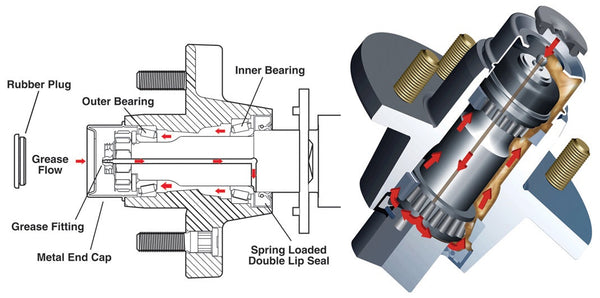

This axle may ship un-assembled, in two separate boxes! The hubs will be shipped in a separate box, with bearings and seals installed, and pre-greased, ready to slip onto the axle.
We can supply wheel lug patterns of 5x4.5", 5x4.75" (Chevy) 5x5.0" (Chevy) and 5x5.5" (Ford Dodge) and 6 lug, 5.5" circle (Chevy ) but you must let us know at the time of order!

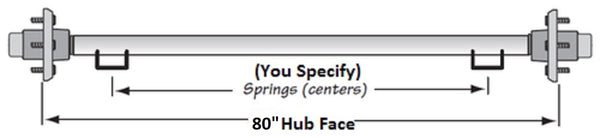

You must specify your leaf spring Center to Center, and if your springs are on top or bottom of the axle. Otherwise they will be shipped loose and customer can weld on.
