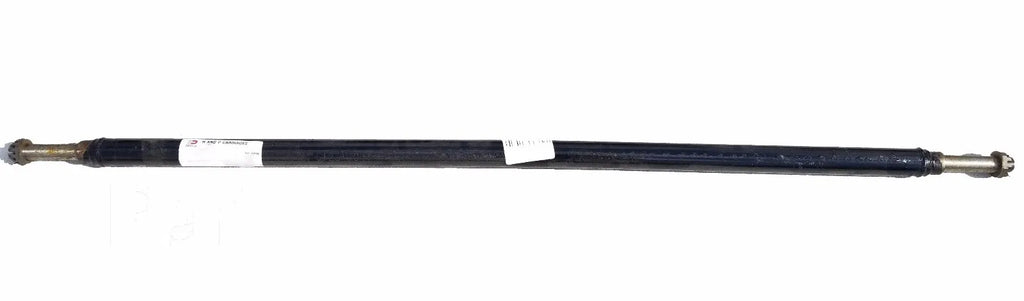

Lippert Trailer Axle 2000# Bare Beam 61" Hub Face 1.75" Tube Straight Short Spindle (2000-61-KIT)

Lippert

$165.00

In Stock

Ask a Pro

Features

Common Replacement Axle for Trailers or Campers that typically have 45 to 49.5" Floor Deck Width and 4 or 5 Lug Hubs
Standard 1.75" Tube
Straight Axle with No Camber
Uses Standard 1.0625" Bearings and 1.50" Seals (1" Bearings and 1.25" Seals on Older Trailers) (Not Included, See Chart Below)

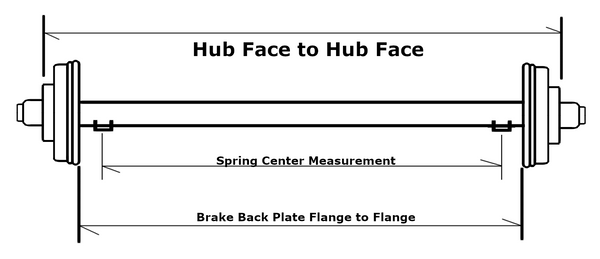

Brake Flange to Flange	N/A
Bearing Shoulder to Shoulder	57.28
Spindle End to End	66.625

Part Number	Quantity	Description
2000-61-18	1	Lippert Trailer Axle 2000# Bare Beam 61" Hub Face 1.75" Tube Straight Short Spindle
TP-S200	2	Spring Perch for 1.75" Axle Beam
