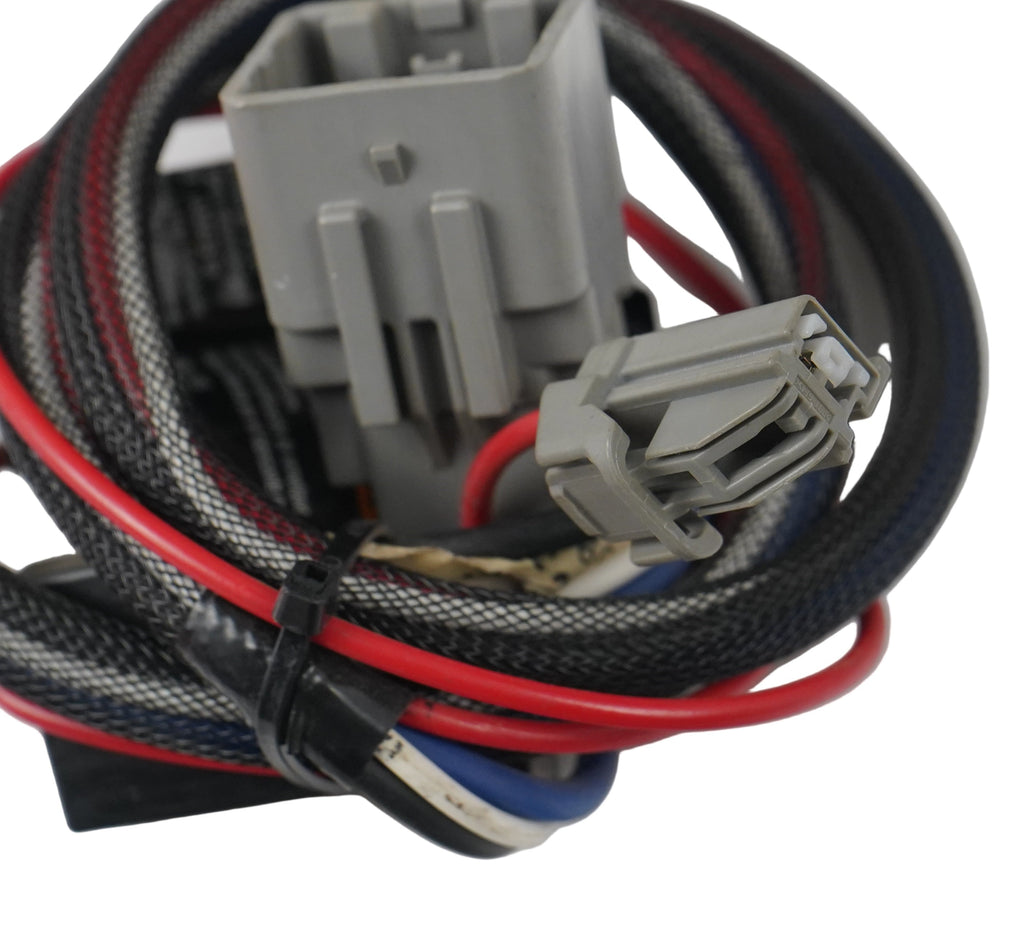

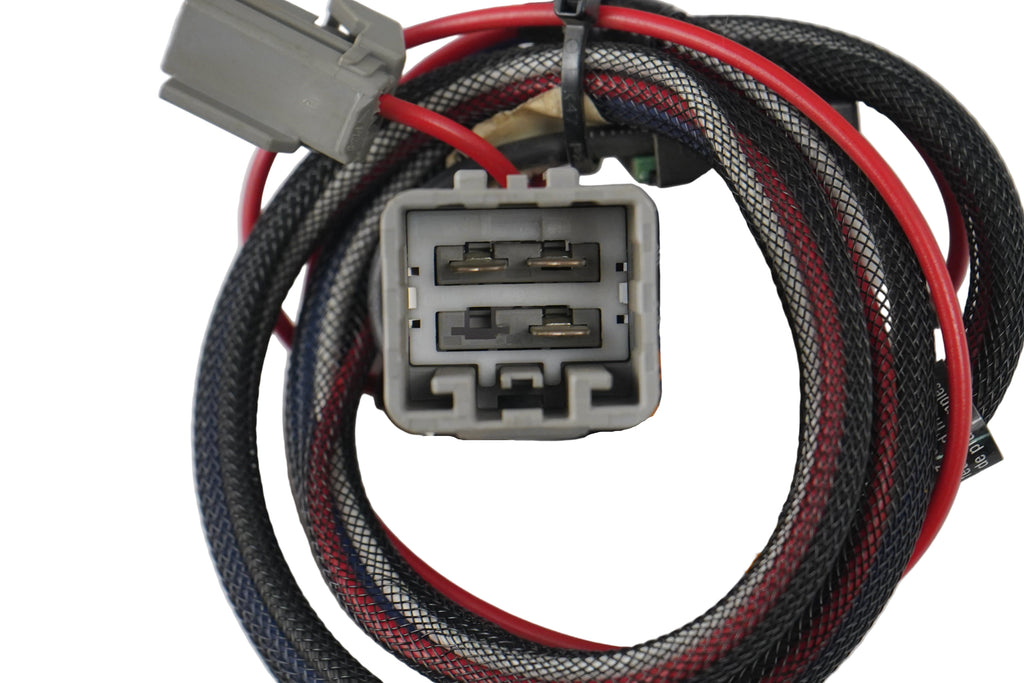

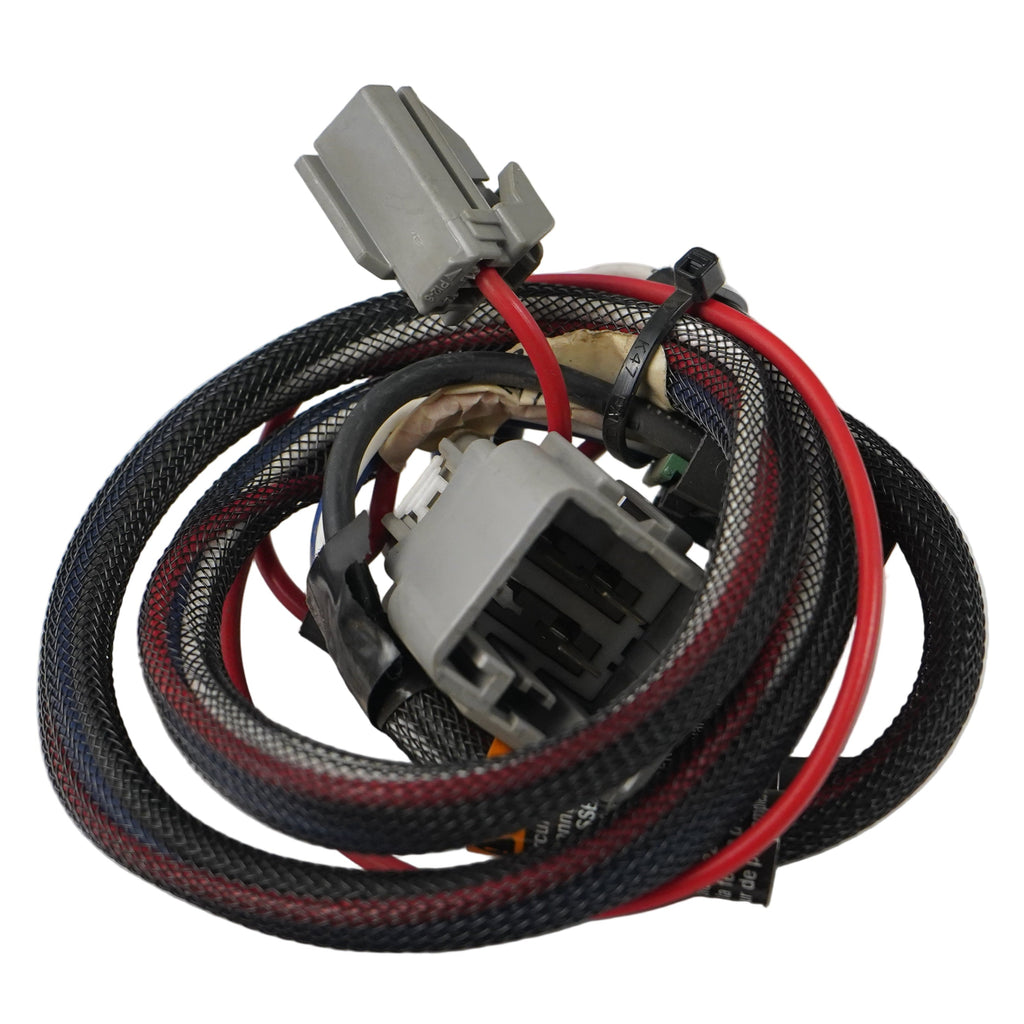

The Tekonsha 3023-P wiring harness provides a plug-and-play connection between your factory pre-wired RAM truck and Tekonsha brake controllers such as the Prodigy P2, Prodigy P3, and Primus. This harness uses the OEM-style RAM connector on one end and the Tekonsha controller connector on the other, allowing fast installation with no cutting or splicing required.

Compatible Vehicles

Factory pre-wired RAM trucks:

• 2013–2014 RAM 1500 (all styles, towing-package equipped)
• 2013–2014 RAM 2500 (all styles, towing-package equipped)
• 2013–2014 RAM 3500 (all styles, towing-package equipped)

Note: This harness fits 49-state RAM models. It does not fit California-spec trucks per Tekonsha's documentation.

Features

• OEM-style RAM connector
• Plug-and-play installation
• 3 ft. leads for flexible braided routing
• Compatible with Tekonsha Prodigy P2, Prodigy P3, Primus IQ
• Prodigy-end connector can be removed for other controllers if needed

Specifications

Always confirm your vehicle has the factory tow-package wiring port before installation.
