Dexter / UFP DB-35 Trailer Disc Brake Caliper Kit — Left & Right Pair (Parking Brake)
Part Numbers: 41275-L & 41275-R • SKU: 41275-KIT

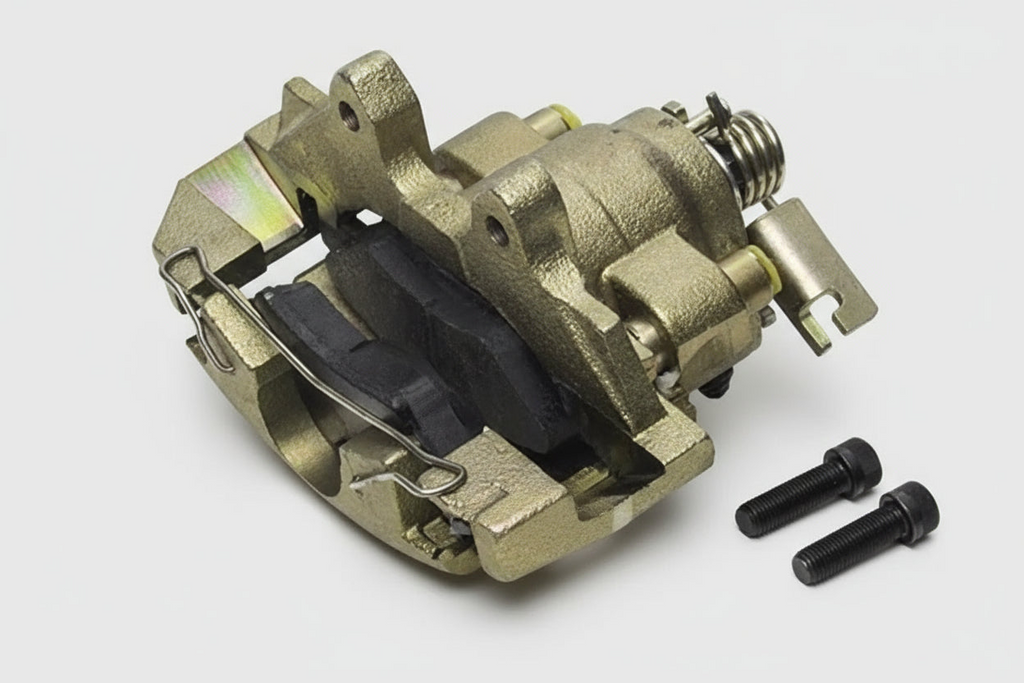

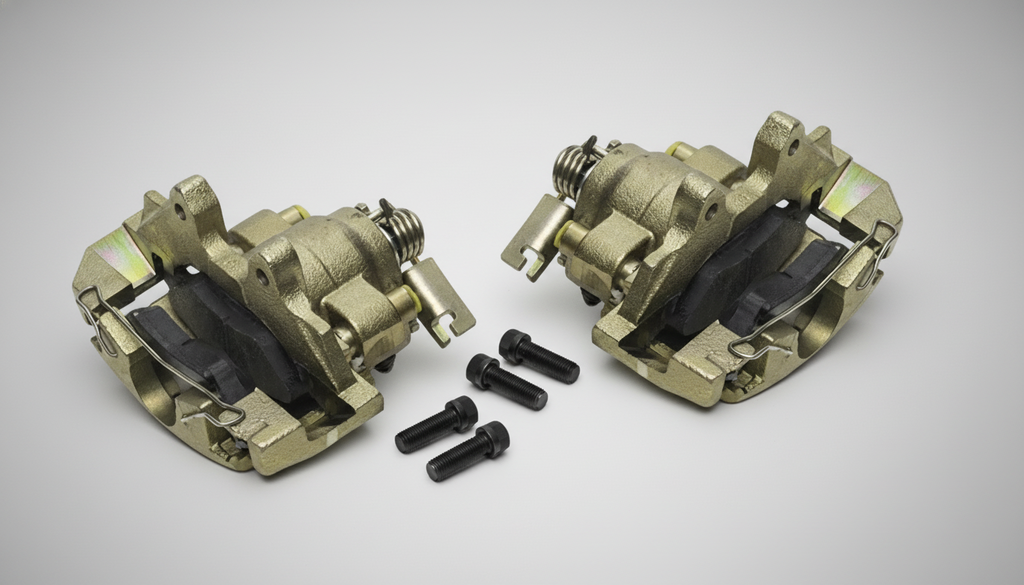

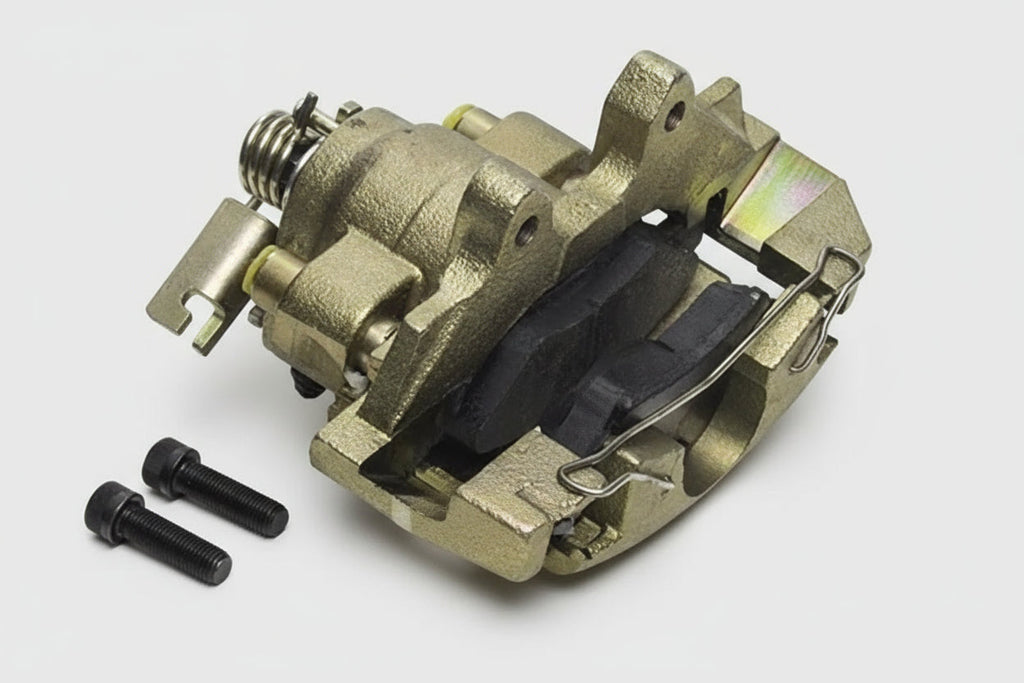

This OEM Dexter / UFP DB-35 Caliper Kit includes both the left-hand (41275L) and right-hand (41275R) hydraulic disc brake calipers used on DB-35 trailer brake systems equipped with the manual parking brake feature. Designed for 3,500 lb trailer axles, this matched pair provides a complete replacement solution for restoring proper braking performance on marine, cargo, utility, and tandem-axle trailers.
Key Features
| Includes Left & Right OEM DB-35 Calipers | Integrated Mechanical Parking Brake Levers |
| Pre-Installed Disc Brake Pads | 2-Bolt Slide-Pin Mounting Design |
| Cast Aluminum Calipers with Dacromet Coating | Stainless-Steel Pistons (Corrosion Resistant) |
| Ideal for DB-35 Single & Tandem Axle Trailers | OEM-Fit Replacement for All DB-35 Systems |
Applications
| Full Left/Right DB-35 Brake Replacement | Trailers Requiring Manual Parking Brake |
| Boat Trailers (Freshwater / Saltwater) | Cargo, Utility & Landscape Trailers |
| Tandem-Axle DB-35 Setups | Direct OEM Replacement Components |
Specifications
| Specification | Detail |
|---|---|
| Included Parts | 41275-L (Left) + 41275-R (Right) |
| Brake Type | Hydraulic Disc — DB-35 Series |
| Parking Brake | Yes — Integrated Cable-Actuated Lever |
| Axle Rating | 3,500 lb |
| Body Material | Cast Aluminum, Dacromet-Coated |
| Piston Material | Stainless Steel |
| Mounting | 2-Bolt Slide-Pin to DB-35 Bracket |
| Compatible Rotors | 054-127-00 / 054-127-22 Hub-Rotor |
| Pad Set | 41234 / 41257 (Both Sides) |
| Each Caliper Includes | Pre-Loaded Pads, Slide Pins, Dust Boots, Parking-Brake Lever |
This pair kit is the correct OEM replacement for Dexter / UFP DB-35 hydraulic disc brake systems equipped with a manual parking brake. If you need individual calipers, choose 41275L (left-hand) or 41275R (right-hand).
