Trailer Suspension / Spread Axle Equalizer / Double-Eye Springs
Dexter 42" Spread Equalizer 14.75in L 2.5in 1 3/4 Spring Trailer Axle Pivot D44
Long curved equalizer for spread-axle trailer suspension systems using 1-3/4" wide double-eye leaf springs. Commonly used for 42" axle-center layouts where the original equalizer measurements match.
Part Number: 013-142-02 14-3/4" Centers Equalizer Only
Key Measurements & Specs
| Specification |
Detail |
| Part Number / SKU |
013-142-02 |
| Brand |
Dexter |
| Product Type |
Long spread axle suspension equalizer |
| Outer Hole Centers |

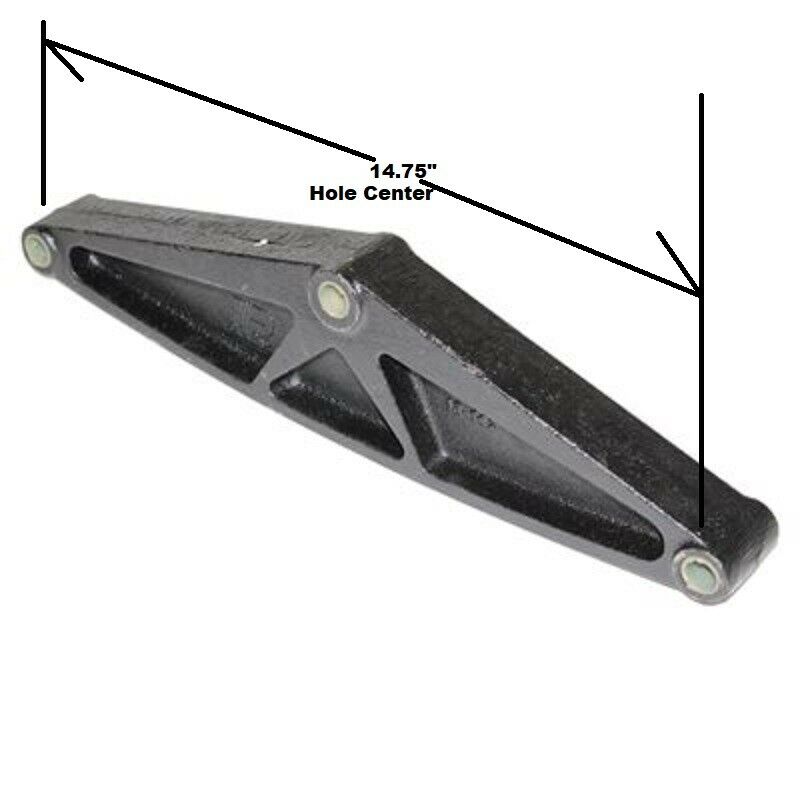

14-3/4" center-to-center |
| Height / Center Offset |
2-1/2" listed height / offset |
| Bolt Hole Diameter |
9/16" holes |
| Spring Width |
For 1-3/4" wide double-eye leaf springs |
| Material / Finish |
Cast equalizer, black finish, nylon bushings |
| Quantity Included |
1 equalizer |
Fitment / Application
| Category |
Details |
| Trailer System |
Tandem trailer suspension systems with double-eye leaf springs |
| Primary Fit |
Spread axle layouts using approximately 42" axle centers |
| Spring Type |
1-3/4" wide double-eye leaf springs with 9/16" spring-eye hardware |
| Fitment Method |
Match the original equalizer by outer hole spacing, height / offset, spring width, and bolt diameter |
| Important Note |
Verify all suspension measurements before ordering. Hardware, hangers, shackles, and bolts are not included. |
Top Features
| Feature |
Buyer Benefit |
| Extra-Long Geometry |
Built for spread axle suspension layouts with longer axle spacing than standard tandem setups. |
| 14-3/4" Hole Centers |
Provides the key outer bolt spacing needed for matching the existing equalizer. |
| 9/16" Bolt Holes |
Matches common double-eye spring suspension hardware dimensions. |
| Equalizer Only |
Clean replacement component for buyers reusing or separately sourcing hangers, bolts, shackles, and nuts. |
Overview

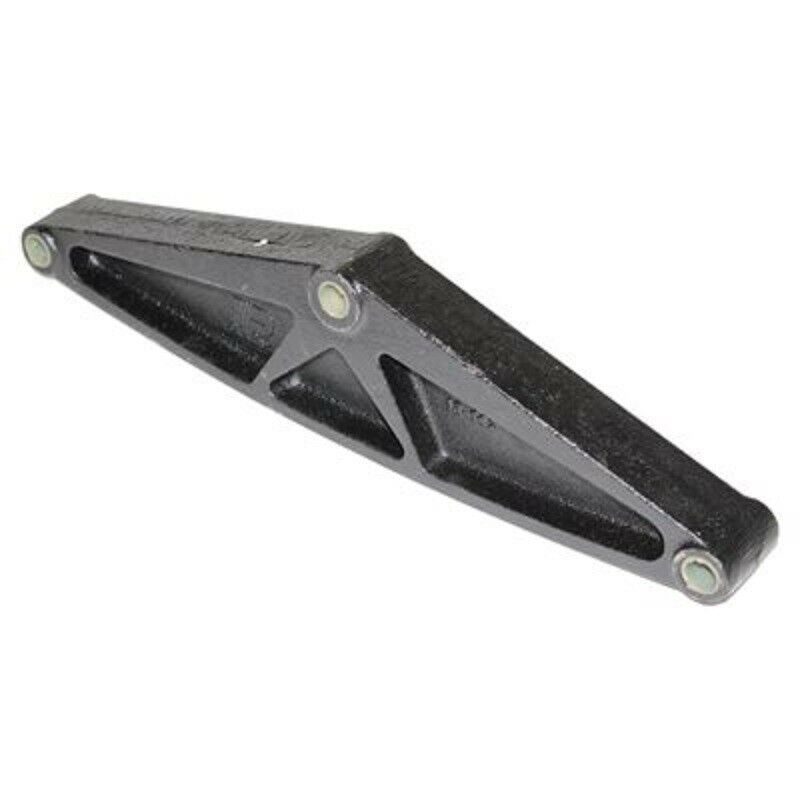

The Dexter 013-142-02 is an extra-long spread axle equalizer for trailer suspension systems using 1-3/4" wide double-eye leaf springs. It is designed around 14-3/4" outer bolt centers, 9/16" bolt holes, and a listed 2-1/2" height / center offset. Use this equalizer only where the original suspension geometry and measurements match.
R&P Service Insight
Equalizers are geometry-critical suspension parts. A small difference in hole spacing or height can change shackle angle, spring movement, axle spacing, and tire clearance.
-
Measure First: Confirm the lower bolt center-to-center distance before ordering.
-
Match the Spring Width: This equalizer is intended for 1-3/4" wide double-eye springs.
-
Check the Hardware: This listing is for the equalizer only. Mounting bolts, shackle straps, hangers, nuts, and other hardware are sold separately.
R&P Knowledge Hub
Compatibility: Built for spread axle suspension layouts using 1-3/4" wide double-eye leaf springs, 9/16" suspension hardware, and a 14-3/4" outer hole center measurement.
Vehicle / System Fit: Commonly used on tandem trailer suspension systems with approximately 42" axle centers where the original equalizer dimensions match.
Installation Notes: Verify equalizer length, height / offset, hanger spacing, spring length, bolt diameter, bushing condition, and shackle angle before installation.
Performance Insight: The equalizer allows controlled movement between axles so the suspension can transfer load and road shock across the spring system. Matching the correct geometry helps maintain proper ride height, axle spacing, and suspension travel.
Brand & Fitment Note
Selling Brand: Dexter
Application Reference: Dexter part number 013-142-02 is used as the application and identification reference for this spread axle equalizer.
What This Means: This listing is for one Dexter spread axle equalizer, not a full suspension kit.
Before Ordering: Verify your original equalizer measurements, spring width, bolt hole diameter, axle spacing, hanger layout, and included components before installation.
R&P Repair Insight
When replacing an equalizer, inspect the surrounding suspension hardware at the same time. Worn bolts, bushings, shackles, and hangers can create movement that looks like equalizer failure but is actually hardware wear.
-
Check Hole Wear: Replace related hardware if holes are elongated, bushings are worn, or bolts show grooves.
-
Check Shackle Angle: Incorrect equalizer length or height can pull shackles into the wrong operating angle.
-
Check Axle Centers: Spread axle trailers require the correct equalizer geometry to maintain proper axle spacing and tire clearance.
Features
Spread Axle Suspension Fit
Designed for longer axle-center layouts commonly used in spread axle trailer suspension systems.
14-3/4" Center-to-Center Length
Outer bolt hole spacing matches applications requiring a 14-3/4" long equalizer layout.
9/16" Bolt Hole Design
All listed bolt positions use 9/16" holes for compatible double-eye spring suspension hardware.
For 1-3/4" Double-Eye Springs
Intended for trailer suspension systems using 1-3/4" wide double-eye leaf springs.
Included Components
| Quantity |
Item |
| 1 |
Dexter 013-142-02 extra long spread axle equalizer |
| Not Included |
Mounting bolts, wet bolts, lock nuts, shackle straps, spring hangers, springs, and other suspension hardware |
Important Fitment Note: Verify all equalizer measurements, spring width, bolt hole diameter, axle-center spacing, hanger layout, shackle angle, and included components before installation. This listing is for one equalizer only. Hardware is not included.
