2000# Trailer Axle with 64" Hub Face
and 5 x 4.5" Idler Hubs PLUS U-Bolt Kit
Part Number: 2000-64-5LUG
and 5 x 4.5" Idler Hubs PLUS U-Bolt Kit
Part Number: 2000-64-5LUG
Spring mounts are shipped loose.
If you specify where the mounts need to be welded, we can do so.

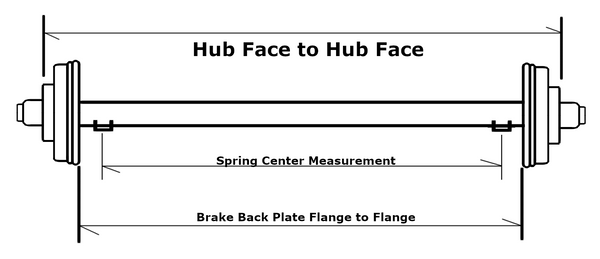

Measure center of the leaf spring bolt to opposite side center
and specify whether
they are on top or bottom of the axle?
Rated to 2000 pounds.
Includes 5x4.5 lug hubs
Includes standard 1.0625 Bearings L44649, and 1.5" seal #10-60
Hub is 5 lug, with a center "pilot" diameter of 2.45 inches (the hole in your wheel must be bigger than 2-1/2", pretty common)
Measures 64" from hub face to face (should be tire center to center)
Includes axle nuts and washer, bearings, dust caps, lug nuts, and U-bolt kit, ALL parts
Also very popular in "Tear Drop" camper construction, and smaller boat trailers
Price is for one axle.
