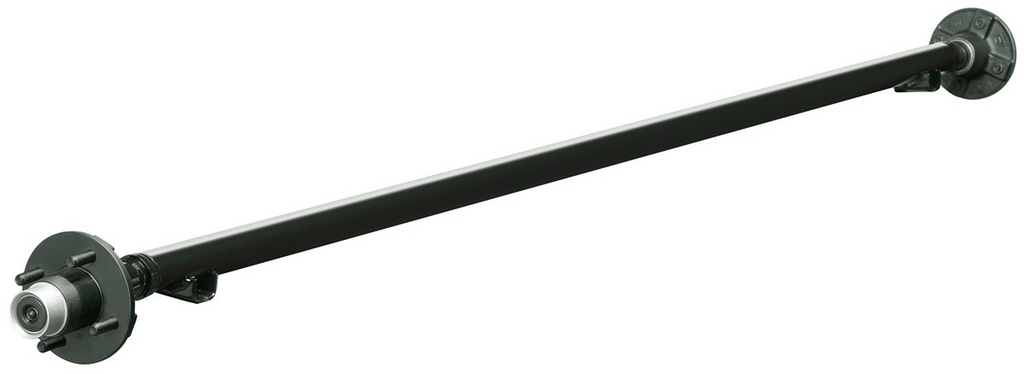

Lippert Trailer Axle 2000# Idler Beam 47.5" Hub Face 1.75" Tube Straight Short Spindle with U Bolts & 4 x 4 Hubs (2000-475-K34-COMPLETE)

Lippert Trailer Axle 2000# Idler Beam 47.5" Hub Face 1.75" Tube Straight Short Spindle with U Bolts & 4 x 4 Hubs (2000-475-K34-COMPLETE)

Lippert

$240.00

Running Low — Only 5 left

Ask a Pro

Features

Common Replacement Axle for Trailers or Campers that typically have 31.5 to 36" Floor Deck Width and 4 or 5 Lug Hubs
Standard 1.75" Tube
Straight Axle with No Camber
Uses Standard 1.0625" Bearings and 1.50" Seals (1" Bearings and 1.25" Seals on Older Trailers) (Not Included, See Chart Below)

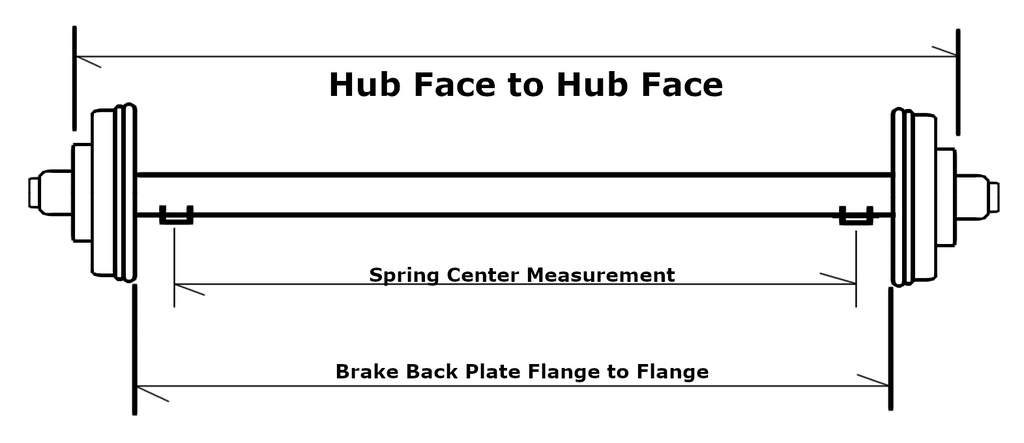

Specifications

Brake Flange to Flange	N/A
Bearing Shoulder to Shoulder	43.78
Spindle End to End	53.125

Part Number	Quantity	Description
2000-475-18	1	Lippert Trailer Axle 2000# Idler Beam 47.5" Hub Face 1.75" Tube Straight Short Spindle
TP-S200	2	Spring Perch for 1.75" Axle Beam
88440-KIT	2	2000# 4 x 4 Idler Hub with L44649 Bearings
UBK-2000-R	1	2000# U Bolt Kit for 200)# Axle (4x 1.75" x 4.25" x 3/8"-16 U Bolts, 2x Tie Plates, & 8 Nuts 3/8"-24)
