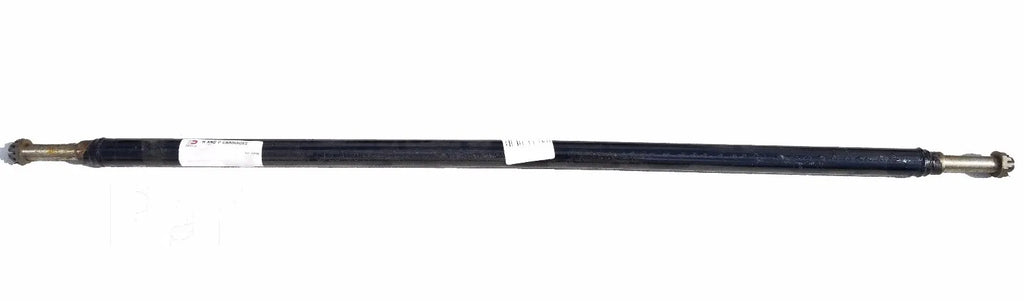

Lippert Trailer Axle 2000# Bare Beam 49" Hub Face 1.75" Tube Straight Short Spindle (2000-49-KIT)

Lippert

$165.00

Running Low — Only 7 left

Ask a Pro

Features

Common Replacement Axle for Trailers or Campers that typically have 33 to 37.5" Floor Deck Width and 4 or 5 Lug Hubs
Standard 1.75" Tube
Straight Axle with No Camber
Uses Standard 1.0625" Bearings and 1.50" Seals (1" Bearings and 1.25" Seals on Older Trailers) (Not Included, See Chart Below)

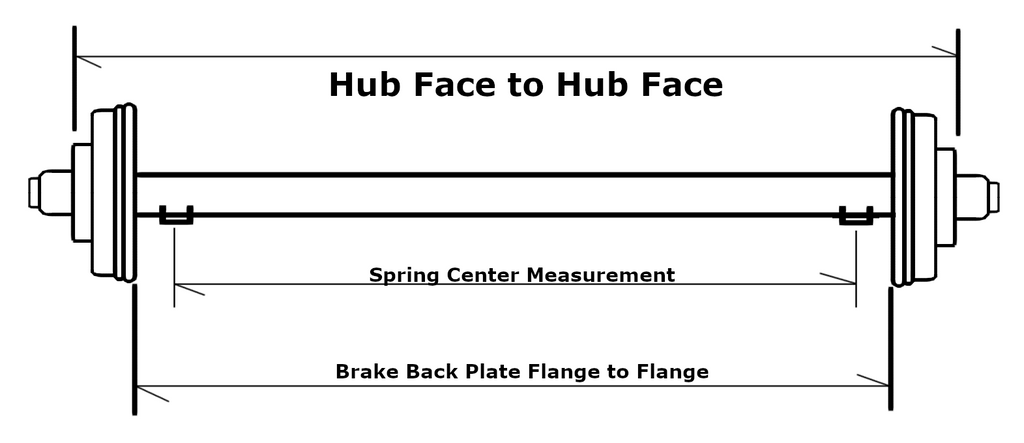

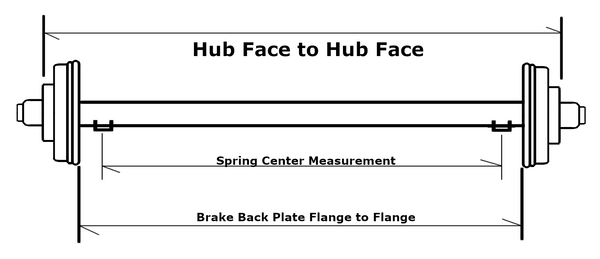

Brake Flange to Flange	N/A
Bearing Shoulder to Shoulder	45.28
Spindle End to End	54.625

Part Number	Quantity	Description
2000-49-KIT	1	Lippert Trailer Axle 2000# Bare Beam 49" Hub Face 1.75" Tube Straight Short Spindle
TP-S200	2	Spring Perch for 1.75" Axle Beam
