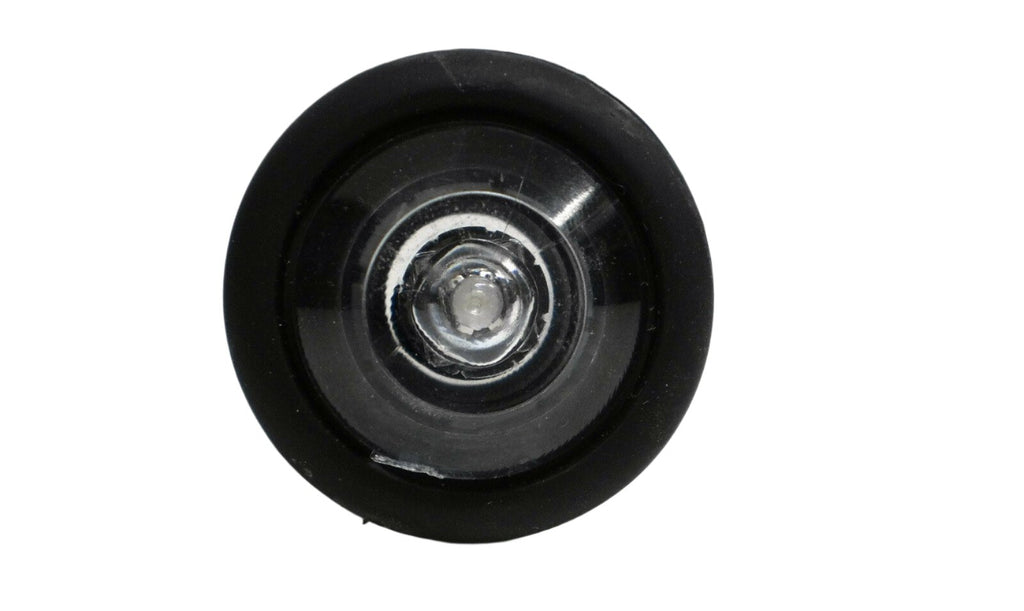

3/4" Amber LED Marker Light with Clear Lens – Grommet Mount Shortie
Part Number: 011-1530-1
This 3/4" amber LED marker light is designed for grommet mount installation on trailers, trucks, and custom builds requiring compact clearance lighting. The clear lens produces amber output while maintaining a clean appearance when not illuminated. Designed for applications requiring a 3/4" mounting hole, this light is commonly used for side marker or accent lighting. One light per order unless otherwise specified.
Features
- Amber LED output with clear lens
- Compact “shortie” design
- Grommet mount installation
- Requires 3/4" mounting hole
- Light outside diameter: 1"
- Grommet overall diameter: approximately 1.3"
- Shock resistant construction
- Manufactured with SAE approved polymers
R&P Knowledge Hub
LED marker lights provide visibility and compliance lighting for trailer and truck applications. Grommet mount lights install into a properly sized panel hole, where the rubber grommet secures and isolates the light from vibration.
Compact 3/4" lights are commonly used where space is limited or for supplemental clearance lighting. When replacing an existing unit, verify mounting hole diameter, lens color requirements, and panel thickness before ordering.
Specifications
| Specification | Details |
| Part Number | 011-1530-1 |
| Light Color | Amber (Clear Lens) |
| Mount Type | Grommet Mount |
| Required Mounting Hole | 3/4" |
| Light Outside Diameter | 1" |
| Grommet Overall Diameter | Approximately 1.3" |
| Construction | SAE Approved Polymers |
| Design | Compact Shortie Style |
Verify specifications before installation.
