Bolt-On Stake Pocket Set — Qty 16, Heavy-Duty Steel
Part Number: BS-1-LOT16

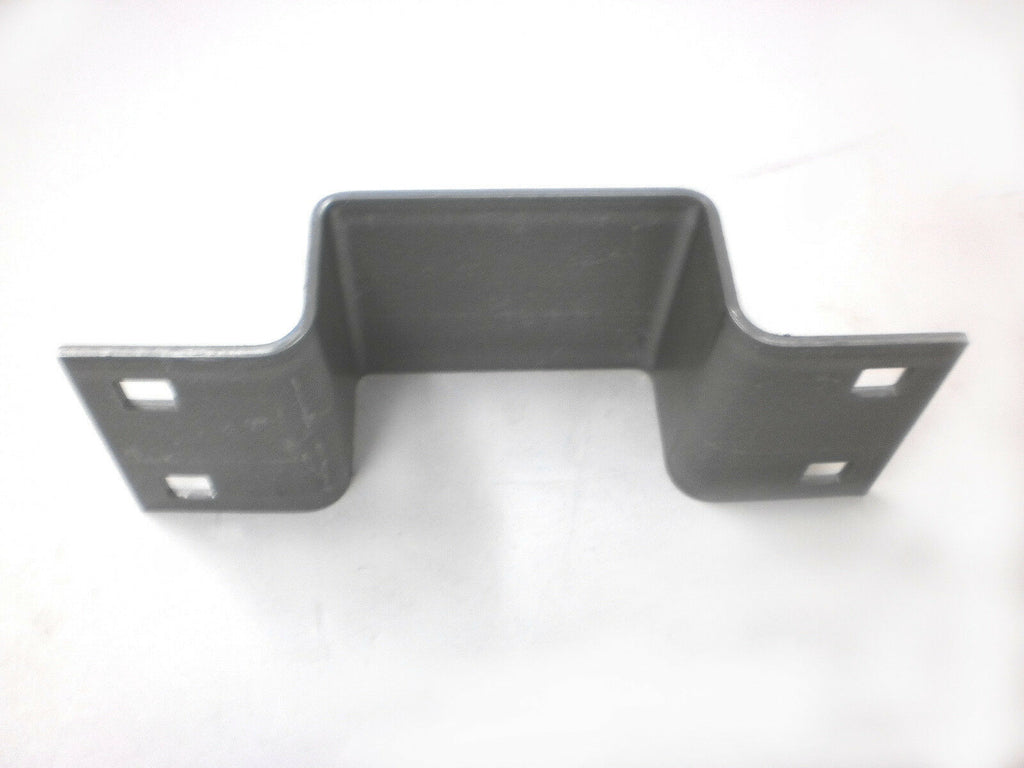

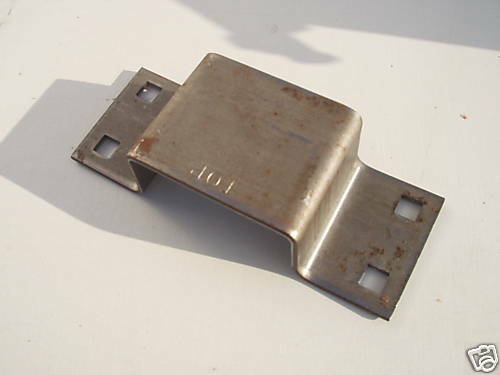

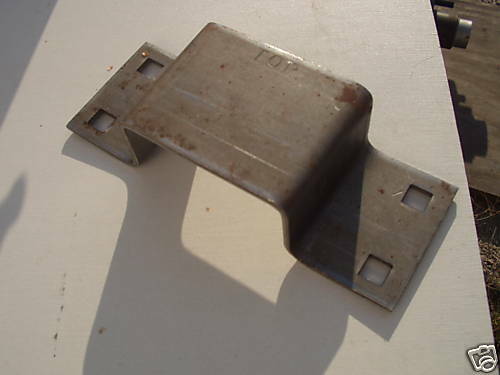

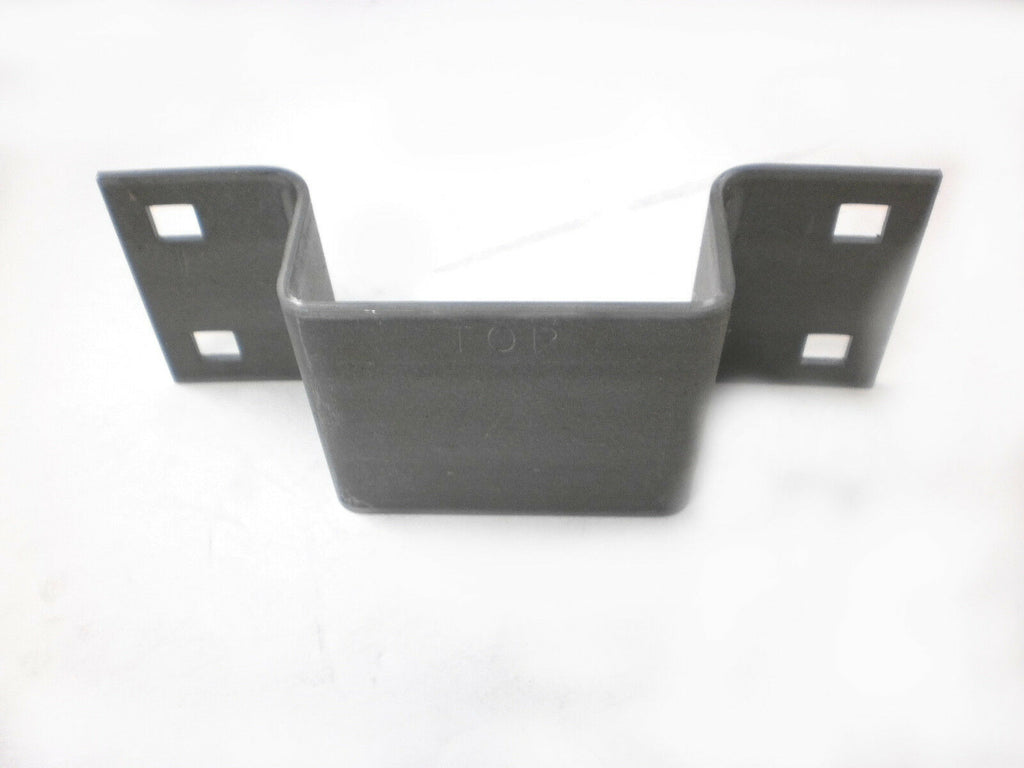

This listing includes sixteen (16) bolt-on stake pockets manufactured from heavy-gauge steel. These pockets provide durable mounting points for wood stake sides on trailers or truck beds. Each pocket is slightly tapered to allow boards to wedge securely once installed.
Features

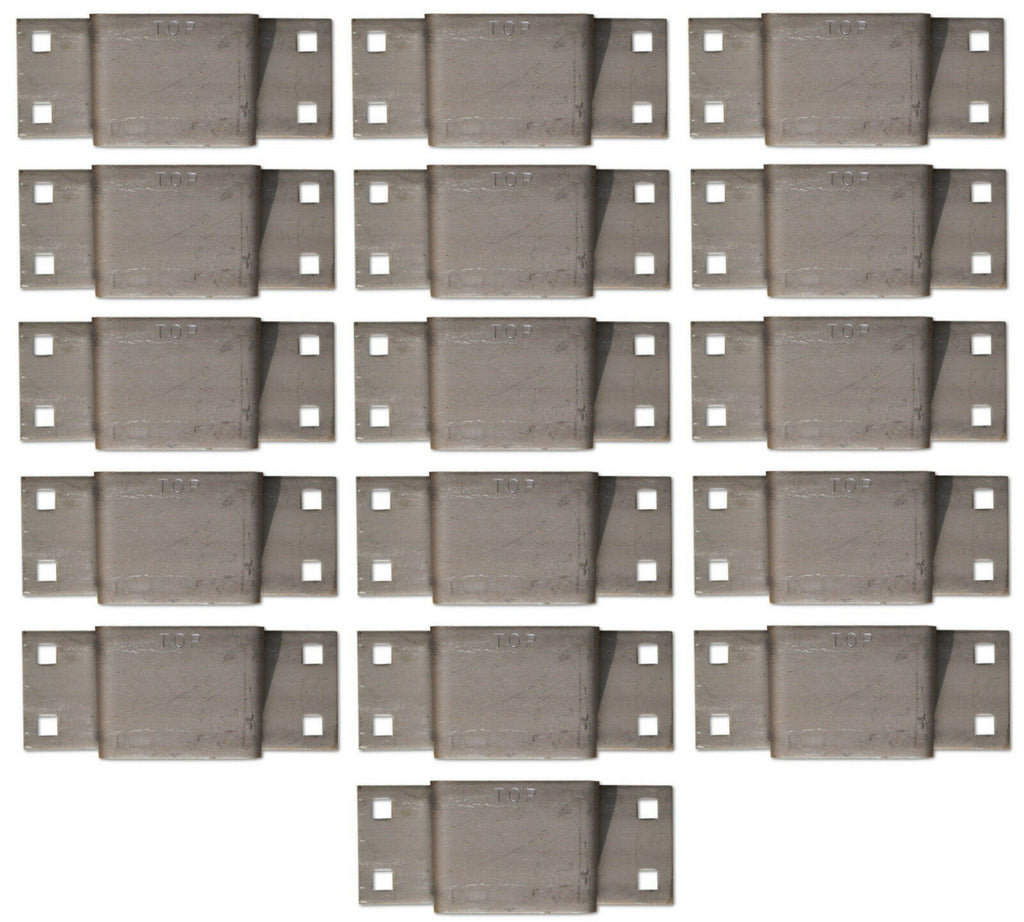

- Set of sixteen (16) bolt-on stake pockets
- Constructed from approximately 12-gauge steel
- Slightly tapered pocket design for improved board retention

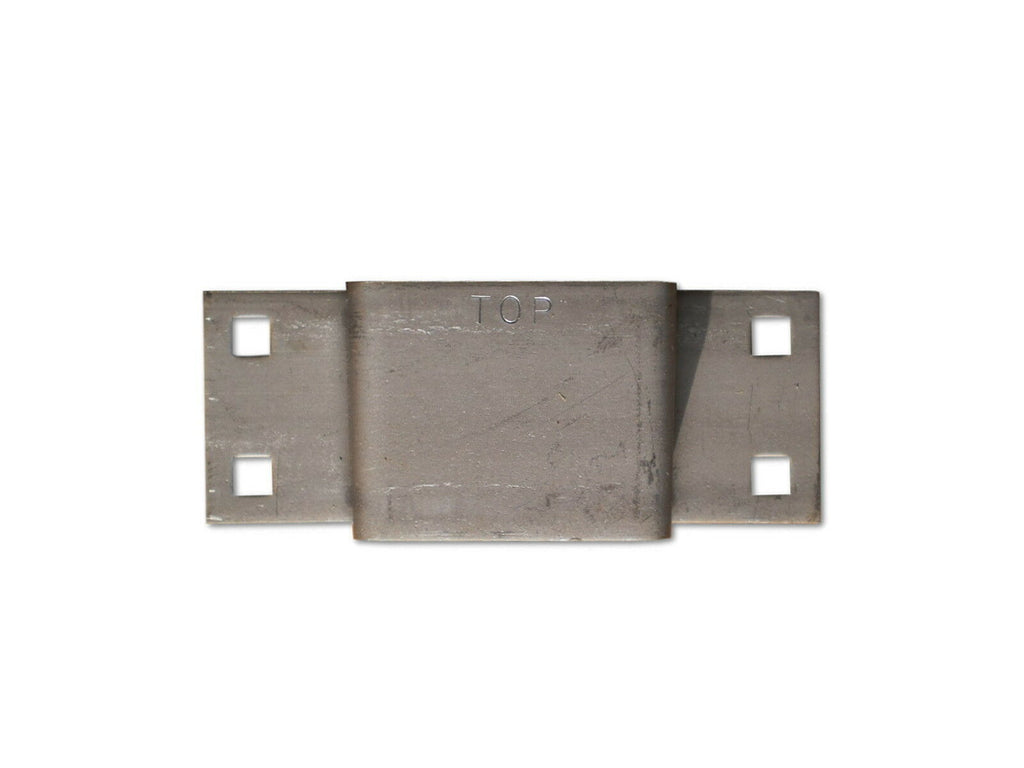

- Four square mounting holes suitable for carriage bolts
- Designed for use with common 2×4 lumber (taper cutting required)
Specifications
| Quantity | 16 stake pockets |
|---|---|
| Material | Steel (approx. 12 gauge) |
| Overall Height | 2-1/2" |

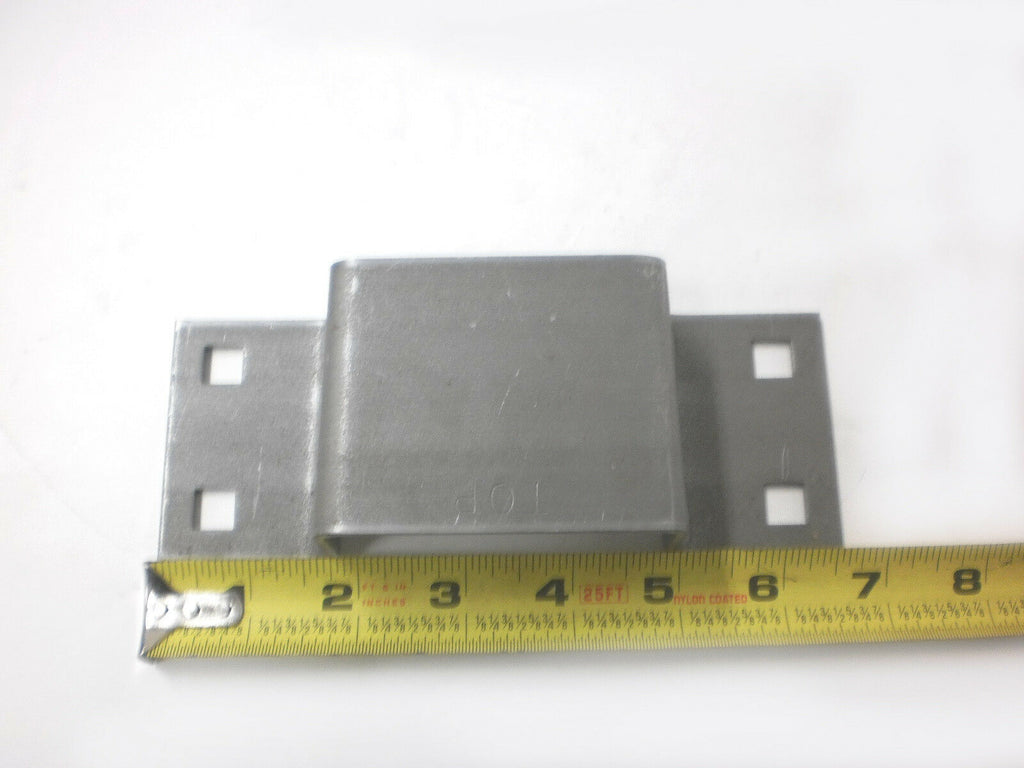

| Overall Width | 6-3/4" |

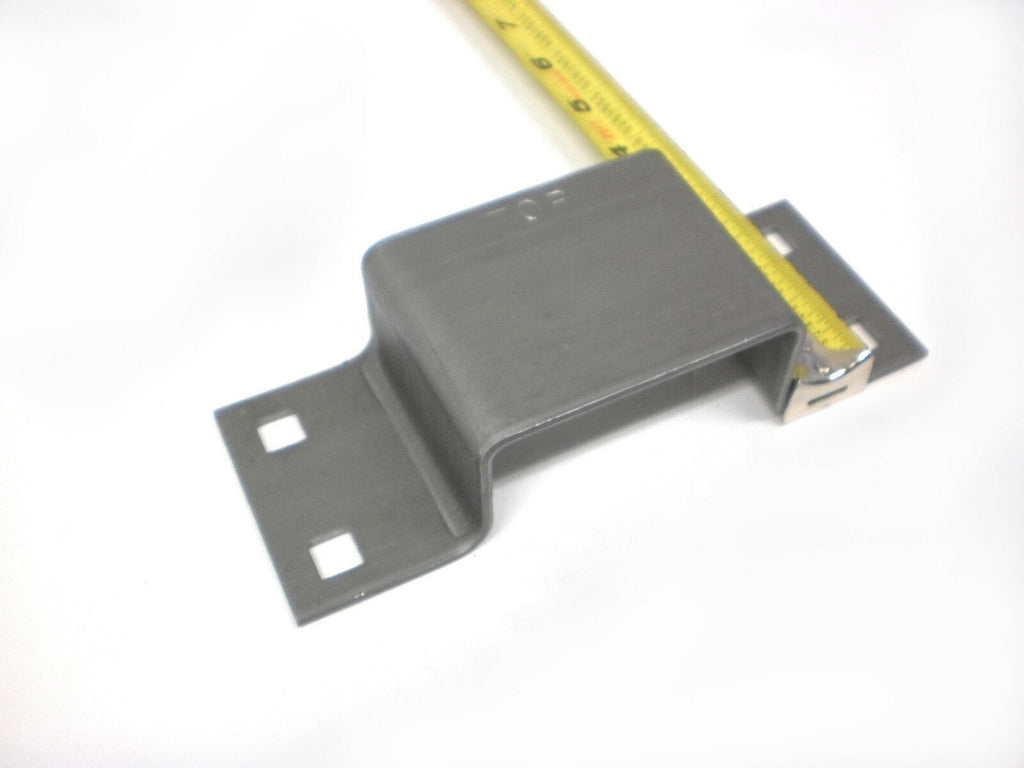

| Pocket Depth | 1-1/2" |

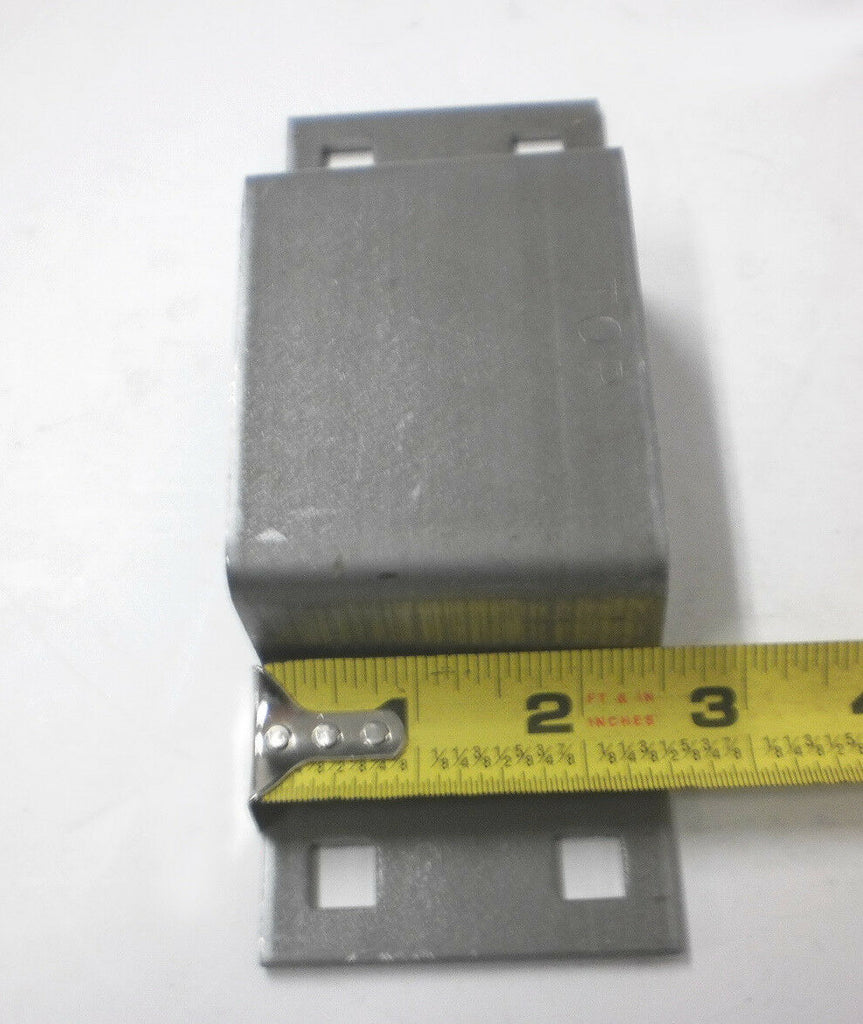

| Pocket Width (Top) | 3" |
| Mounting Holes | Four square holes, 3/8" |
| Hole Spacing | Approx. 1-1/2" × 5-5/8" (center to center) |
Common 2×4 lumber must be taper-cut to fit properly into each pocket. Verify measurements and mounting requirements before installation.
