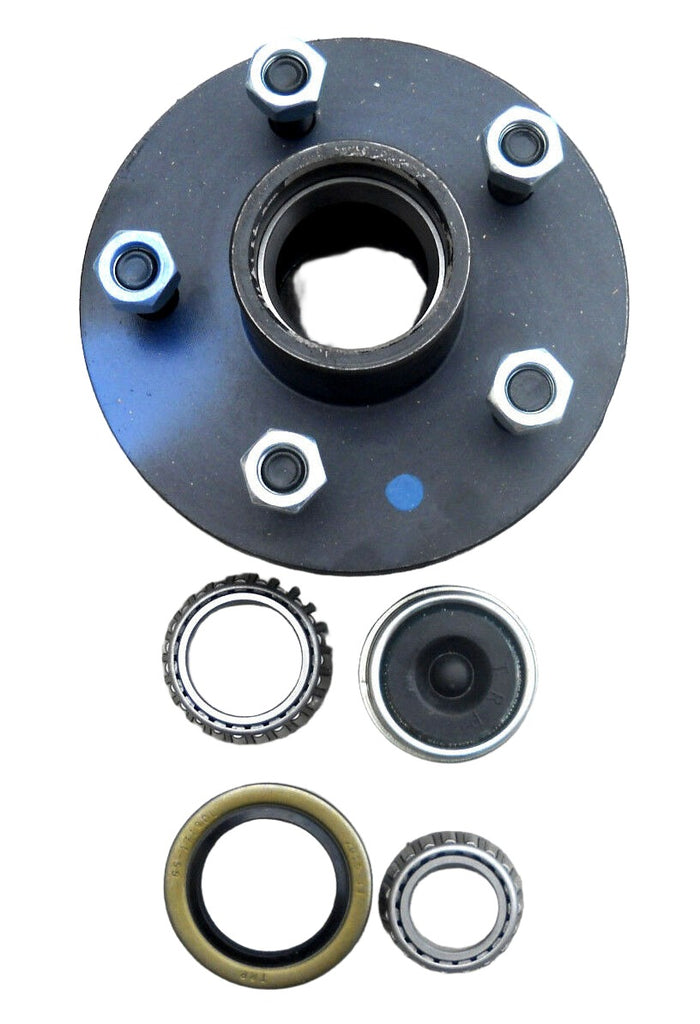

2- 5x4.5 Idler Hubs with 3500# Bearing Kits Replace Trailer Axle fit Dexter ALKO
Part Number: SH2RV545-KITX2

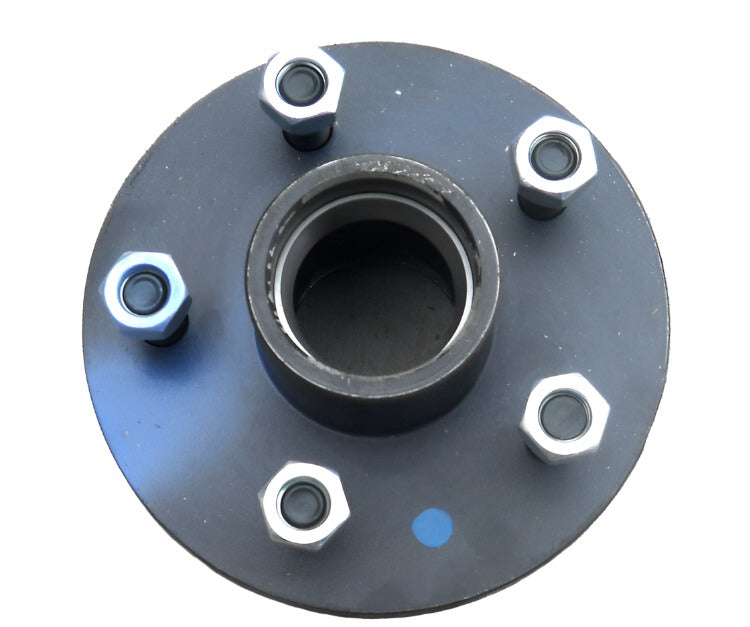

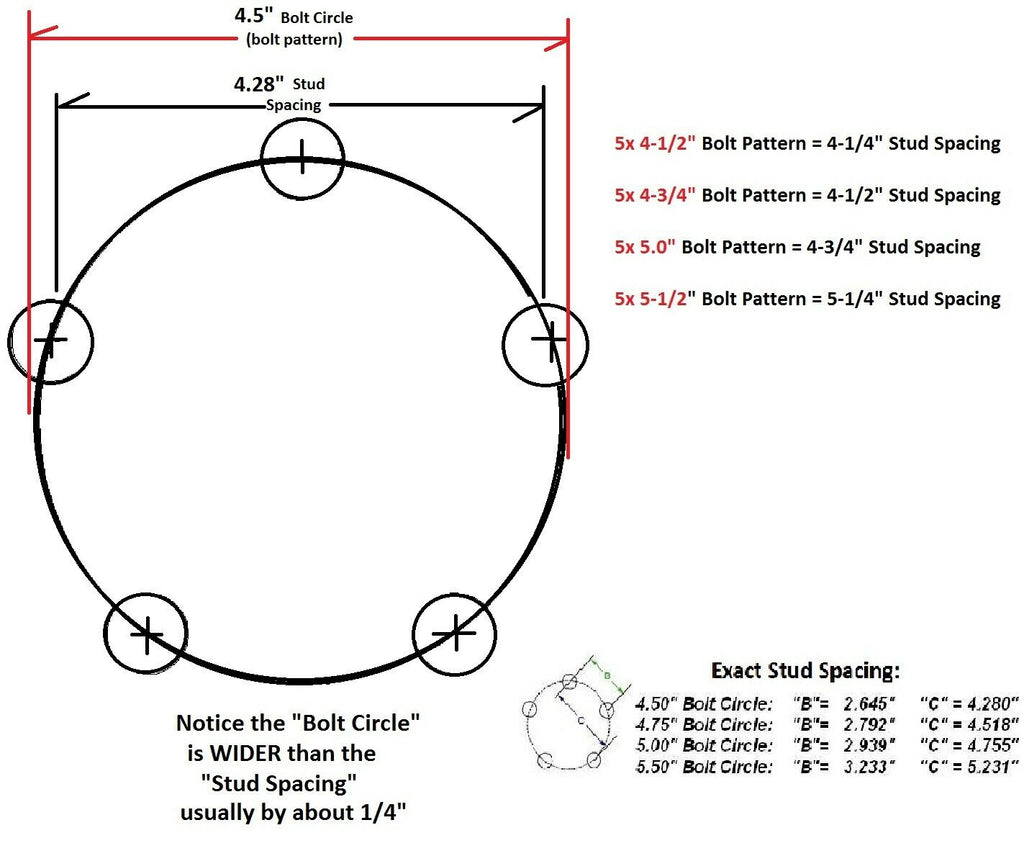

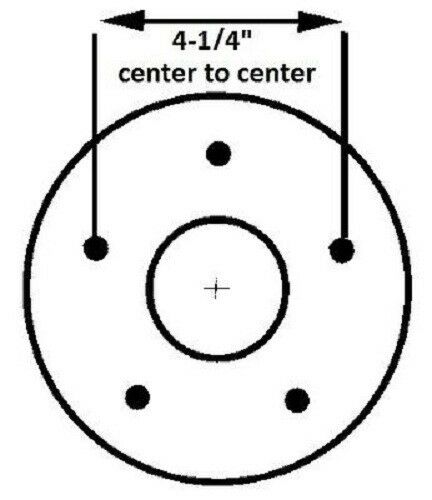

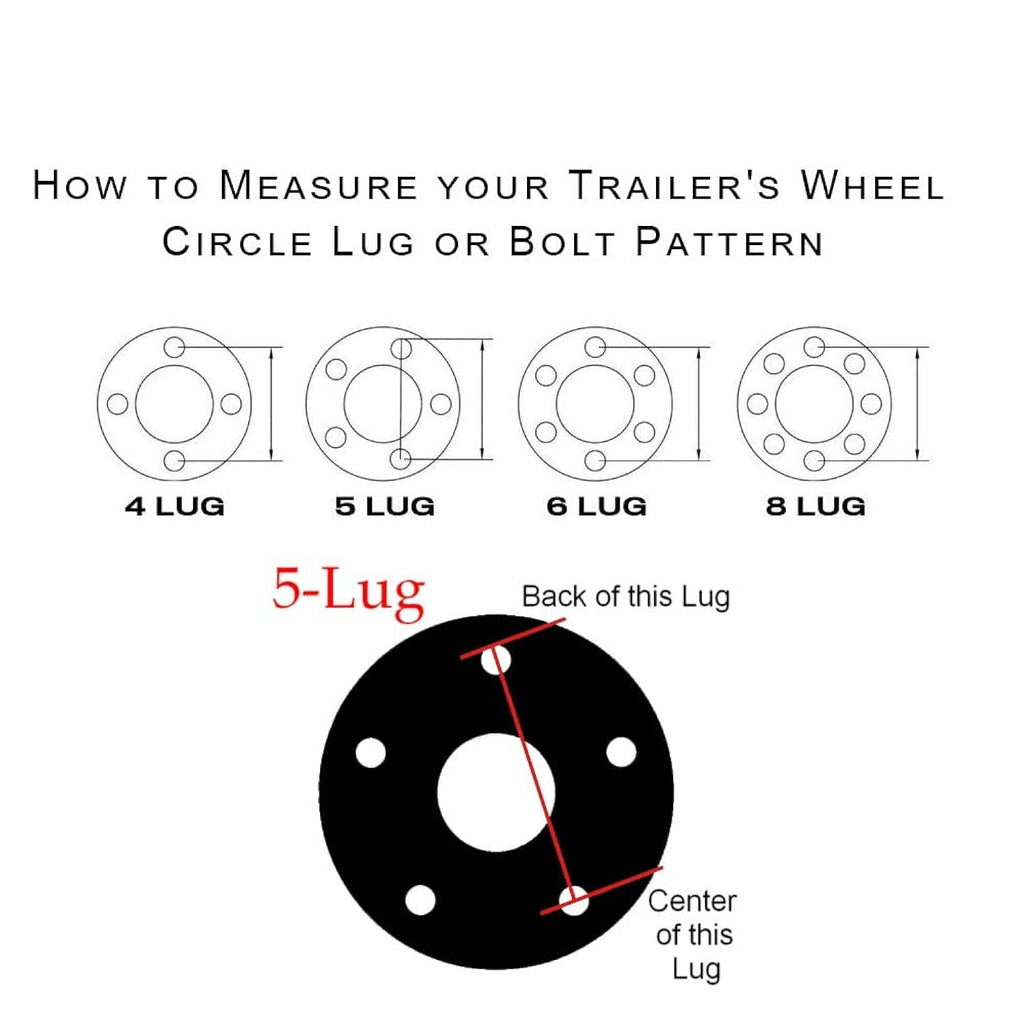

This hub fits a standard 3500 pound axle, either spring type or "torflex." Bolt pattern is 5 bolt on a 4.5" inch bolt circle. Studs are standard 1/2"-20 thread, spaced 4-1/4" apart. Please click here to figure out your bolt pattern.
Features
- Fits spindle #84, common on 3500 lb trailer axles
- Compatible with Dexter, AL-KO, Lippert, and Quality brands

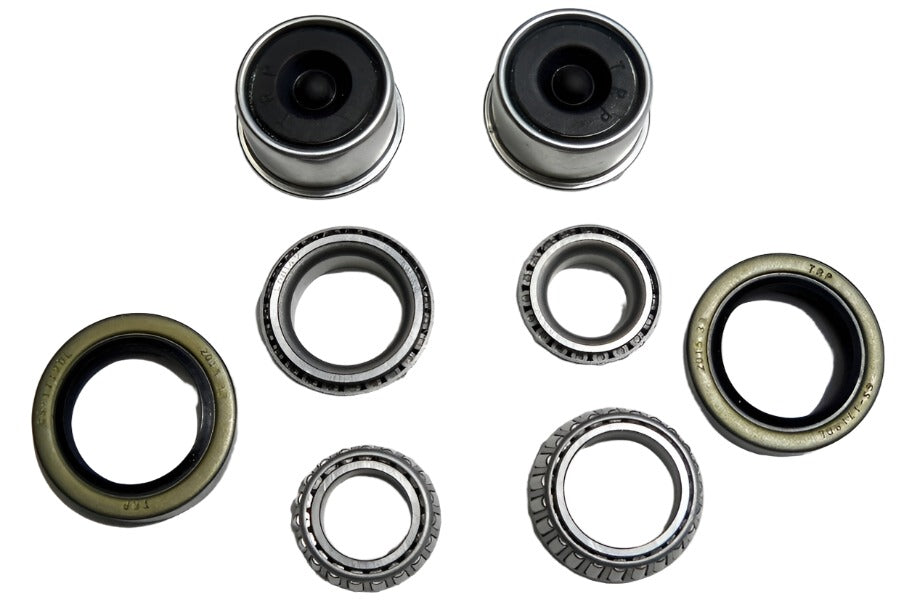

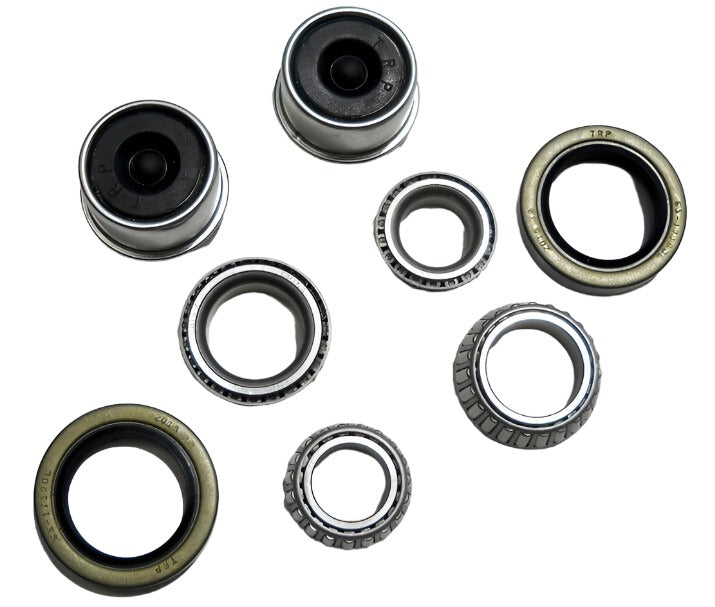

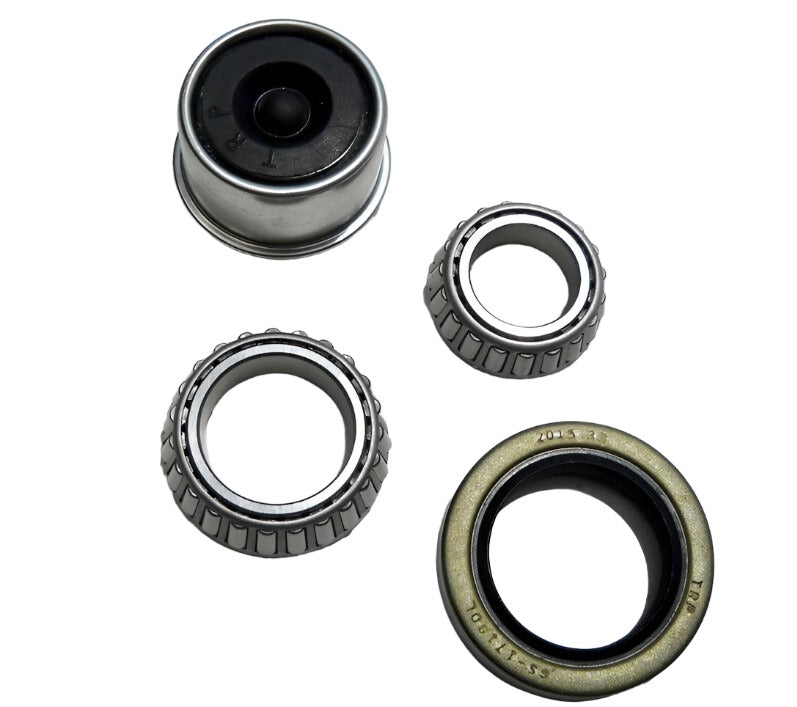

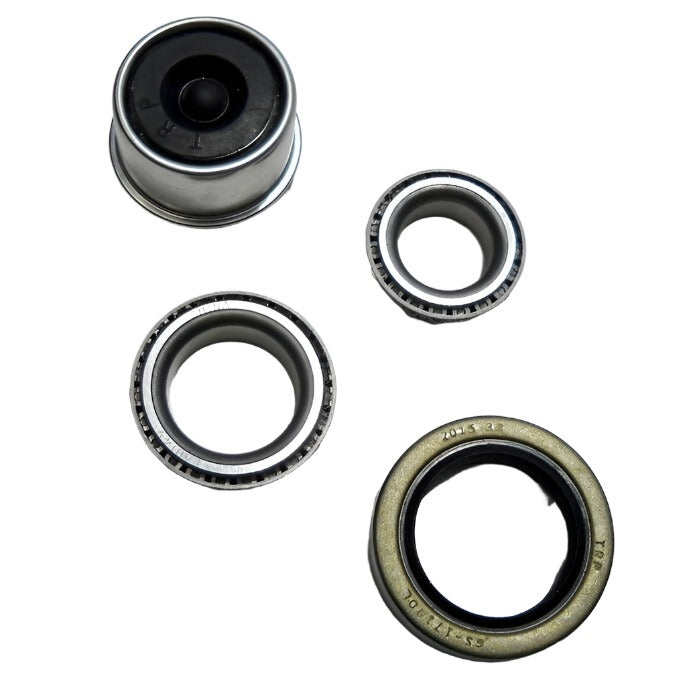

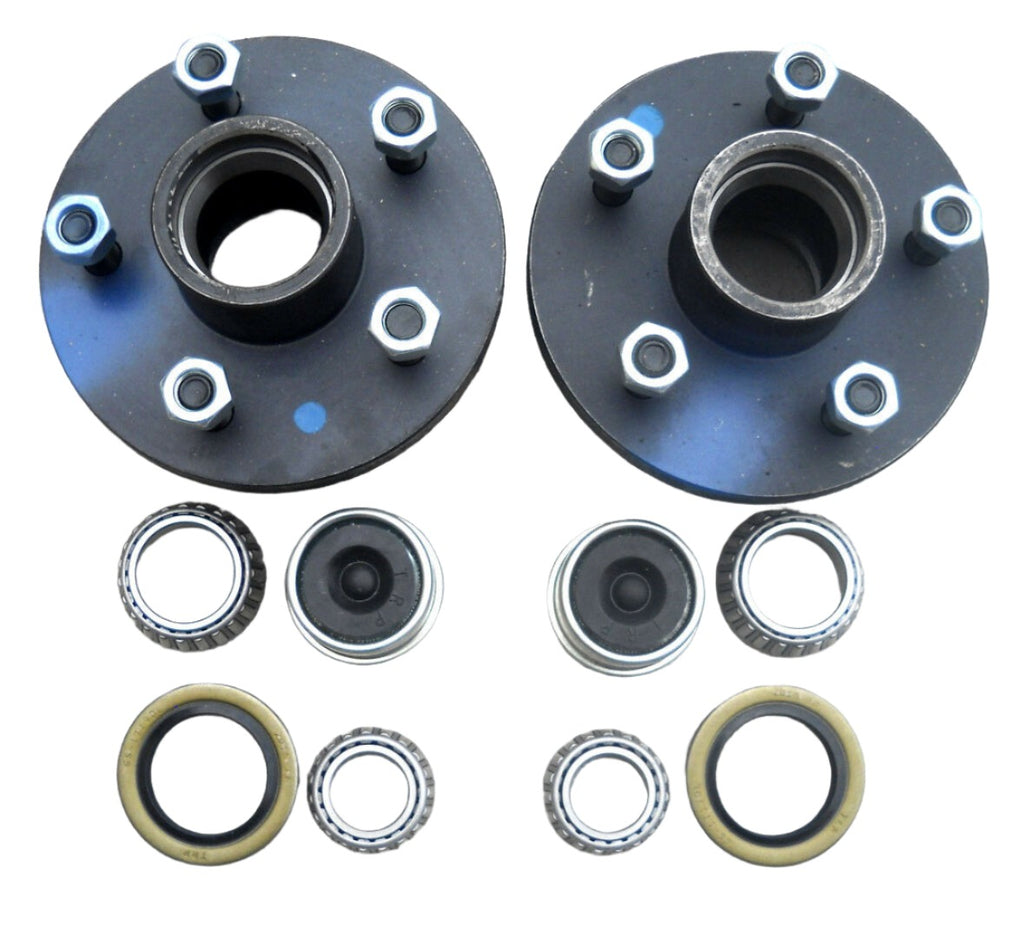

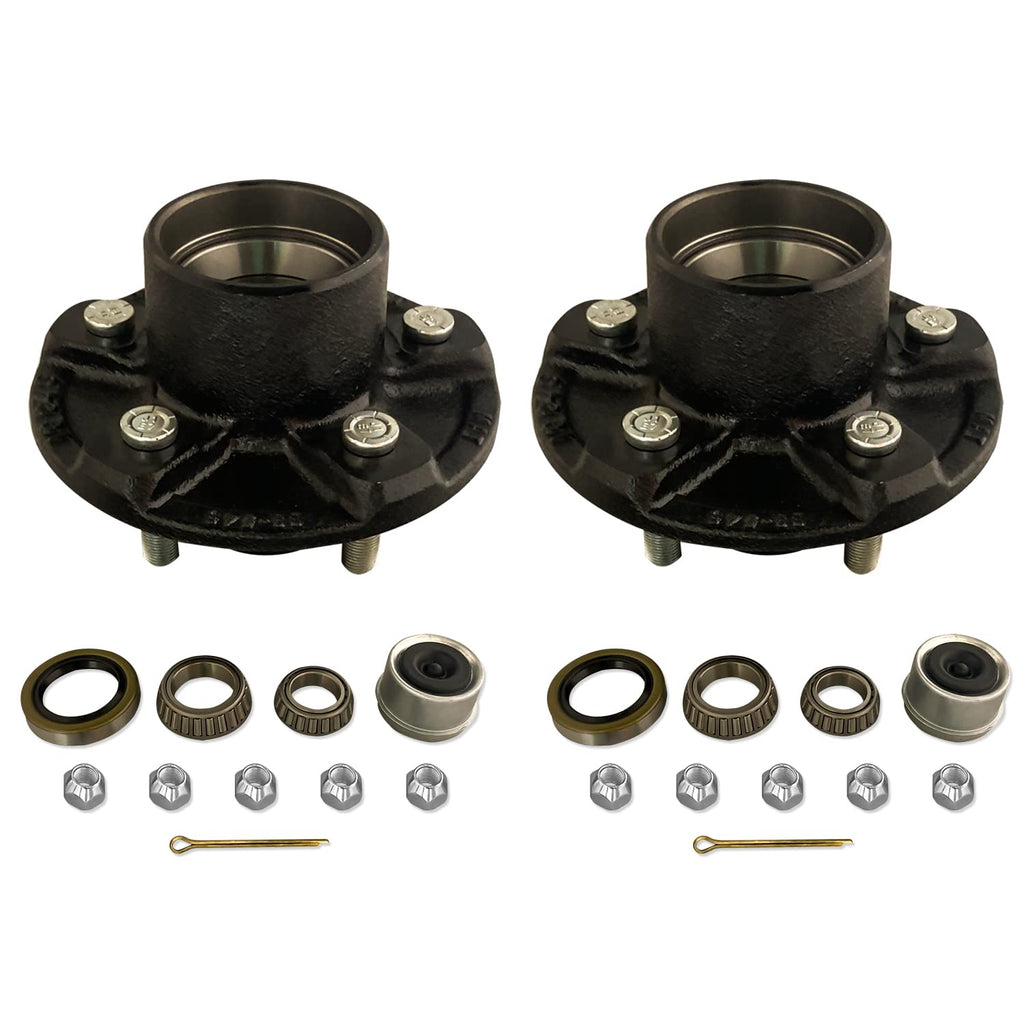

- Includes all bearings, races, seals, dust caps, and lug nuts
Specifications
| Specification | Detail |
|---|---|
| Bolt Pattern | 5 x 4.5" |

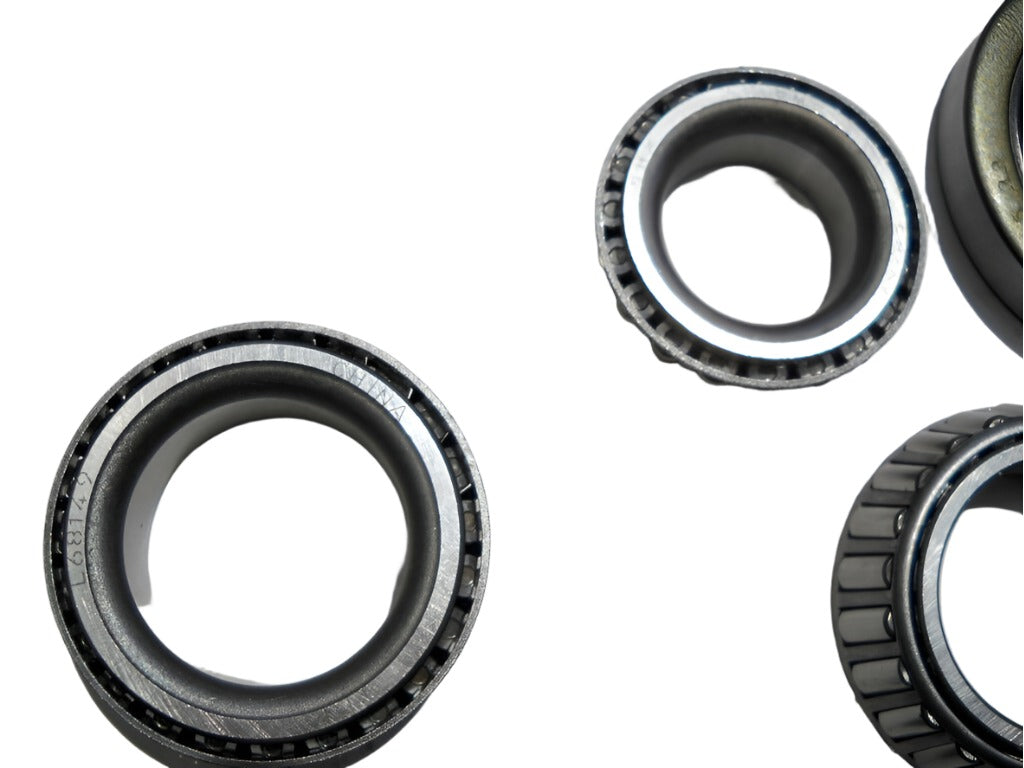

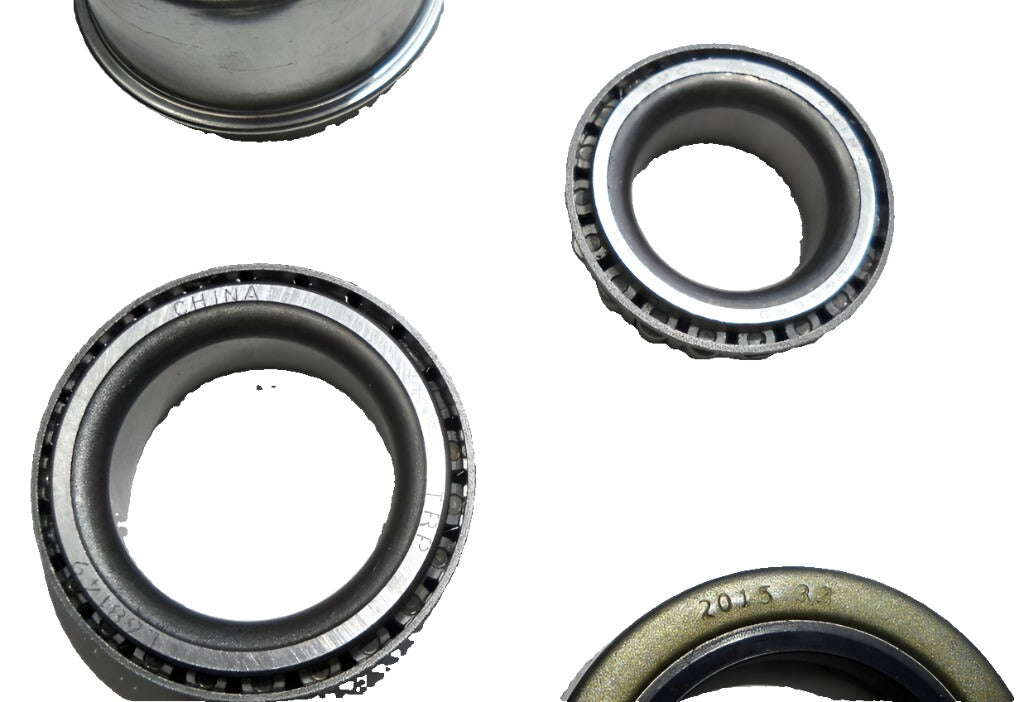

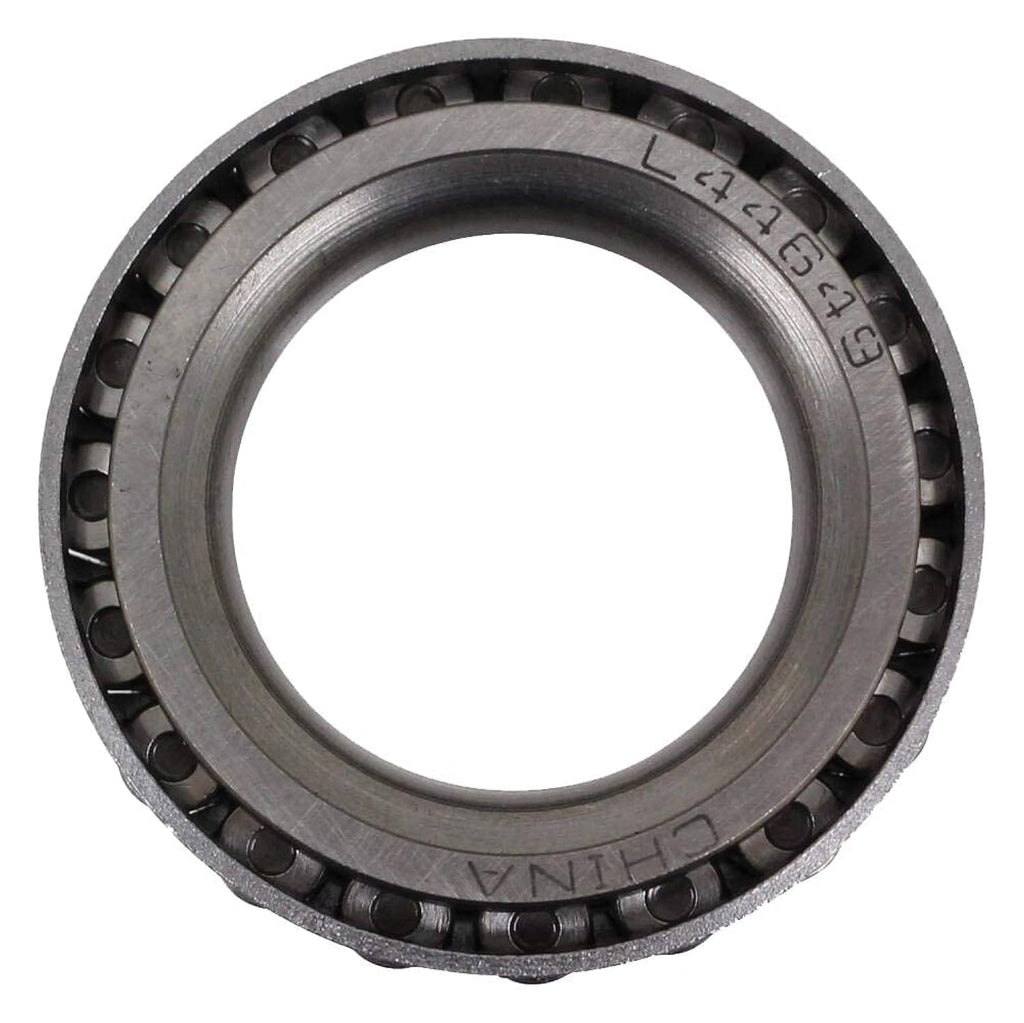

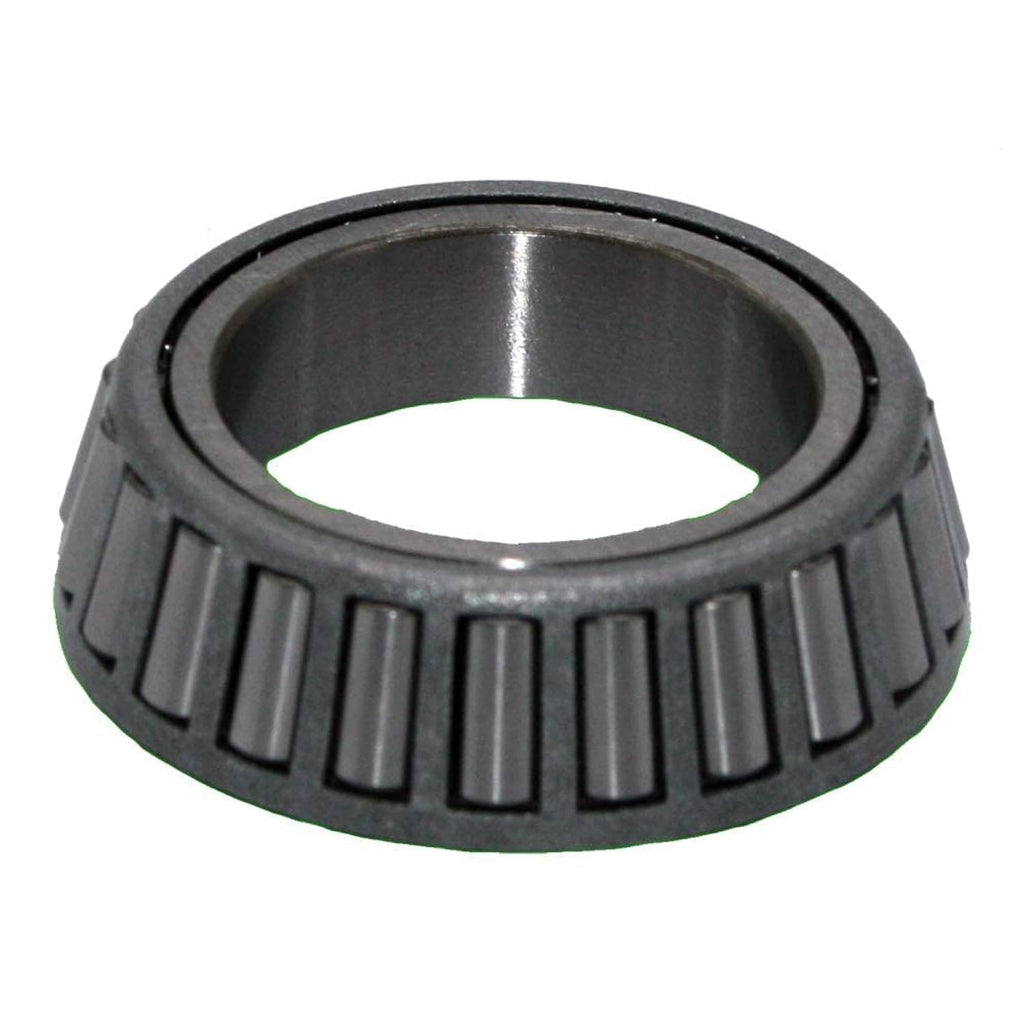

| Bearing #1 | L44649 (1-1/16") |
| Bearing #2 | L68149 (1-3/8") |

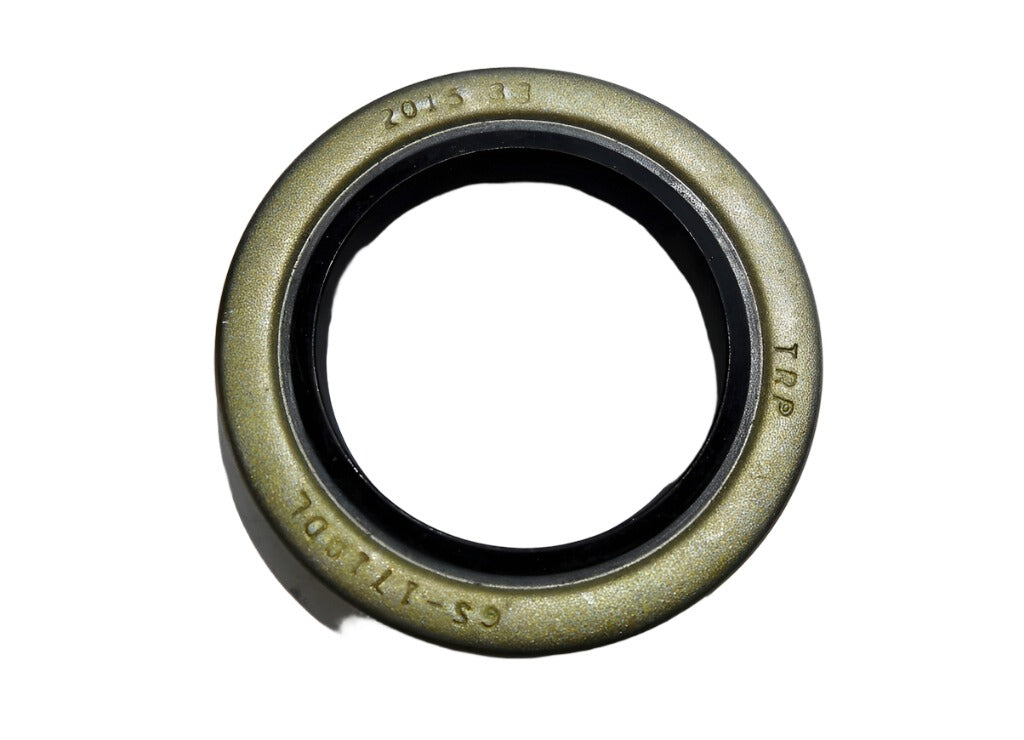

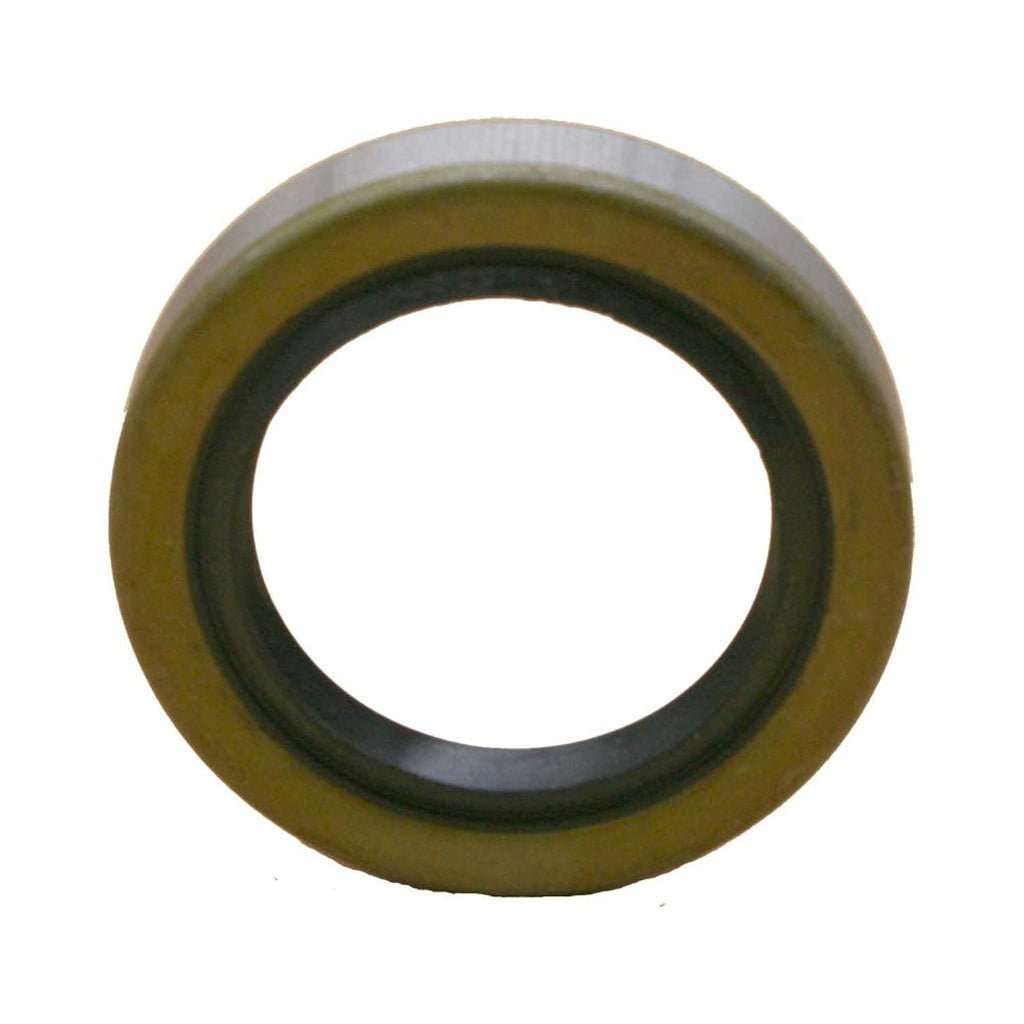

| Seal | 1.71" ID (PN: 10-19) |

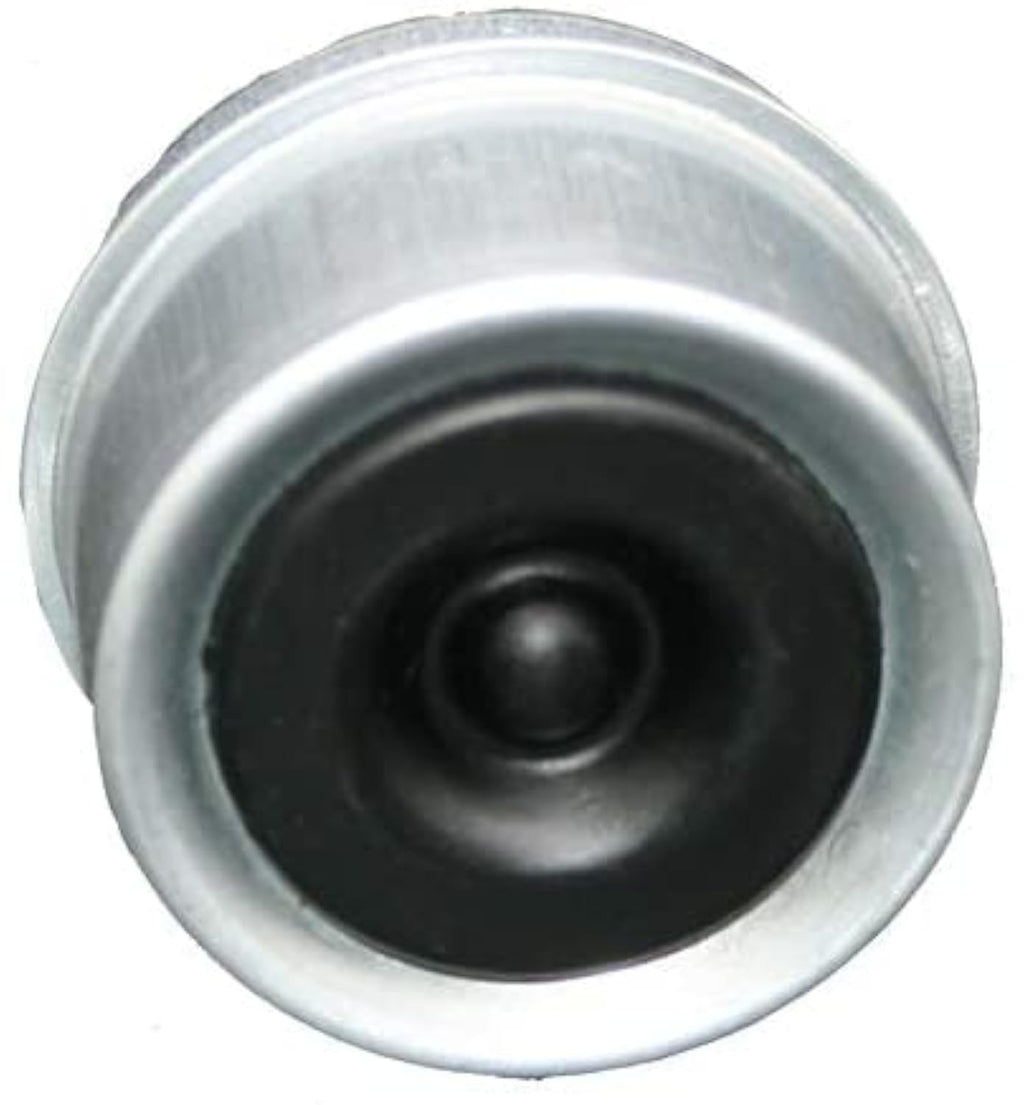

| Dust Cap | 1.98" with rubber plug |

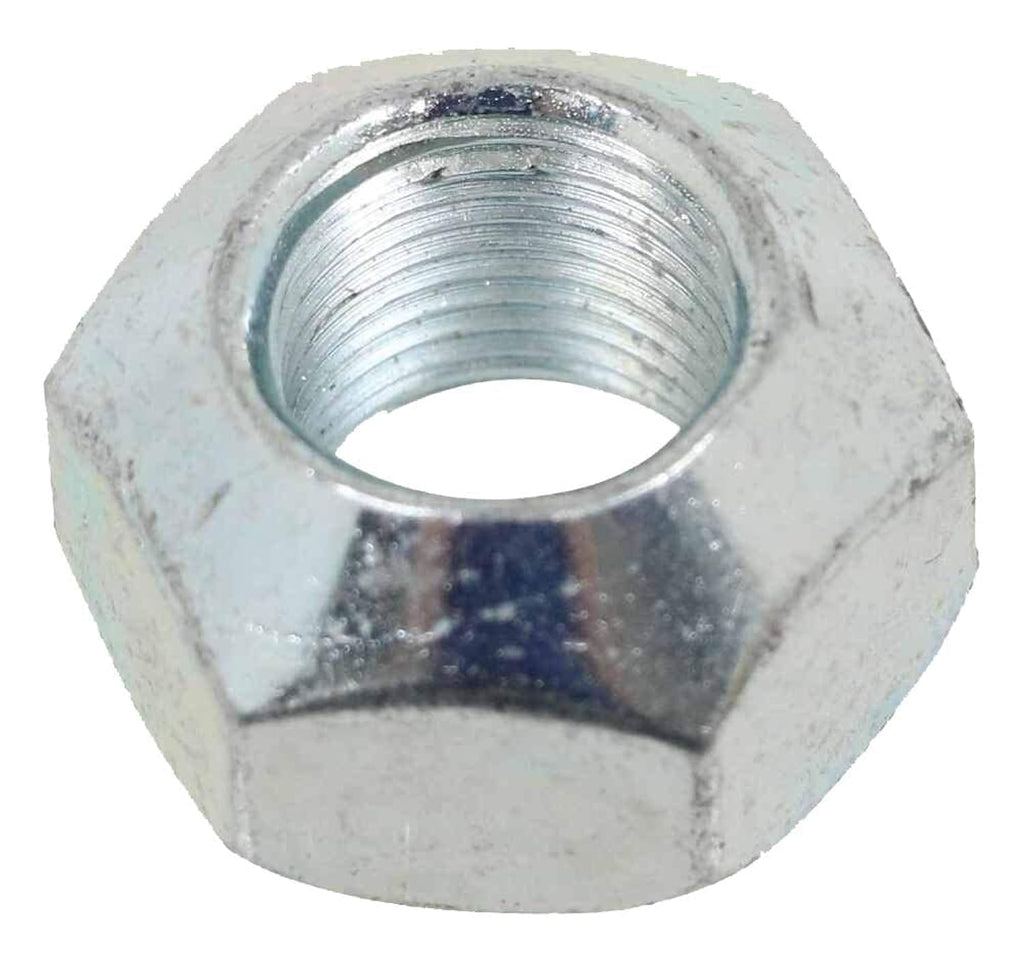

| Lug Nuts | 10x 1/2"-20 |
Will fit most Dexter, AL-KO, Quality, and Lippert axles using #84 spindle. Check your existing parts or dimensions before purchase. Hub appearance may vary based on stock.
Refer to the fitment chart below to ensure compatibility:
