2" Chrome Trailer Hitch Ball, 1-1/4" Shank, 2-3/4" Length, 13K Rated
A heavy-duty 2" trailer hitch ball built for serious towing applications, featuring a large 1-1/4" diameter shank, 2-3/4" shank length, chrome finish, and 13,000 lb rated capacity.
Overview
This 2" chrome trailer hitch ball is a high-capacity towing component designed for heavy-duty ball mounts with a 1-1/4" hitch ball hole. While many standard 2" hitch balls are commonly rated much lower, this configuration uses a large 1-1/4" shank to support a 13,000 lb capacity rating when properly matched with compatible towing equipment. The ball includes the nut and lock washer needed for installation.
R&P Service Insight
For a hitch ball in this capacity range, correct installation matters just as much as selecting the right ball size. The ball, mount, receiver, and trailer coupler must all be rated appropriately for the load being towed.
- Mount Hole Match: This ball is intended for heavy-duty ball mounts with a 1-1/4" hole.
- Torque Matters: A 1-1/4" shank hitch ball requires approximately 450 ft-lb of torque.
- Lowest-Rated Component: Your towing limit is controlled by the lowest-rated part in the system, not the hitch ball alone.
R&P Knowledge Hub
Compatibility: Fits trailer couplers designed for a 2" hitch ball and ball mounts with a 1-1/4" ball hole.
Vehicle / System Fit: Commonly used with heavy-duty receiver hitch ball mounts where a 2" coupler size and 1-1/4" shank are required.
Installation Notes: Verify the ball mount hole size, shank length, mounting thickness, washer/nut engagement, and torque requirement before towing.
Performance Insight: The oversized 1-1/4" shank is what helps this 2" ball reach a 13,000 lb rating when paired with properly rated towing equipment.
Brand & Fitment Note
Selling Brand: R&P Carriages
Application Reference: This listing is for a heavy-duty 2" trailer hitch ball with a 1-1/4" diameter shank and 2-3/4" shank length.
What This Means: This is a towing hardware component intended for compatible trailer ball mounts and 2" trailer couplers where the size, shank, and rating requirements match.
Before Ordering: Verify ball diameter, shank diameter, shank length, ball mount hole size, required capacity, and the ratings of your receiver, ball mount, and trailer coupler.
R&P Repair Insight
A hitch ball should never be selected by ball diameter alone. For safe towing, the shank diameter, shank length, torque spec, mounting hole size, and rated capacity must all match the towing setup.
- Check the Ball Mount: Confirm the ball mount has a 1-1/4" hole and is rated for the load you intend to tow.
- Check the Coupler: Confirm your trailer coupler is designed for a 2" ball and locks securely with minimal play.
- Check the Nut: Before towing, inspect the underside of the ball mount to make sure the nut has not backed off and the lock washer remains seated.
Installation Guide
| Step | Installation Detail |
|---|---|
| 1. Match the Mount | Make sure your ball mount has a 1-1/4" ball hole and is rated for the towing capacity needed. Do not use a reducer bushing in a larger hole unless the complete setup is specifically rated for the load. |
| 2. Clean the Surface | Wipe the mounting surface clean so the hitch ball base, lock washer, and nut can seat properly without dirt, scale, or debris between components. |
| 3. Insert and Sequence | Drop the shank through the ball mount, then install the lock washer first, followed by the nut. |
| 4. Torque the Nut | Torque the hitch ball nut to approximately 450 ft-lb for a 1-1/4" shank. A heavy-duty 3/4" or 1" drive torque wrench may be required. |
| 5. Prevent Rotation | Make sure the hitch ball does not rotate during tightening. Use the proper holding method for your ball mount and hitch ball design. |
Features
Heavy-Duty 13K Rating
Rated for 13,000 lbs when used with properly rated and compatible towing components.
Large 1-1/4" Shank
The oversized shank supports high-capacity towing applications and fits ball mounts with a 1-1/4" hole.
Chrome Finish
Chrome finish provides a clean appearance and helps protect the ball surface when properly maintained.
Includes Nut and Lock Washer
Supplied with the required nut and lock washer for installation onto a compatible heavy-duty ball mount.
Usage Best Practices
Correct use helps reduce wear, noise, and unsafe coupler movement during towing.
- Lubrication: Apply a thin layer of hitch ball grease or white lithium grease to the ball surface to reduce metal-on-metal wear and towing noise.
- Coupler Adjustment: After lowering the trailer onto the ball, make sure the coupler fully locks and does not have excessive play.
- Capacity Check: The hitch ball, receiver, ball mount, coupler, and trailer must all be rated for the load. The lowest-rated component determines the safe towing limit.
Cleaning & Maintenance
Chrome hitch balls perform best when kept clean, lubricated, and inspected before each tow.
- Post-Tow Wipe Down: Wipe off old grease after towing. Grease can trap road grit, which increases wear on the ball and coupler.
- Rust Prevention: If the chrome finish becomes scratched, protect the exposed area with a corrosion inhibitor.
- Storage Rule: Remove the ball mount from the receiver when not in use to help prevent seizing and reduce exposure to weather.
- Visual Inspection: Before every trip, check the nut, lock washer, ball surface, shank, and coupler engagement.
Specifications
| Specification | Detail |
|---|---|
| SKU / Part Number | 2-114-13C |
| Selling Brand | R&P Carriages |
| Product Type | Trailer hitch ball |
| Ball Diameter | 2" |
| Shank Diameter | 1-1/4" |
| Shank Length | 2-3/4" |
| Capacity Rating | 13,000 lbs |
| Material / Finish | Solid steel, cold-forged construction with chrome finish |
| Included Hardware | Nut and lock washer |
| Torque Requirement | Approximately 450 ft-lb for 1-1/4" shank hitch balls |
| Safety Standard | Meets VESC Regulation V-5 standards |
Fitment / Application
| Category | Details |
|---|---|
| Coupler Size | For trailers using a 2" coupler |
| Ball Mount Requirement | Requires a ball mount with a 1-1/4" hitch ball hole |
| Primary Use | Heavy-duty towing applications requiring a 2" ball with a high-capacity 1-1/4" shank |
| Important Note | Verify that the receiver, ball mount, trailer coupler, and trailer are all rated for the load being towed. |

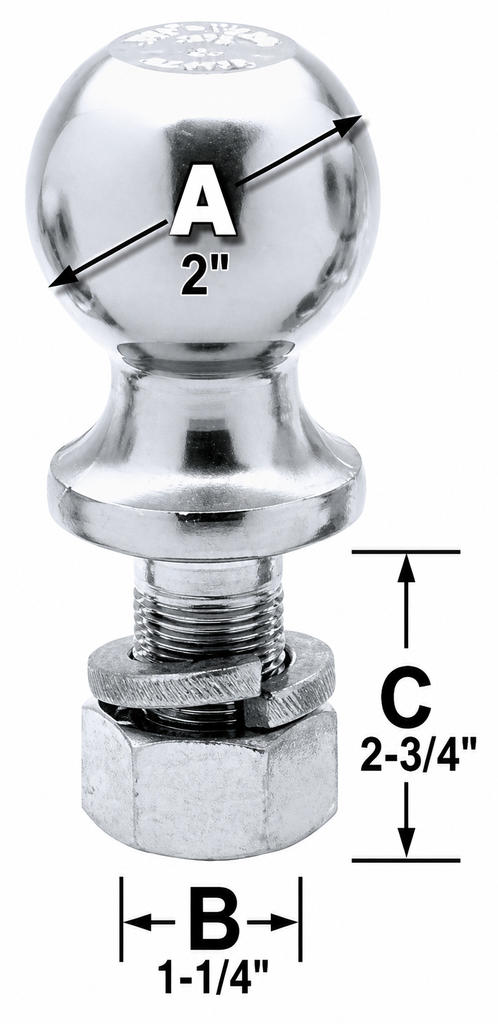

Measurement Guide
| Diagram Letter | Measurement | Correct Size |
|---|---|---|
| A | Ball Diameter | 2" |
| B | Shank Diameter | 1-1/4" |
| C | Shank Length | 2-3/4" |

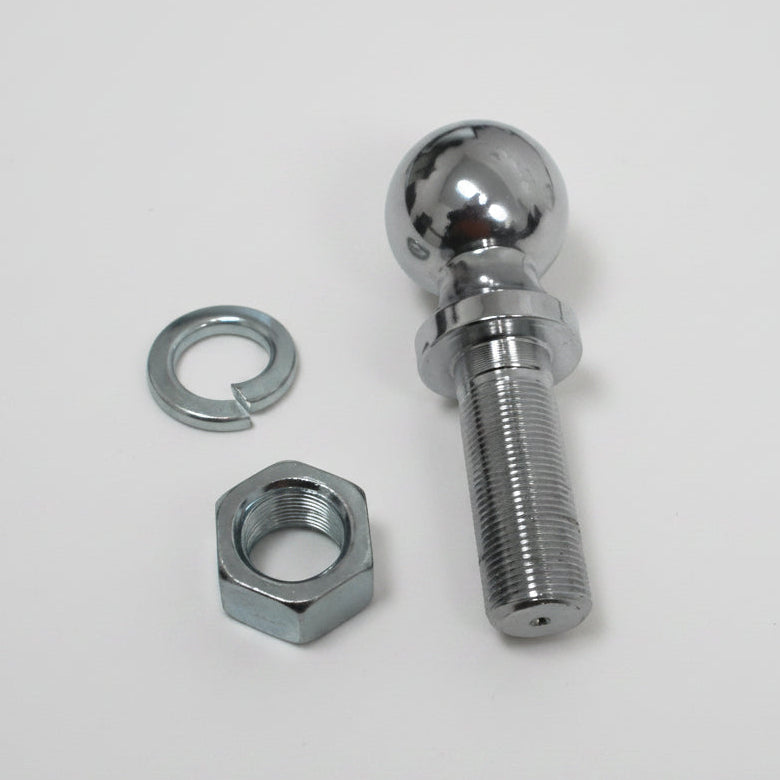

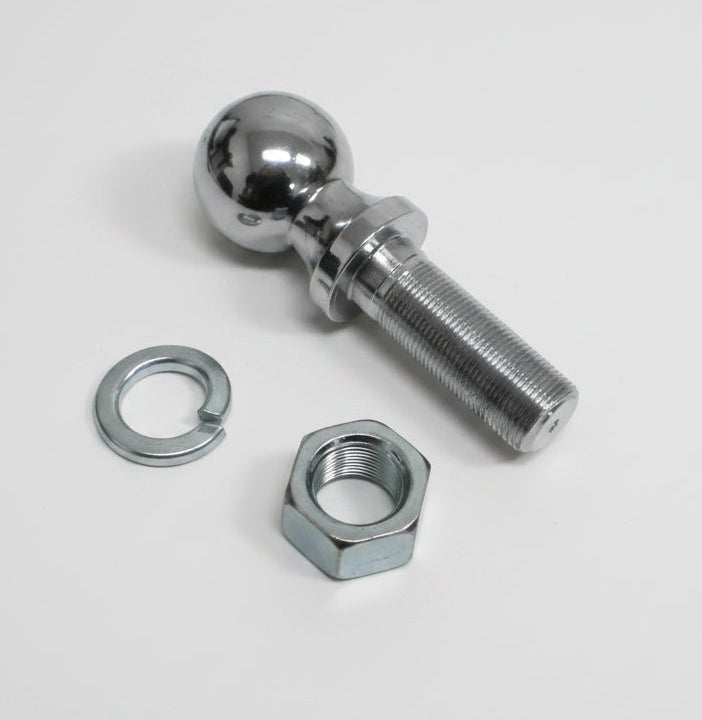

Included Components
| Quantity | Item |
|---|---|
| 1 | 2" chrome trailer hitch ball with 1-1/4" diameter shank |
| 1 | Nut |
| 1 | Lock washer |
