2 -Trailer Axle Spindle Seal Repair Sleeve Kit 5200, 6000, 7000 Axle #11 Spindo
Part Number - 5631U
2 - 3.38" OD Seal Spindo Seal Axle Repair Kit
Fits most 5200#, 6000# and 7000# Spindles (Dexter ALKO AXXIS)
Fits most 5200#, 6000# and 7000# Spindles (Dexter ALKO AXXIS)
Spindo Seal is a high quality seal system designed to end grease leakage. Seals will last many years because they ride on a permanently smooth, corrosion-proof surface constantly greased by the action of the pressurized bearing protector.
This Sleeve will repair Damages seal area on common 5200#, 6000# and 7000# Trailer axles (Dexter, ALKO and others)
This Sleeve will repair Damages seal area on common 5200#, 6000# and 7000# Trailer axles (Dexter, ALKO and others)

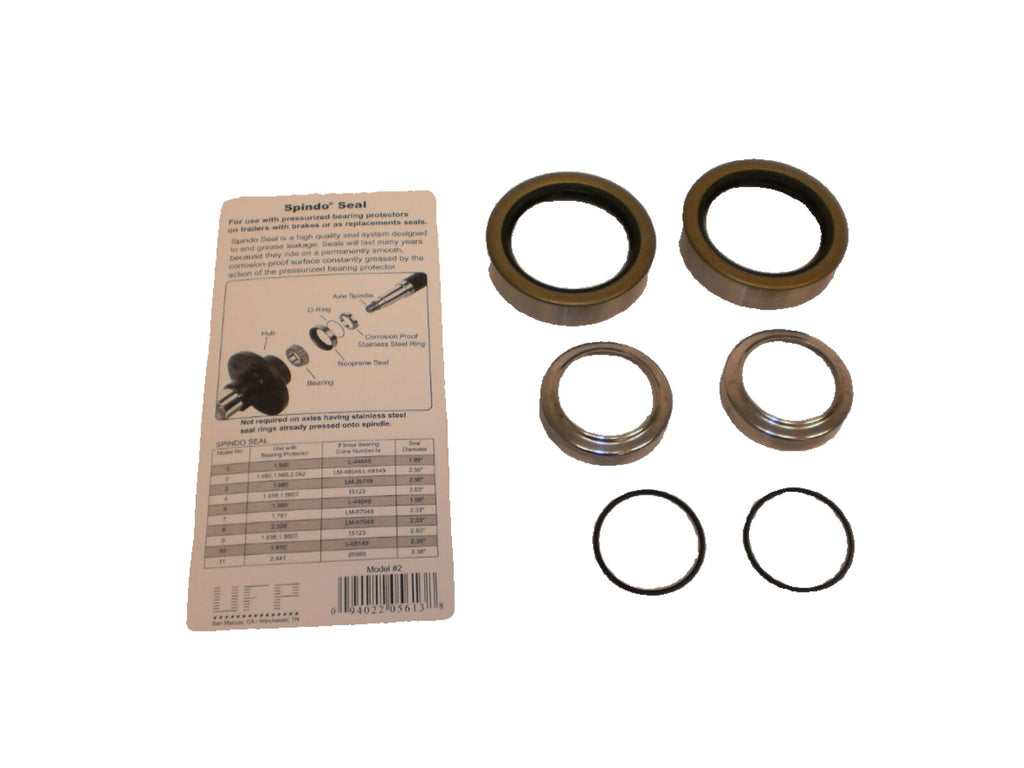

Kit includes:
[2] Corrosion Proof Stainless Steel Rings, 2.314" Inside, with 1.92" center (bearing shaft) hole
[2] Rubber O Rings, to seal the wear sleeve to the spindle
[2] Neoprene Seals. 2.314 ID, to fit the new wear sleeves.
That is enough to end Grease Leakage on an entire axle.
This Kit Fits:
Typical Inner Bearing Size: 25580 (1 3/4")
Seal Outside Diameter: 3.37" (common 6 and 8 lug trailer wheels)
KIT #11 BELOW:
Read This:
This kit works with all Common 5200#, 6000# and 7000# axles from Dexter, ALKO, and others.
These axles have a 1.75" ID inner bearing, and either 2-1/8" or 2-1/4" ID grease seal.
The repair sleeve in this kit is 2.314" so it will go over the damage seal area (either 2.125 or 2.250)
Seal Outside Diameter: 3.37" (common 6 and 8 lug trailer wheels)
KIT #11 BELOW:
Read This:
This kit works with all Common 5200#, 6000# and 7000# axles from Dexter, ALKO, and others.
These axles have a 1.75" ID inner bearing, and either 2-1/8" or 2-1/4" ID grease seal.
The repair sleeve in this kit is 2.314" so it will go over the damage seal area (either 2.125 or 2.250)

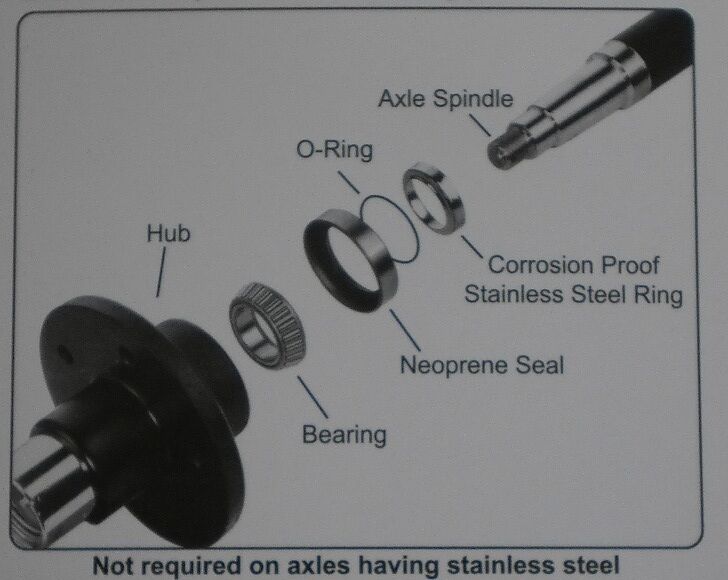

Below is a Diagram of How this Kit works:
