 New 2000# Trailer Axle 70" Hub Face5x4.5" Hubs, 25.25" Leaf Springs and U Bolt Kit Part Number: 2000-70-5LUG-2525

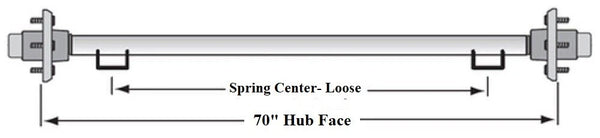

They are USA made, standard 2000# trailer axles. They have standard 5x4.5" hubs that have the common 1-1/16" bearings found on many trailers. In short, not some import axle that you cant get parts for. The parts for this axle are at any NAPA store! The spring seats are sent LOOSE* The hub face is 70" (see pictures above)
Leaf Springs are 25.25" eye to eye, standard 9/16" bolts. Nylon bushings already pressed in.
Standard U Bolt Kit (Tie Plates, U Bolts, & Nuts)
Standard 5x4.5" Idler Hubs
*Spring centers will be sent loose for the customer to weld on, unless specified by the customer on their location. We need to know the center of leaf spring bolt to the center of opposite leaf spring bolt. We also need to know whether the perches are on top or bottom of the axle.
If you do not specify then the perches will be sent loose.

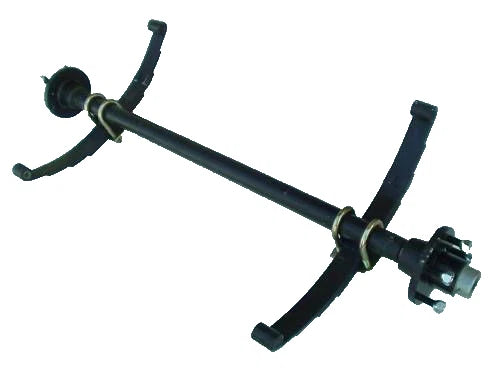

We do have the spring hanger kits to install. We also offer many other parts you may need to build a trailer, just see my other items. We can ship these anywhere within the 48 states of the USA!! Look at the pictures, they show more detail. Click on any picture for a larger detailed image
|
