 New Complete 2000# Trailer Axle 60" Hub Face 5x4.5" Hubs 24.5" Slipper Springs with UBolt Kit
Part Number: 2000-60-5LUG-WIH4
They are USA made, standard 2000# trailer axles. They have standard 5x4.5" hubs that have the common 1-1/16" bearings found on many trailers. In short, not some import axle that you cant get parts for. The parts for this axle are at any NAPA store! This axle would be perfect for someone building a small trailer to haul or pull behind a motorcycle, or any small ATV or camper type trailer. They would work well for a pontoon boat trailer axle! The Springs are sent LOOSE, unless specified at time of purchase. Wheel centers (hub face) is 60" wide.
So, it would be perfect for a 50" wide deck trailer.

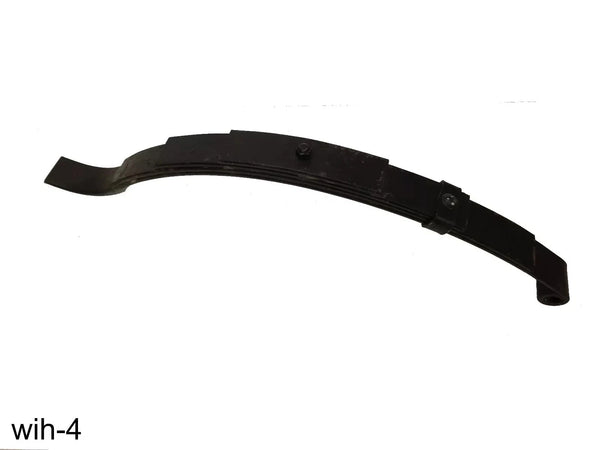

Leaf springs/spring bolts are 24.5" eye to end, taking the standard 9/16" bushing (which is included)

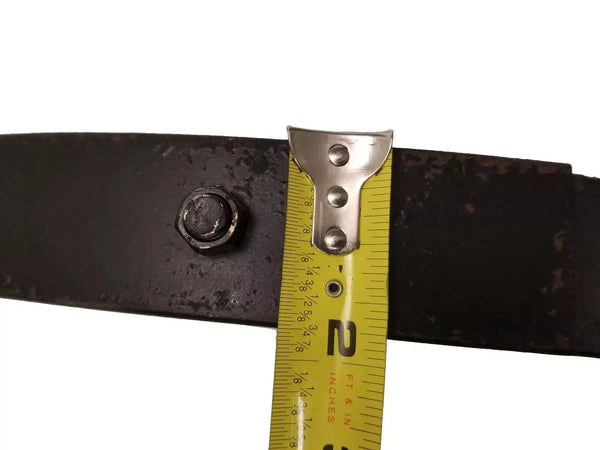

The leaf spring is rated for 1000# with 4 leaf. Common 1.75" wide spring. Pressed in is the 9/16" Nylon Bushing.

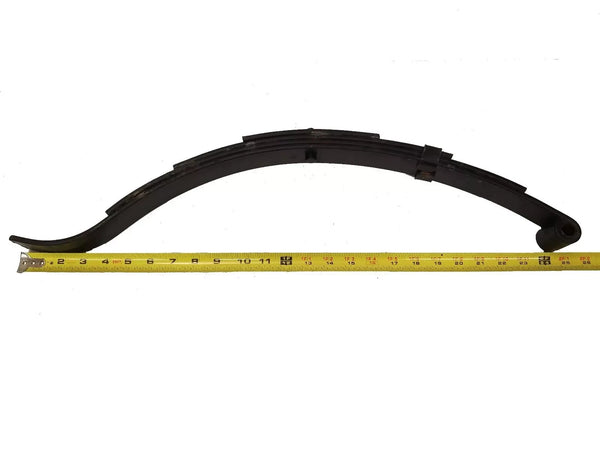

Measures 23-1/8" Bolt Center to Slip Area
It takes standard 5 x4.5" trailers wheels (like used on 90% of trailers on the road) and also common on Many Dodge and Ford (and other) cars. (also known as 5x114)
|
