Weld-On Brake Backing Plate Mounting Bracket – 7" & 10" Trailer Brakes
Brake Flange – Weld-On Style

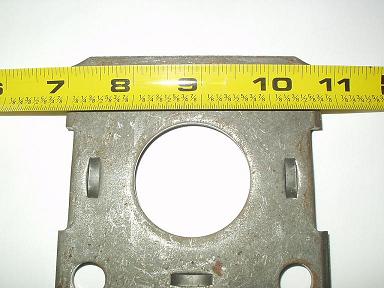

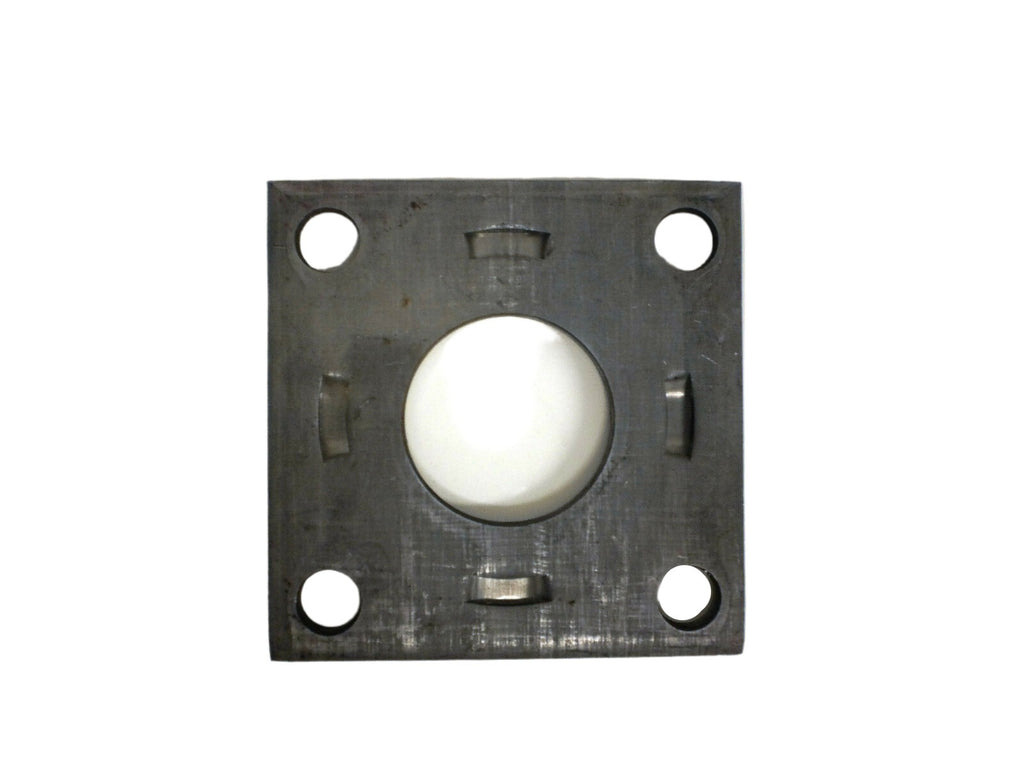

This weld-on brake backing plate mounting bracket allows trailer builders or repair technicians to add electric drum brakes to a trailer axle that does not already have a brake flange installed.
The bracket is welded directly to the axle tube and provides the standard four-bolt square mounting pattern used by most modern 7" and 10" electric trailer brake assemblies.
Features
- Weld-on brake flange bracket
- Compatible with most 7" and 10" electric trailer brakes
- Standard four-bolt square backing plate pattern
- Backing plate mounts with four bolts
- Designed to be welded directly to the axle tube
- Heavy steel construction
R&P Knowledge Hub
Brake flanges are welded to a trailer axle to provide the mounting surface for electric drum brake backing plates. Most modern 7-inch and 10-inch electric brake assemblies use a standardized four-bolt square mounting pattern. When installing a weld-on flange, the bracket must be aligned square to the axle spindle so the brake assembly sits correctly with the hub and drum. Proper positioning and welding are important to ensure correct brake alignment and braking performance.
| Specification | Details |
| Product Type | Brake Backing Plate Mounting Bracket |
| Brake Compatibility | 7" and 10" Electric Trailer Brakes |
| Mounting Pattern | 4 Bolt Square Brake Flange |
| Bracket Size | Approximately 3-3/4" × 3-3/4" |
| Hole Spacing | Approximately 2-7/8" On Center |
| Center Hole | Approximately 1-1/2" (punched opening) |
| Installation | Weld-On |
| Quantity | 1 Bracket |
Verify specifications before installation.
