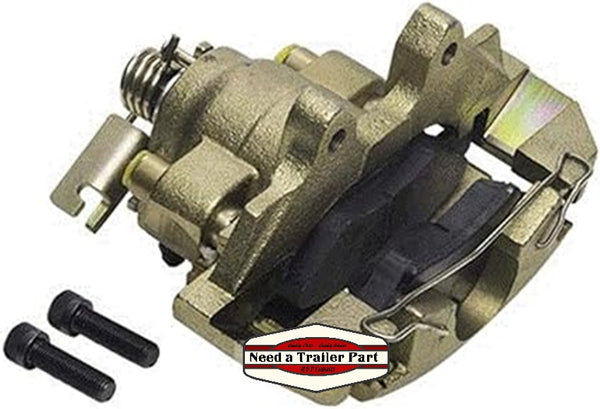

Dexter / UFP 41275R – DB-35 Hydraulic Disc Brake Caliper (Right Hand, with Parking Brake Feature)
The Dexter / UFP 41275-R is the genuine right-hand caliper assembly used on DB-35 hydraulic disc brake systems equipped with a manual parking brake feature. Designed for 3,500 lb trailer axles, this heavy-duty caliper ensures dependable stopping performance for both marine and land-based trailers that require a mechanical parking brake.
| Part Number | 41275-R |
| Position | Right Hand (Passenger Side) |
| Brake Type | Hydraulic Disc – DB-35 Series |
| Parking Brake Feature | Yes – Integrated Lever Arm for Cable-Actuated Locking |
| Axle Rating | 3,500 lb |
| Mount Type | 2-Bolt Slide Pin Mount to DB-35 Bracket |
| Piston Material | Stainless Steel |
| Caliper Body | Cast Aluminum, Dacromet-Coated |
| Brake Fluid | DOT-3 or DOT-4 Hydraulic Brake Fluid Only |
| Compatible Rotors | Dexter / UFP DB-35 Hub-Rotor (054-127-00 / 054-127-22) |
| Replacement Pads | 41234 / 41257 Pad Set |
| Includes | Pre-loaded Pads, Slide Pins, Dust Boots, and Parking-Brake Lever |
Applications & Use-Cases
- OEM replacement for Dexter / UFP DB-35 hydraulic disc brake systems
- Used on boat, cargo, and utility trailers requiring a mechanical parking brake
- Ideal for tandem-axle setups needing manual locking during storage or loading
- Marine-grade Dacromet finish for corrosion resistance in salt or freshwater environments
- Pair with matching 41275-L for left-hand installation
Sold individually. Right-hand (passenger side) only — order 41275-L for the driver side. Confirm your brake system type (DB-35) before purchasing to ensure compatibility.
