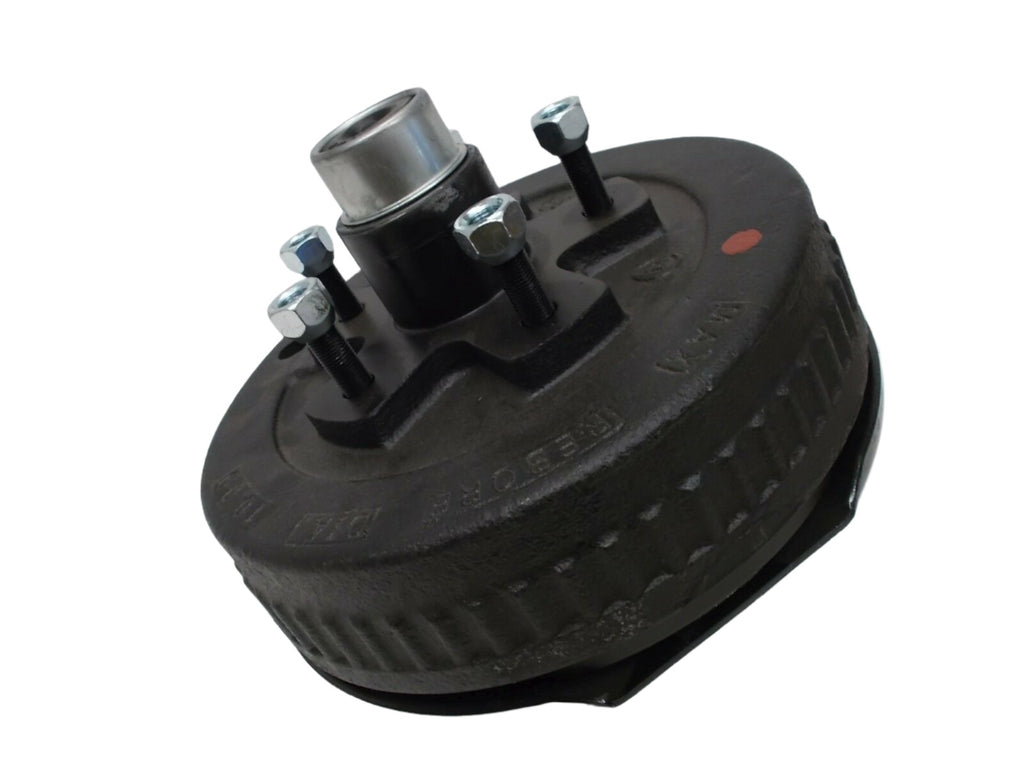

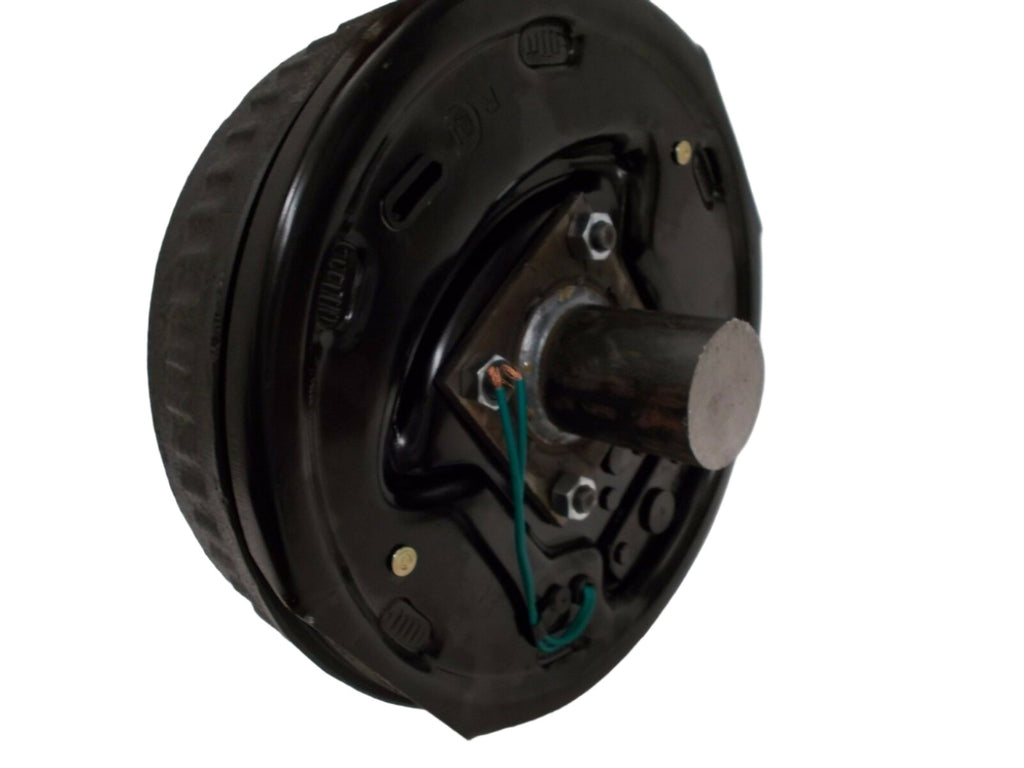

5 x 5 Left Side Brake Assembly Spindle Kit Stub End Unit Trailer Axle 3500 84 (STUB-84-550-DL)

R & P Carriages

Regular price $114.99

5 x 5 Left Side Brake Assembly Spindle Kit Stub End Unit Trailer Axle 3500 84

Part Number - STUB-84-550-DL

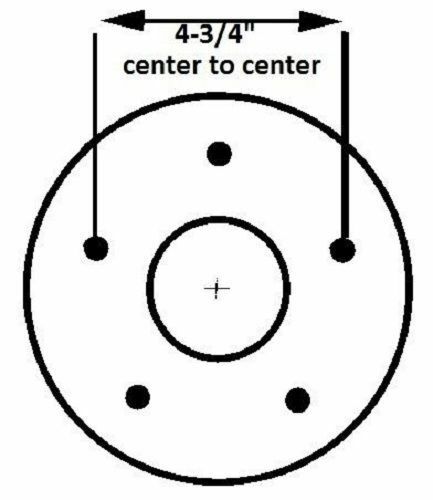

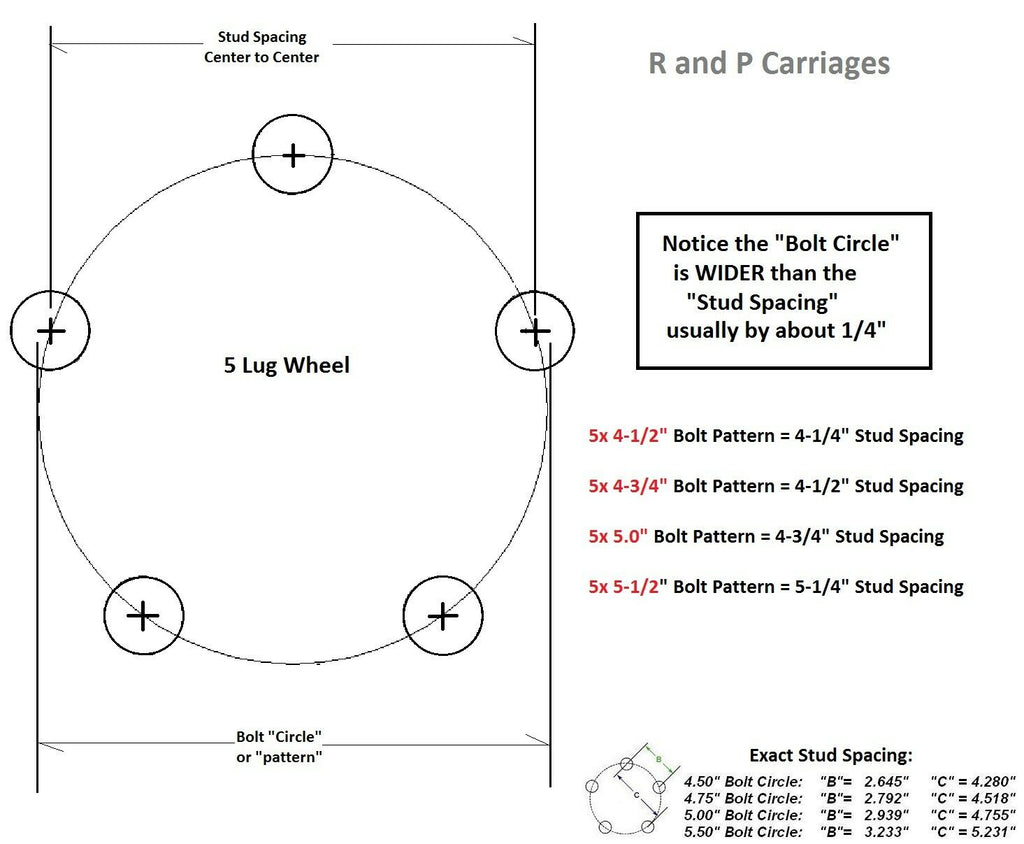

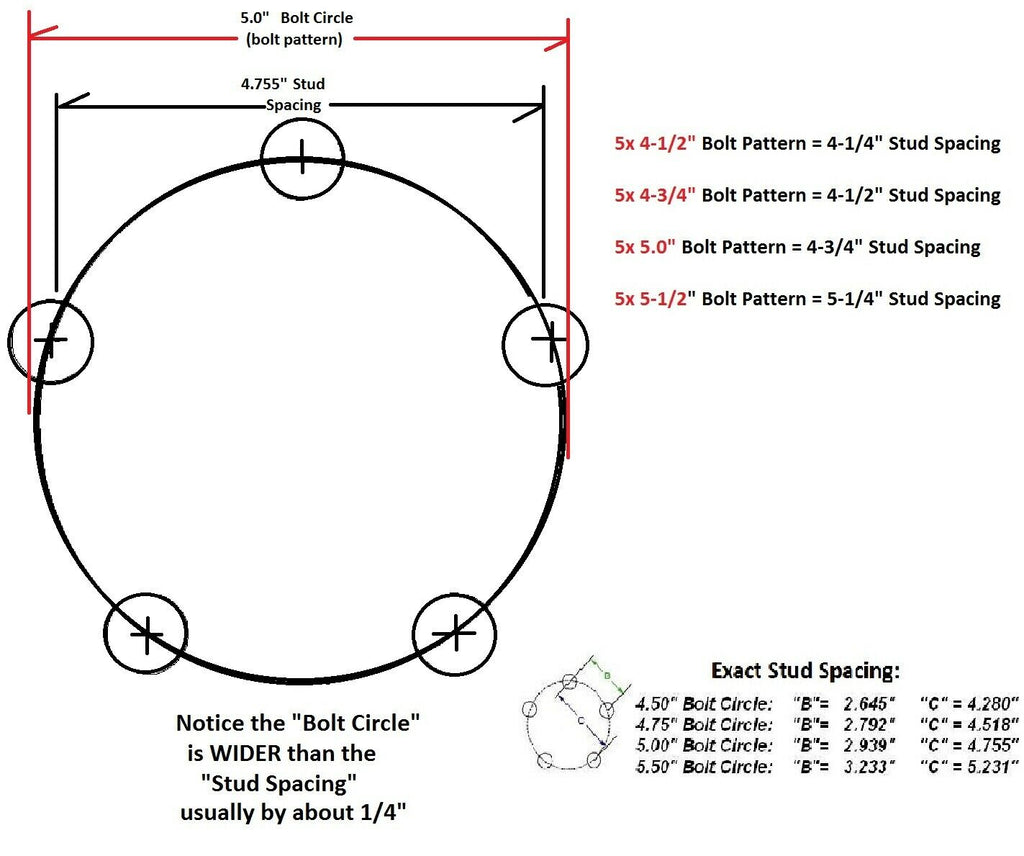

Common GM LARGE Bolt pattern (5 on 5")
(stud spacing 4-3/4")

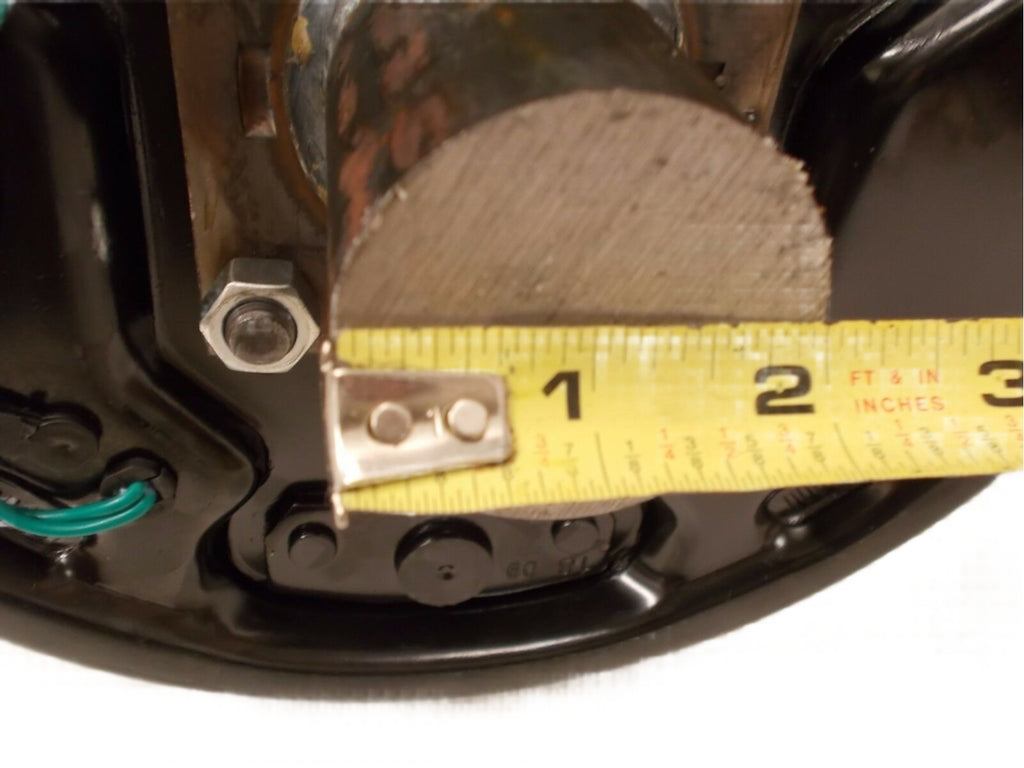

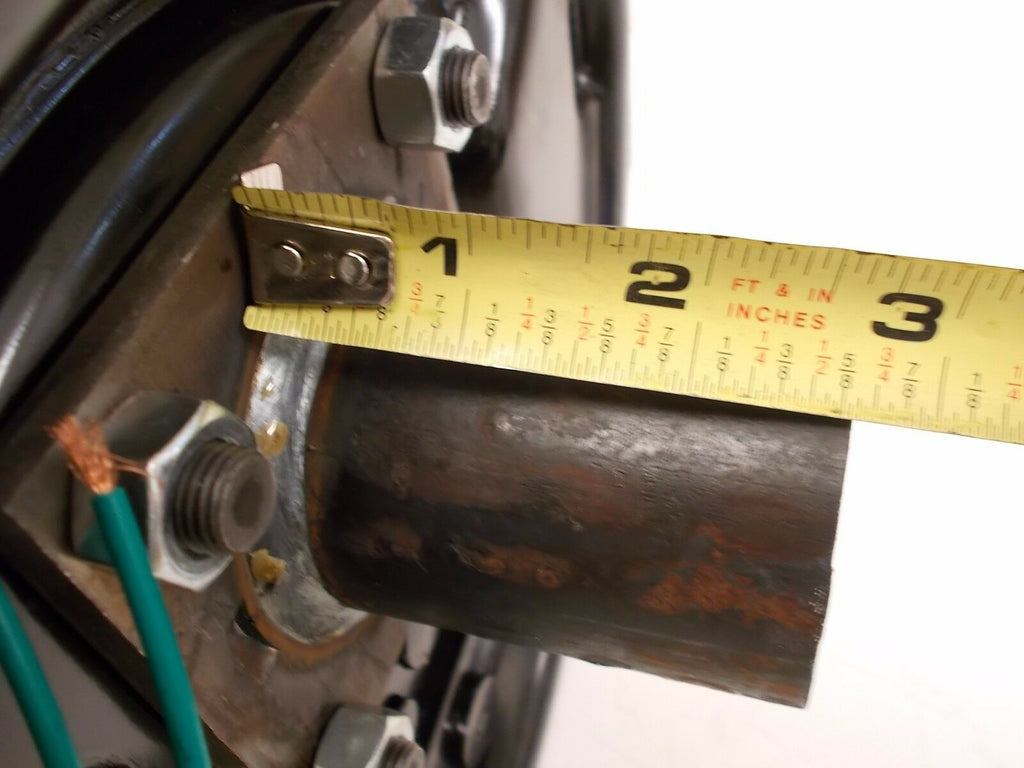

This can be used as a direct replacement for a spindle that is not safely usable anymore. Spindles have 3.37" long  "tail shaft", 2.0" Diameter


(Should fit inside in Standard 2" Schedule 40 pipe, or common 2.375 Axle trailer axle tubes if you need to replace one!)

Will fit most brands: Dexter, AL-KO, Quality, Lippert, etc. (If you are not sure, look at the axle spindle chart above, this hub fits spindle #84) I can ship more, if needed. I also have a few of other bolt patterns, see my other listings or just ask, and I will list them!


Includes:

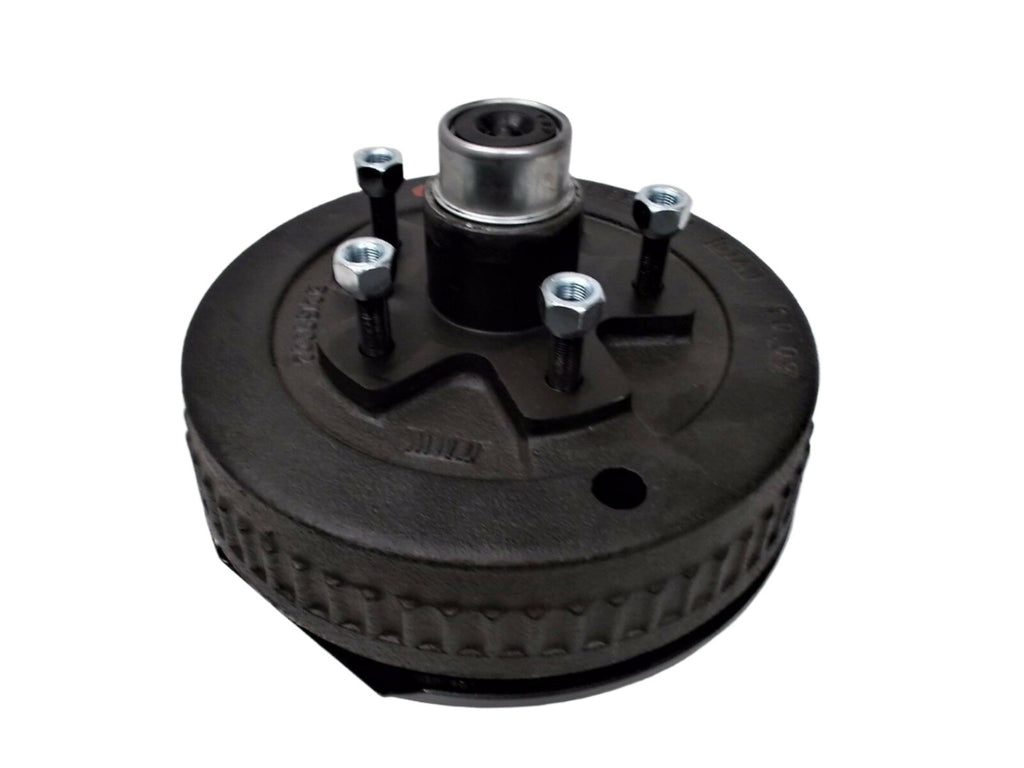

1x 3500 pound Brake Drum, 5 x 5 bolt pattern (code Red)

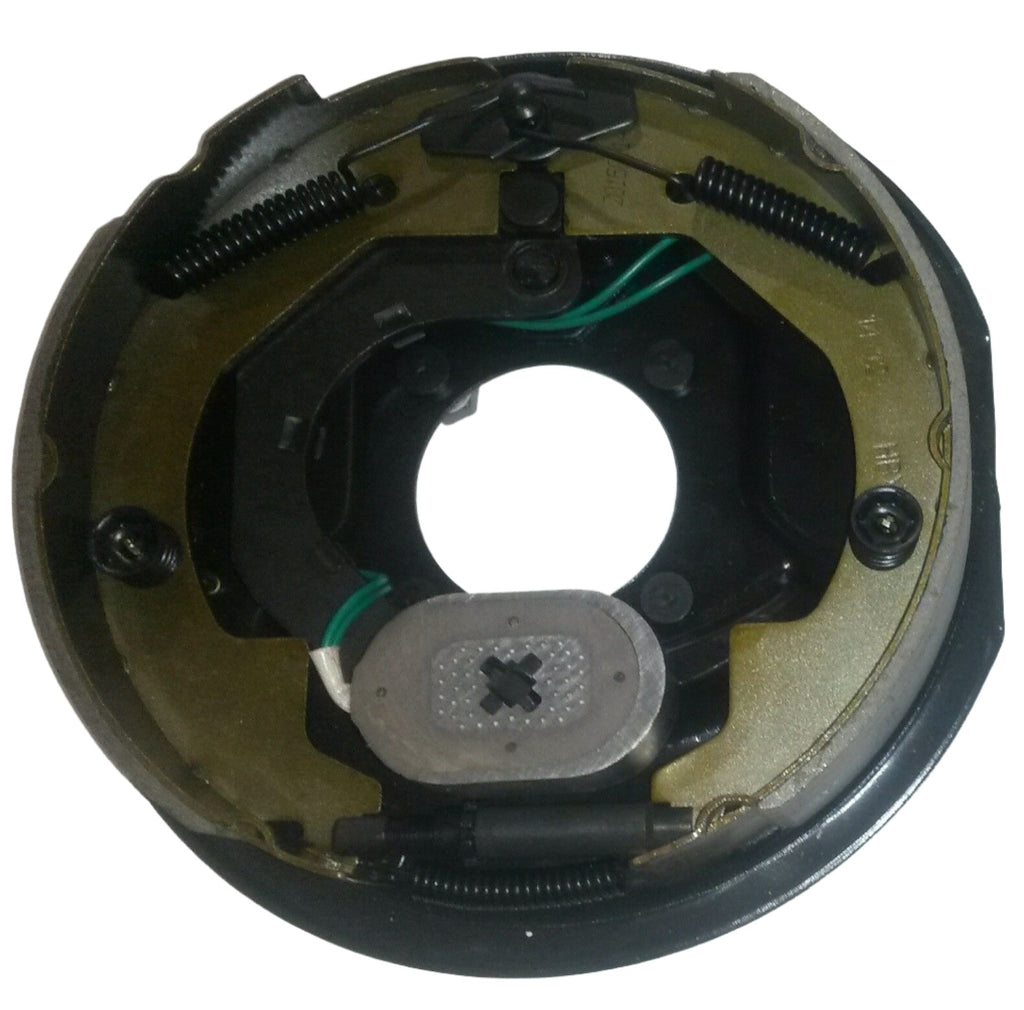

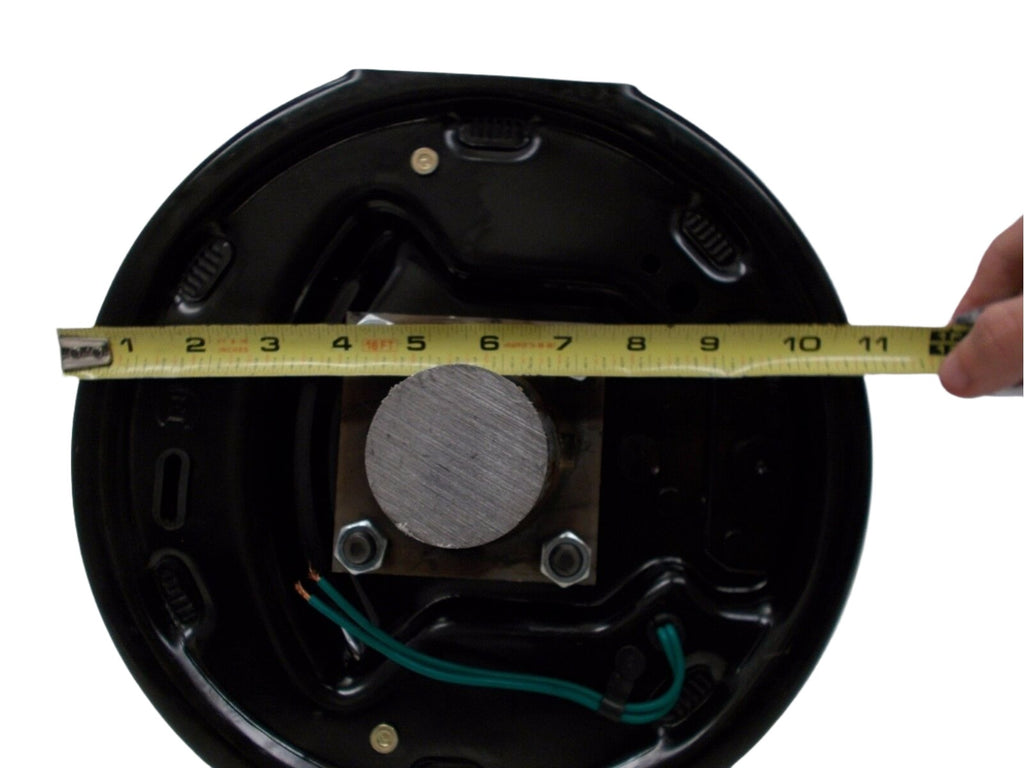

1x 10" Backing Plate, Left Hand Side
5x Lug Nuts
1x 1.98" Dust cap
1 x L44649 Bearing
1 x L68149 Bearing
1 x 10-19 Seal
1 x SP-20084FZ Spindle
1 x 1" Axle Nut
1 x 1" spindle washer

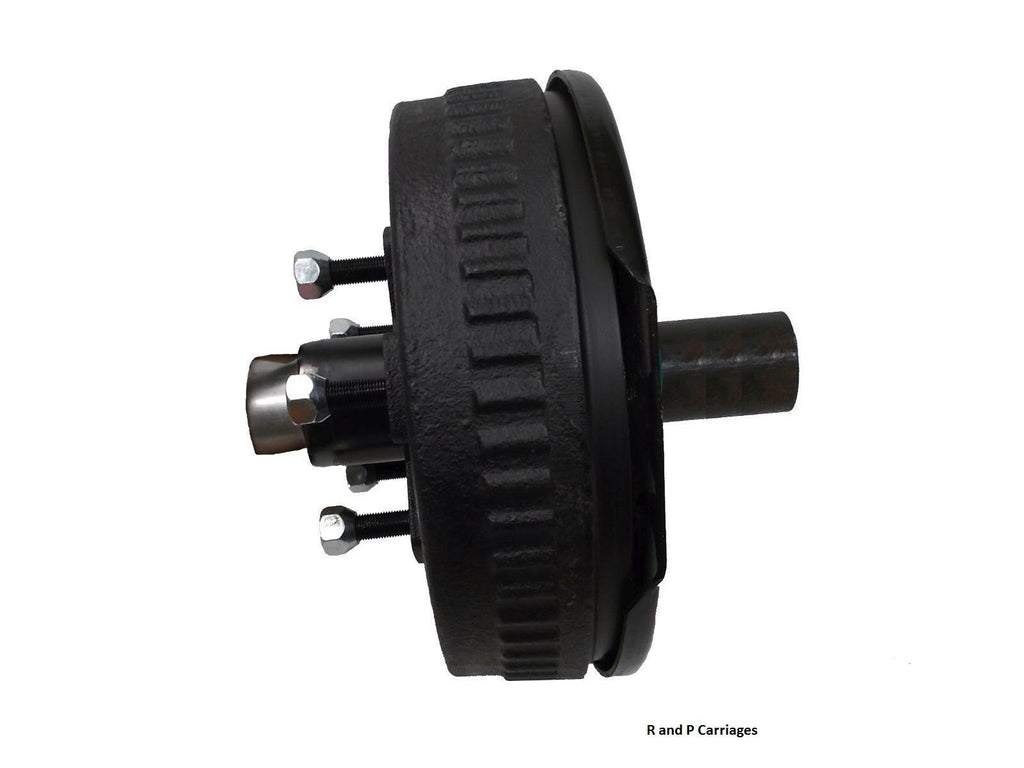

Includes 1 of the 5 bolt x 5 Drum, bearings, spindle, axle nut, everything you need to replace 1 side of your axle!


This Drum will fit this axle:






This auction includes spindle SP-20084FZ,
(standard 3500# Axle spindle with 2" round base):
