2000# Axle Beam 63" Hub Face, 5x4.5 Idler Hubs Trailer Boat Tear Drop Axel (2000-63-5LUG)

R & P Carriages

Regular price $199.99

2000# Trailer Axle with 63" Hub Face
and 5 x 4.5" Idler hubs

Part Number: 2000-63-5LUG

Use to build a common 4x6 or 4x8 trailer

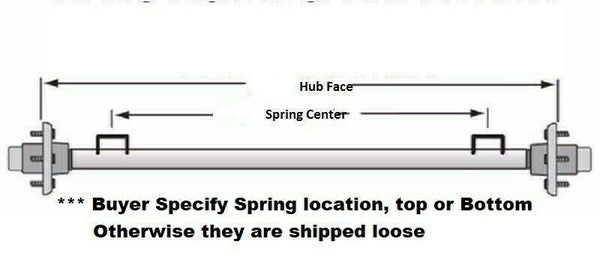

Spring mounts NOT welded on, shipped loose

*Leave a note to Seller to have us weld your spring perches on.
We need to know the CENTER TO CENTER measurement of perches?
AND
TOP OR BOTTOM OF THE AXLE BEAM?

Please contact us to verify we received the message!

Rated to 2000 pounds.

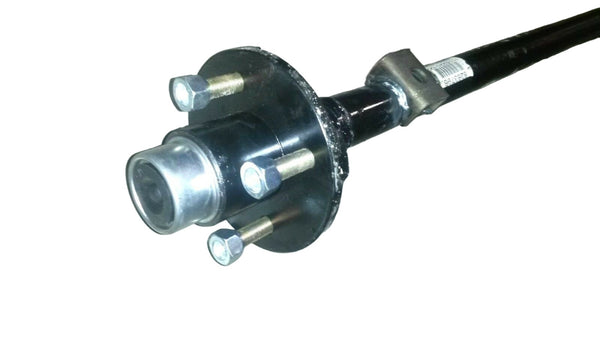

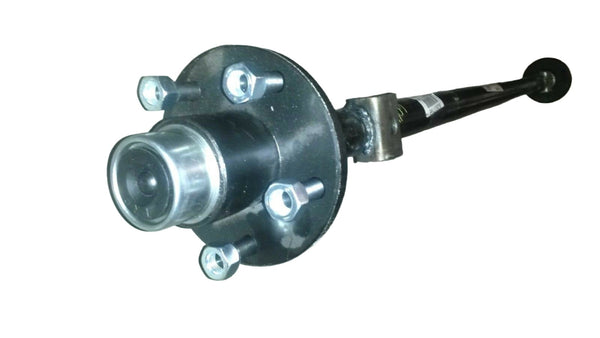

Includes 5 lug hubs (available with 4 lug hubs, just let us know!)

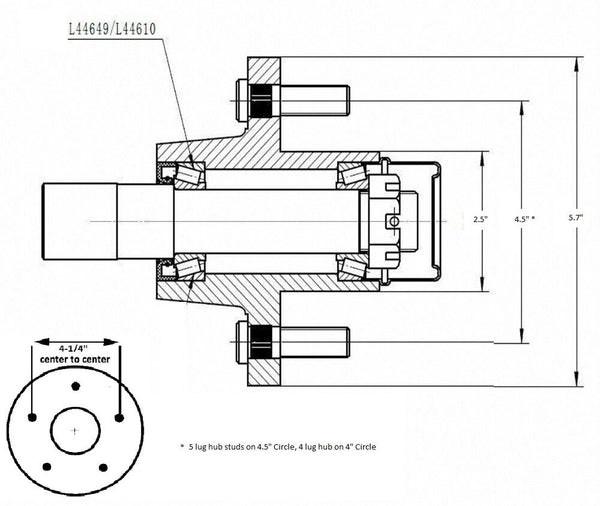

Includes standard 1.0625 Bearings L44649, and 1.5" seal #10-60

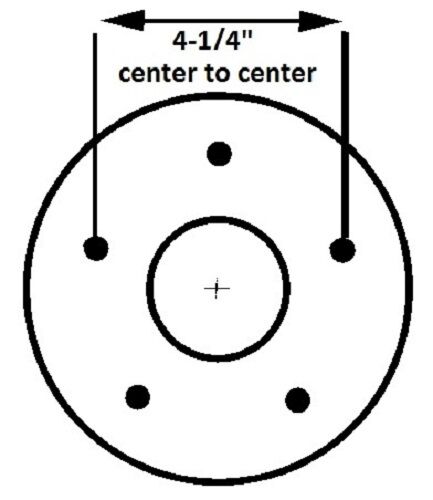

Hub is 5 lug (or 4 lug, just let us know by a note to Seller) with a center "pilot" dia of 2.45 inches (the hole in your wheel must be bigger than 2-1/2", pretty common)

Measures 63" from hub face to face (should be tire center to center)
Includes axle nuts and washer, bearings, dust caps, lug nuts, ALL parts.

Also very popular in "Tear Drop" camper construction, and smaller boat trailers
Price is for one axle.
