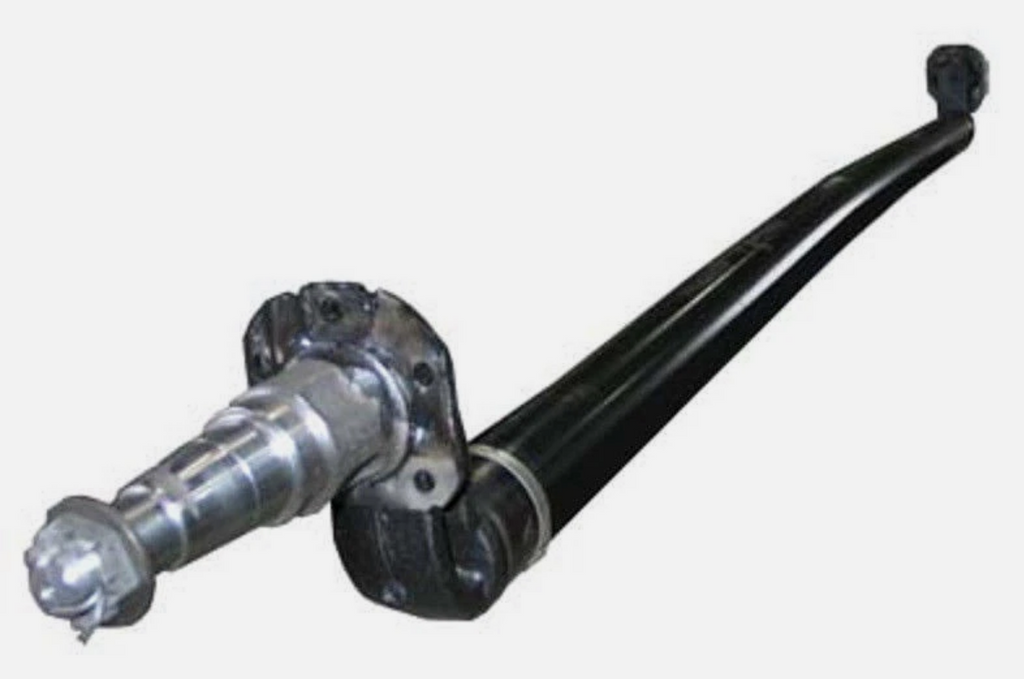

Dexter 8000 lb Drop Axle – 95" Hub Face – 3.5" Tube – 4" Drop – EZ Lube – 4 Bolt Flange – TRUE 8K
Part Number: 8000-95-35-D
TRUE 8,000 lb Dexter drop axle with 95" hub face and heavy-duty 3.5" tube. Built with a 4" drop for lower deck height applications while maintaining full load capacity and compatibility with 12.25" x 3.375" brake systems.
R&P Knowledge Hub
This is a TRUE 8K Dexter drop axle (not hybrid). The 4" drop lowers trailer ride height for improved loading and stability. Always verify hub face, spring centers, and brake compatibility (Dexter 8-285 / 12.25" x 3.375") before ordering.
Features
- Designed for trailers with 76" to 79" floor deck width
- TRUE 8000# Dexter axle configuration
- 4" drop axle for lower ride height
- Heavy duty 3.5" axle tube
- Straight axle with camber
- Compatible with Dexter 8-285 / 12.25" x 3.375" brake systems
- 4 bolt brake flange configuration
Specifications
| Specification | Value |
|---|---|
| Hub Face | 95" |
| Drop | 4" |
| Brake Flange to Flange | 85.91" |
| Bearing Shoulder to Shoulder | 92.125" |
| Spindle End to End | 100.875" |
| Tube Diameter | 3.5" |
| Bearing Set | 25580 Inner / 02475 Outer |
| Seal Size | 2.25" (2.125" on older trailers) |
| Brake Compatibility | 12.25" x 3.375" |
| Axle Type | TRUE 8K Dexter Drop Axle |
Included Components
| Part Number | Quantity | Description |
|---|---|---|
| 8000-95-35-D | 1 | Dexter Trailer Axle 8000# Bare Beam – 95" Hub Face – 3.5" Tube – 4" Drop – EZ Lube – 4 Bolt Flange |
| SS-350 | 2 | Spring Perch for 3.5" Axle Beam |
Required Components (Not Included)
| Component | Specification |
|---|---|
| Brake Assemblies | 8000# Electric Brakes (12.25" x 3.375") |
| Drums / Hubs | Dexter 8-285 Drum / Hub Assemblies |
| Bearings | 25580 Inner / 02475 Outer |
| Seals | 2.25" ID (Typical) |
