At a Glance
- SKU: 82475-C-FSA-DEX
PRODUCT INFORMATION
Product Details
Complete 3,500 lb Trailer Axle Brake Kit Dexter Never Adjust Brakes · 10" x 2.25" · 5 on 4.5"
Part # 82475-C-FSA-DEX
Everything needed for a typical first-time electric brake installation on one compatible 3,500 lb trailer axle — including genuine Dexter Never Adjust backing plates, hub and drum assemblies, wheel bearings, seals, brake wiring, breakaway equipment, and a 7-way trailer plug.
|
3,500 LB
Axle Rating
|
10" × 2.25"
Brake Size
|
5 × 4.5"
Bolt Pattern
|
Affordable Pricing
Quality Products
|
Fast Shipping
Ships from our warehouse
|
Fitment Help
Real trailer-parts experts
|

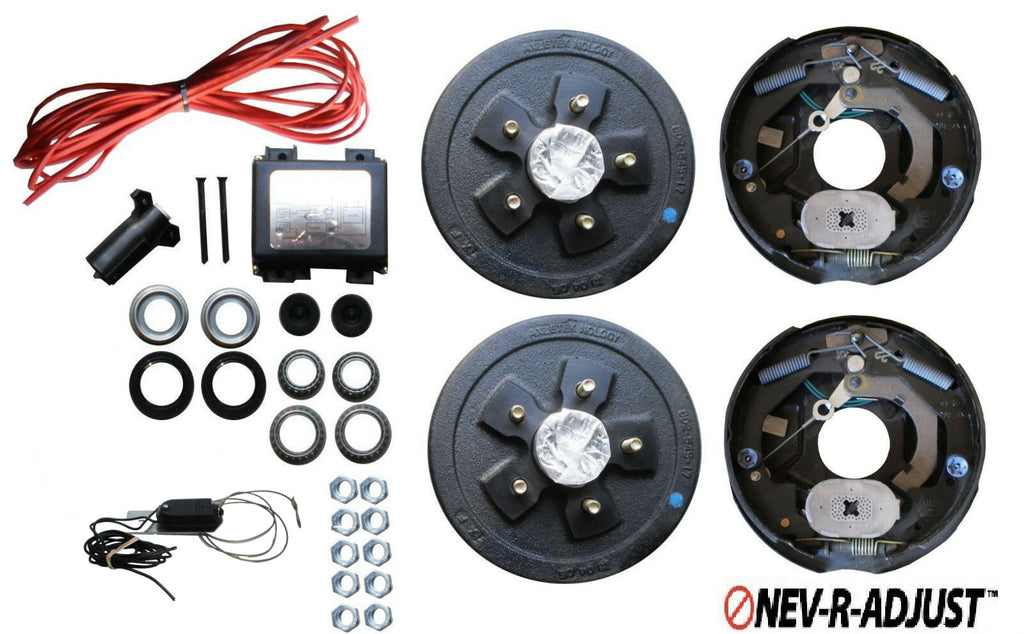

What's In The Box
This complete kit is configured to equip one compatible trailer axle with electric drum brakes.
(2) Genuine Dexter Never Adjust Brake Assemblies
One left-hand and one right-hand 10" x 2.25" electric brake assembly, rated for a 3,500 lb axle pair.
| Left-Hand Assembly | 023-468-00 |
| Right-Hand Assembly | 023-469-00 |
| Brake Dimensions | 10" × 2.25" |
Brake assemblies include shoes, magnets, adjustment mechanisms, springs, and associated brake hardware.
Mounting hardware for attaching the brake backing plates is included.
(2) Hub and Brake Drum Assemblies
New 10" brake drum and hub assemblies with a 5 on 4.5" wheel bolt pattern and bearing races installed.
| Hub / Drum Part Number | 008-247-05 |
| Bolt Pattern | 5 on 4.5" |
| Drum Diameter | 10" |
Bearings, Seals, Dust Caps & Lug Nuts
| QTY | PART # | COMPONENT |
|---|---|---|
| 2 | L68149 | Inner bearings — 1-3/8" I.D. |
| 2 | L44649 | Outer bearings — 1-1/16" I.D. |
| 2 | 10-19 | Grease seals — 1.719" nominal I.D. |
| 2 | 021-041-02 / 085-001-00 | 1.98" EZ Lube dust caps with rubber plugs |
| 10 | 1/2"-20 | Matching wheel lug nuts |
Bearings ship loose with the kit for installation into the hub assemblies.
Brake Wiring & Breakaway System
| ✓ | 25 feet of 14-gauge, two-conductor brake wire |
| ✓ | Assorted wire connectors and wire ties |
| ✓ | 4.5 Ah, 12-volt rechargeable breakaway battery |
| ✓ | Built-in breakaway battery charger |
| ✓ | Battery mounting case |
| ✓ | Emergency breakaway switch with pull pin |
| ✓ | 7-way trailer plug |
Important: The tow vehicle must also have a compatible 7-way connection and electric trailer brake controller. These tow-vehicle components are not identified as included in this kit.
Features
| ✓ | Genuine Dexter Never Adjust electric backing plates |
| ✓ | Complete brake conversion components for one compatible 3,500 lb axle |
| ✓ | 10" x 2.25" electric drum brakes |
| ✓ | 5 on 4.5" hub and drum wheel bolt pattern |
| ✓ | Self-adjusting brake mechanism reduces routine manual adjustment requirements |
| ✓ | Includes hub bearings, grease seals, lug nuts, and EZ Lube-compatible dust caps |
| ✓ | Includes trailer-side wiring, breakaway battery equipment, and 7-way trailer plug |
Fitment & Measurements
This kit is intended for compatible 3,500 lb trailer axles equipped with the appropriate spindle dimensions and four-bolt brake mounting flanges. It may be used with qualifying leaf-spring or torsion axle configurations.
Brake Mounting Flange
The original listing specifies a 2-7/8" center-to-center mounting-hole measurement on the four-bolt brake backing plate pattern. Confirm the flange pattern against the actual brake assembly.
The axle must have a correctly sized and positioned four-bolt brake mounting flange. If it does not, the required flange must be professionally installed before the brakes can be mounted.
Spindle & Bearing Identification
Compare your spindle bearing journals and seal surface with the supplied L68149, L44649, and 10-19 components.
Many 3,500 lb trailer axles use an approximately 2-3/8" outside-diameter axle tube. Smaller and larger axle families use different spindle and brake configurations. Tube diameter is a useful identification clue, but it does not establish fitment by itself.
5 on 4.5" Wheel Bolt Pattern
Verify the wheel bolt pattern before ordering. This kit includes 5 on 4.5" hubs.
Four-Bolt Brake Mounting Flange
Check for the welded four-bolt mounting flange behind each spindle. Installation or correction of brake mounting flanges requires appropriate professional welding and alignment.
Complete Kit vs. Basic Kit
Complete Brake Kit: Intended for a compatible trailer receiving electric brakes for the first time, including trailer-side wiring and breakaway equipment.
Basic Brake Kit: Typically intended for replacing existing brake components or adding brakes to another axle where the appropriate electrical and breakaway systems are already installed.
Trailer Brake Kit Reference
Reference image from the original brake kit documentation. Refer to the component list above for the contents of this SKU.
|
R&P Knowledge Hub
How Never Adjust brakes work: Dexter Never Adjust electric drum brakes use a self-adjusting mechanism to compensate for normal brake shoe wear. The braking system still requires correct initial installation, inspection, and periodic maintenance. How the system connects: The tow vehicle's brake controller sends an electrical signal through the 7-way connection to the trailer's brake magnets. The resulting brake application slows the trailer through the hub and drum assemblies. Why the breakaway equipment matters: A properly installed and charged breakaway system activates the trailer brakes if the trailer separates from the tow vehicle, subject to the equipment's intended operating conditions. Before installation: Confirm the axle rating, spindle dimensions, brake flange configuration, hub bolt pattern, wheel compatibility, wiring, and brake-controller requirements. Follow Dexter's current installation and maintenance instructions. |
FITMENT CHECK
Not every five-lug trailer uses a 3,500 lb spindle or the same brake mounting configuration. Verify your spindle bearings, grease seal, flange dimensions, and 5 on 4.5" bolt pattern before purchasing. This kit does not include installation or modification of axle mounting flanges.
|
Not sure if this will fit your trailer?
Send us your axle information, existing bearing numbers,
and a few photographs. Our parts team can help you
determine what to check before ordering.
|
