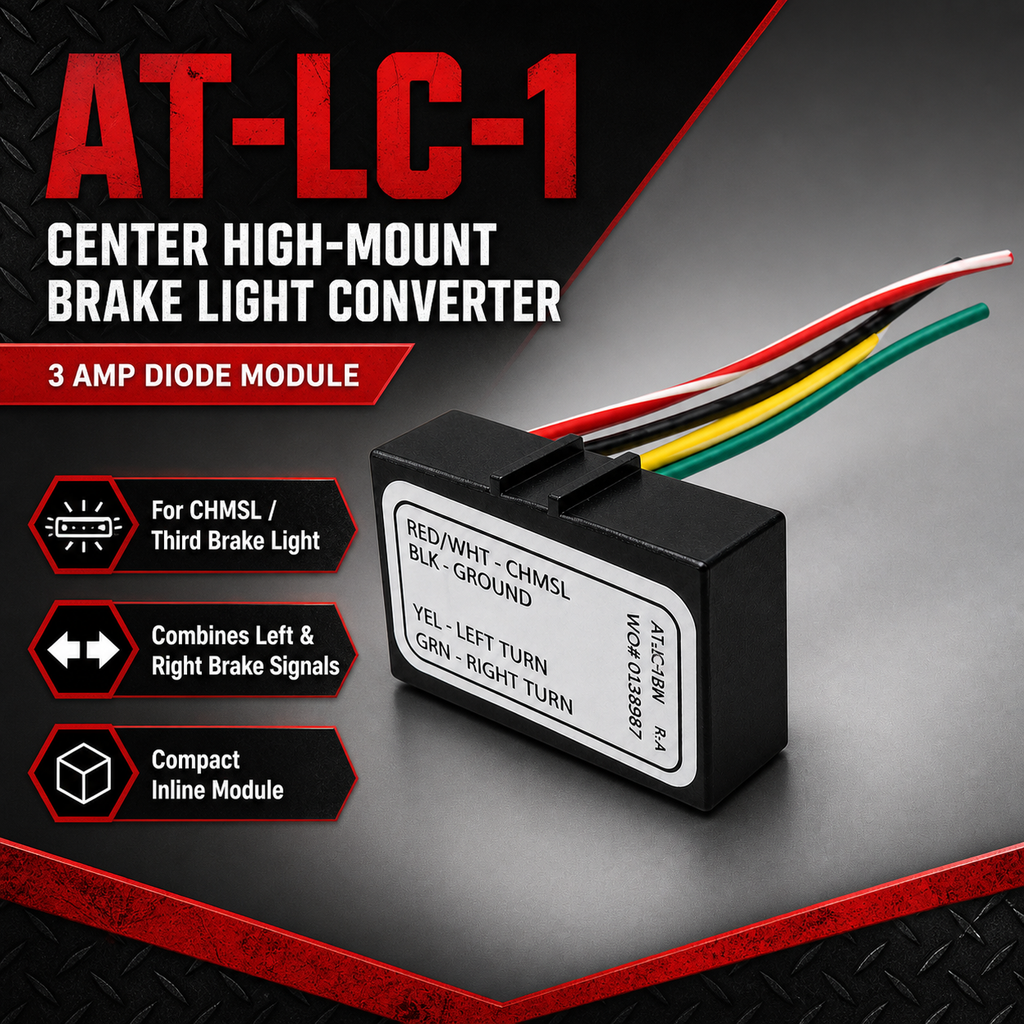

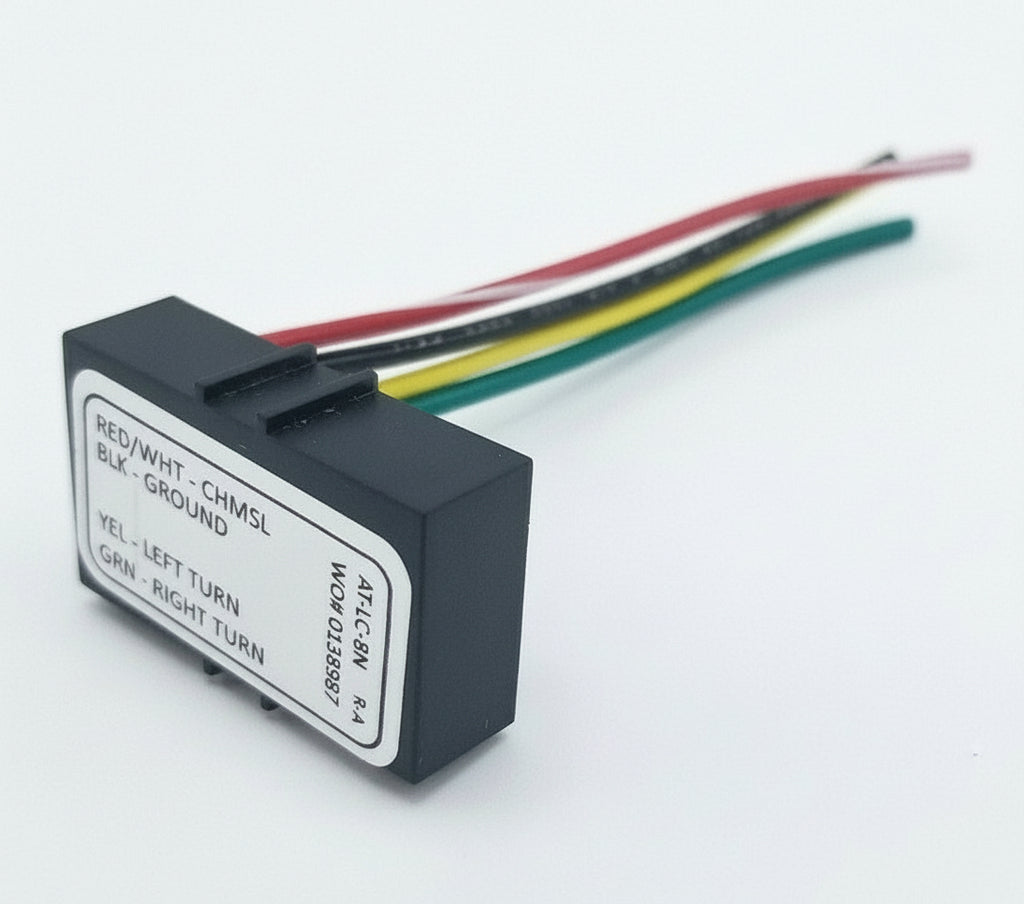

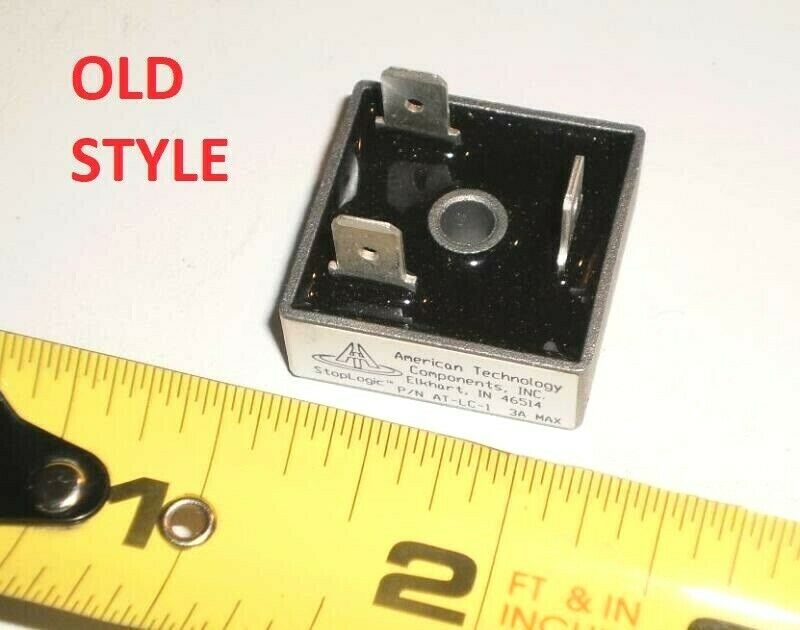

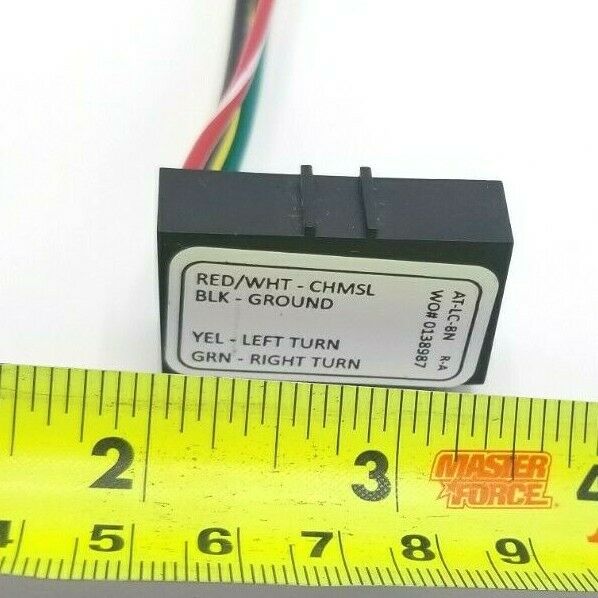

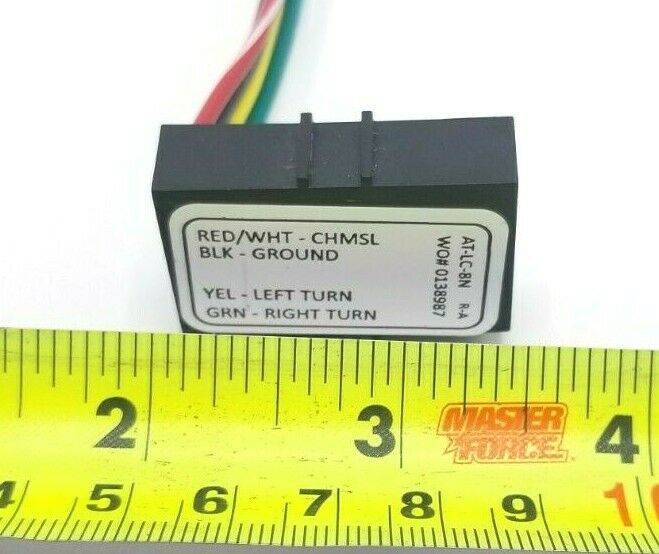

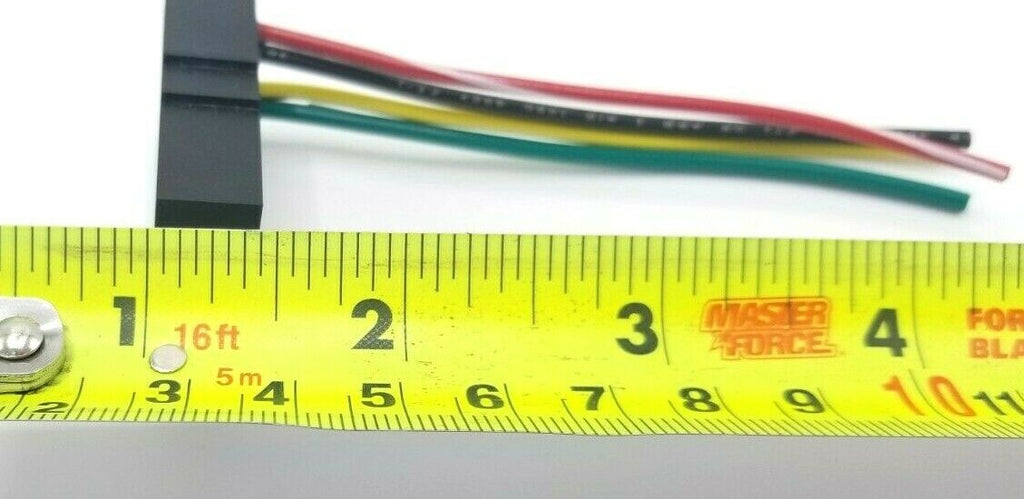

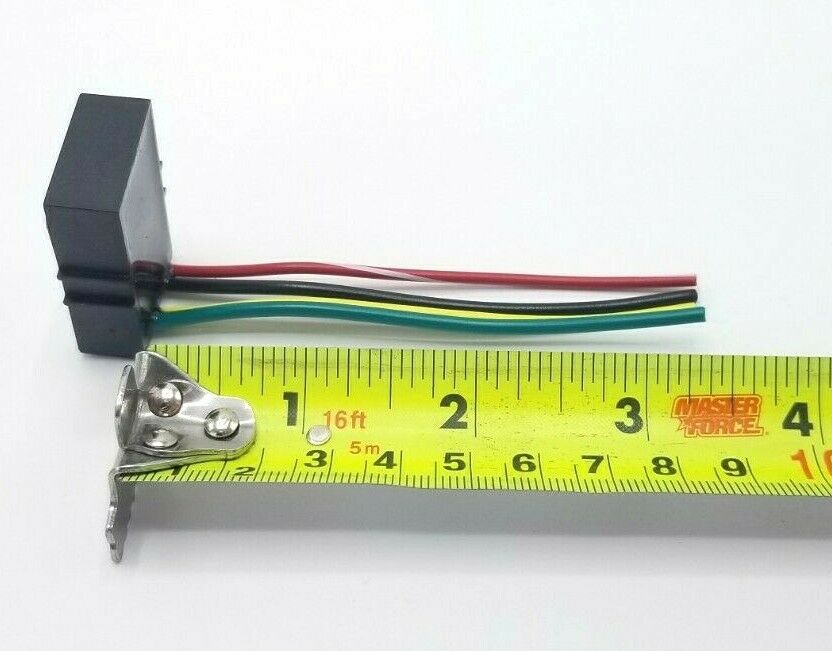

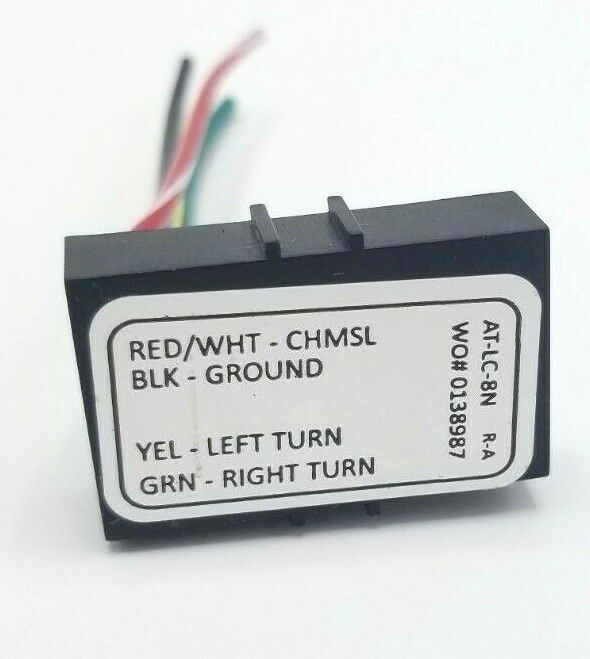

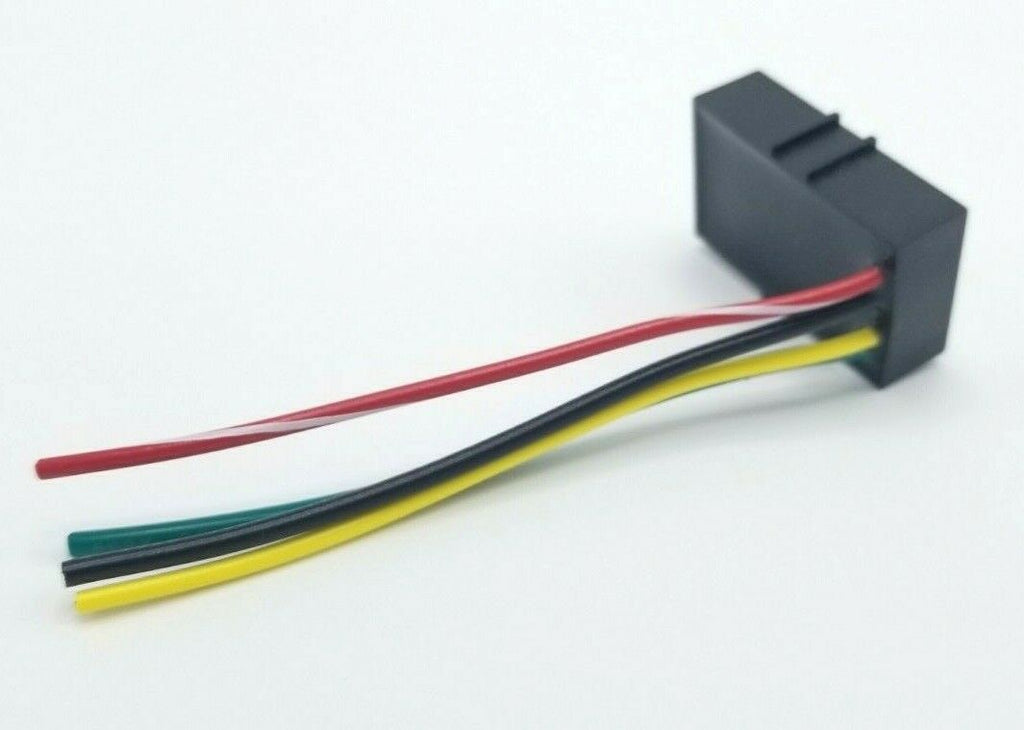

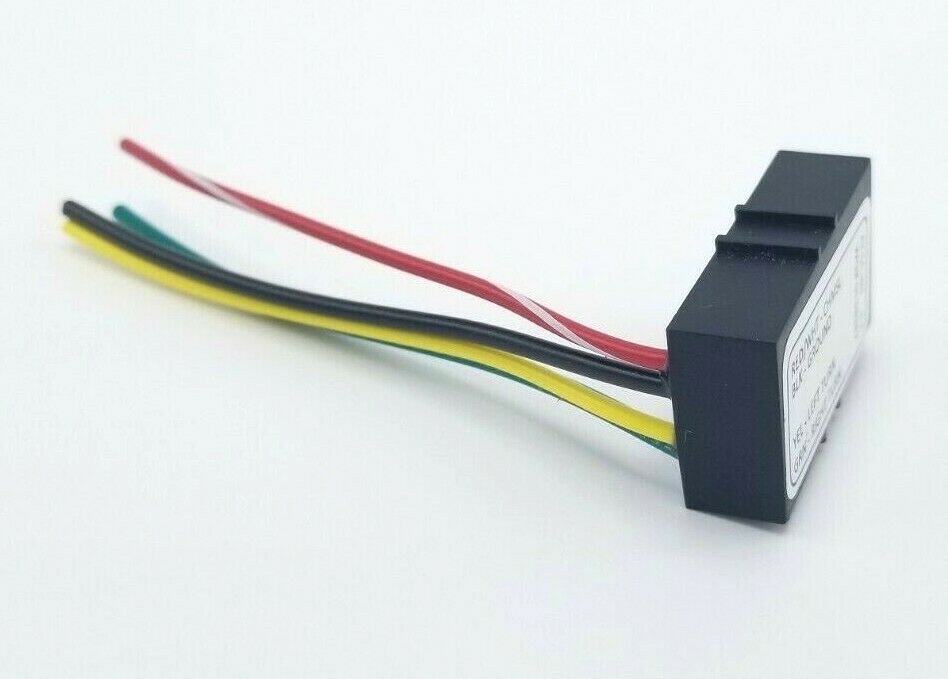

StopLogic Center Brake Light Converter Diode AT-LC-1
Brake signal combining diode designed to create a single output signal for a center high-mount brake light while helping prevent backfeeding between left and right brake circuits.
Overview
This StopLogic center brake light converter diode combines left and right brake signal inputs into one output for adding a center high-mount brake light. It is commonly used where separate brake circuits need to feed one center brake lamp while keeping the circuits isolated from each other.
R&P Service Insight
A center brake light converter is used when the left and right brake circuits need to work together without feeding power back across the vehicle or trailer wiring.
- Signal Combining: Takes left and right brake signals and creates one output for a center brake lamp.
- Circuit Isolation: Helps prevent electrical backfeeding between the connected brake circuits.
- Install Check: Verify the brake lamp current draw does not exceed the 3 amp rating before installation.
R&P Knowledge Hub
Compatibility: Used for applications where left and right brake signal circuits must be combined into one isolated center brake light output.
Vehicle / System Fit: Typical applications include vehicles, trailers, toppers, and camper shells with an added center high-mount brake light.
Installation Notes: Verify wiring layout, current requirements, brake light load, and 1/4" spade terminal connections before installing.
Performance Insight: The diode design allows brake signal combining while helping block unwanted feedback between separate circuits.
Brand & Fitment Note
Selling Brand: StopLogic
Application Reference: Vehicle, trailer, topper, and camper shell references describe wiring applications only where the brake light circuit layout and current requirements match.
What This Means: This listing is for a StopLogic brake light converter diode, not a vehicle-specific OEM-branded component.
Before Ordering: Verify wiring configuration, brake lamp current draw, terminal style, circuit routing, and installation requirements before use.
R&P Repair Insight
Incorrect brake light converter wiring can cause backfeeding, unusual lamp operation, or no center brake light output. Match the circuit layout before connecting the converter.
- Input Check: Confirm the left and right brake signal wires are the correct circuits before connecting.
- Output Check: Confirm the center brake light load is within the 3 amp current rating.
- Terminal Check: Confirm the installation uses compatible 1/4" spade terminal connections.

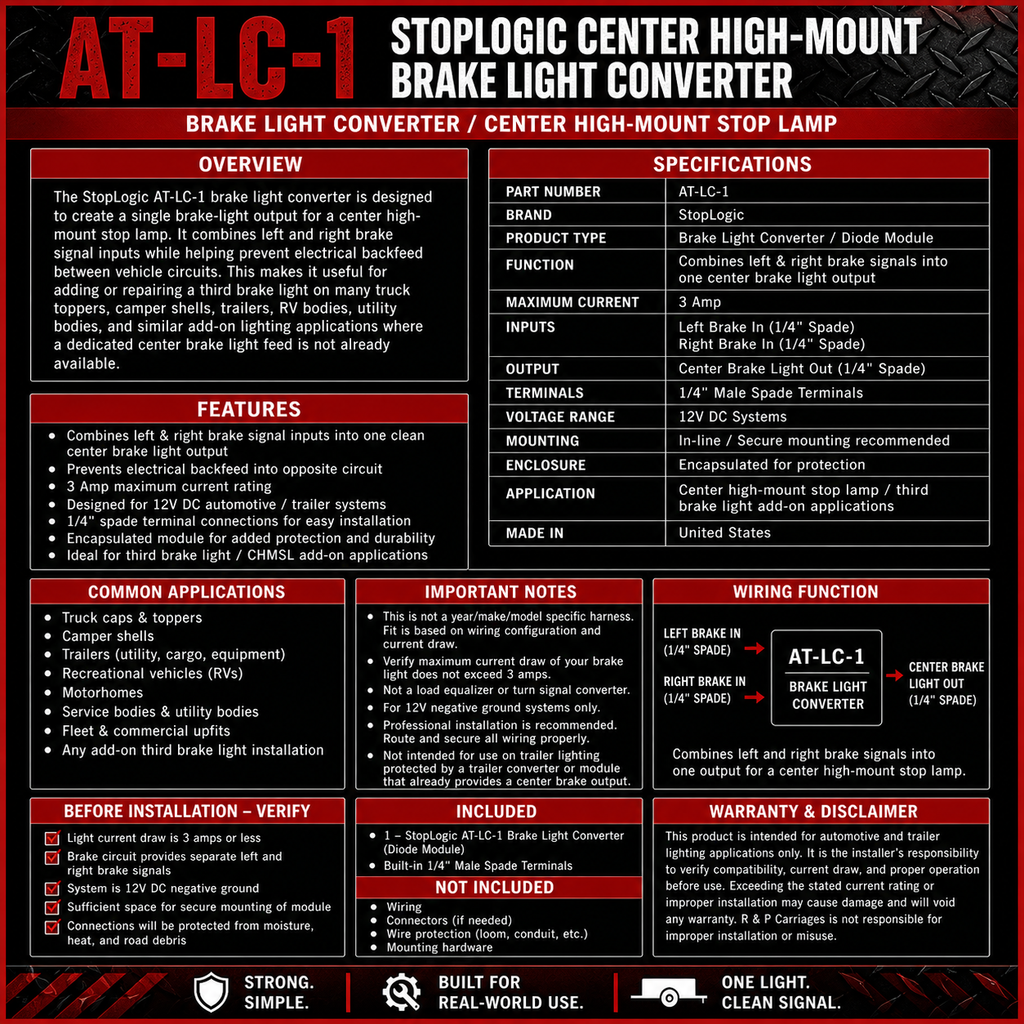

Features
Combines Left & Right Brake Signals
Creates a single output signal from separate left and right brake circuits for a center high-mount brake light.
Helps Prevent Backfeeding
Diode design helps isolate the connected brake circuits so power does not feed back across the wiring system.
Durable Sealed Housing
Die-cast aluminum housing is epoxy sealed for a compact electrical converter assembly.
Standard Spade Terminal Layout
Uses standard 1/4" spade terminals for the three-wire brake signal input and output configuration.
Specifications
| Specification | Detail |
|---|---|
| Part Number | AT-LC-1 |
| Brand | StopLogic |
| Product Type | Center brake light converter diode |
| Function | Combines left and right brake signals into one output |
| Current Rating | 3 amps |
| Housing | Die-cast aluminum, epoxy sealed |
| Connector Type | 1/4" spade terminals |
| Wire Configuration | Three-wire brake signal input and output configuration |

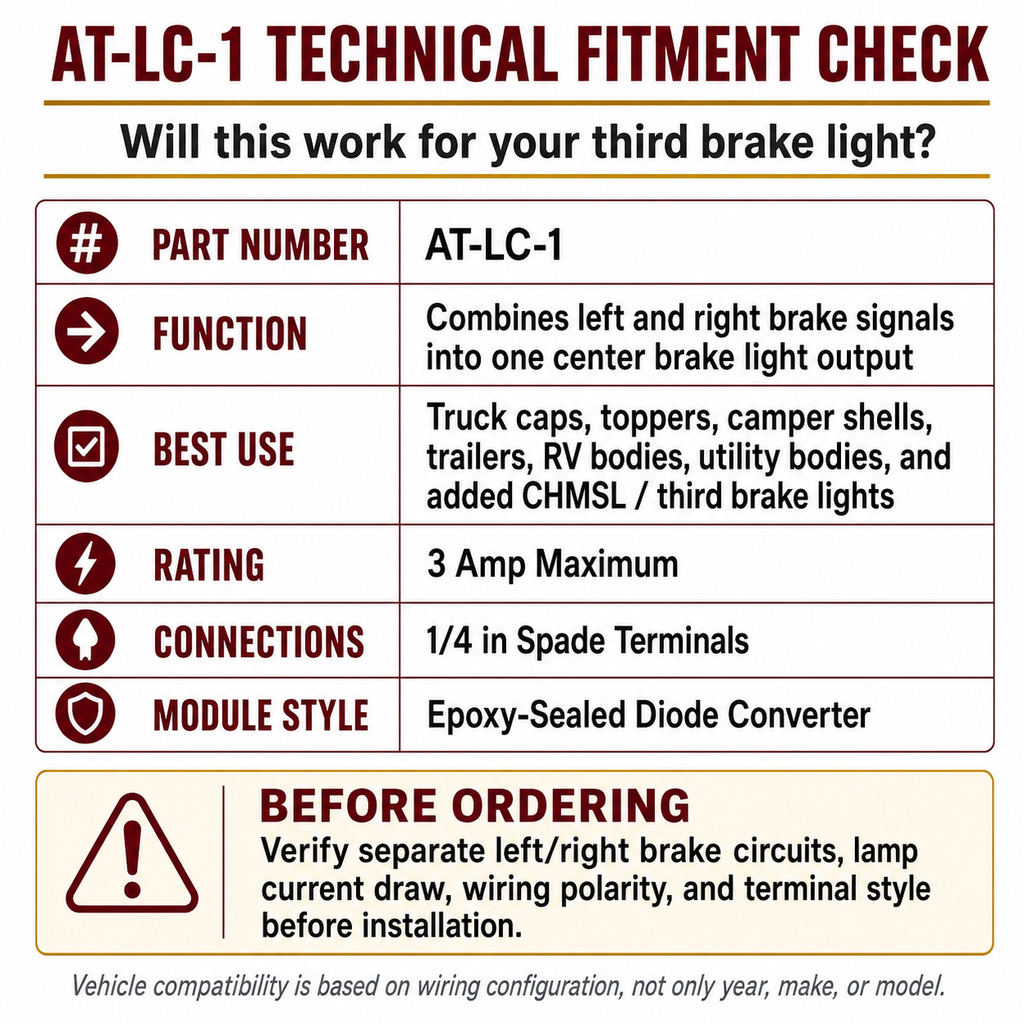

Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Brake light wiring system |
| Primary Fit | Center high-mount brake light installations requiring one output from left and right brake circuits |
| Typical Applications | Vehicles, trailers, toppers, and camper shells |
| Notes | Verify wiring layout, current draw, and terminal compatibility before installation. |
Included Components
| Quantity | Item |
|---|---|
| 1 | StopLogic AT-LC-1 center brake light converter diode |
