Dexter Under / Over Conversion Kit for 3,500 lb Trailer Axles
Part Number: K71-384-00
This listing is for a Dexter under/over axle conversion kit designed for 3,500 lb trailer axles with a 2.375" round tube. The kit allows the leaf springs to be repositioned from below the axle to above the axle—or vice versa—resulting in a change in ride height.
Commonly used when adjusting trailer ride height for clearance, leveling, or suspension configuration changes. Height change will vary depending on axle tube diameter and leaf spring thickness.
Features
- Allows leaf springs to be mounted above or below the axle
- Designed for 2.375" round axle tubes
- Commonly used on standard 3,500 lb trailer axles
- Includes required hardware and installation instructions
What’s Included

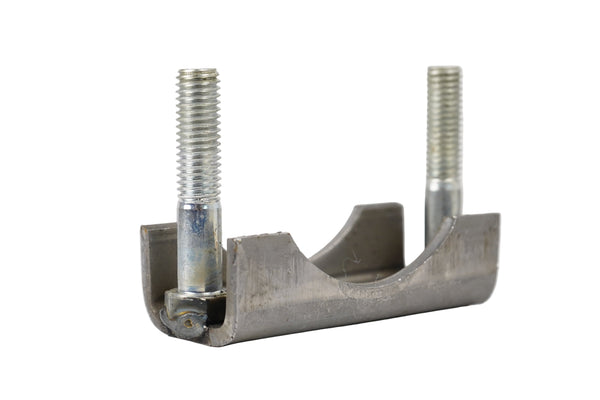

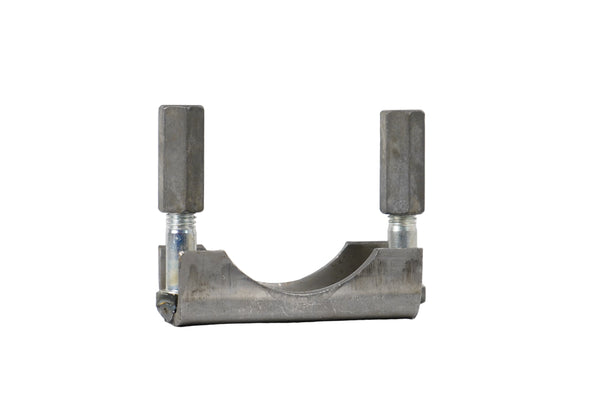

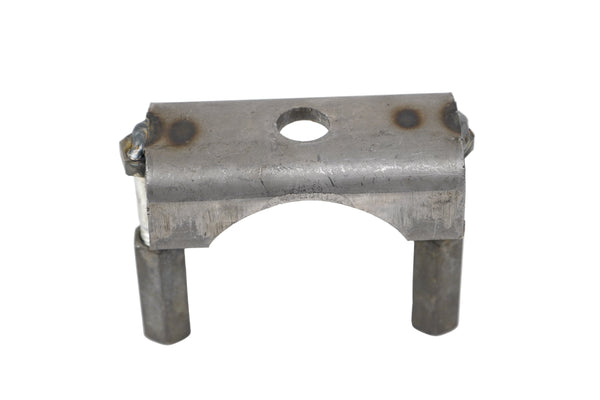

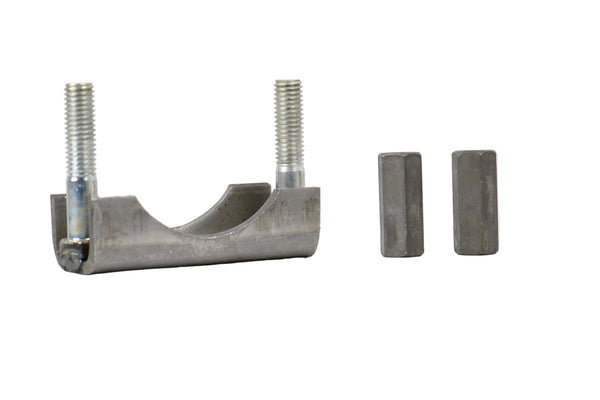

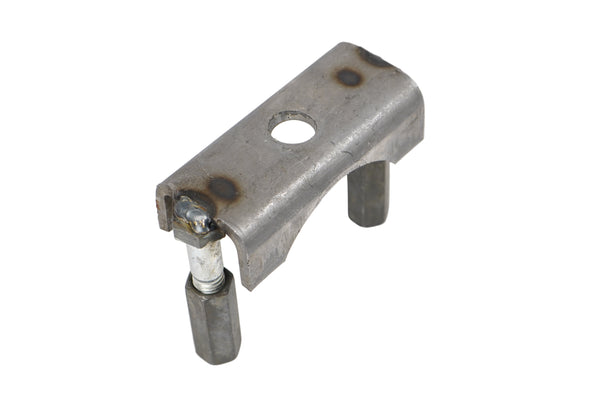

| (2) | Spring Seats (003-062-00) |

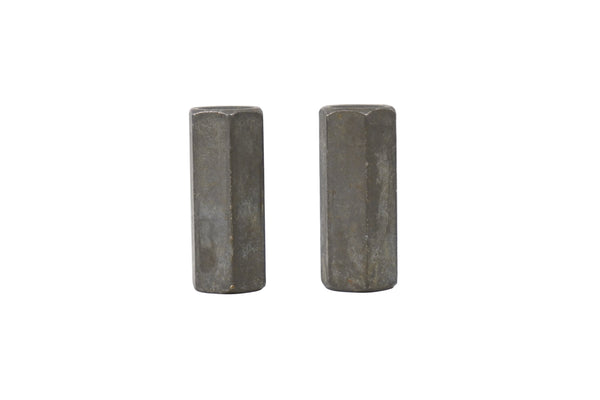

| (8) | Nuts (006-017-01) |
| (4) | U-Bolts (011-074-00) |
| (2) | Tie Plates (012-051-00) |
| (1) | Instruction Sheet (059-551-00) |
Fits most standard 3,500 lb trailer axles with a 2.375" diameter round tube. Not intended for torsion axles or square axles. Verify axle tube diameter and suspension type prior to installation.
