Match the part number, measurements and connection points that apply to your trailer.
| Connection | Confirm ball or lunette size. |
|---|---|
| Mount | Verify tongue, channel and mounting pattern. |
| Capacity | Meet or exceed the required rating. |

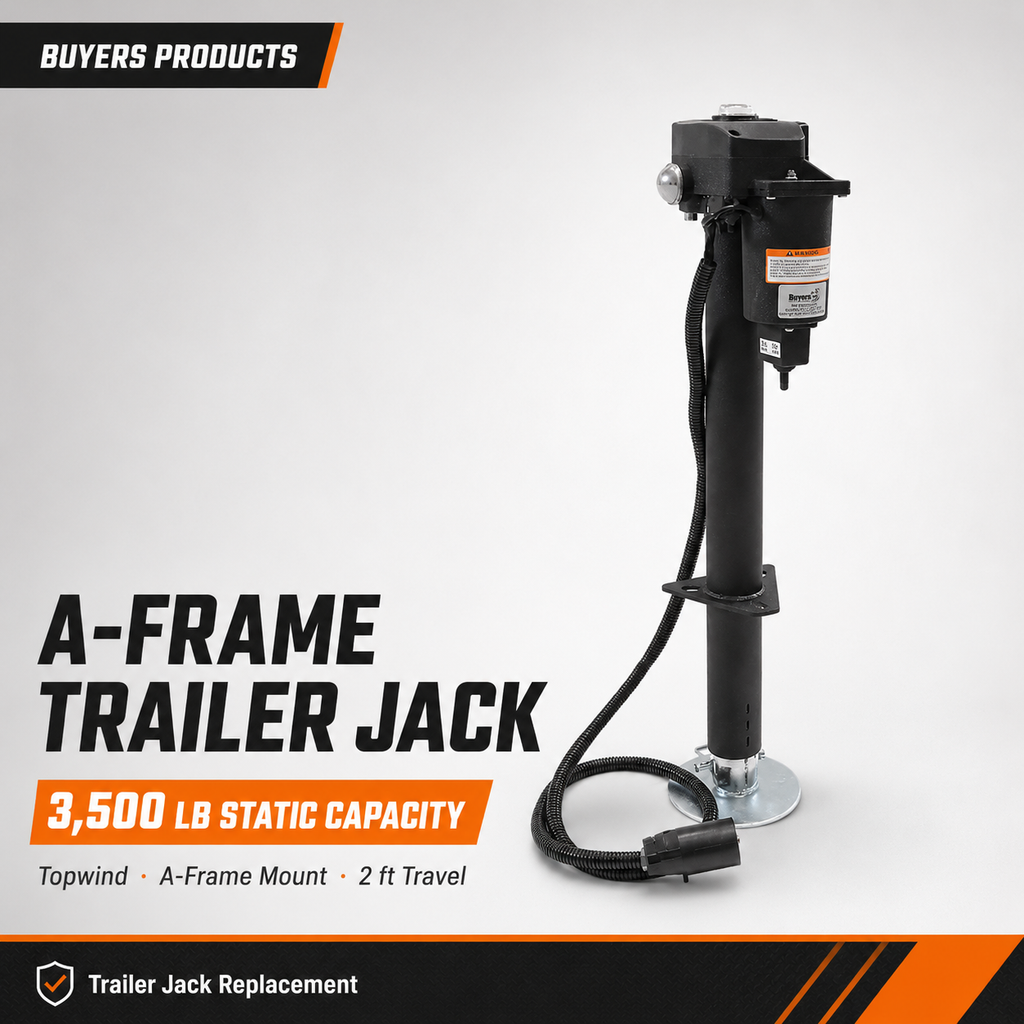

A powered A-frame trailer tongue jack built for easier hitching, leveling, and trailer setup. Designed with 12V DC operation, manual backup capability, a drop-leg extension, and integrated LED work lighting.
This Buyers Products electric trailer tongue jack is a 12V powered A-frame jack for trailers, campers, RVs, cargo trailers, and similar trailer applications using a standard 3-bolt A-frame mounting pattern. It helps reduce manual cranking during hitching, unhitching, and leveling while retaining a manual crank backup for use when electric operation is not available.
An electric tongue jack is one of the most practical upgrades for trailers that are hitched and unhitched often. Capacity, mounting pattern, lift range, wiring, and clearance should all be checked before installation.
Compatibility: Designed for A-frame trailer applications using a standard 3-bolt mounting pattern where the trailer tongue weight, mounting hole pattern, wiring configuration, and jack clearance match.
Vehicle / System Fit: Commonly used on A-frame trailers, campers, cargo trailers, and RV-style trailer setups.
Installation Notes: Verify 12V power supply, mounting pattern, jack tube clearance, coupler clearance, travel range, and drop-leg needs before installation.
Performance Insight: Dual LED night lights help improve visibility around the coupler area during low-light hitching, while the drop-leg extension can reduce the amount of powered travel needed during setup.
Selling Brand: Buyers Products
Application Reference: Trailer, camper, RV, and cargo trailer references describe compatible application styles only where capacity, mounting points, wiring, and configuration match.
What This Means: This listing is for a Buyers Products electric trailer tongue jack, not a guaranteed OEM-branded trailer manufacturer part.
Before Ordering: Verify tongue weight, 12V power connection, A-frame mounting pattern, jack clearance, travel range, drop-leg needs, and included components before installation.
When replacing a manual or worn electric tongue jack, the most common fit issues are capacity mismatch, incorrect mounting pattern, wiring differences, and clearance around the coupler or propane tray area. Match the existing trailer setup before removing the old jack.
Rated for trailer tongue weight lifting applications up to 3,500 lb when properly matched to the trailer setup.
Electric lift function helps reduce hand-cranking during hitching, unhitching, and trailer leveling.
Provides 18 in of powered travel with an additional 6 in manual drop-leg extension for added setup range.
Integrated LED lighting helps illuminate the coupler and jack area during low-light trailer setup.

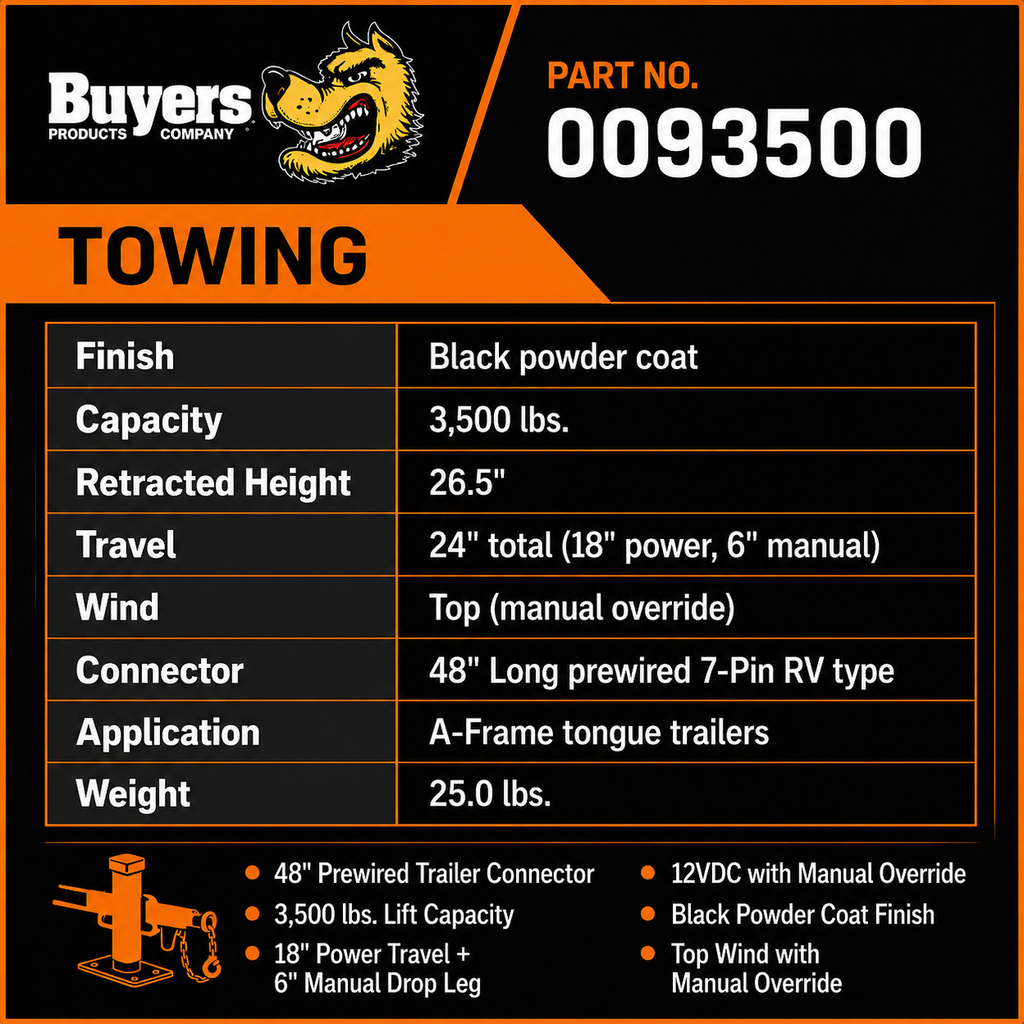

| Specification | Detail |
|---|---|
| Part Number | 93500 |
| Brand | Buyers Products |
| Product Type | Electric trailer tongue jack |
| Application | A-frame trailers, campers, cargo trailers, and RV-style trailer applications |
| Material / Finish | Black powder-coated steel |
| Lift Capacity | 3,500 lb tongue weight |
| Voltage | 12V DC |
| Travel Range | 18 in power lift plus 6 in manual drop-leg extension |
| Mount Type | A-frame, standard 3-bolt pattern |
| Lighting | Dual LED night lights, switch-controlled |

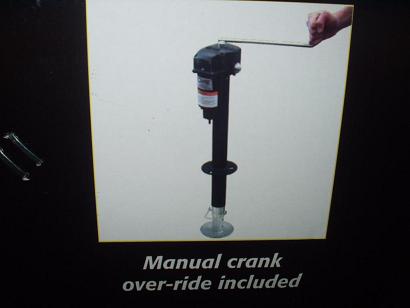

| Manual Override | Manual crank backup operation |
| Foot Pad | Heavy steel foot pad, listed as 5-1/2 in diameter in original listing copy |
| Wiring | 12V power lead with ring terminals, per original listing copy |
| Category | Details |
|---|---|
| Vehicle / System | A-frame trailer tongue jack system |
| Primary Fit | A-frame trailers using a standard 3-bolt jack mounting pattern |
| Secondary Fit | Many campers, cargo trailers, RV trailers, and similar trailer applications where capacity and mounting requirements match |
| Notes | Verify tongue weight, mounting hole pattern, jack tube clearance, wiring configuration, travel range, and surrounding trailer clearance before ordering or installation. |
| Quantity | Item |
|---|---|
| 1 | 12V electric jack assembly |
| 1 | Manual hand crank |
| Included | Dual LED night lights integrated into jack assembly |
| 1 | Drop leg with steel foot pad |
| Included per original listing copy | Mounting hardware and instructions |
