Genuine Dexter Nev-R-Lube Hub & Drum – 12" x 2" – 8 on 6.5 – 9/16"-18 Studs – 008-385-81
Part Number: 008-385-81

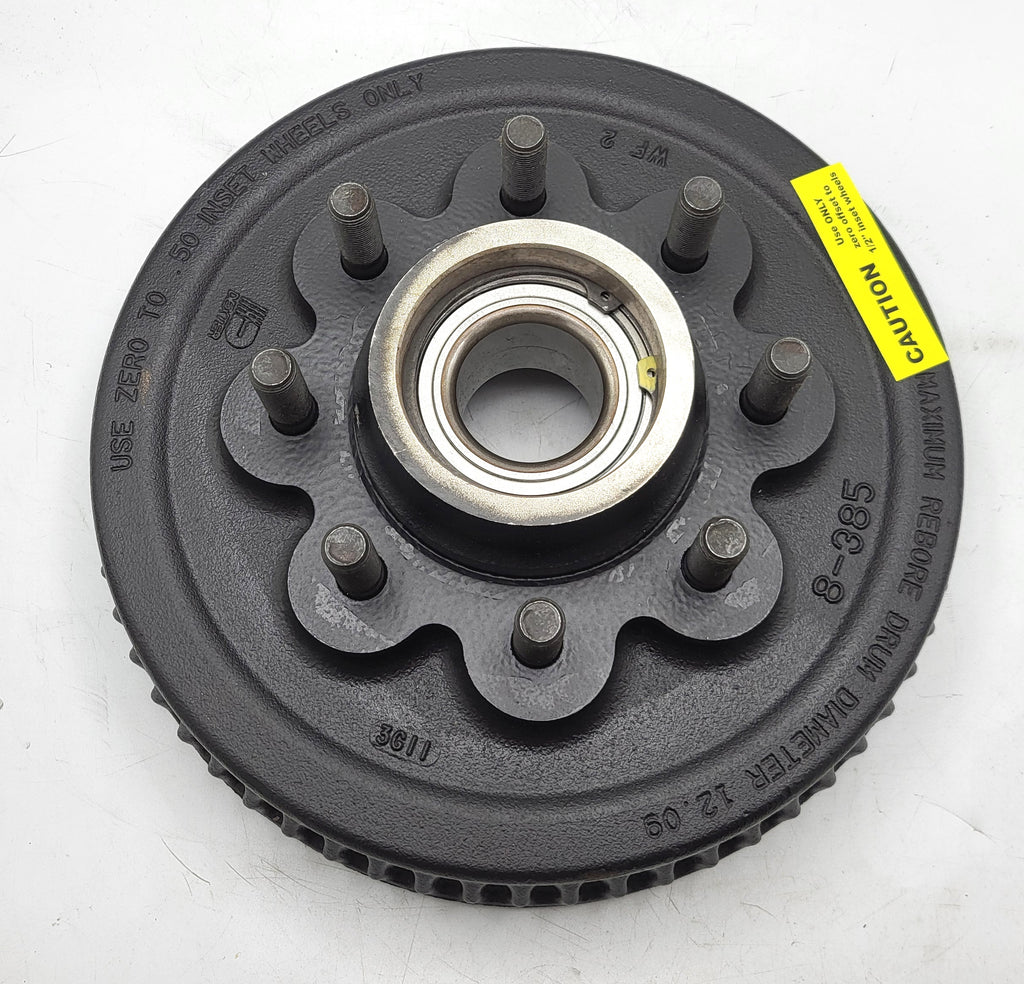

Genuine Dexter Nev-R-Lube hub and brake drum assembly for 12" x 2" brake applications. This assembly includes the 50mm sealed bearing cartridge pre-installed and retained by snap ring. Designed for Dexter Nev-R-Lube spindle configurations using the 8 on 6.5" bolt pattern and 9/16"-18 wheel studs.
Lug nuts are included. Grease/oil cap (21-86) is not included.
Kit Includes
- 1 – 12" x 2" Hub & Drum Assembly
- 1 – 50mm Nev-R-Lube Bearing Cartridge (Pre-Installed)
- Snap Ring (Pre-Installed)
- 9/16"-18 Wheel Studs Installed
- Lug Nuts Included
R&P Knowledge Hub
Dexter Nev-R-Lube hubs utilize a sealed 50mm cartridge bearing system rather than
traditional serviceable tapered bearings. The cartridge presses into the hub and is
retained by a snap ring, eliminating periodic bearing packing. These assemblies are
only compatible with Nev-R-Lube spindles and are not interchangeable with standard
tapered bearing hubs. Wheel offset must be zero offset to 1/2" inset to maintain
correct bearing load distribution.
Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Dexter Axle |
| Part Number | 008-385-81 |
| Brake Size | 12" x 2" |
| Bolt Pattern | 8 on 6.5" |
| Bearing Type | 50mm Nev-R-Lube Cartridge (Included) |
| Stud Size | 9/16"-18 |
| Cap Used | 21-86 (Not Included) |
| Wheel Offset Requirement | Zero Offset to 1/2" Inset |
| Configuration | Nev-R-Lube Sealed Bearing Hub & Drum |
Verify specifications before installation.
