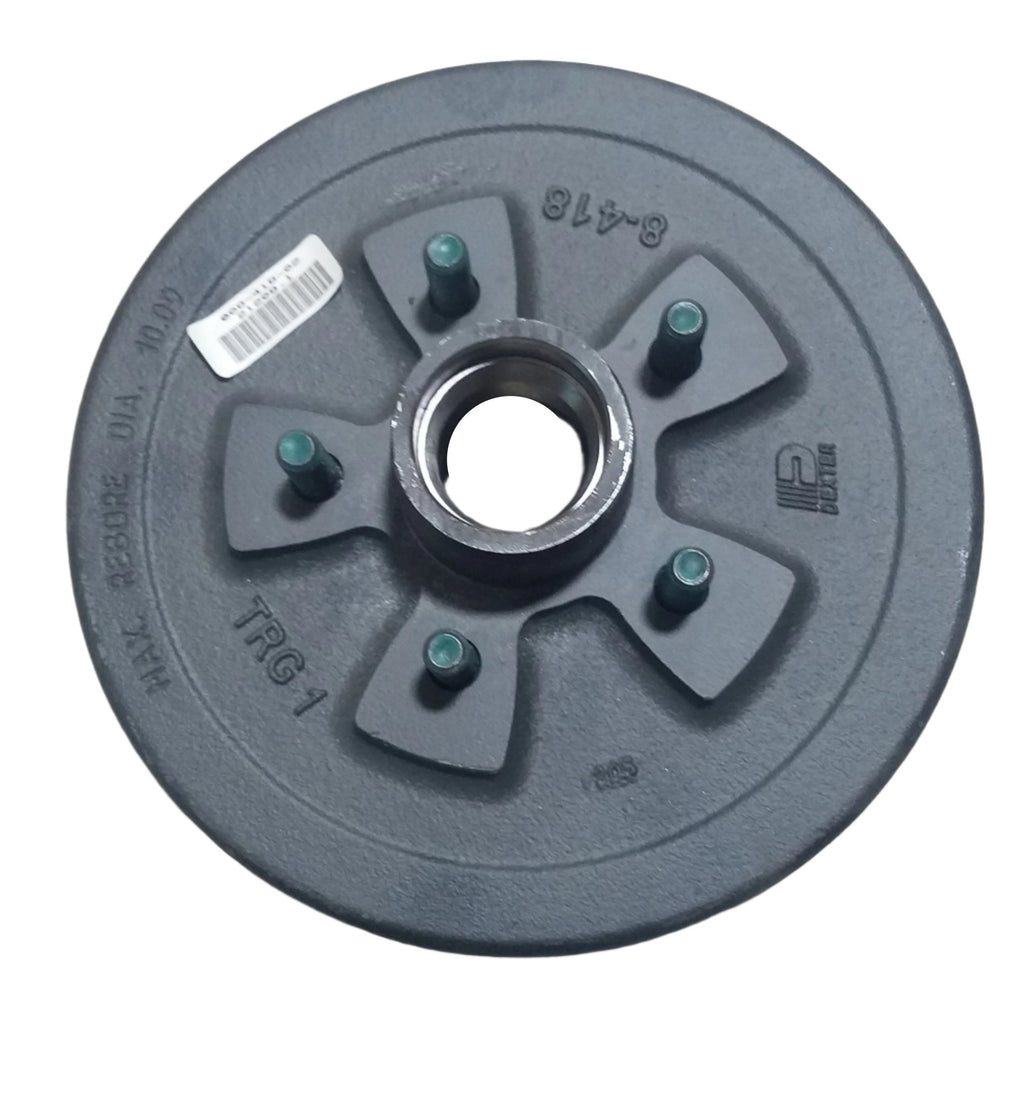

Dexter D30 Hub & Drum – 3,000 lb – 10" x 1-1/2" – 5 on 4.5 – 008-418-02
Part Number: 008-418-02
Genuine Dexter D30 hub and brake drum assembly rated for 3,000 lb axle applications. Designed for 10" x 1-1/2" electric brake assemblies and the standard 5 on 4.5" bolt pattern.
This is the hub and drum assembly only. Bearings and seal are not included. Bearing races are pressed into the hub.
Features
- Rated for 3,000 lb Dexter D30 axles

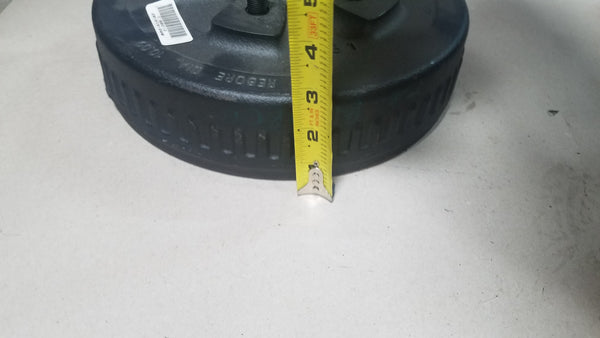

- 10" x 1-1/2" brake drum size
- 5 on 4.5" bolt pattern
- Bearing races pressed in
- Manufactured by Dexter Axle
R&P Knowledge Hub
Dexter D30 3,000 lb axles commonly use LM67048 inner and L44649 outer bearings
with a 10-19 grease seal. Always confirm bearing numbers stamped on your existing
bearings and verify brake size (10" x 1-1/2") and bolt pattern (5 on 4.5")
before ordering. This assembly is not interchangeable with 3.5K 10" x 2-1/4" configurations.
Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Dexter Axle |
| Part Number | 008-418-02 |
| Axle Rating | 3,000 lb (D30) |
| Brake Size | 10" x 1-1/2" |
| Bolt Pattern | 5 on 4.5" |
| Inner Bearing Used | LM67048 (Not Included) |
| Outer Bearing Used | L44649 (Not Included) |
| Seal Used | 10-19 (Not Included) |
| Configuration | Hub & Drum Assembly Only |
Verify specifications before installation.
