At a Glance
- SKU: 02002-9001-0053
PRODUCT INFORMATION
Product Details
Dump Trailer Hydraulic Conversion
Atlas Dump Trailer Conversion Kit 12K 48" Hose Add-On Single Leg Double Acting
Hydraulic conversion kit designed to connect an existing dump trailer hydraulic circuit to a single-leg 10,000 lb Atlas hydraulic trailer jack using a 6-port valve, adapters, and matched hose routing.
Part Number: 02002-9001-0053 Stillwell Atlas / 10K / Double-Acting
Overview
This kit is intended for dump trailers being converted to a single-leg 10,000 lb Atlas hydraulic trailer jack. It provides the core hydraulic hardware needed to tie the jack into an existing dump trailer circuit.
For dump trailer applications, Atlas jack systems are commonly tied into the existing hydraulic dump circuit through a 6-port ball valve so one hydraulic power unit can operate both the dump function and the jack. That makes this kit a strong fit when replacing a different jack arrangement or standardizing a trailer around an Atlas setup.
Because Atlas jack systems are designed around double-acting hydraulic operation, correct valve layout, hose routing, and port matching are critical to smooth installation and dependable performance.
R&P Service Insight
On a dump trailer, the hydraulic layout matters just as much as the jack. This kind of conversion works best when the jack, valve, hoses, and power unit are all being treated as one system.
- Double-Acting System: Atlas jack systems are designed for double-acting hydraulic pump layouts.
- Shared Power Unit: A 6-port valve allows the jack and dump circuit to run from the same hydraulic power unit.
- Cleaner Installation: Matching the valve, fittings, and hose lengths up front helps avoid routing problems and hydraulic rework.
R&P Knowledge Hub
Compatibility: Intended for Stillwell Atlas hydraulic trailer jack applications and dump trailer hydraulic systems being converted to a single-leg Atlas jack arrangement.
Vehicle / System Fit: Dump trailer hydraulic conversion for a single-leg 10,000 lb Atlas jack setup.
Installation Notes: Verify pump type, port configuration, fitting style, hose routing, hose length, and jack-side connection points before installation.
Performance Insight: In a double-acting system, hydraulic pressure is used for both extension and retraction, so valve choice and plumbing layout directly affect how the jack performs.
R&P Repair Insight
Before ordering or installing a hydraulic conversion kit, confirm that the trailer’s hydraulic circuit matches the intended Atlas jack setup. Small mismatches in ports, hose routing, or circuit design can turn into leaks, slow cycling, or installation delays.
- Pump Type: Confirm the trailer is using, or will be using, a compatible double-acting hydraulic pump circuit.
- Port Matching: Verify the valve and adapter layout against the actual hydraulic ports at the trailer and jack.
- Hose Routing: Check hose lengths, bend radius, moving-point clearance, and bracket area clearance before final installation.
Features
Built for Atlas Jack Conversions
Designed for dump trailer applications using a single-leg 10,000 lb Atlas hydraulic trailer jack.
6-Port Valve Configuration
Includes the valve needed to integrate a jack circuit into an existing dump trailer hydraulic system.
Hydraulic Hardware Included
Comes with adapters and hoses to support the conversion layout described in the kit contents.
Conversion-Focused Package
Well suited for trailers being adapted from a different jack or cylinder arrangement to an Atlas setup.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 02002-9001-0053 |
| Product Type | Hydraulic dump trailer conversion kit |
| Application | Connecting an existing dump trailer hydraulic circuit to a single-leg Atlas hydraulic jack setup |
| Jack Compatibility | Stillwell Atlas hydraulic trailer jacks |
| Jack Capacity | 10,000 lb single-leg application |
| Hydraulic Layout | Double-acting hydraulic circuit |
| Valve Type | 6-port hydraulic valve included |
| Hydraulic Components | Valve, hydraulic adapters, and hoses included |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Dump trailer hydraulic system |
| Primary Fit | Single-leg 10K Atlas hydraulic jack conversions |
| Secondary Fit | Trailers being converted from a different jack or cylinder arrangement to an Atlas hydraulic jack setup |
| Notes | Verify hydraulic port configuration, hose lengths, jack compatibility, and overall circuit design before ordering or installation. |

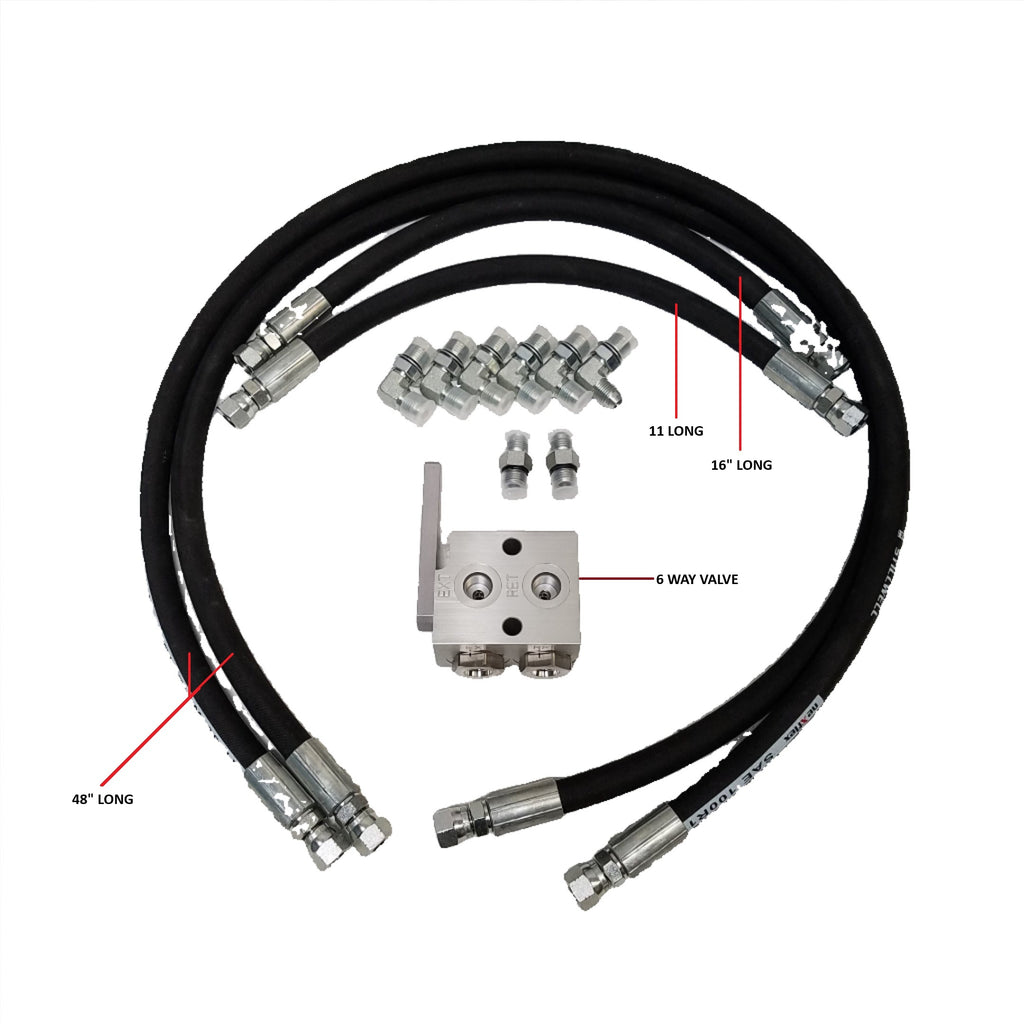

Included Components
| Quantity | Item |
|---|---|

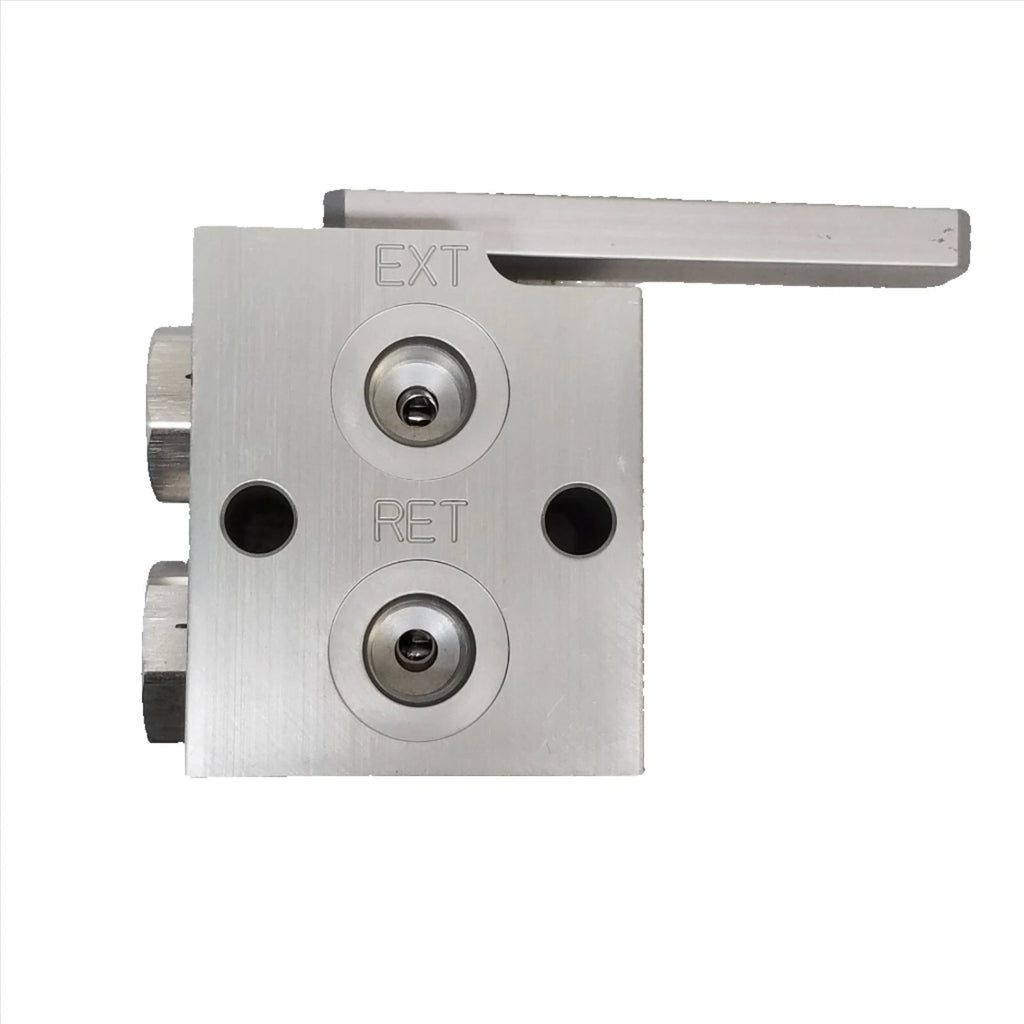

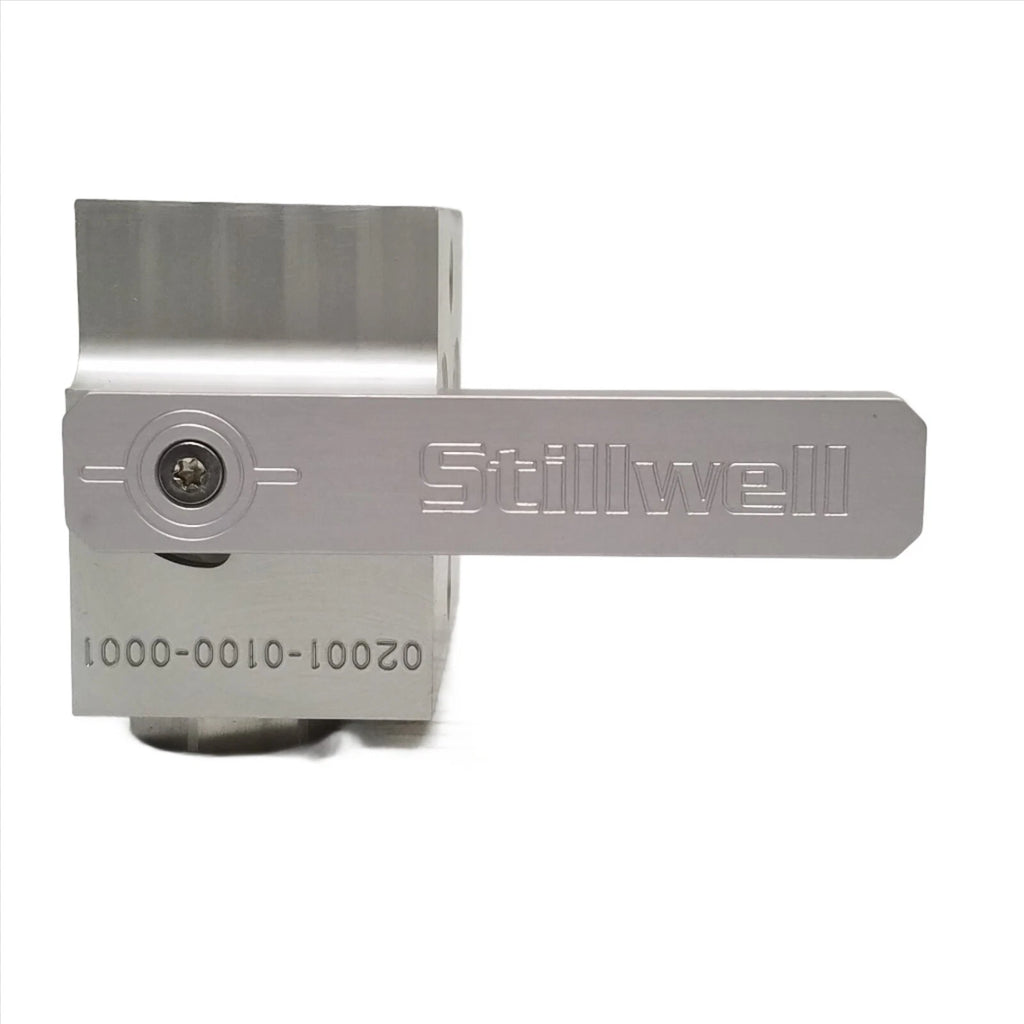

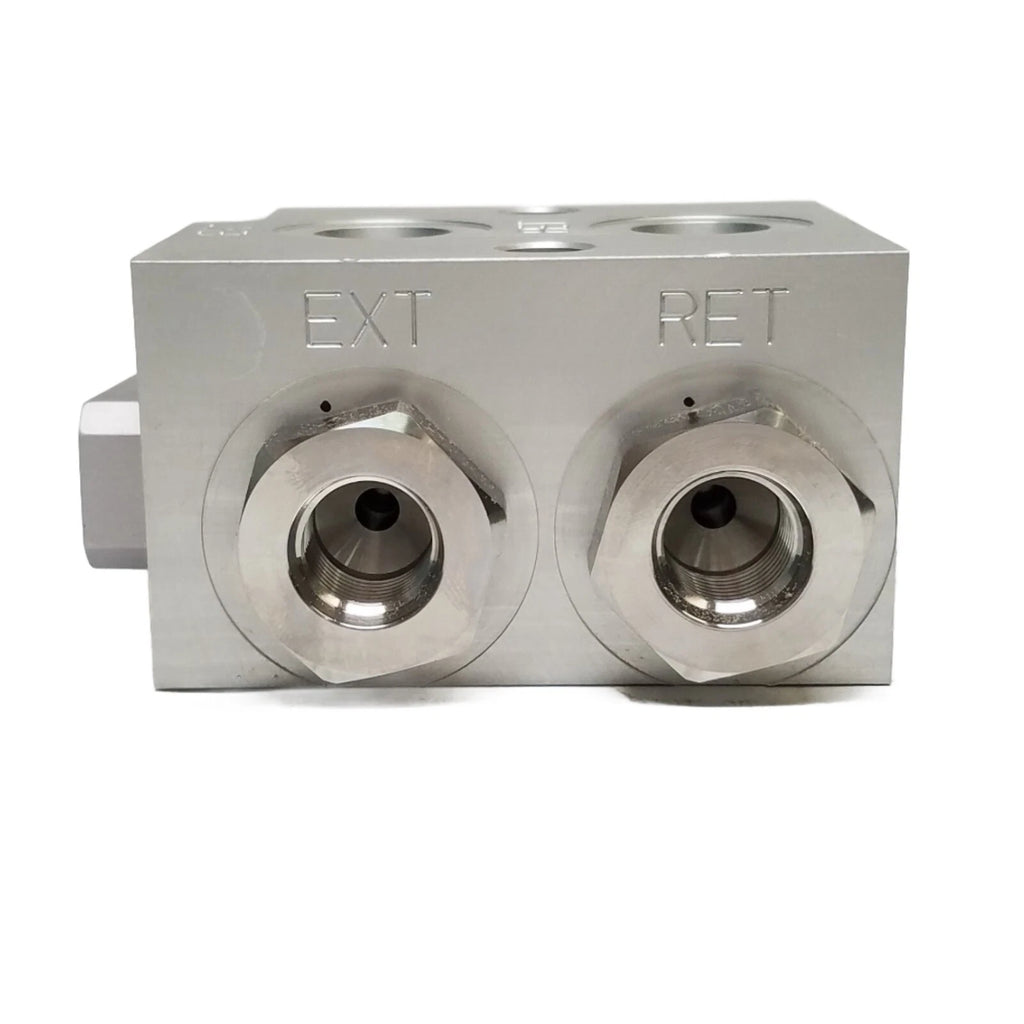

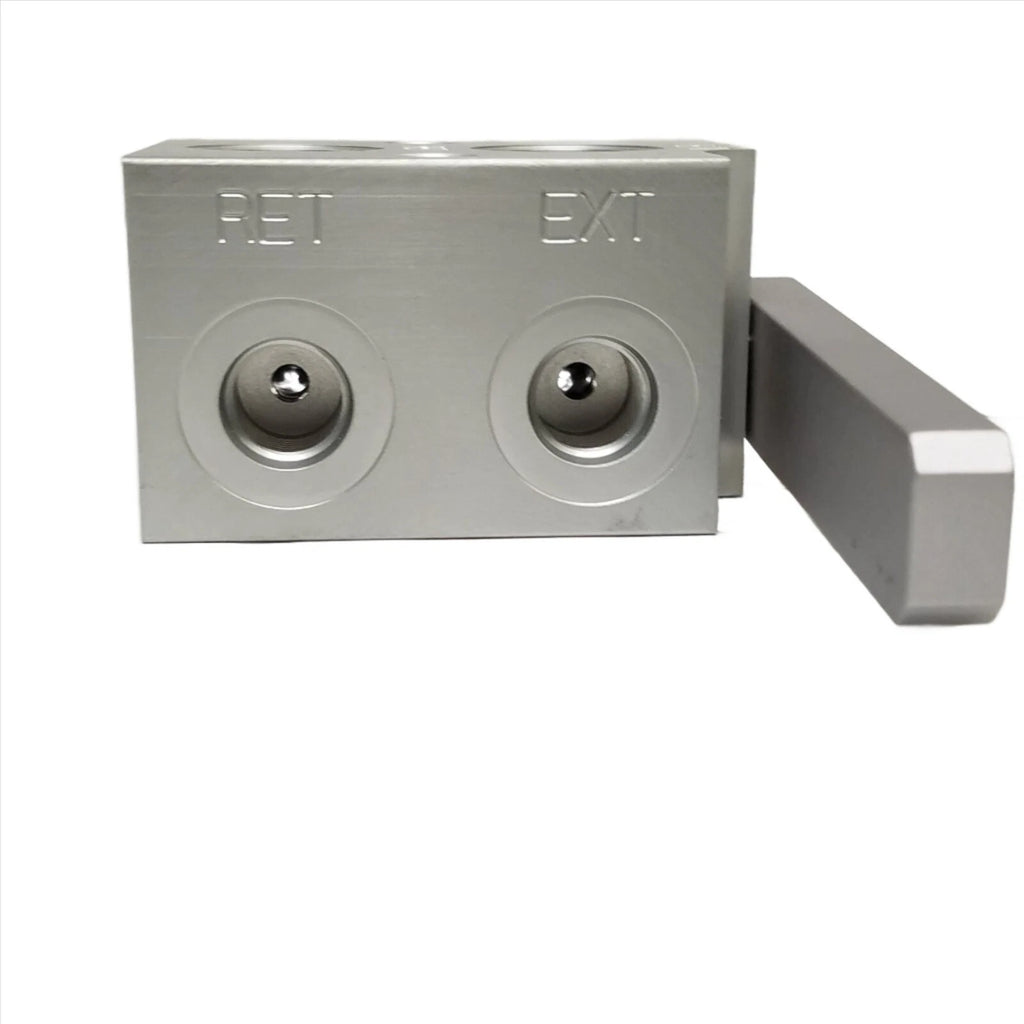

| 1 | 6-port hydraulic valve |

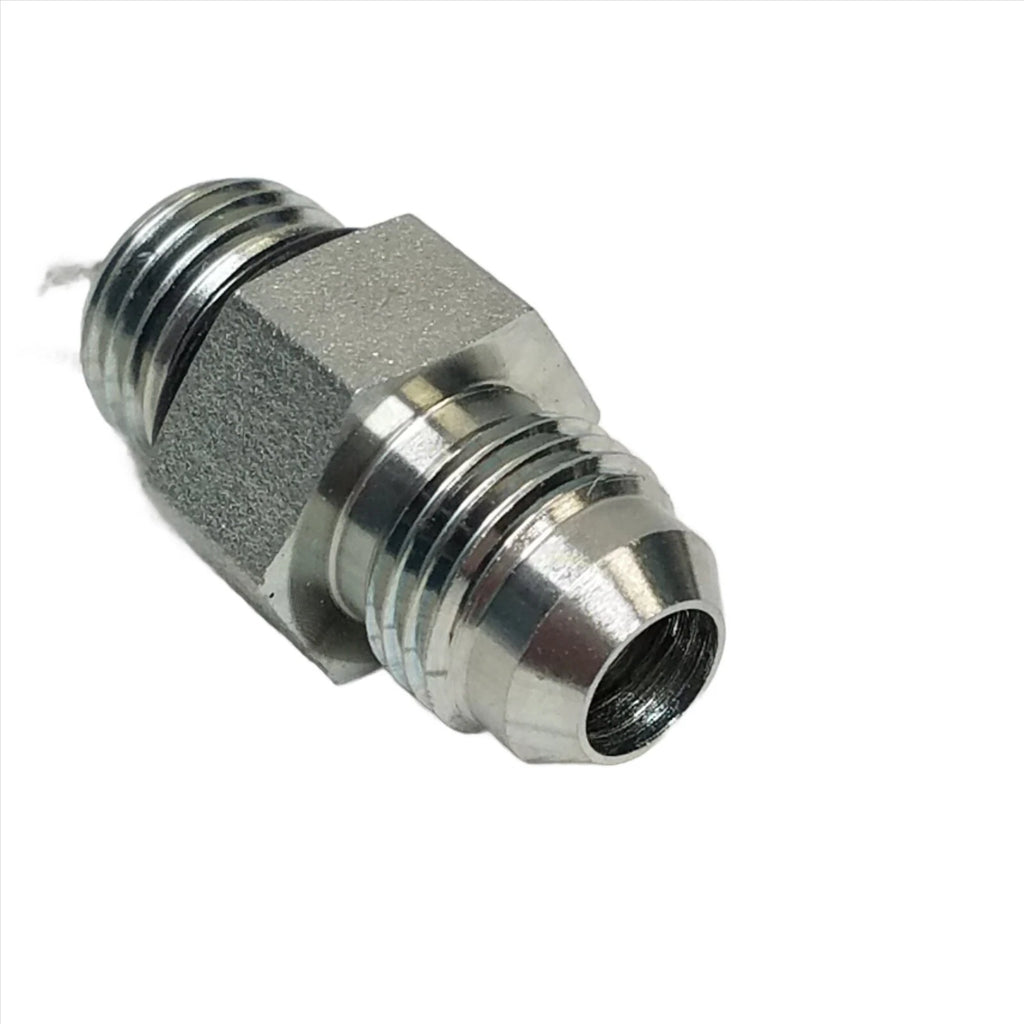

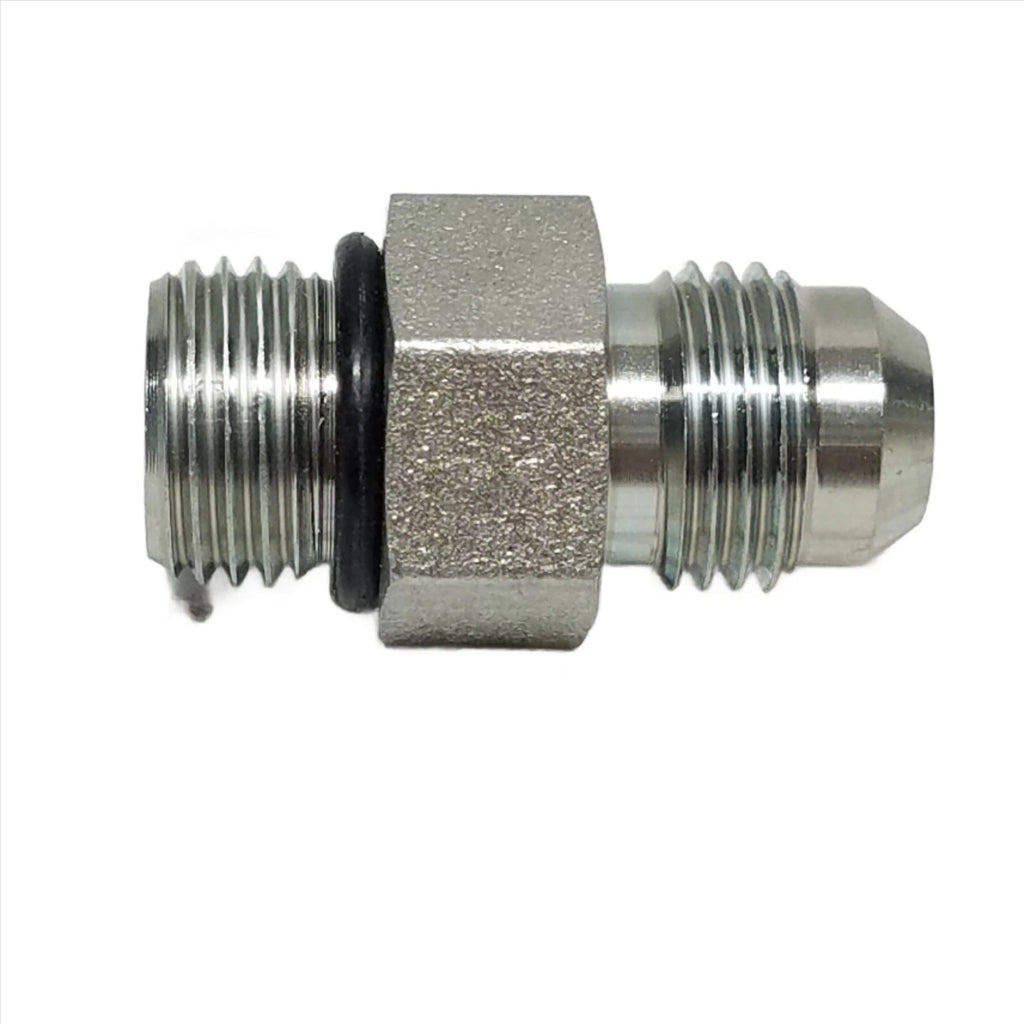

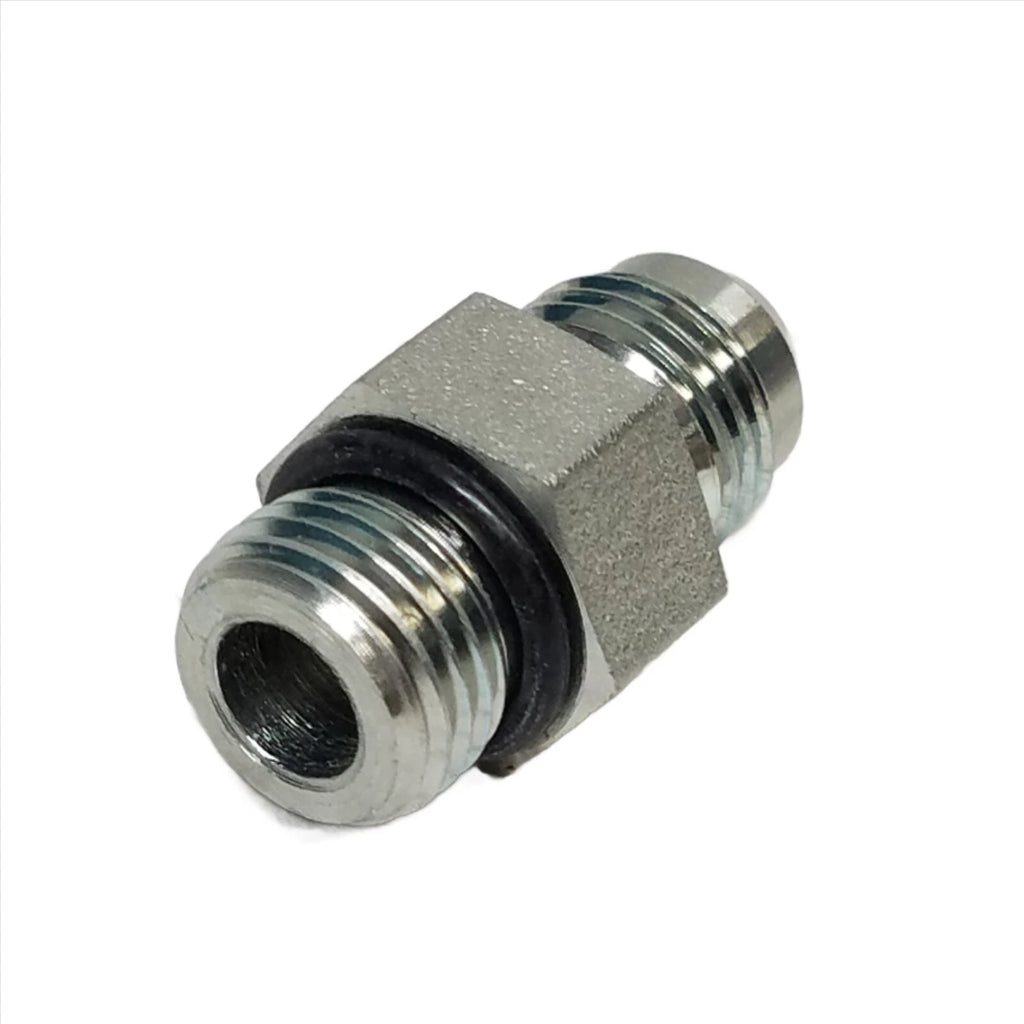

| 2 | Straight hydraulic adapters |

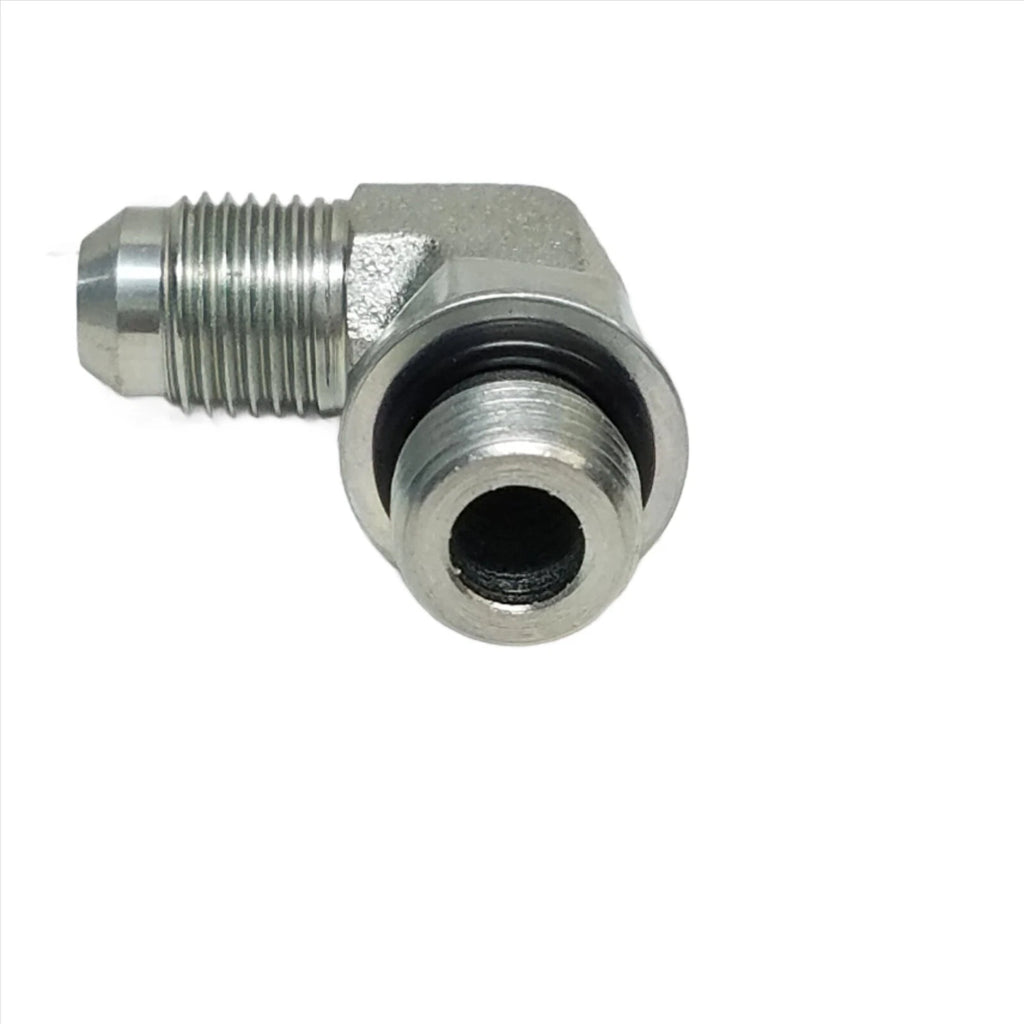

| 6 | 90-degree hydraulic adapters |

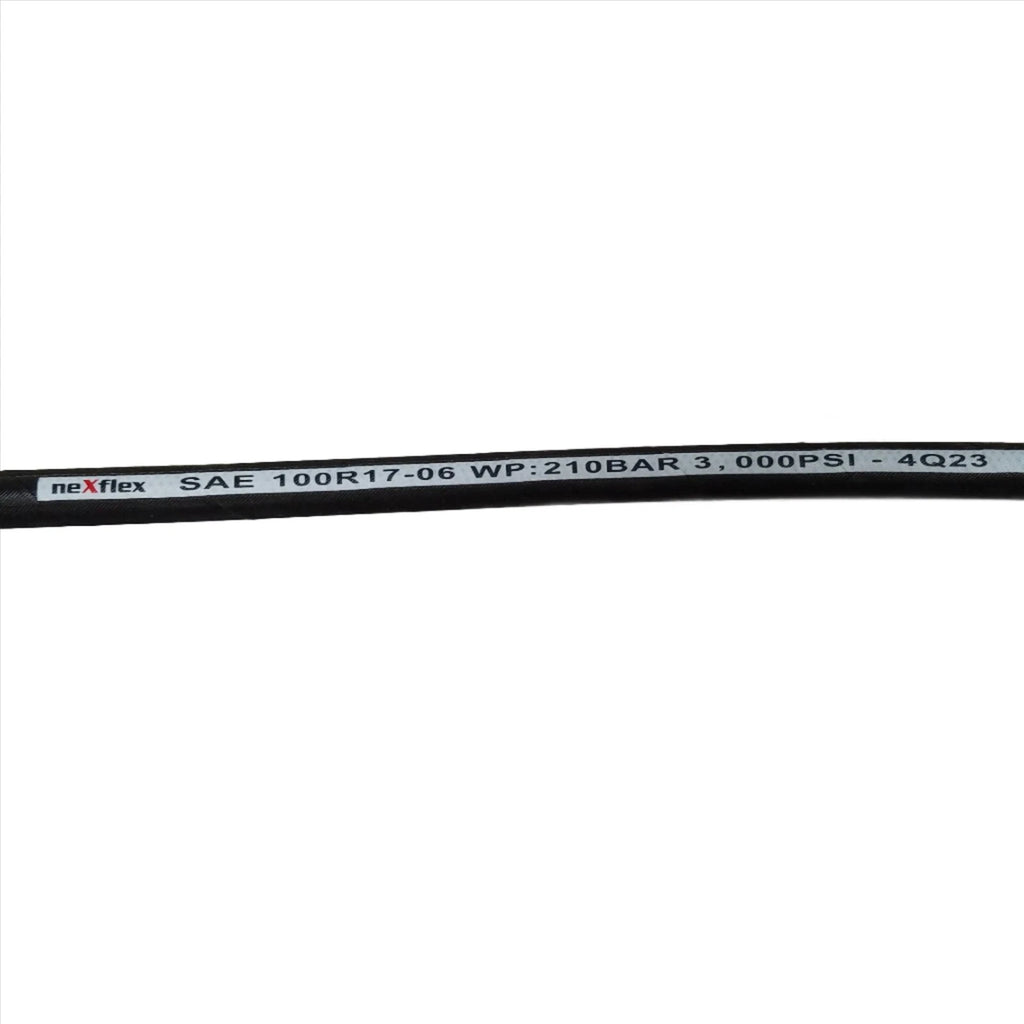

| 1 | 11" hydraulic hose |
| 1 | 16" hydraulic hose |
| 2 | 48" hydraulic hoses |
Verify hydraulic port configuration, hose lengths, pump type, and Atlas jack compatibility before installation.
