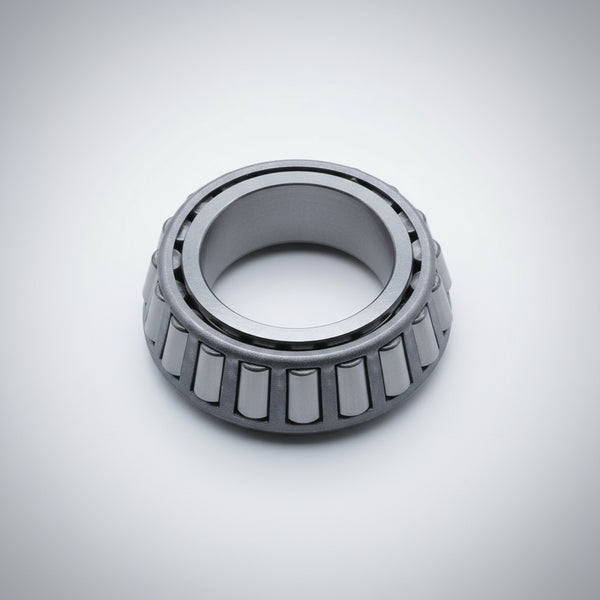

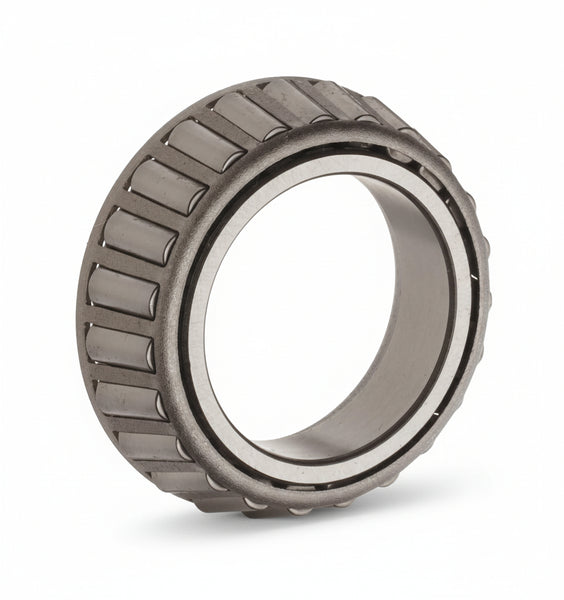

L68149 Tapered Roller Bearing – Inner (1.378" ID) – Fits L68111 / L68110 – Common 3500 lb / UFP / Older Mobile Home
One (1) L68149 tapered roller bearing (inner/large bearing on most 3.5K hubs). This cone is the standard match to cups L68111 (most common) or L68110 (select hubs). Found on many #84 spindles, UFP boat-trailer hubs, and some older mobile-home style hubs.
| Bearing (Cone) P/N | L68149 |
| Type / Position | Tapered roller bearing – inner (large) position |
| Bore / ID (d) | 1.378" (≈ 35.00 mm) |
| Cone Width (B) | 0.625" (≈ 15.88 mm) |
| Mating Cup (Race) |
L68111 (common) – 2.361" OD, ≈0.531" width L68110 (select hubs) – ≈2.328" OD, ≈0.531" width |
| Typical Axle / Spindle | 3500 lb axles, #84 spindle profile; many UFP hubs; some older mobile-home hubs |
| Common Hub Pairing | Inner: L68149/L68111 (or L68110) • Outer: L44649/L44610 |
| Seal Options (verify) | Standard 3.5K/Dexter: 1.719" ID x 2.565" OD UFP style (many boat trailers): ≈1.68" ID x 2.56" OD |
| Interchange (examples) | Timken/SKF/National L68149 (cone); Cups: L68111 / L68110 |
Fitment Notes & Use-Case
- Measure before ordering: inner spindle journal should mic at ≈1.378"; hub cup bore must match the cup you’re using (2.361" OD for L68111, ≈2.328" OD for L68110).
- Common on 10" drum or idler hubs used with 3500 lb axles; UFP hubs often use the same inner bearing but a slightly different seal size—confirm your seal I.D./O.D.
- Older mobile-home hubs sometimes use L68149 inside; verify your outer bearing (often L44649) and seal to avoid mix-match.
- When refreshing hubs, inspect races for scoring and replace cups with matching part numbers to the bearing cone (L68111 or L68110).
Install & Preload (Quick Reference)
- Pack bearing fully with high-temp wheel bearing grease; seat into the matching cup.
- Tighten spindle nut while rotating hub to seat rollers, then back off; set just finger-snug and align cotter (target endplay ≈0.001"–0.005").
- Spin test and check for heat on initial road test; recheck endplay after first 25–50 miles.
Includes one (1) bearing cone L68149 only. Order the correct cup (L68111 or L68110) and seal to match your hub. Questions on UFP vs. standard seals? Tell us your hub brand and seal I.D./O.D. and we’ll steer you right.
