ONE- 4 Leaf Spring for 5000# Axles (Rated to 2500# per spring)
Part Number: PR4
Cross Reference Numbers: DE-SW4, PR4, UNA-218, 1763, 72-25
(If you need two or more, just put the number you need in the box next to the buy it now button)
Pictures shown are FILE PHOTOS, and the actual spring. This spring will have 4 leafs
This is the common trailer axle spring in use today. It is the standard leaf spring found on the 5000# trailer axle from most manufacturers. Rated 2500 pounds per spring, for a 5000# combine capacity per axle. Also a Direct Replacement for the weaker 1750# spring used on 3500# axles, if you need a stronger spring. Measures 25.25" from bolt center to bolt center, and 1.75" wide. (your spring br a bit longer, if it has stretched
Part Number: PR4
Cross Reference Numbers: DE-SW4, PR4, UNA-218, 1763, 72-25
(If you need two or more, just put the number you need in the box next to the buy it now button)
Pictures shown are FILE PHOTOS, and the actual spring. This spring will have 4 leafs
Features:
- Used for 5000# Axles
- Rated to 2500# per spring (use two springs per axle)
Specifications:
- Number of Leaves: 4

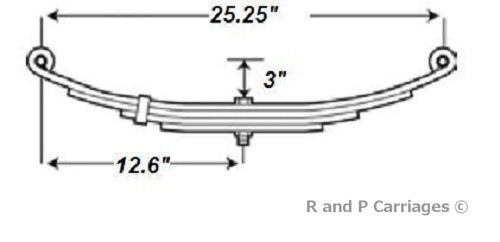

- Free Length: 25.25"
- Free Arch: 3"
- Width: 1.75"
- Used for 5000# Axles
- Rated to 2500# per spring (use two springs per axle)
Specifications:
- Number of Leaves: 4
- Free Length: 25.25"
- Free Arch: 3"
- Width: 1.75"
This is the common trailer axle spring in use today. It is the standard leaf spring found on the 5000# trailer axle from most manufacturers. Rated 2500 pounds per spring, for a 5000# combine capacity per axle. Also a Direct Replacement for the weaker 1750# spring used on 3500# axles, if you need a stronger spring. Measures 25.25" from bolt center to bolt center, and 1.75" wide. (your spring br a bit longer, if it has stretched
