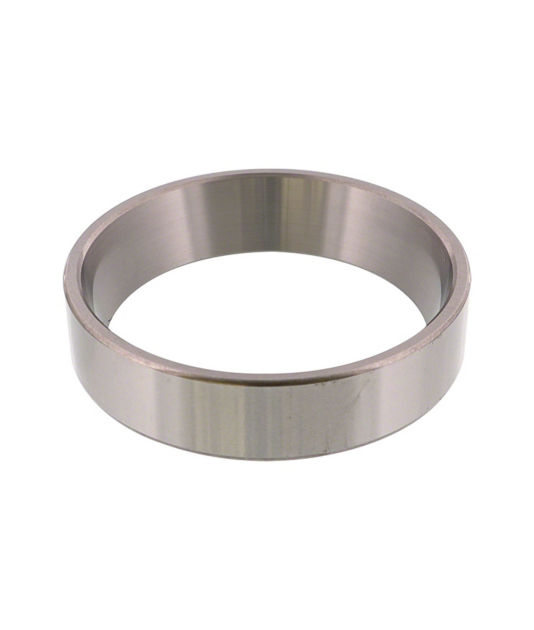

Trailer Bearing Race – 3.265" OD – Fits 25580 Bearing
Part Number: 25520
Trailer wheel bearing race designed to pair with tapered roller bearing 25580. Commonly used in many 6-lug and 8-lug trailer hub and drum assemblies.
R&P Knowledge Hub
Bearing races and bearings must always be installed as matched sets. Race 25520 is designed specifically for bearing 25580 and is commonly used on many 5,200–8,000 lb trailer axles.
| Specification | Value |
|---|---|
| Brand Reference | NTN |
| D – External Diameter | 82.931 mm (3.265") |
| C – Outer Ring Width | 19.05 mm (0.750") |
| Compatible Bearing | 25580 |
| Typical Axle Range | 5,200–8,000 lb |
Features
- Trailer wheel bearing race
- Precision-machined steel construction
- Designed for bearing 25580
- Common fit in heavy-duty trailer hubs
Specifications
| Specification | Detail |
| Part Number | 25520 |
| Outer Diameter | 3.265" |
| Compatible Bearing | 25580 |
| Typical Axle Range | 5,200–8,000 lb |
Verify specifications before installation.
