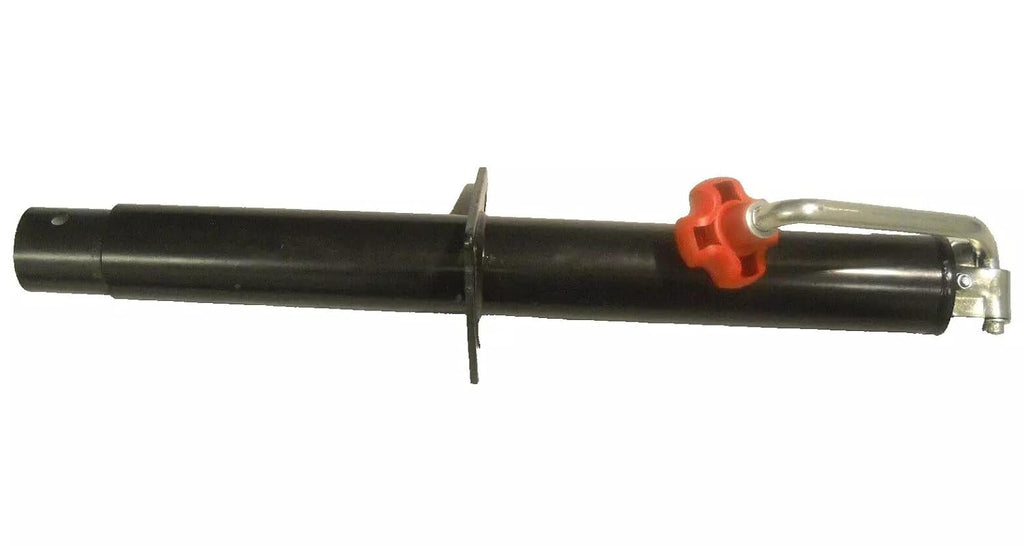

RAM 5,000 lb A-Frame Trailer Jack – 15" Lift
Part Number: TJA5000TB

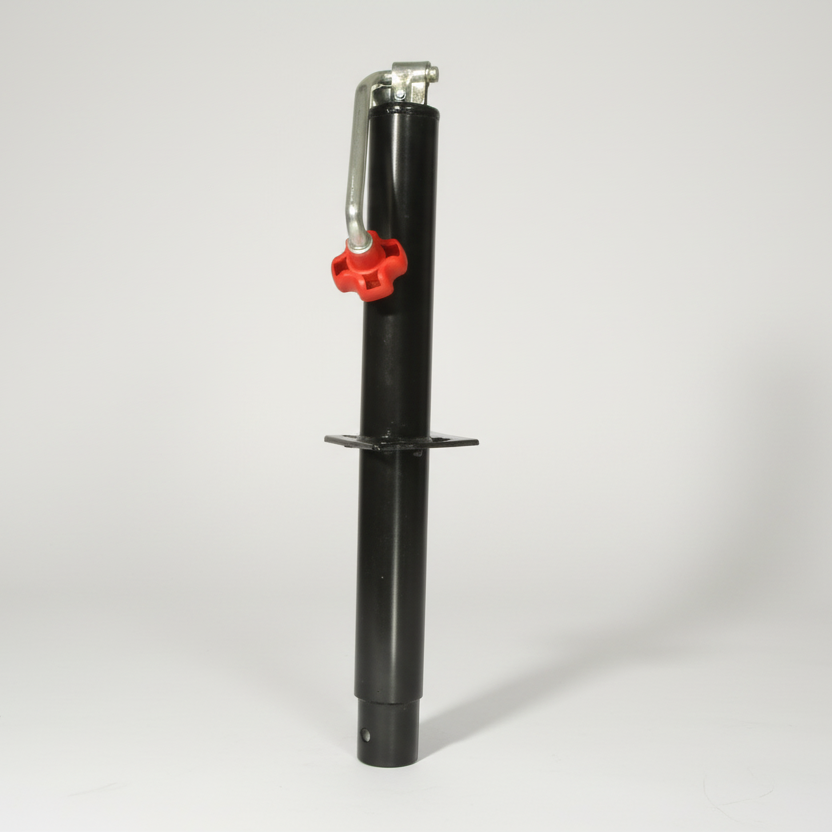

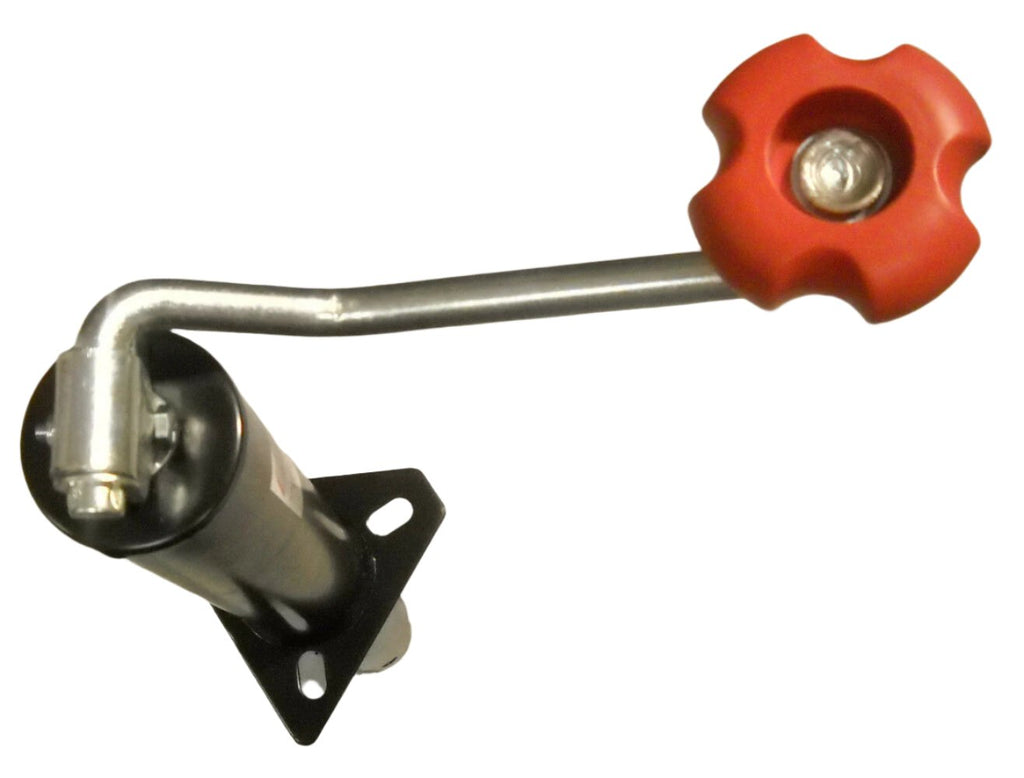

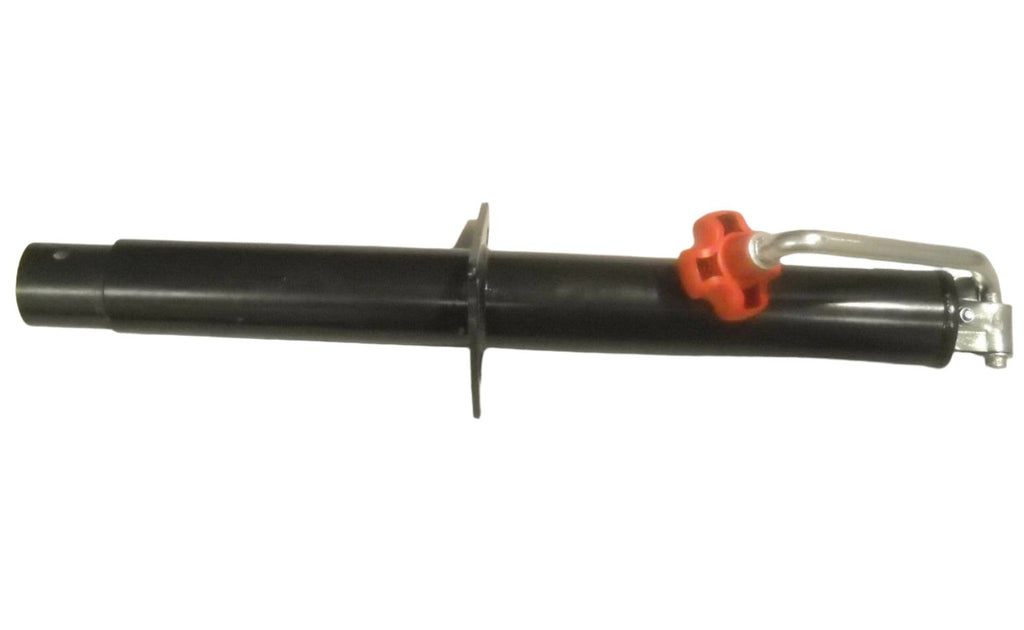

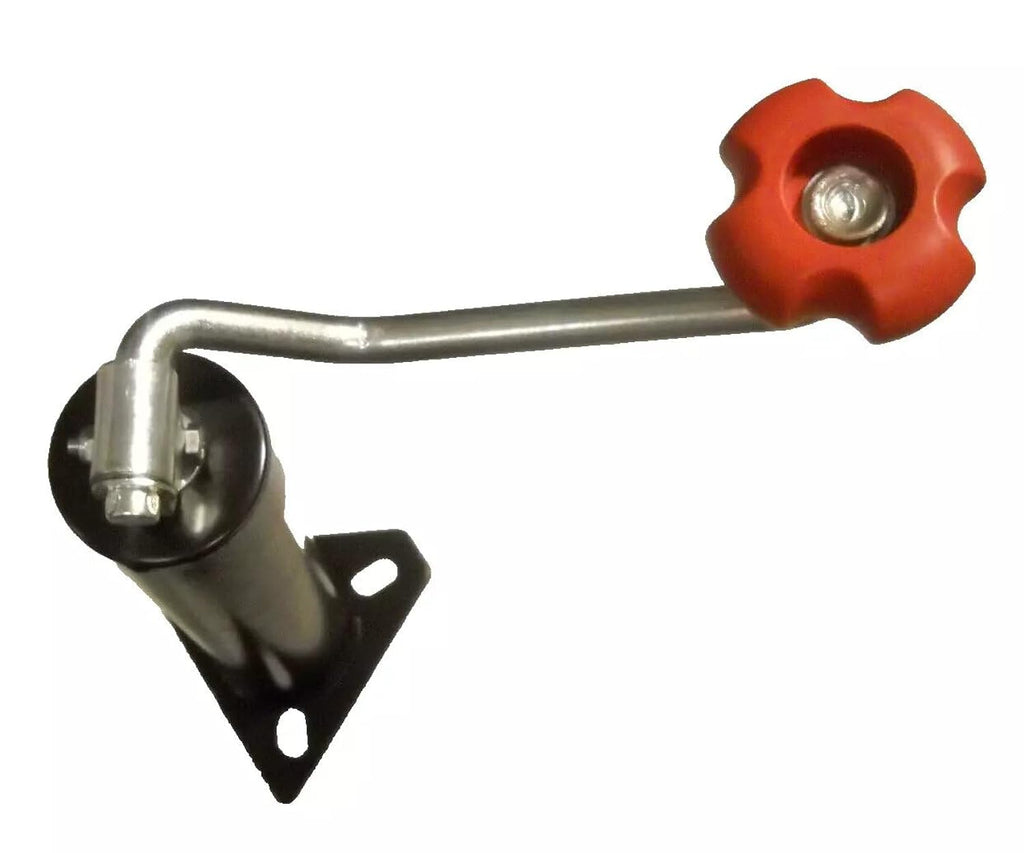

The RAM TJA5000TB is a heavy-duty A-frame trailer jack designed for installation on standard A-frame couplers. It features a black powder-coated outer tube with zinc-finished handle components for corrosion resistance in common trailer applications.
R&P Knowledge Hub

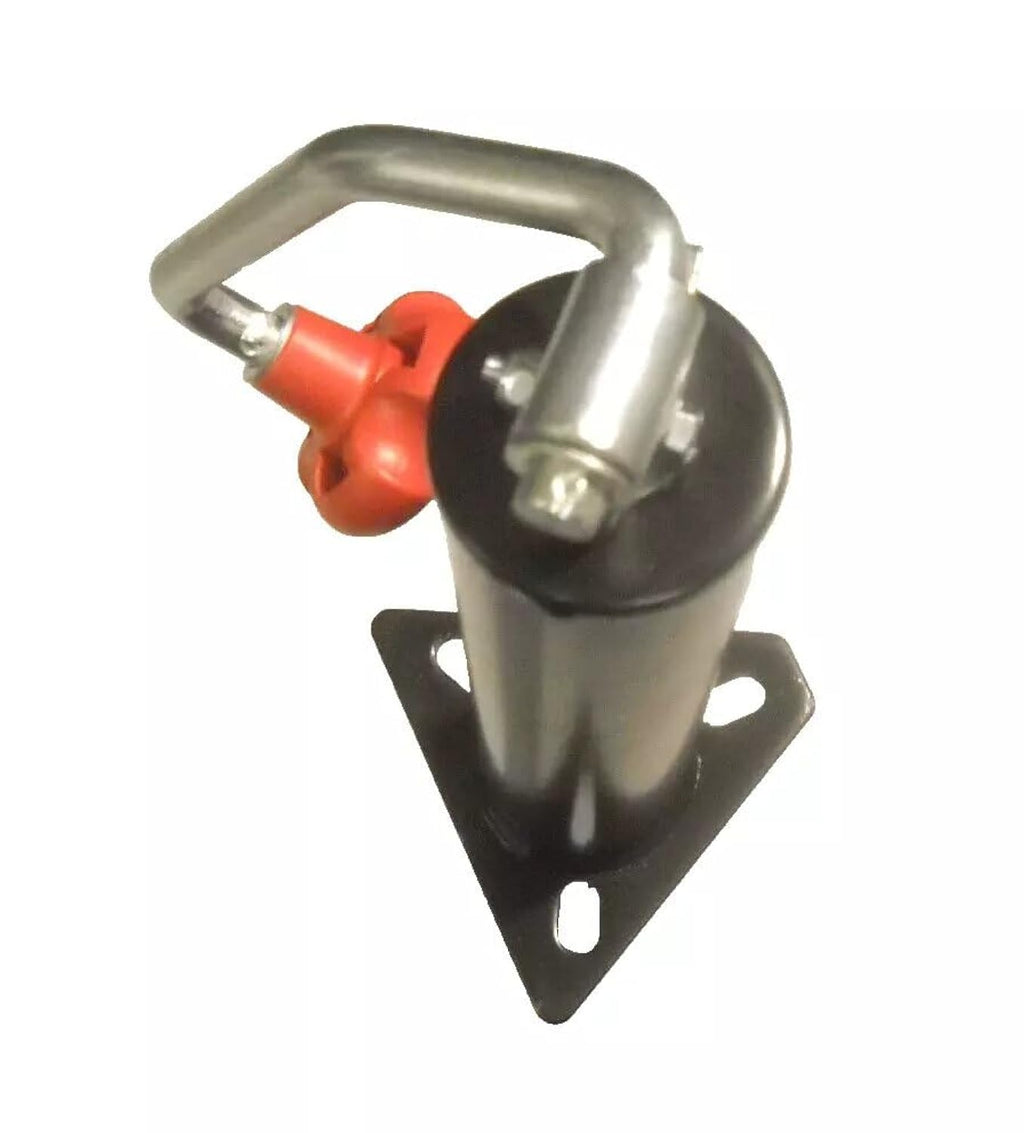

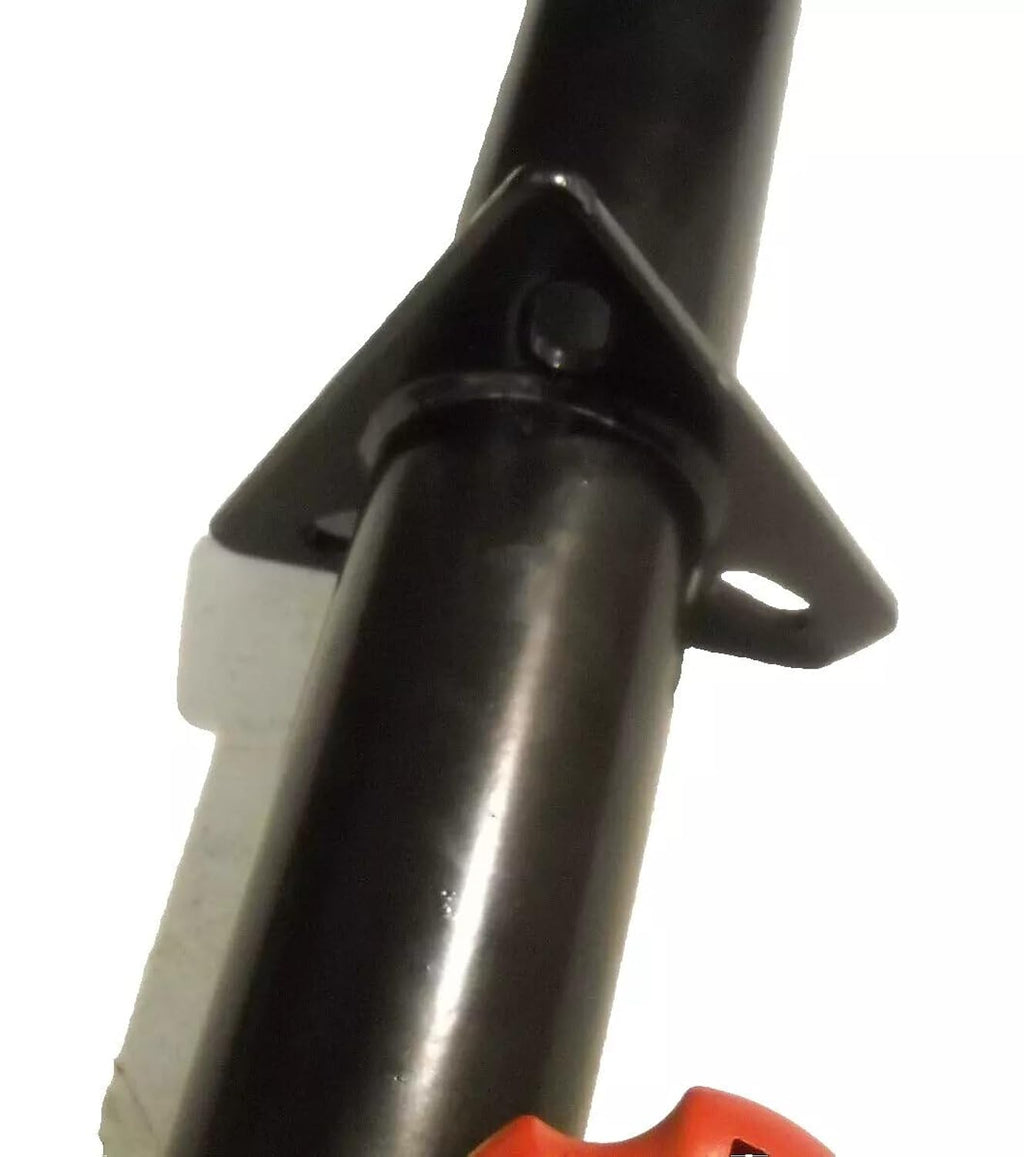

A-frame trailer jacks mount through the top plate of standard 3-bolt A-frame couplers. Confirm that your coupler has the correct mounting flange and adequate clearance before installation.
Lift capacity refers to vertical tongue weight support, not total trailer weight. Ensure your trailer’s tongue weight does not exceed the jack’s 5,000 lb rating.
Features
- Designed for standard A-frame trailer coupler mounting
- Rated up to 5,000 lb capacity
- 15" vertical lift travel
- Black powder-coated outer tube

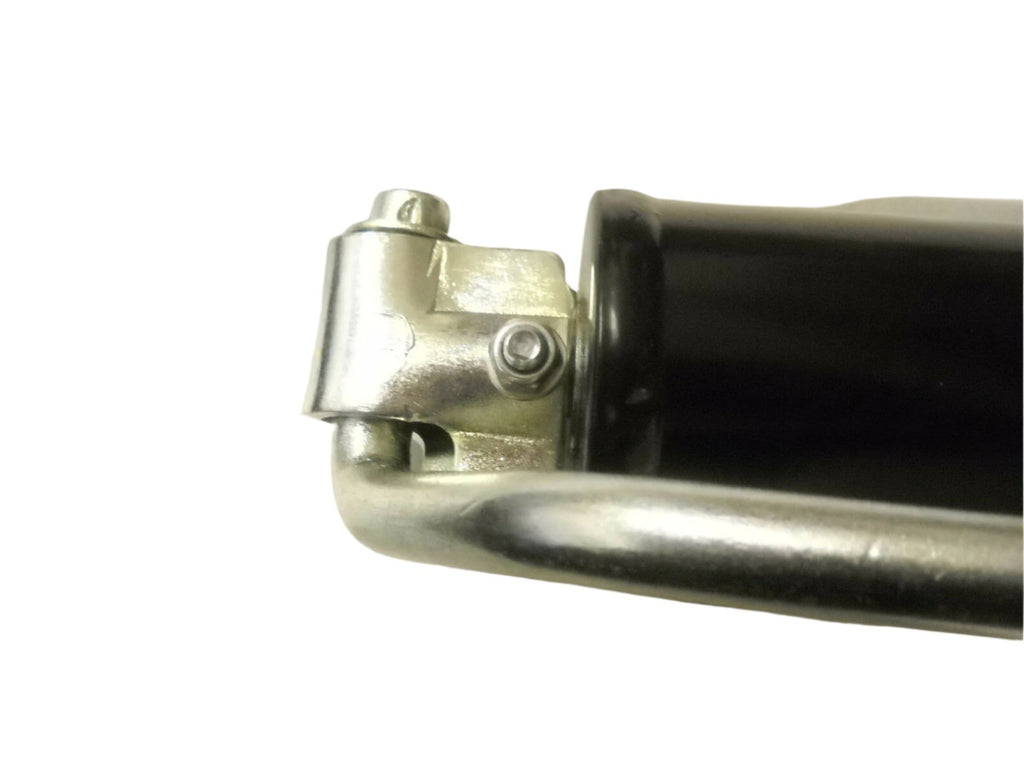

- Zinc-finished handle components
- Supports bolt-on or weld-on installation
Specifications
| Specification | Details |
|---|---|
| Jack Type | A-Frame Trailer Jack |
| Capacity | 5,000 lb |
| Lift Travel | 15" |
| Finish | Black Powder Coat |
| Mounting Style | Bolt-on or Weld-on |
Dimensions
| Retracted Height | 10.5" |
| Extended Height | 22" |
| Ground Clearance | 10.5" |
Typically used on trailers equipped with standard A-frame couplers. Verify mounting pattern, clearance, and tongue weight requirements before installation.
