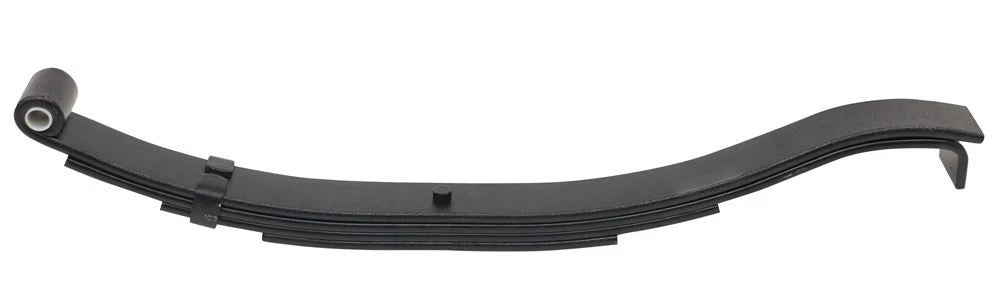

Slipper Leaf Spring — 26.5" Long, 4 Leaf, 2" Wide, 2,000 lb Rated
Part Number: SH-7230
This slipper-style leaf spring is designed for use on single-axle trailer suspension systems where a hook-end (slipper) spring is required. It features a 4-leaf construction, 26.5" overall length, and a 2" wide spring pack. The spring is rated at 2,000 lb capacity per spring.
Features
- Slipper (hook-end) leaf spring design
- Four-leaf spring pack
- Used on utility, equipment, and cargo trailers
- Designed for weld-on or bolt-on slipper hangers
- Single spring — typically used in pairs on one axle
Specifications
| Spring Type | Slipper / Hook-End |
|---|---|
| Overall Length | 26.5" |
| Spring Width | 2.00" |
| Number of Leaves | 4 |
| Load Rating | 2,000 lb per spring |
| Typical Axle Rating | Up to 4,000 lb (using two springs) |
| Weight (Each) | 17 lb |
| Manufacturer | TRP International, LLC |
| Part Number | SH-7230 |
Slipper springs must match hanger spacing, spring width, and unloaded length. Always measure your existing spring and confirm load rating before ordering.
