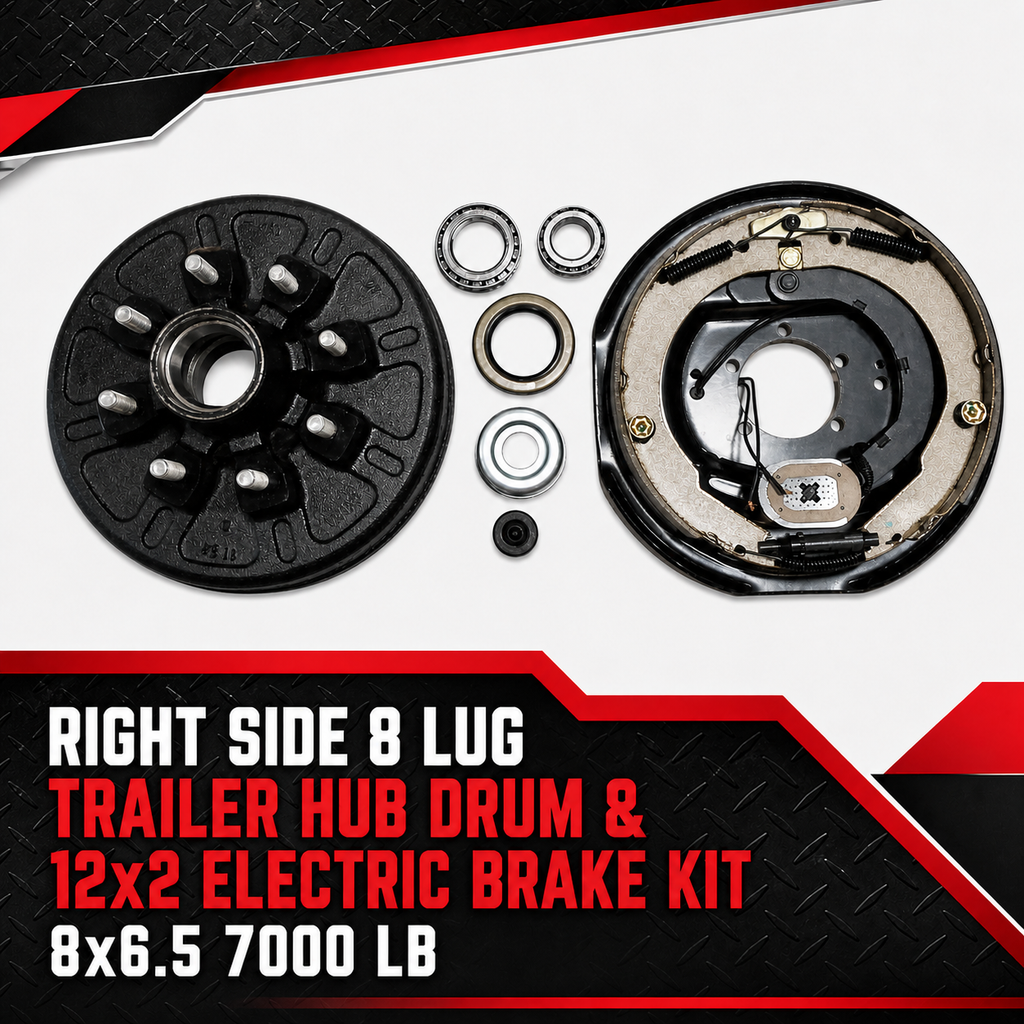

Right Side 8 Lug Trailer Hub Drum & 12x2 Electric Brake Kit 8x6.5 9/16" Studs
Complete right-side trailer axle service kit with an 8-lug hub/drum, 12" x 2" electric brake backing plate, bearings, grease seal, and EZ Lube cap for compatible 6,000 lb and 7,000 lb axle applications where specifications match.
Overview

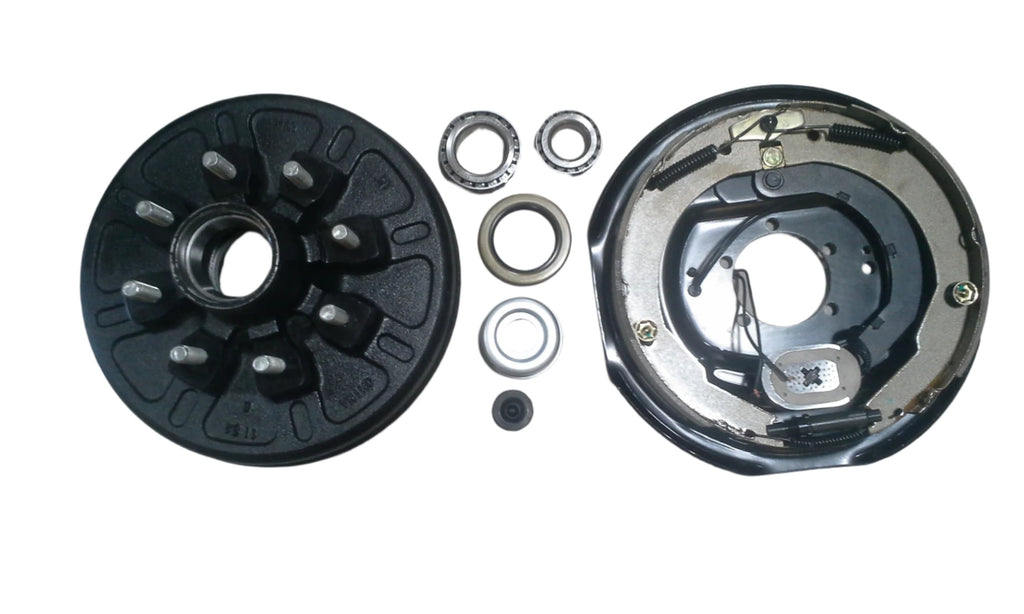

This right-side trailer brake and hub/drum kit is built for compatible 8-lug trailer axle applications using a 12" x 2" electric brake setup. It combines one 568183 hub/drum, one 12RVEBRH right-side electric backing plate, and one HD-7000-KIT bearing, seal, and cap package for one side of the axle.
R&P Service Insight
Hub/drum and electric brake components must be matched carefully before installation. Bearing numbers, seal dimensions, brake size, bolt pattern, stud size, brake flange style, and side orientation all matter on trailer axle-end repairs.
- Side Specific: This listing is for the right-side brake backing plate.

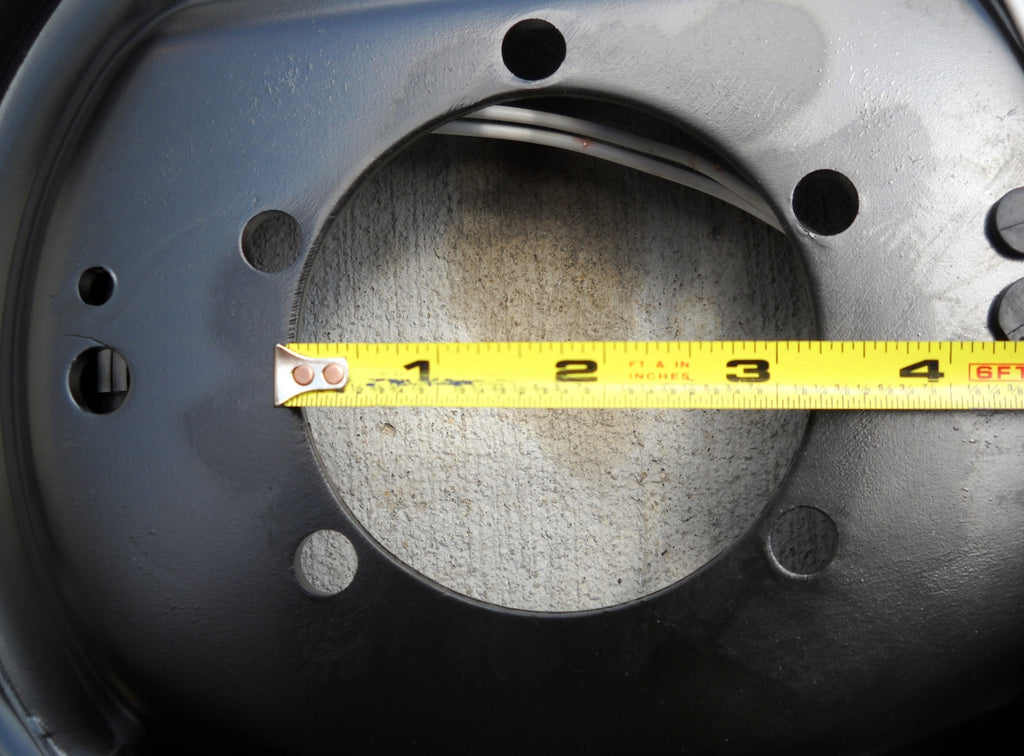

- Brake Match: Uses a 12" x 2" electric backing plate with 5-bolt mounting.
- Hub Match: Hub/drum uses an 8 lug x 6.5" bolt pattern with 9/16" studs.
R&P Knowledge Hub
Compatibility: For compatible 6,000 lb and 7,000 lb trailer axle applications where the hub, drum, brake, bearing, seal, and mounting specifications match.
Vehicle / System Fit: Trailer axle hub/drum and electric brake service for 8-lug, 8 x 6.5" wheel bolt pattern setups.
Installation Notes: Verify right-side orientation, 12" x 2" brake size, 5-bolt brake flange, bearing numbers, 10-36 grease seal size, 8 x 6.5" bolt pattern, 9/16" stud size, and axle rating before ordering.
Performance Insight: Replacing the hub/drum and brake assembly together can help address axle-end service issues involving worn drums, brake shoes, magnets, bearings, seals, or cap components.
Brand & Fitment Note
Selling Brand: R&P Carriages
Application Reference: Axle ratings, part numbers, and component references in this listing describe compatibility, fitment target, or application style only where the listed dimensions and configuration match.
What This Means: This listing is for a R&P Carriages right-side trailer hub/drum, electric brake, bearing, seal, and cap kit built around the listed component numbers.
Before Ordering: Verify side orientation, brake size, brake flange, wheel bolt pattern, stud size, bearing numbers, seal dimensions, cap style, and axle rating before installation.
R&P Repair Insight
This is a one-side right-hand kit, not a left/right pair and not a complete one-axle kit. Trailer electric brake assemblies are side-specific, so confirm you need the right-side brake before ordering.
- Orientation Check: Confirm this is the right-side brake assembly needed for your axle.
- Bearing Check: Match 14125A outer bearing and 25580 inner bearing before installation.
- Seal Check: Confirm your axle uses a 10-36 grease seal measuring 2.25" x 3.376".
Features
Right-Side Brake Kit

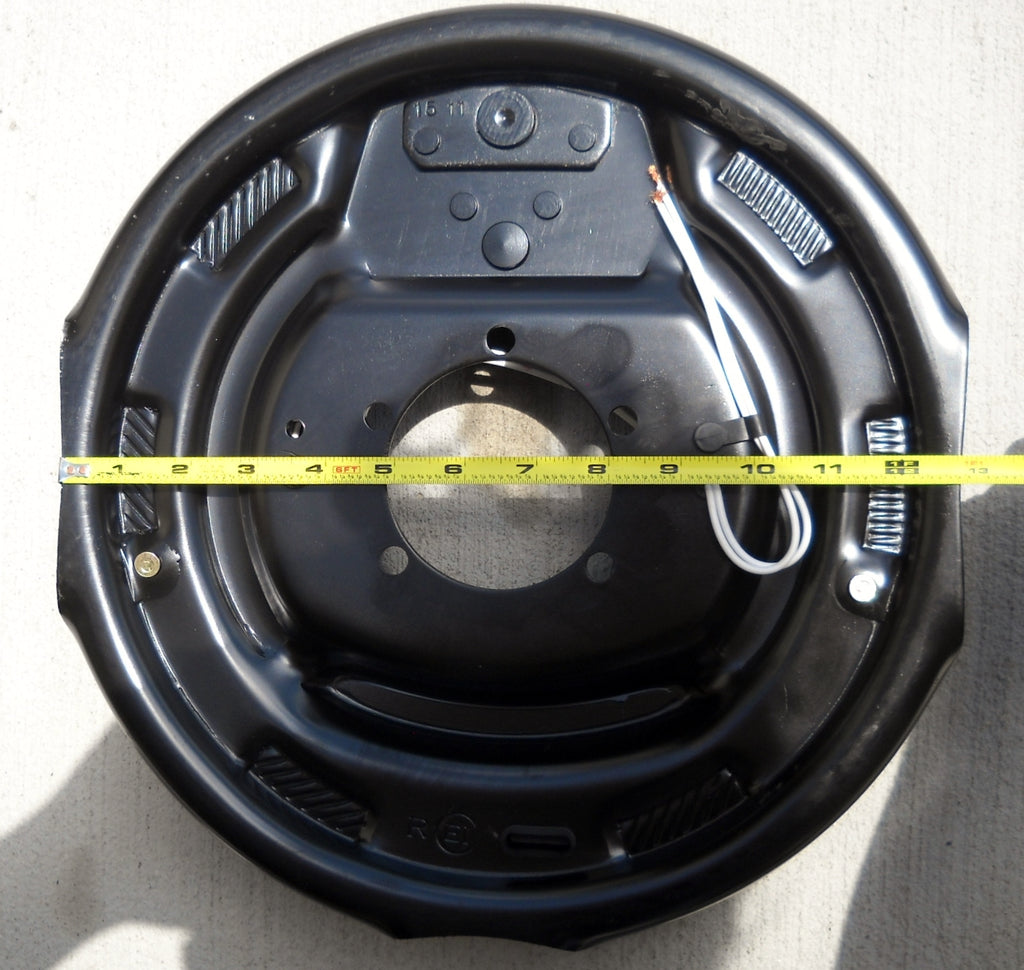

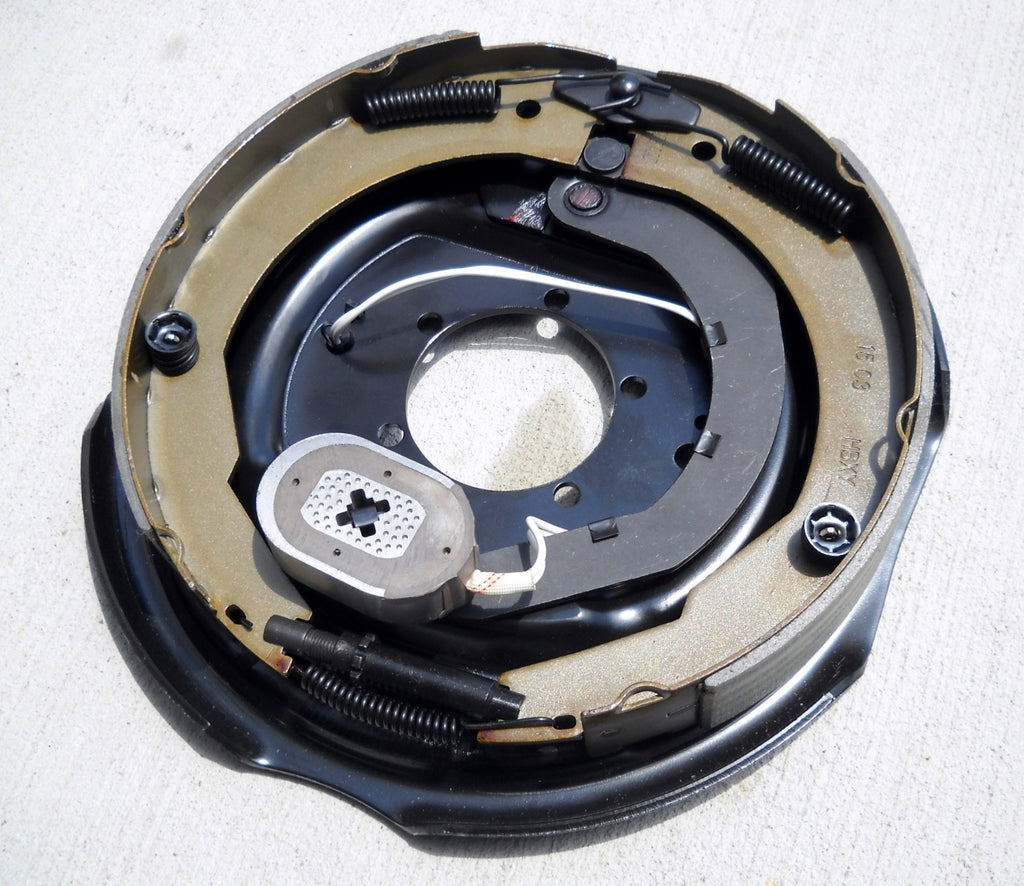

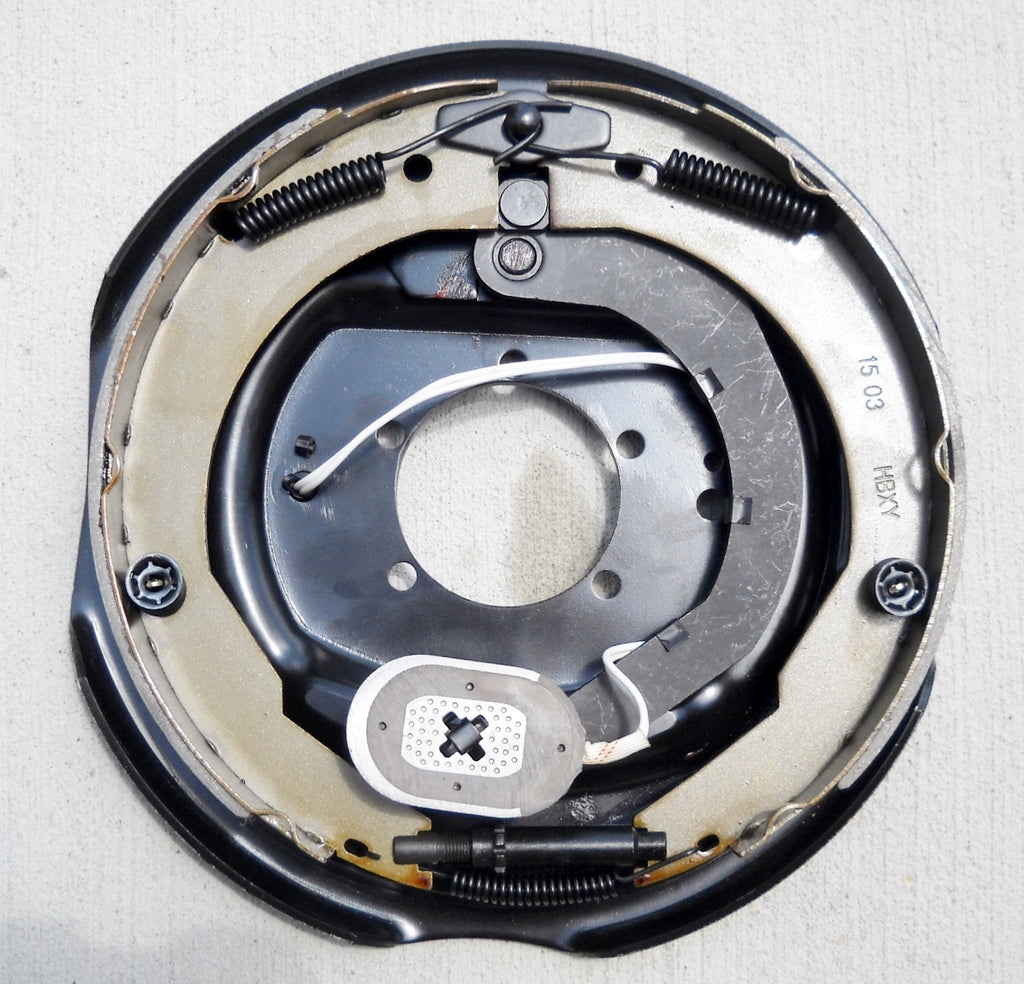

Includes one 12RVEBRH right-side 12" x 2" electric backing plate for compatible trailer axle brake service.
8 Lug Hub/Drum

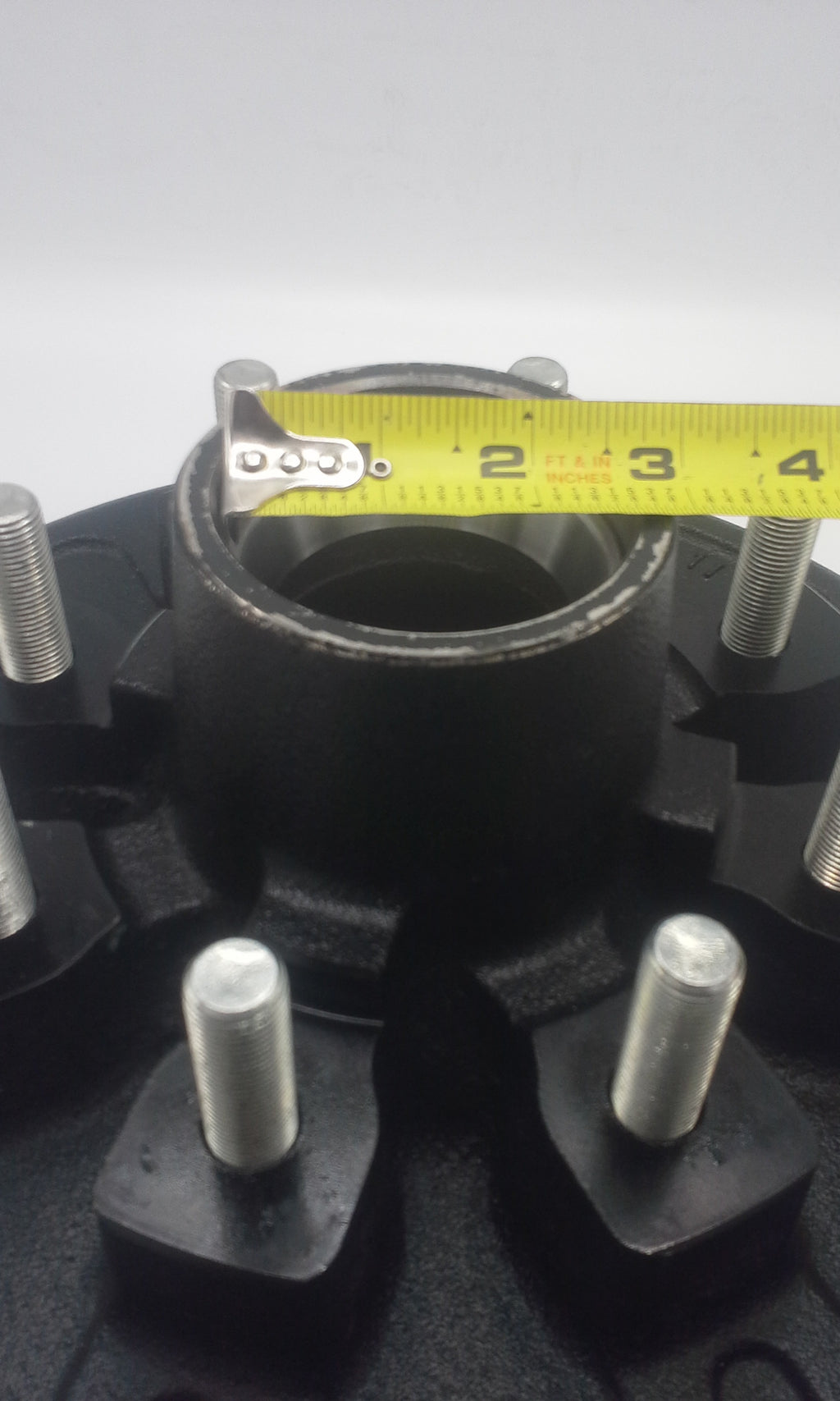

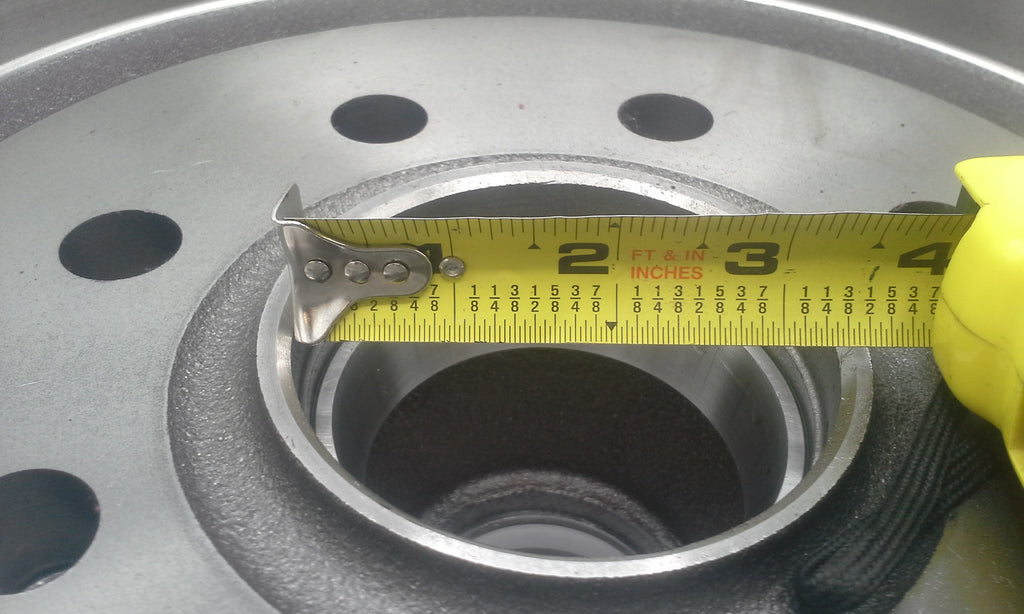

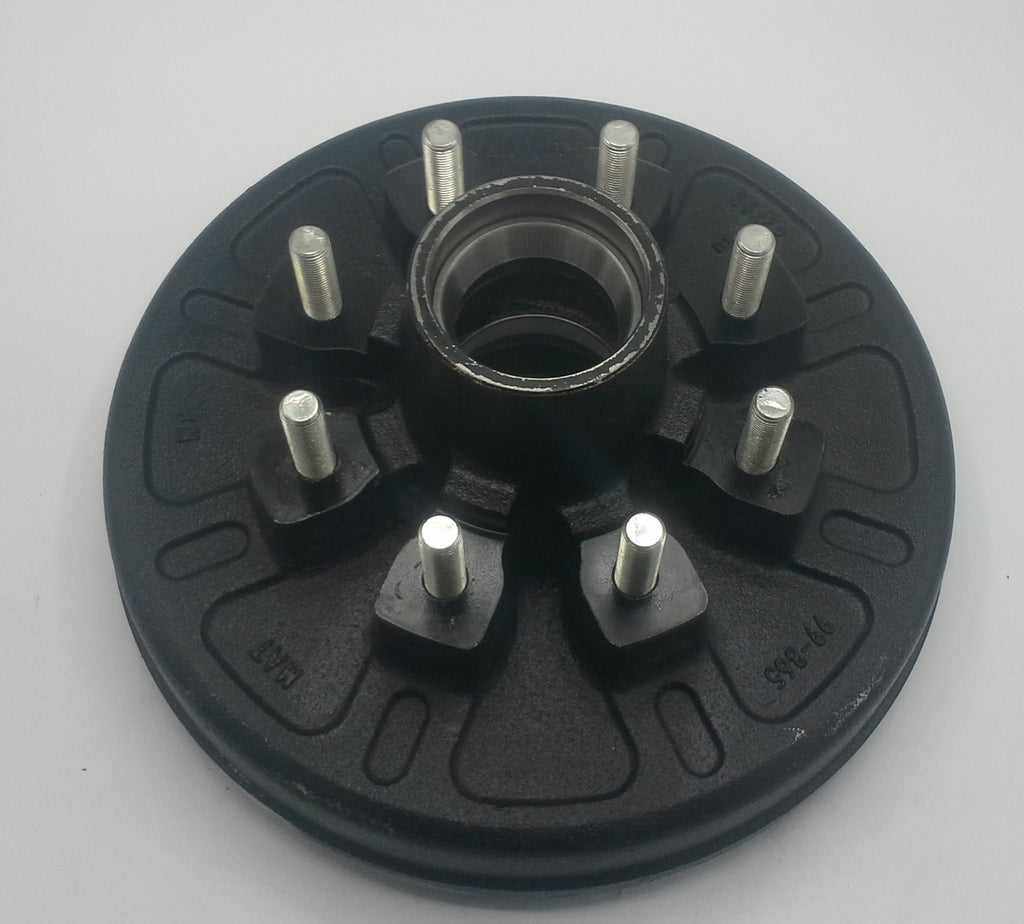

Includes one 568183 hub/drum listed for 7,000 lb axle applications with an 8 lug x 6.5" bolt pattern.
Bearing & Seal Kit Included

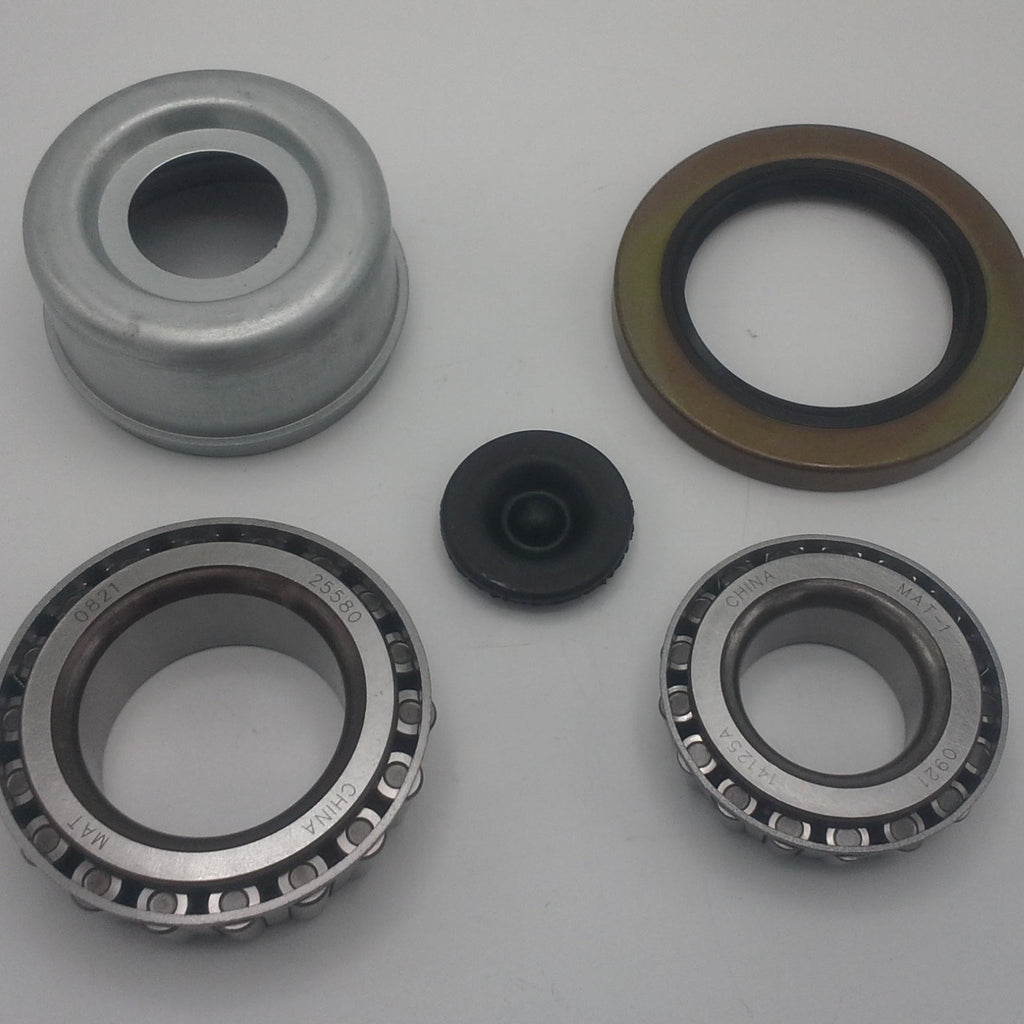

Includes one HD-7000-KIT with 14125A outer bearing, 25580 inner bearing, 10-36 grease seal, and 2.71" EZ Lube cap with rubber insert.
9/16" Stud Setup

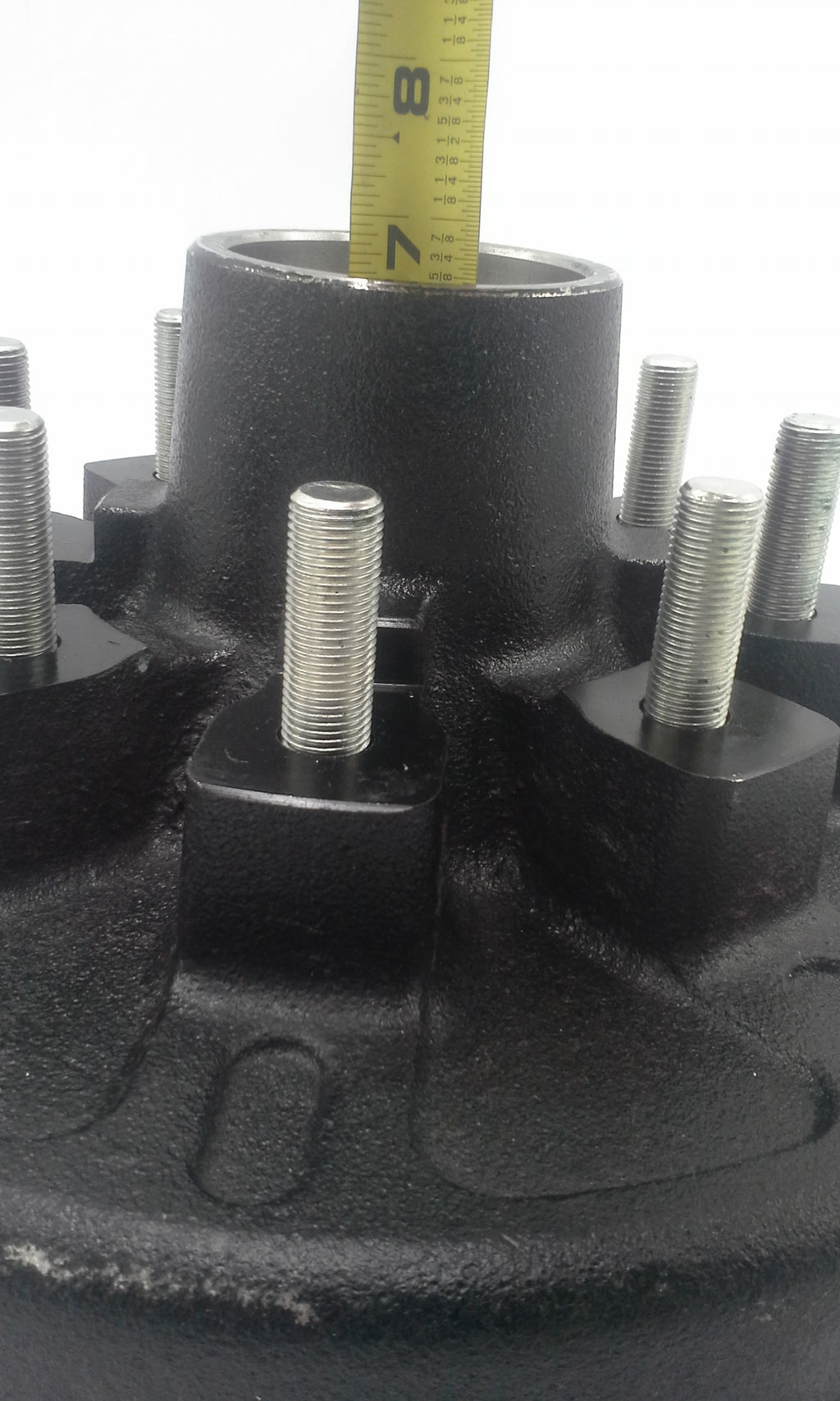

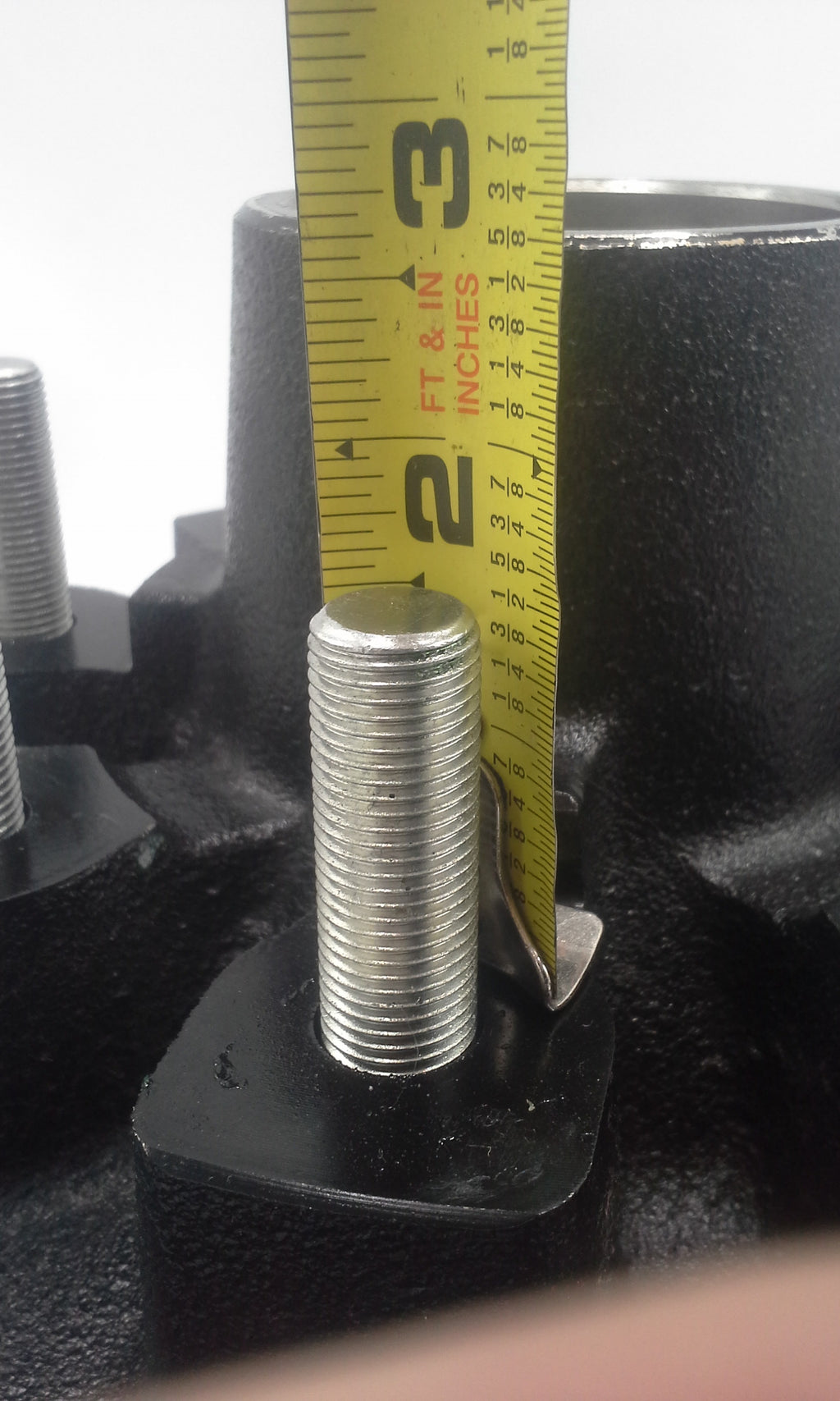

Hub/drum is listed with 9/16" lug nut studs measuring 1-1/2" long.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 568183-12RVEBRH |
| Brand | R&P Carriages |
| Product Type | Right-side hub/drum, electric brake, bearing, seal, and cap kit |
| Application | Trailer axle hub/drum and electric brake service |

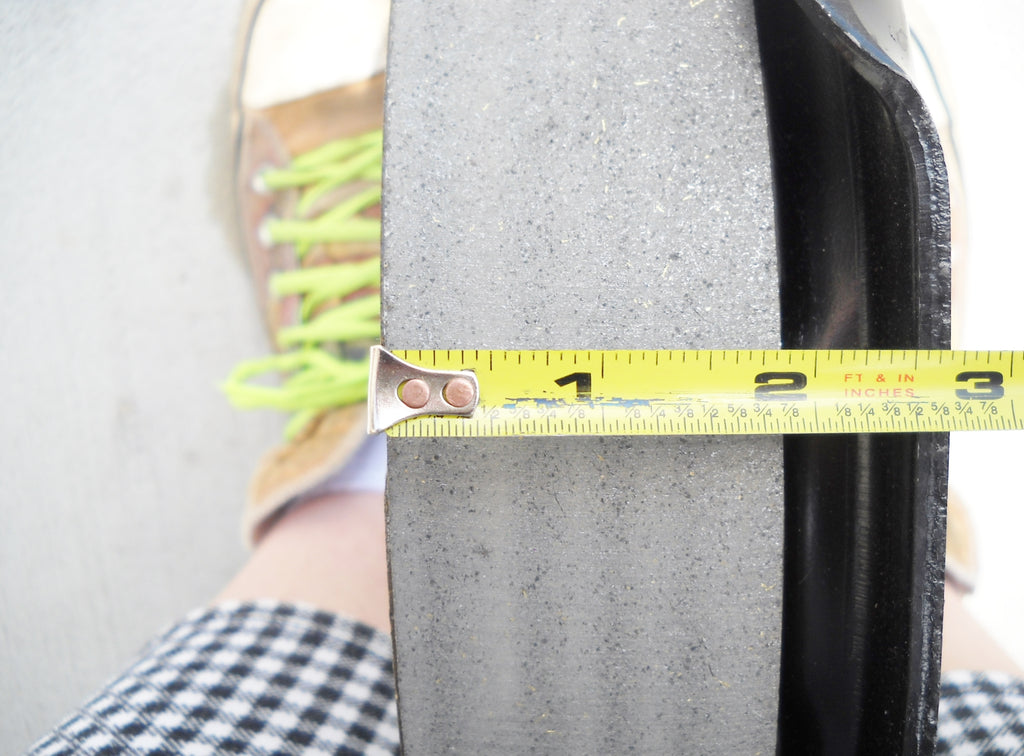

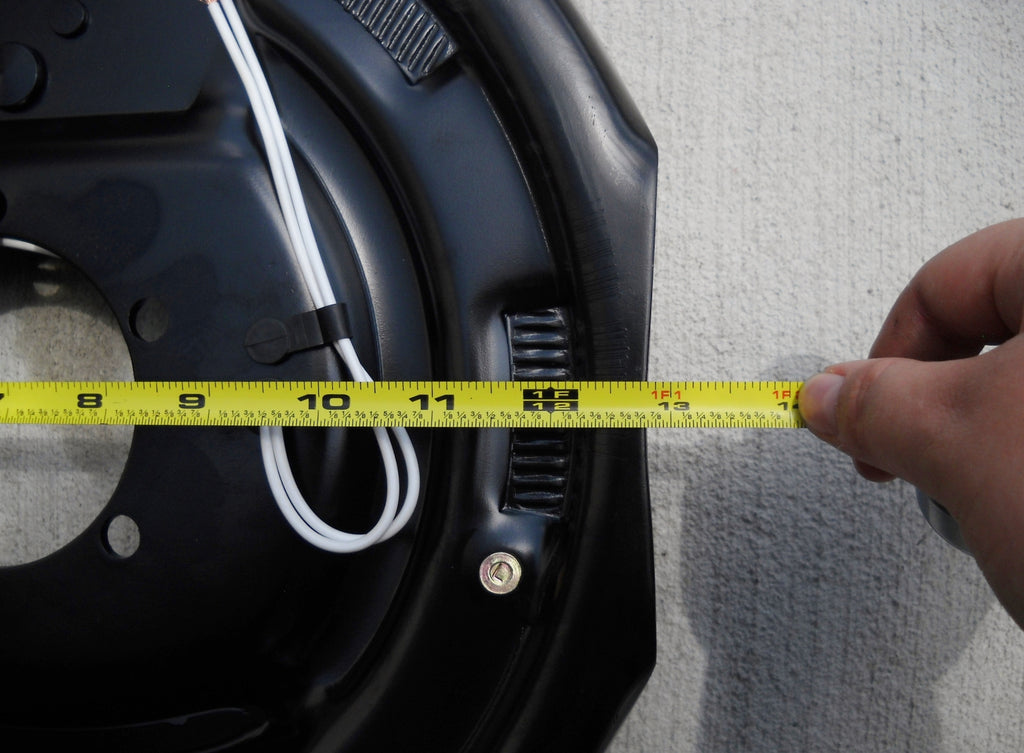

| Brake Size | 12" x 2" |

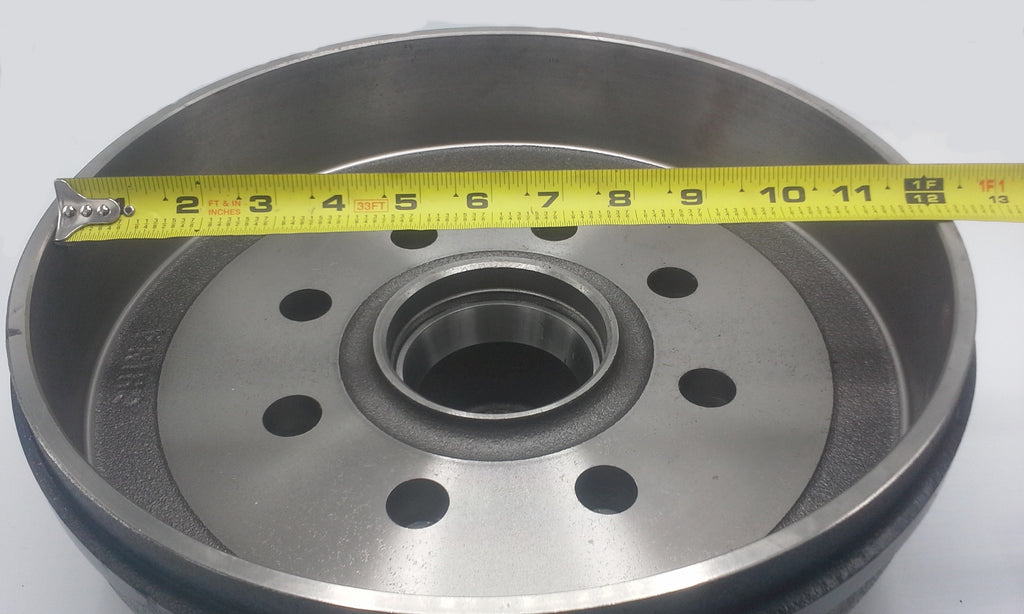

| Hub/Drum | 568183 hub/drum for 7,000 lb axle applications |
| Bolt Pattern | 8 lug x 6.5" |
| Stud Size | 9/16" lug nut studs, 1-1/2" long |
| Backing Plate | 12RVEBRH right-side electric backing plate, 5-bolt mount |
| Bearing Kit | HD-7000-KIT |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Trailer axle hub/drum and electric brake system |
| Primary Fit | Compatible 8-lug trailer axle setups using 12" x 2" electric brakes |
| Axle Rating Reference | Listed for 6,000 lb and 7,000 lb axle applications where specifications match |
| Notes | Verify right-side orientation, 8 x 6.5" wheel bolt pattern, 9/16" stud size, 5-bolt brake flange, bearing numbers, seal size, and axle rating before ordering. |
Included Components
| Quantity | Item |
|---|---|
| 1 | 568183 hub/drum for 7,000 lb axle applications, 8 lug x 6.5" bolt pattern, 9/16" lug nut studs, 1-1/2" long |
| 1 | 12RVEBRH right-side electric backing plate, 12" x 2", 5-bolt mount, for up to 7,000 lb axle applications |
| 1 | HD-7000-KIT bearing, grease seal, and EZ Lube cap kit |

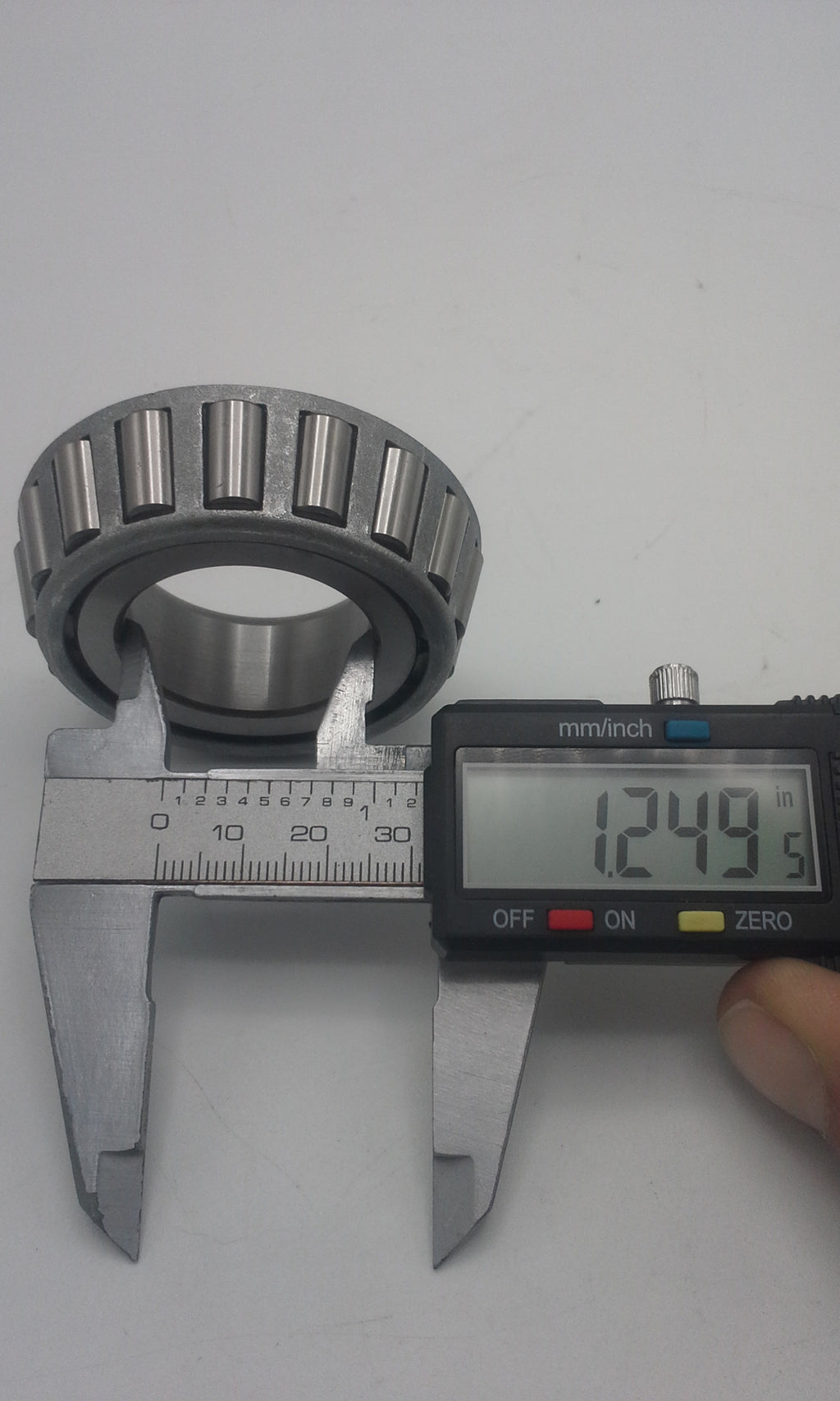

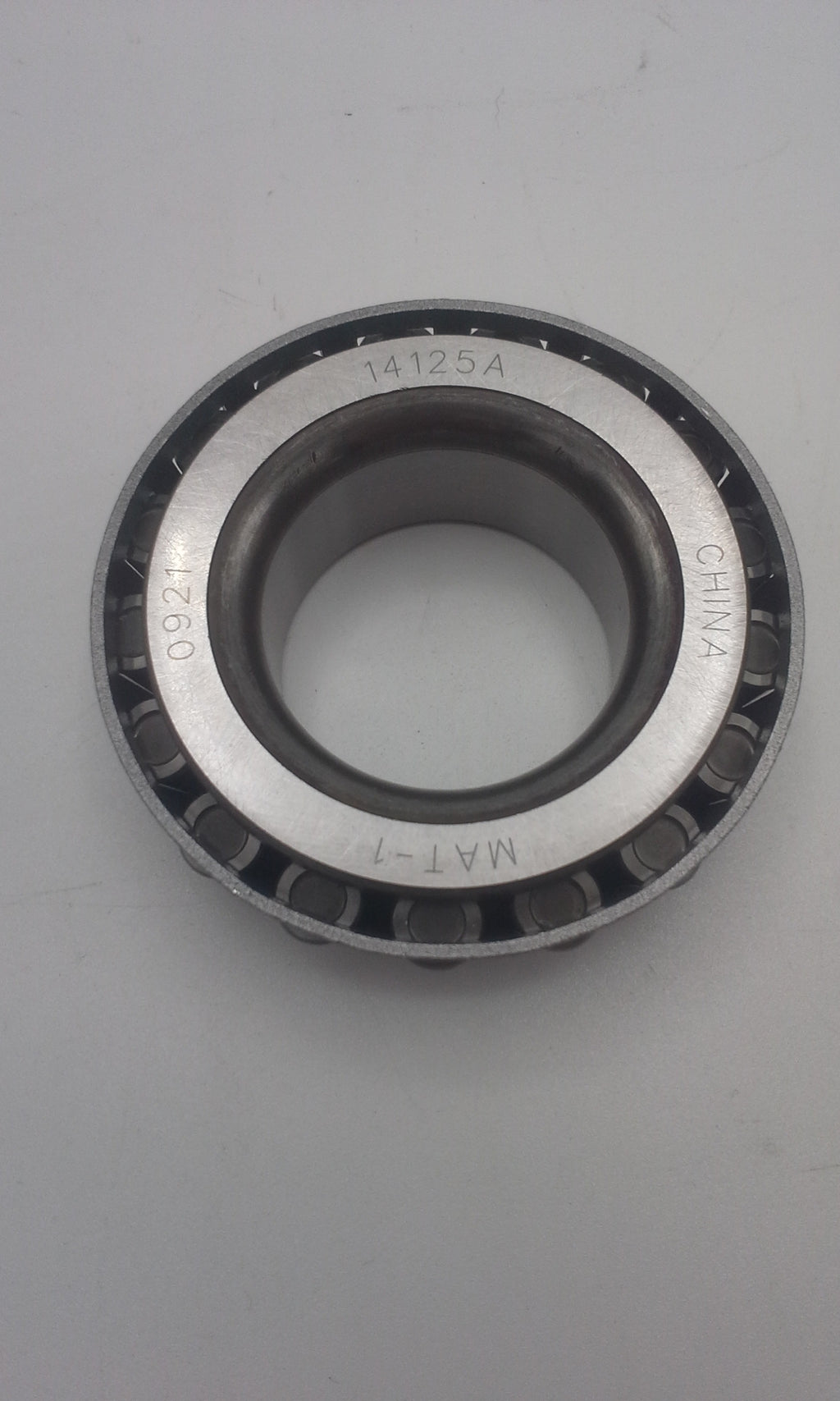

| Included | 14125A outer bearing, 1.25" I.D. |

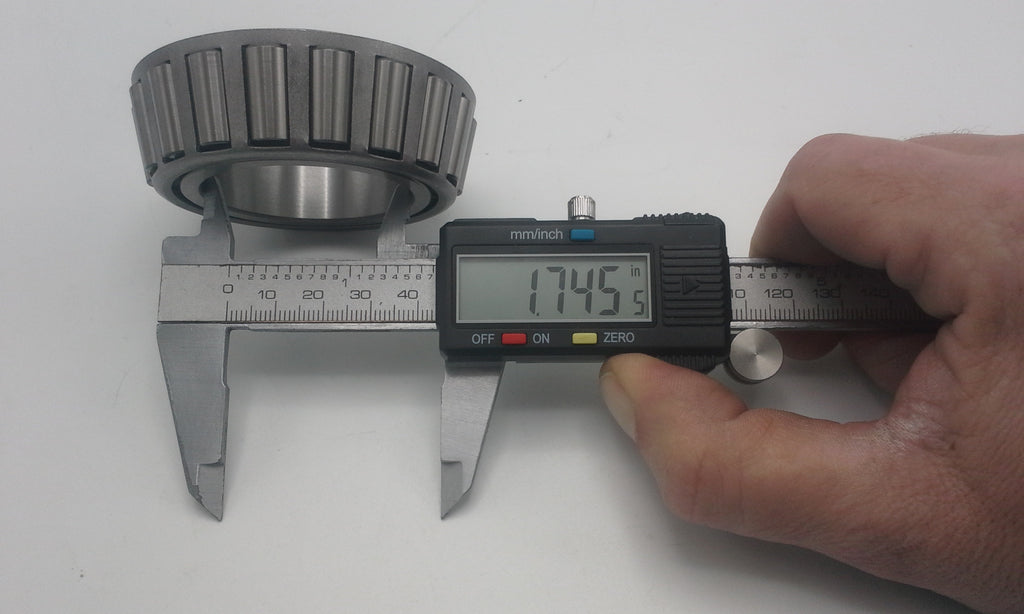

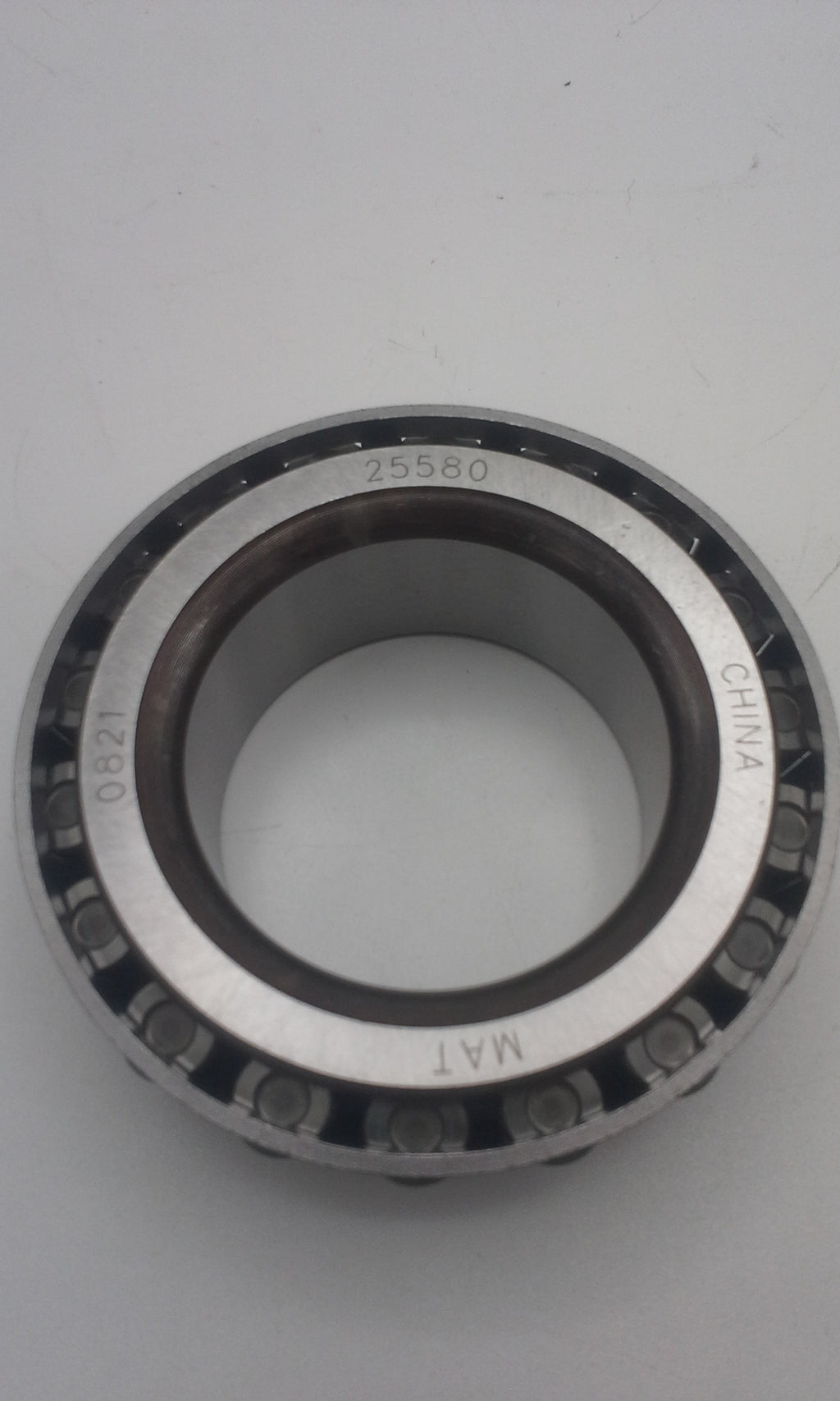

| Included | 25580 inner bearing, 1.75" I.D. |

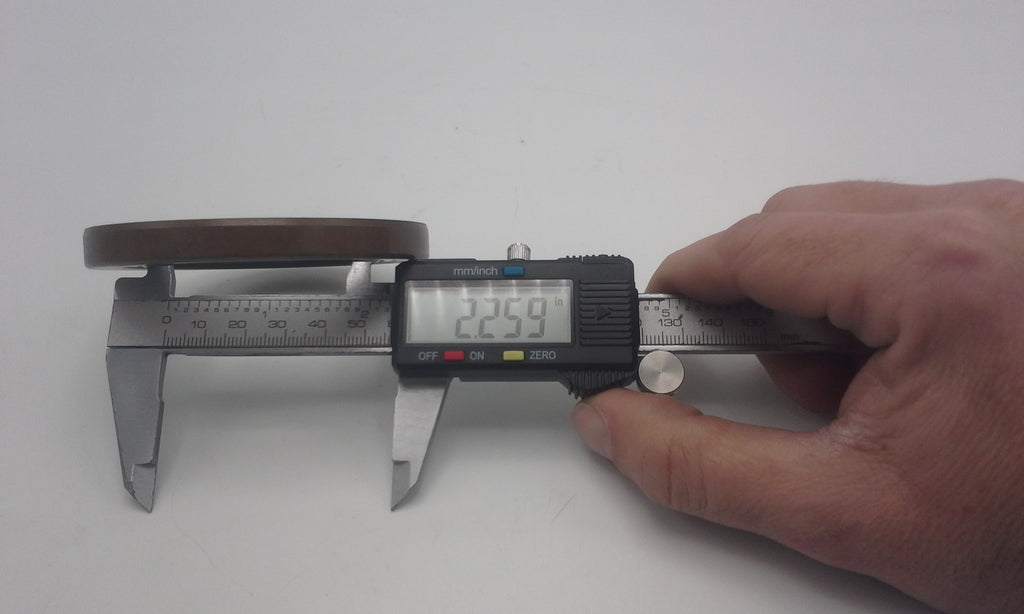

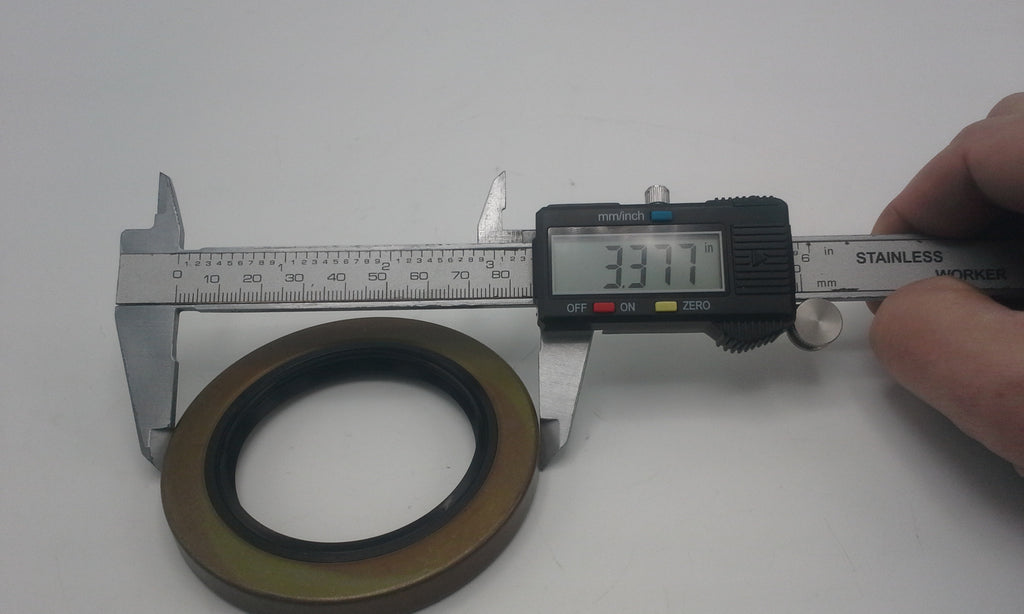

| Included | 10-36 grease seal, 2.25" x 3.376" |

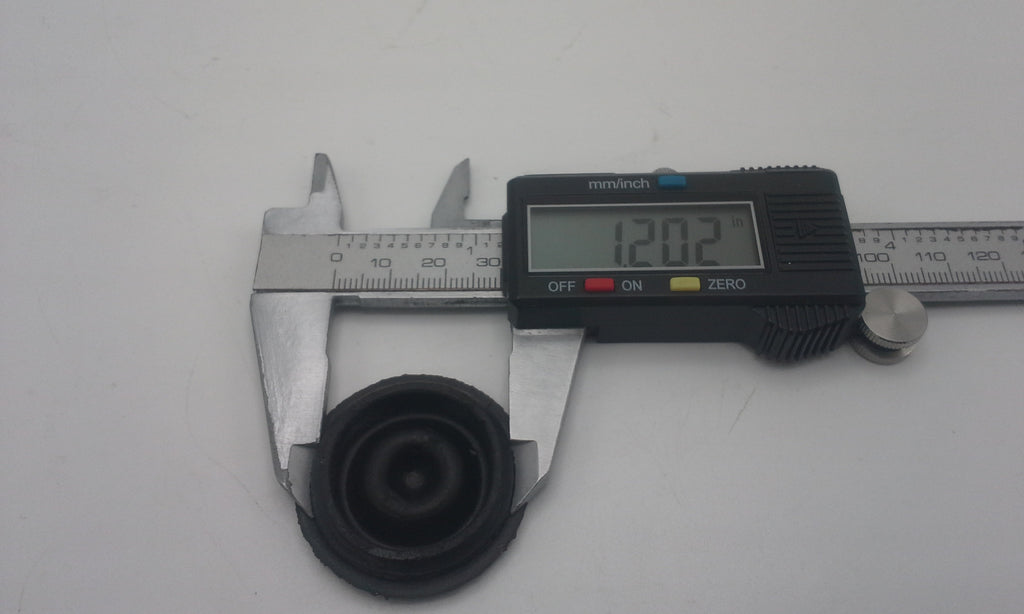

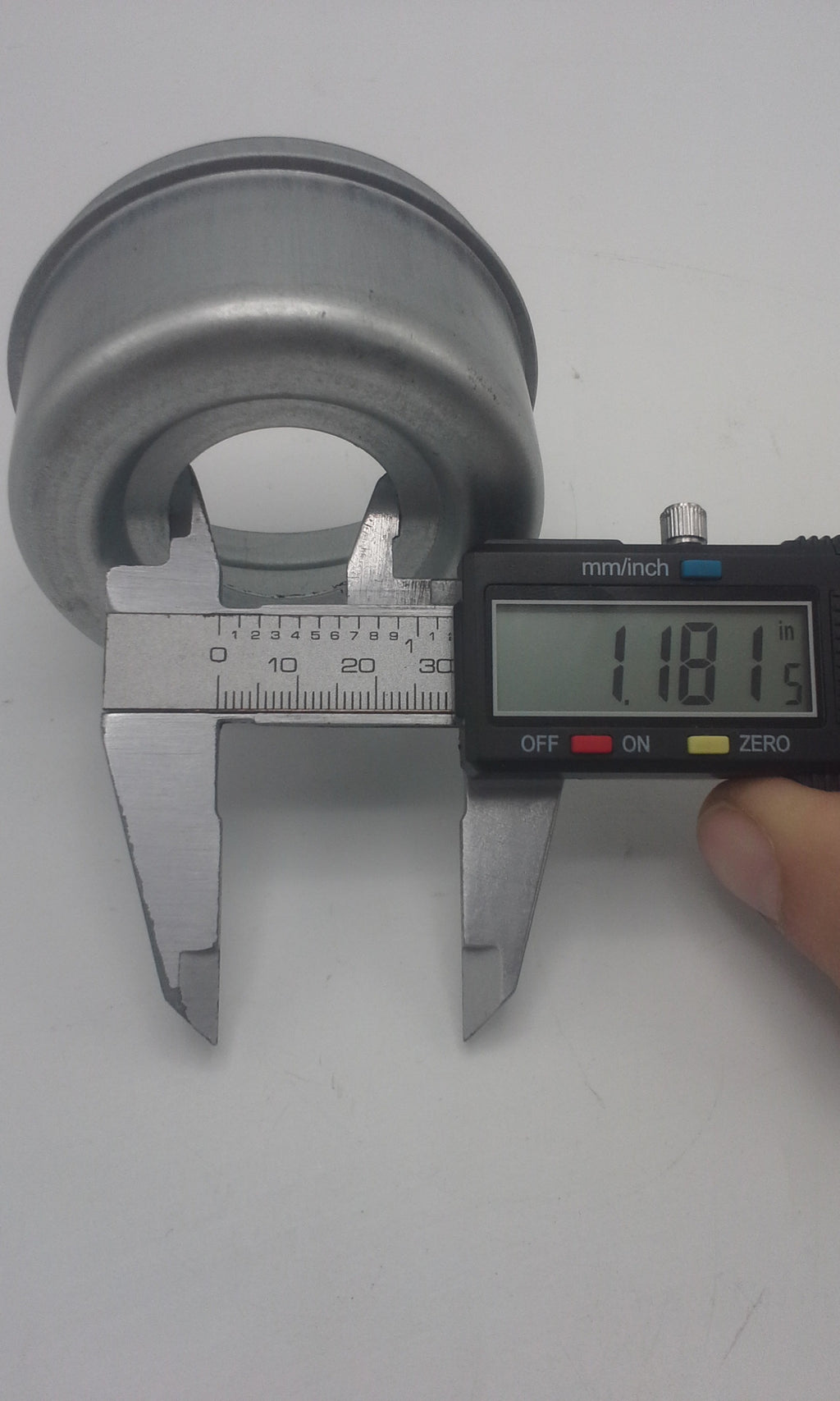

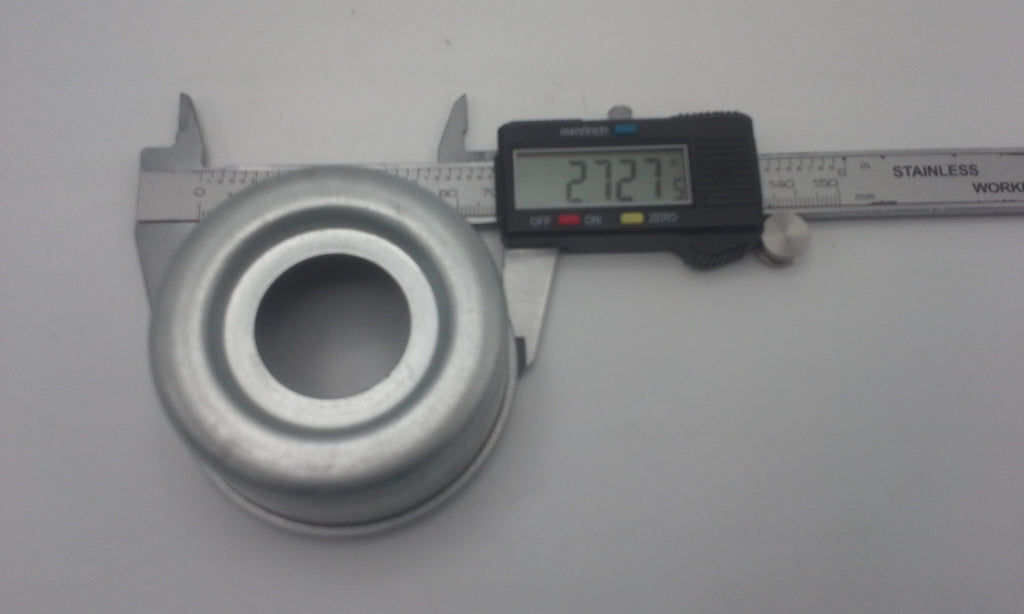

| Included | 2.71" EZ Lube cap with rubber insert, DC-RP |
