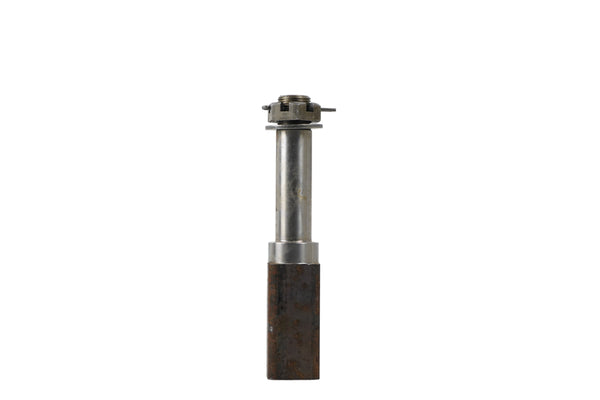

Square Bar Straight Spindle For 2,000 LB Trailer Axles

Part Number: SP-150BT16-SQ-KIT

This Listing is for One Spindle

This square bar trailer axle spindle carries a 1,250 pound rating.

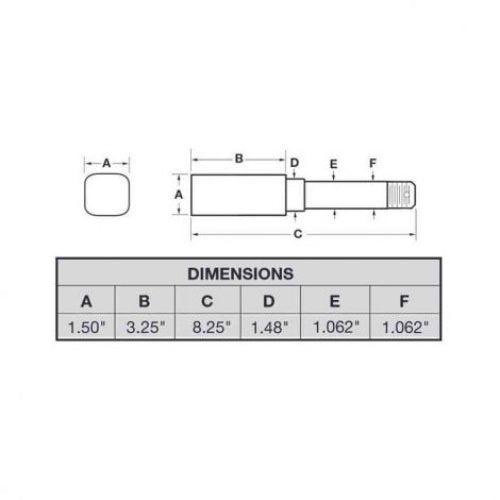

The bearing surfaces are 1-1/16 inch diameter and the mounting surface is 1-1/2 inch square.

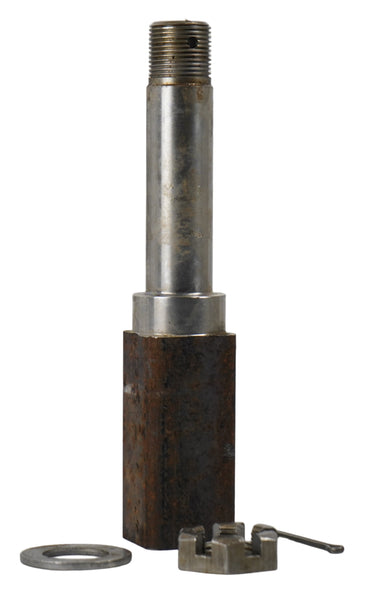

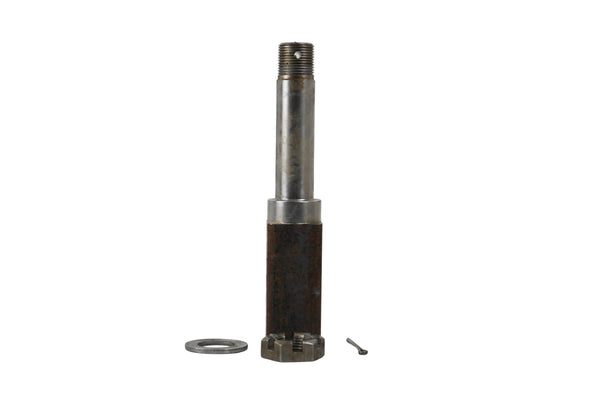

Kit Includes:

1 X SP-150BT16-SQ Trailer Axle Bar Straight Spindle

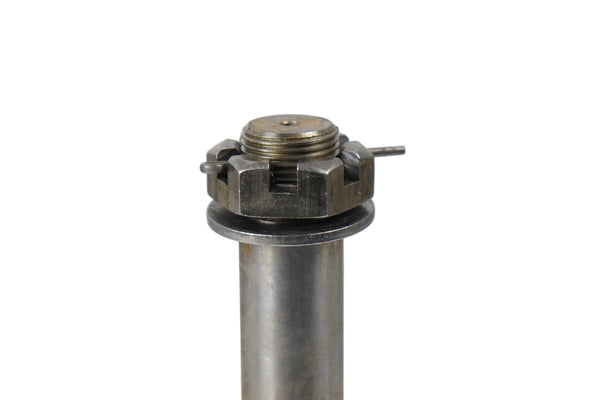

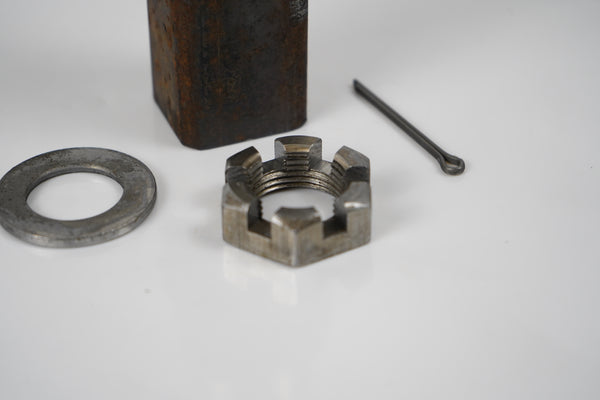

1 X FA-SN100  Spindle Castle Nut 1"

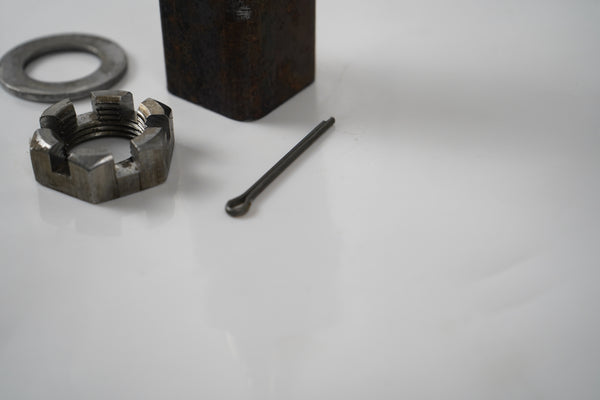

1 X  165649  Cotter Pin 1/8" X 1-3/4"

1 X SW1000 Spindle Washer 1"

This spindle requires a grease seal with a 1.48" inner diameter, we recommend the 15192TB.

Click Here to View more of our Spindle Kits!

If you have any questions, please do not hesitate to contact us. We have an amazing team with an abundance of knowledge!
