Tandem Trailer Axle Hanger Rebuild Kit with EQ-E1 Long Equalizers & 3.125" Shackles
Part Number: SHK-TA-SB-LE-3.125
We work on trailers in our Facility Every day! The number one problem we see is worn out suspension!
This is a kit to change all the "wear parts" on a standard tandem axle trailer (4,000 # GVW up to 14,000# GVW) .
This is for standard "Eye to Eye " Springs, not "slipper" springs (bolt on one end of spring only),
For standard 1 3/4" wide springs.
This is for standard "Eye to Eye " Springs, not "slipper" springs (bolt on one end of spring only),
For standard 1 3/4" wide springs.
And remember, we actually INSTALL what we sell, so if you have questions, just ask!

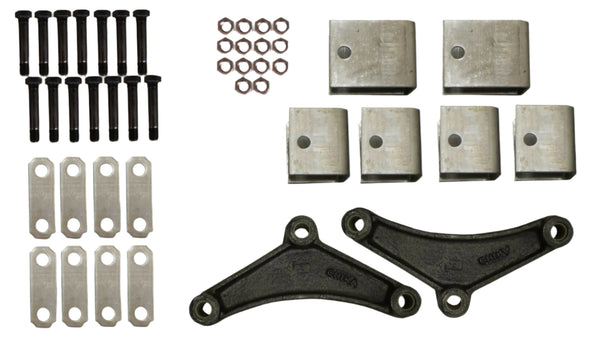

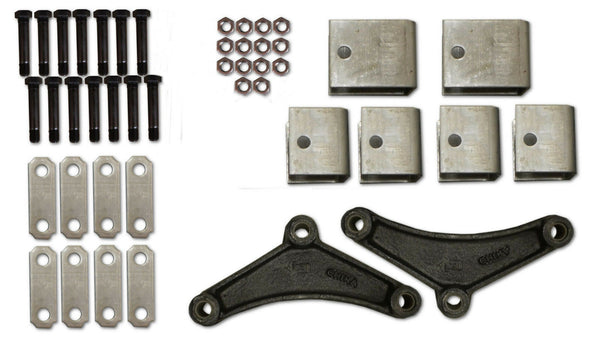

Kit consist of:
14 - 9/16" x 3" Shackle Bolts
14- 9/16" locking 9/16" nuts
2 - Center spring pivot equalizers, 7-3/4" bolt to bolt wide.
6- New Nylon Spring Bushings (Installed in Equalizers)
8 - New Spring Shackle Straps 3.125"
4- Rear Hangers
2- Center Hangers
Hole Center to Hole Center from Top Hole to either side hole is 2.88"
Hole Center to Hole Center from Side Holes is 7.75"
14 - 9/16" x 3" Shackle Bolts
14- 9/16" locking 9/16" nuts
2 - Center spring pivot equalizers, 7-3/4" bolt to bolt wide.
6- New Nylon Spring Bushings (Installed in Equalizers)
8 - New Spring Shackle Straps 3.125"
4- Rear Hangers
2- Center Hangers
Hole Center to Hole Center from Top Hole to either side hole is 2.88"
Hole Center to Hole Center from Side Holes is 7.75"
