Tandem Axle Suspension Rebuild Kit – Short Equalizers
Part Number: SRK-TA-SB-SE
This suspension rebuild kit replaces the major wear components on a standard tandem axle trailer from approximately 4,000 lb to 14,000 lb GVW. Designed for double-eye leaf springs that are 1-3/4" wide. Not compatible with slipper spring systems.
Features
- Rebuilds both sides of a tandem axle trailer suspension
- For 1-3/4" wide double-eye leaf springs
- Short equalizers – 5-3/4" bolt-to-bolt width

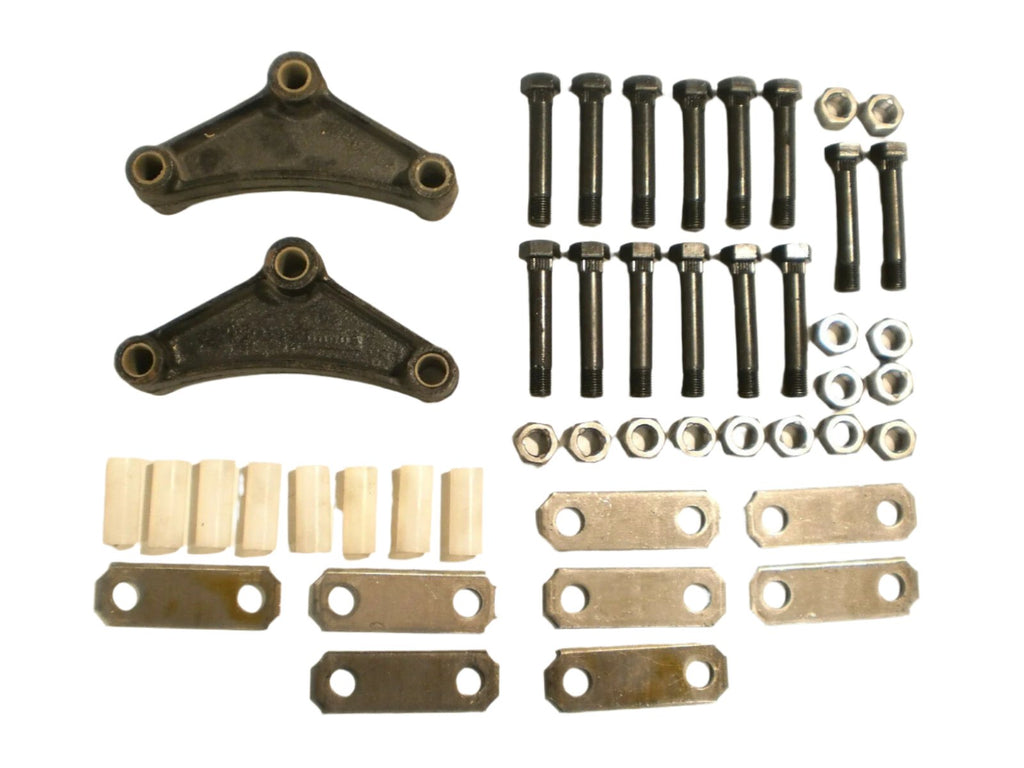

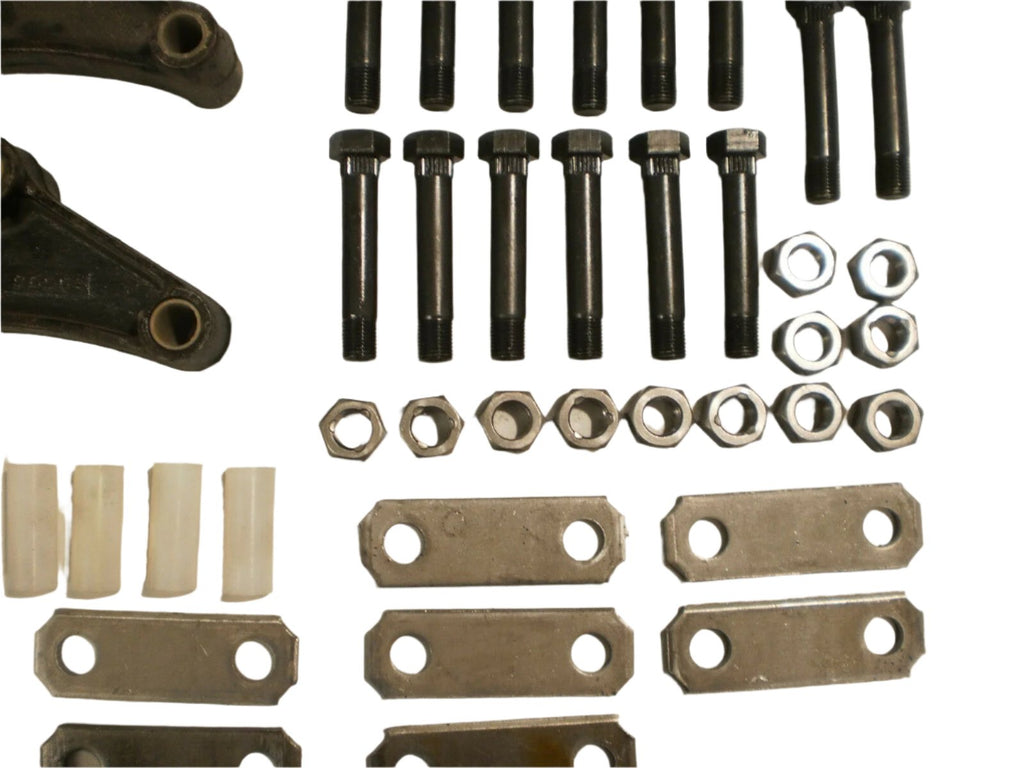

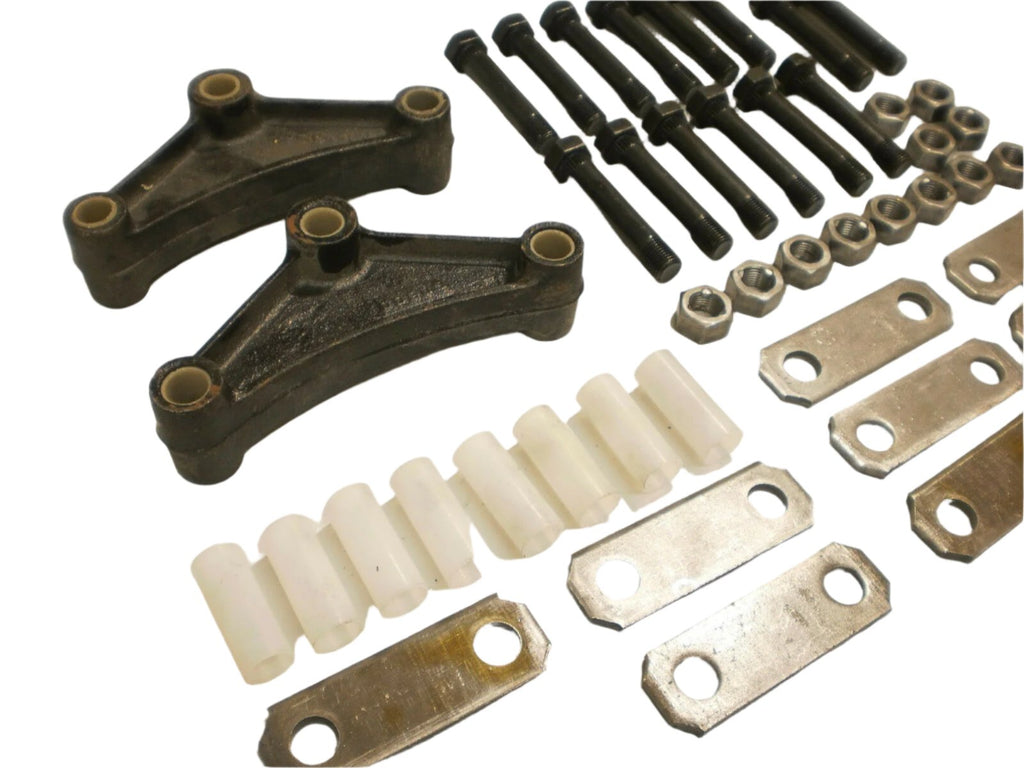

- Includes new bolts, nuts, bushings, and shackles
Specifications
| Component | Quantity / Detail |
|---|---|

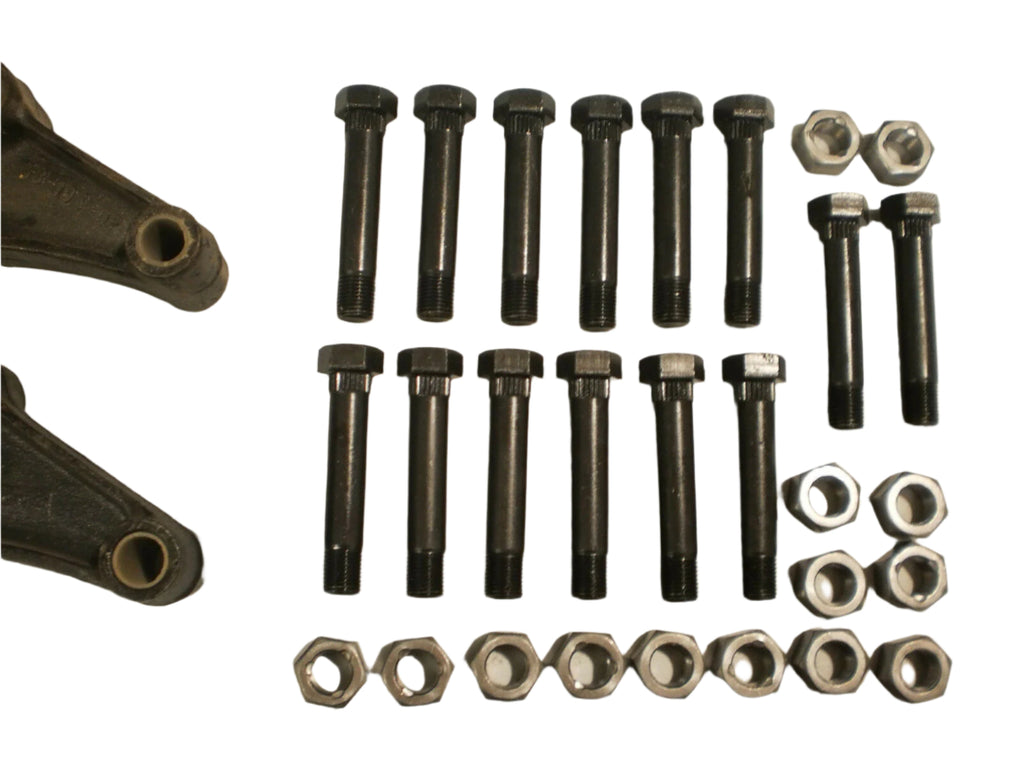

| Shackle Bolts | (14) 9/16" × 3" hardened |
| Lock Nuts | (14) 9/16" locking nuts |

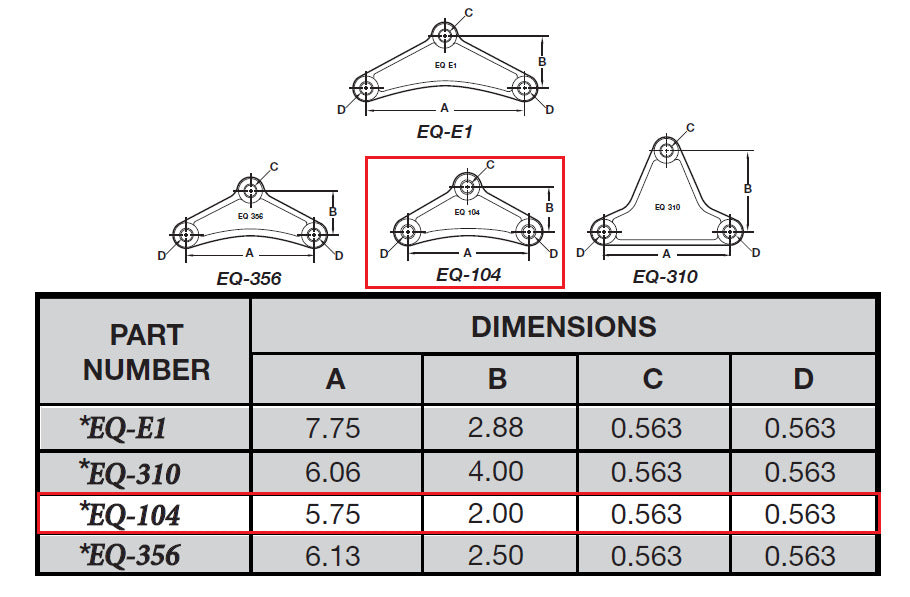

| Equalizers | (2) 5-3/4" bolt-to-bolt length |

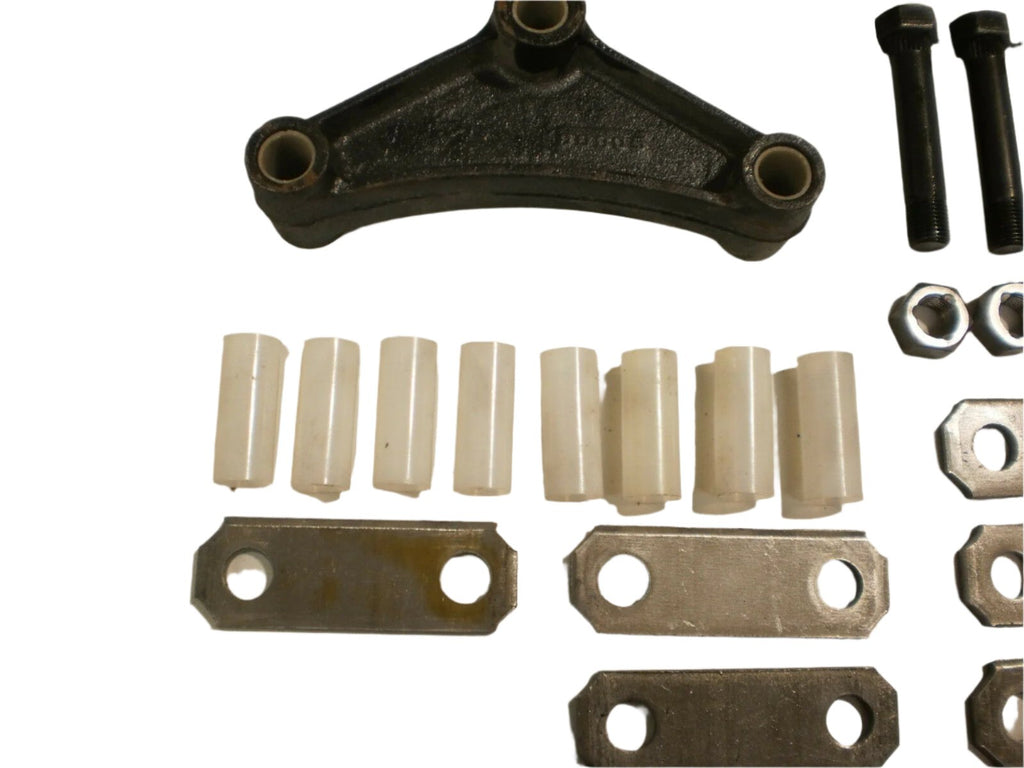

| Nylon Bushings | (14 total) — 6 pre-installed in equalizers |
| Shackle Straps | (8) 2.6" straps |
| Spring Width | 1-3/4" double-eye springs |
Always verify bolt size, equalizer length, and spring width before replacing suspension components, as layouts vary by trailer manufacturer.
