6 Way Round Truck End to 7 Way Blade Trailer End Adapter
You are looking at a special trailer plug adapter I sell which will allow you to pull a trailer with the 7 way blade plug, even though your truck has the 6 way round plug commonly found on some tow vehicles

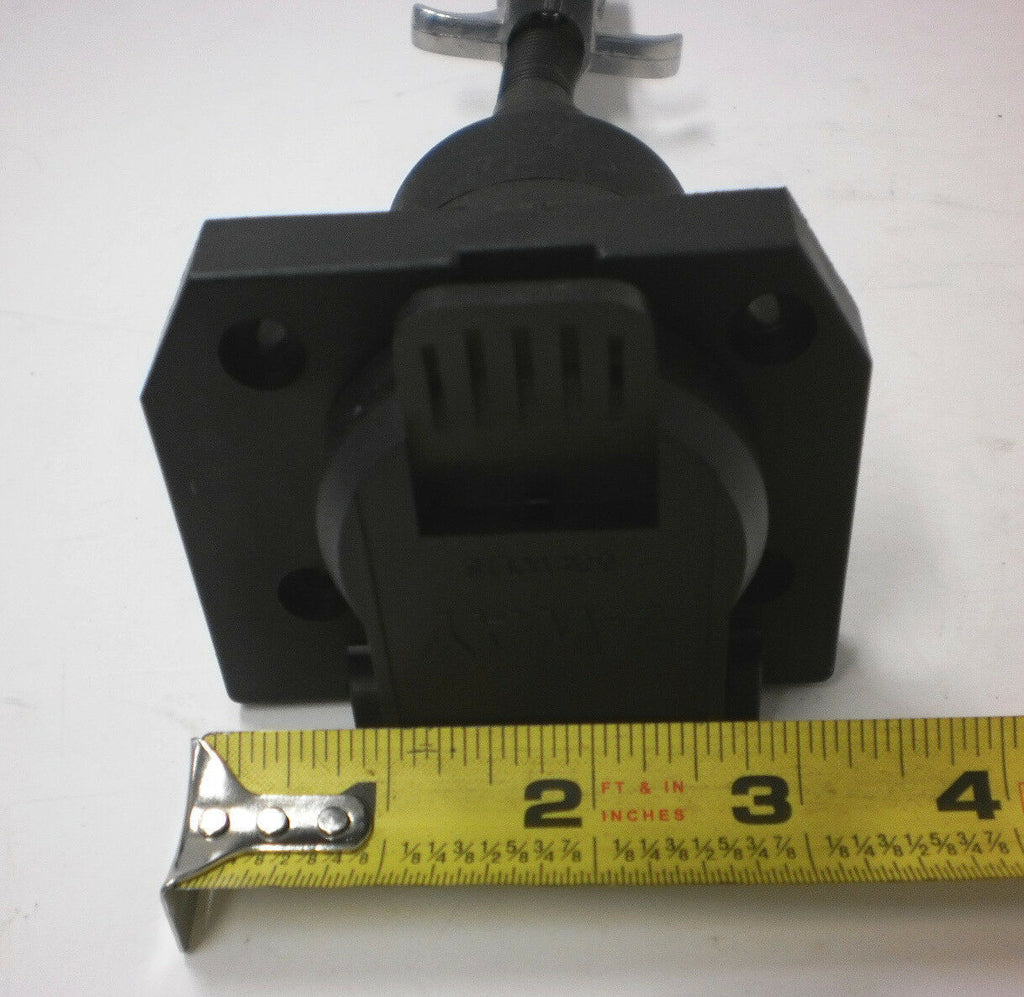

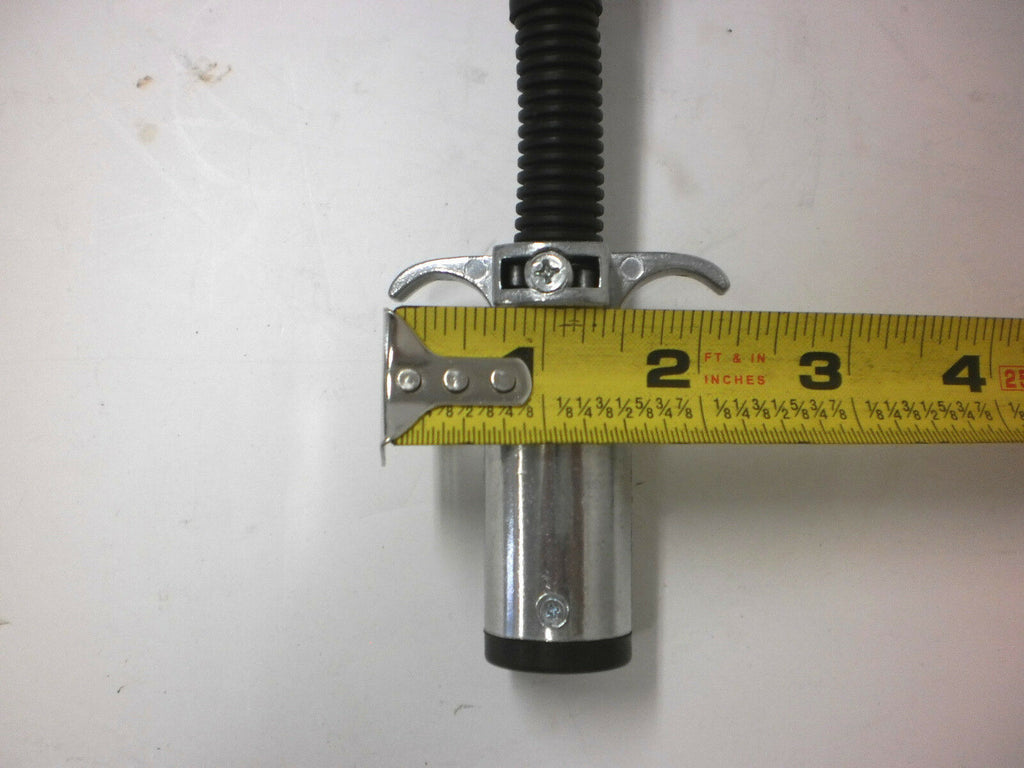

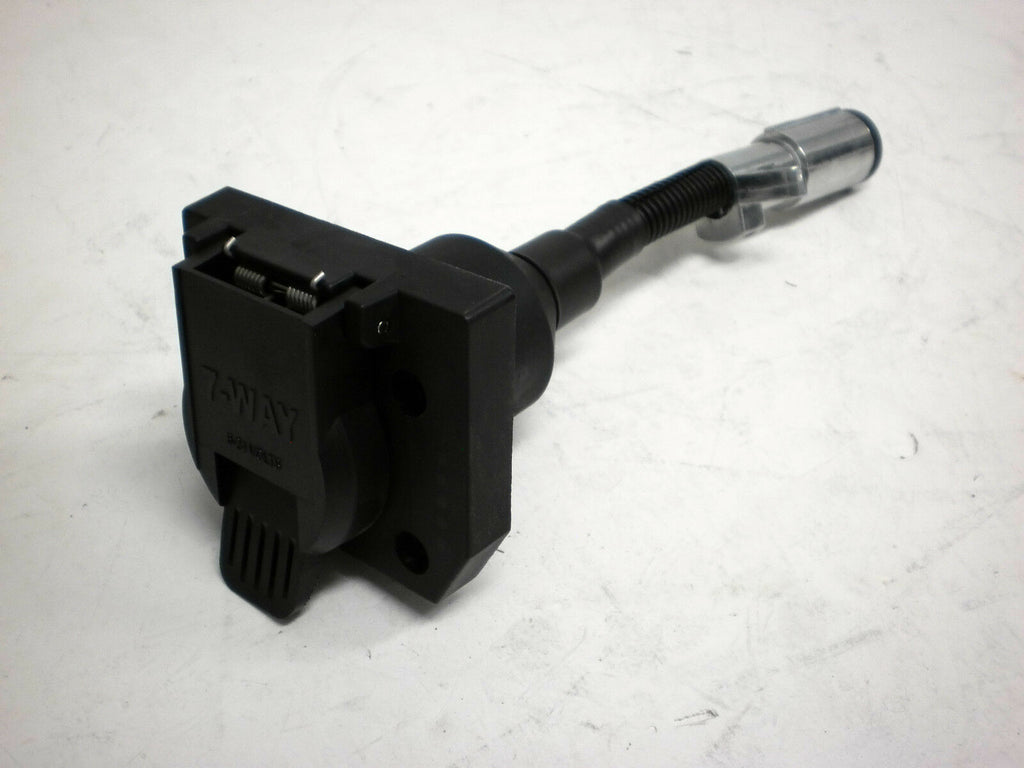

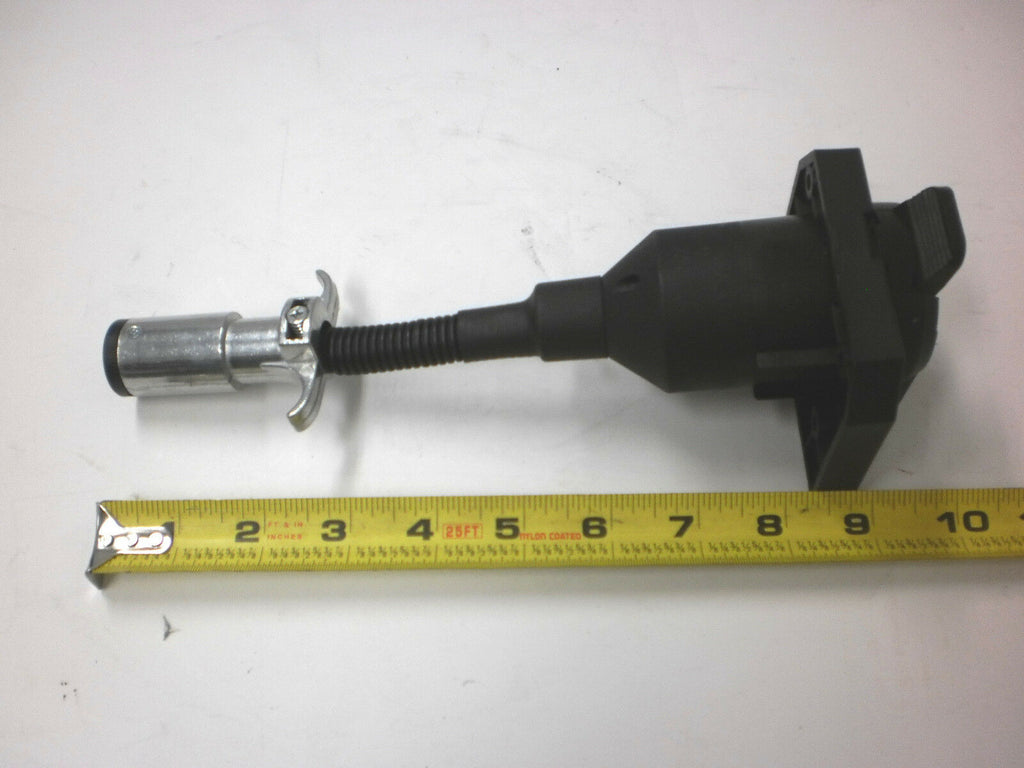

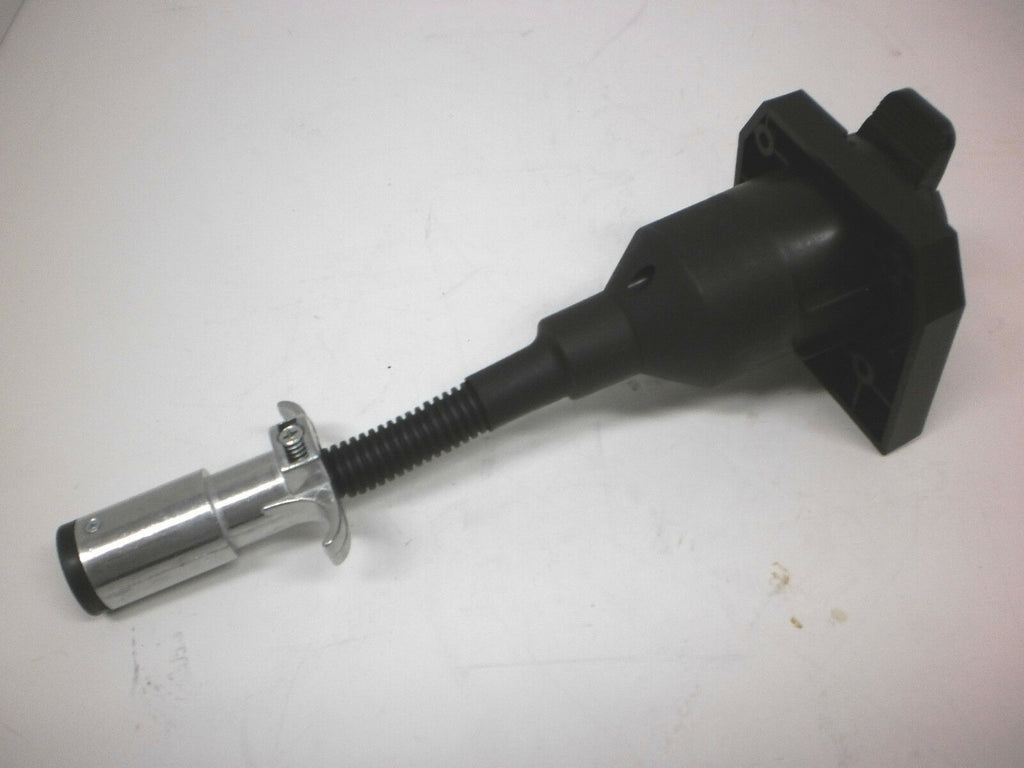

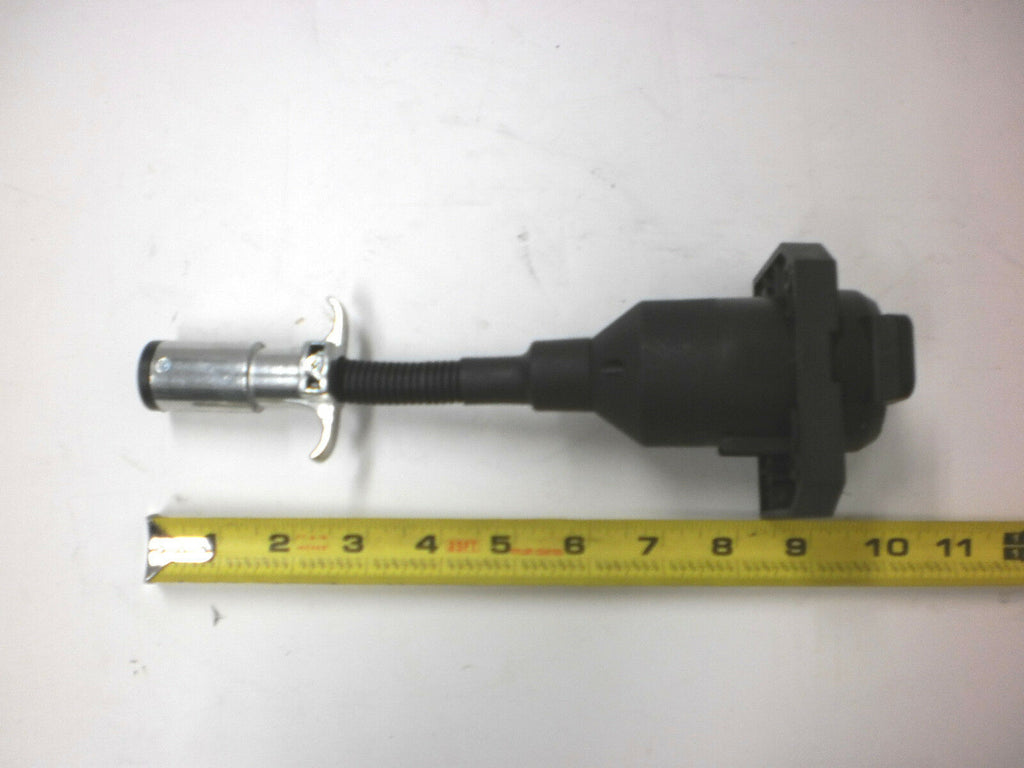

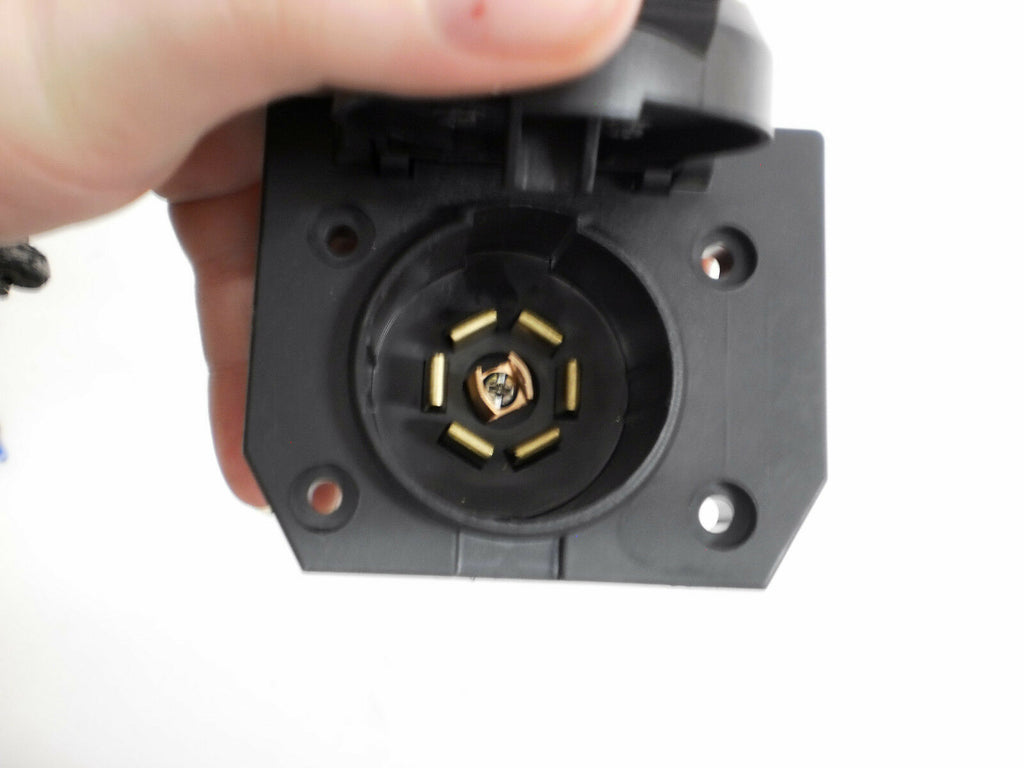

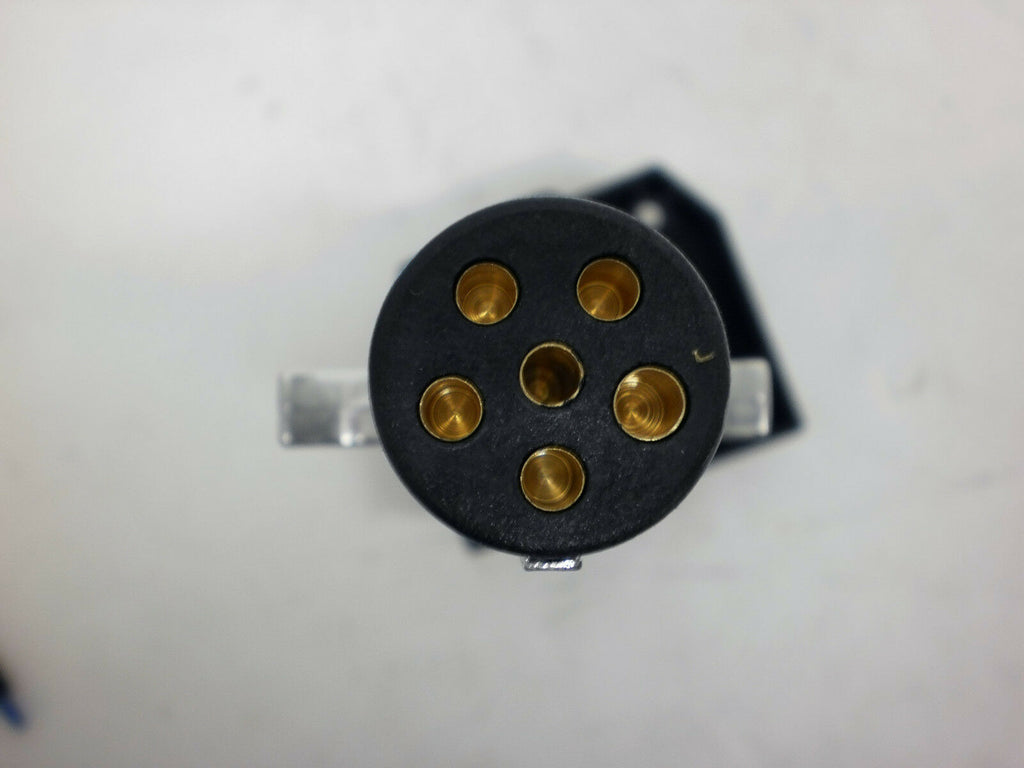

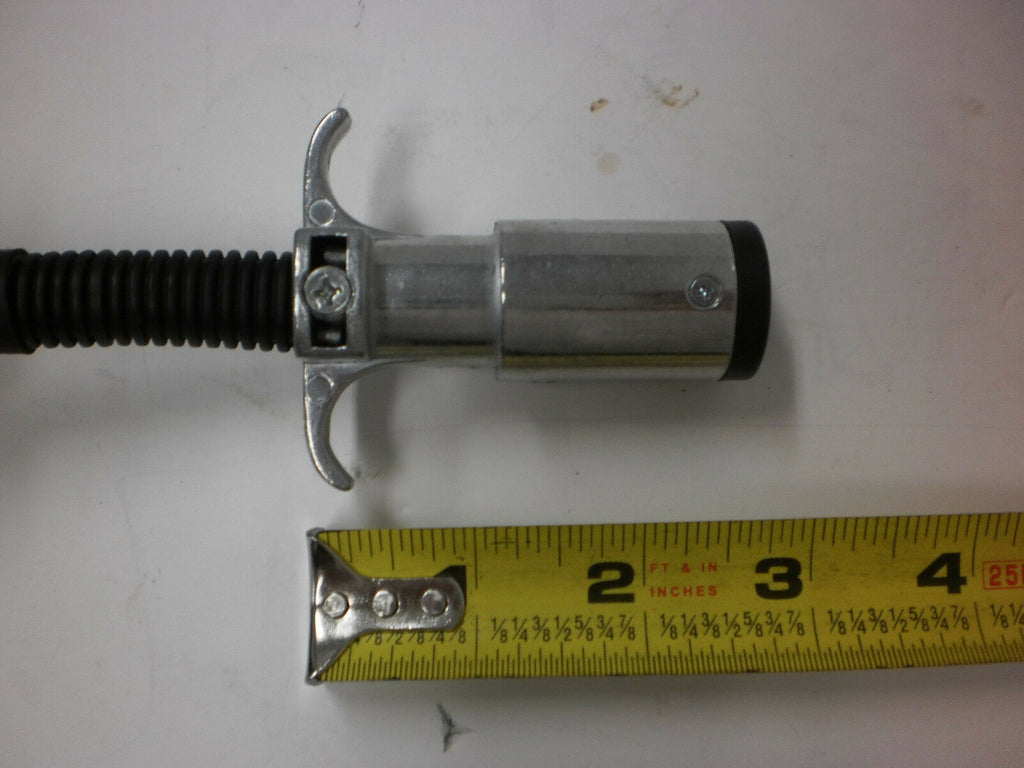

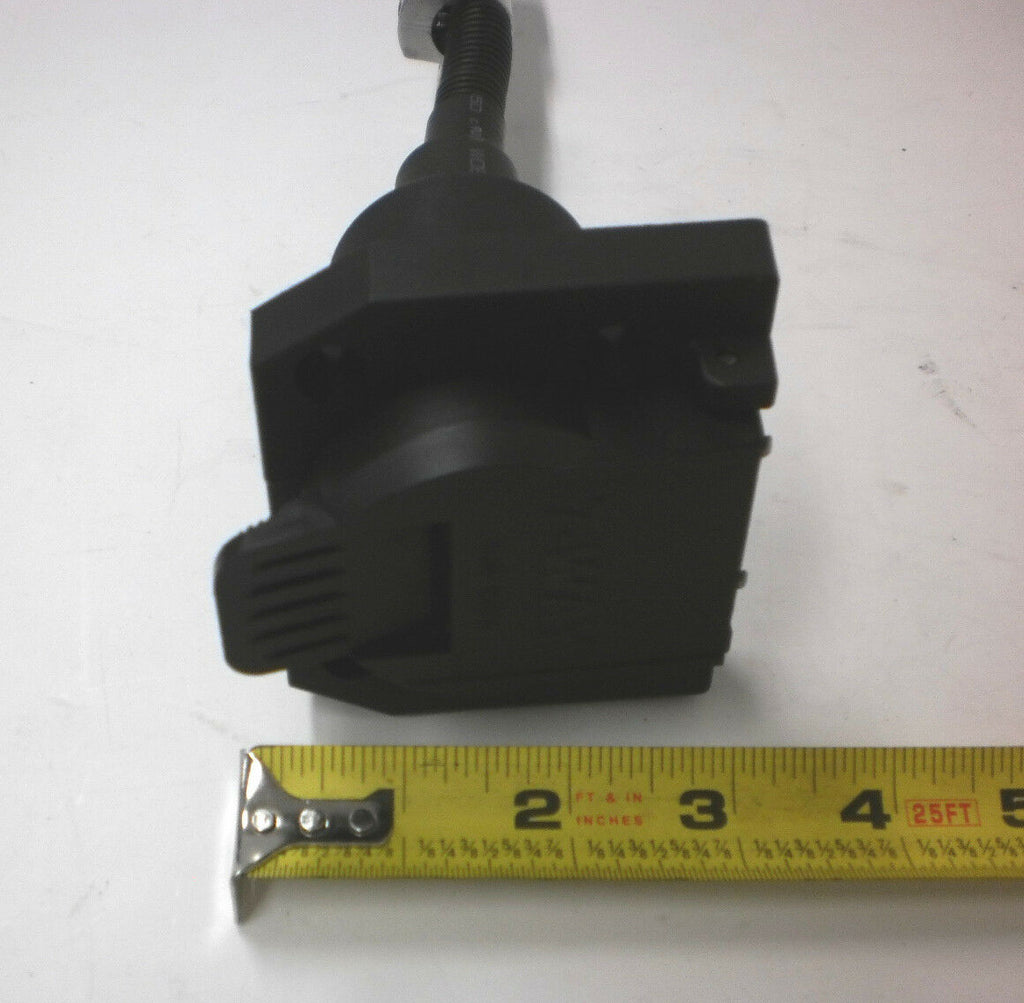

This plug consist of a female 7 way blade connector that the trailer plug can plug into, and 6 way round plug to plug into the back of your tow vehicle.
Again, the 6 way round end fits your truck, and the 7 way blade end fits the trailer.
| Wiring Code | ||
|---|---|---|
|
Molded Connector |
Function |
Usual Trailer Wire |
| White Wire | Ground | White Wire |
| Red Wire | Left Turn and Brake | Yellow Wire |
| Brown Wire | Right Turn and Brake | Green Wire |
| Green Wire | Tail Lights | Brown Wire |
| Blue Wire | Brake Power | Blue Wire |
| Black Wire | 12 volt (hot lead) | Black Wire |
| Yellow Wire | Aux. | - |
