Dexter 12.25" x 5" Electric Brake Backing Plate Set – 12K–15K Axle – Nev-R-Adjust – Left & Right
Includes MPN: 023-446-00 (Left) & 023-447-00 (Right)
Complete set of two genuine Dexter 12.25" x 5" electric brake assemblies designed for 12,000 to 15,000 lb heavy-duty trailer axles. This kit includes both the left-hand (driver side) and right-hand (passenger side) Nev-R-Adjust brake backing plates.
These forward self-adjusting electric brake assemblies are built for commercial, equipment, and high-capacity trailer applications where consistent braking performance and reduced maintenance are critical.
All components are pre-assembled on the backing plates for efficient installation and complete brake replacement.
Included

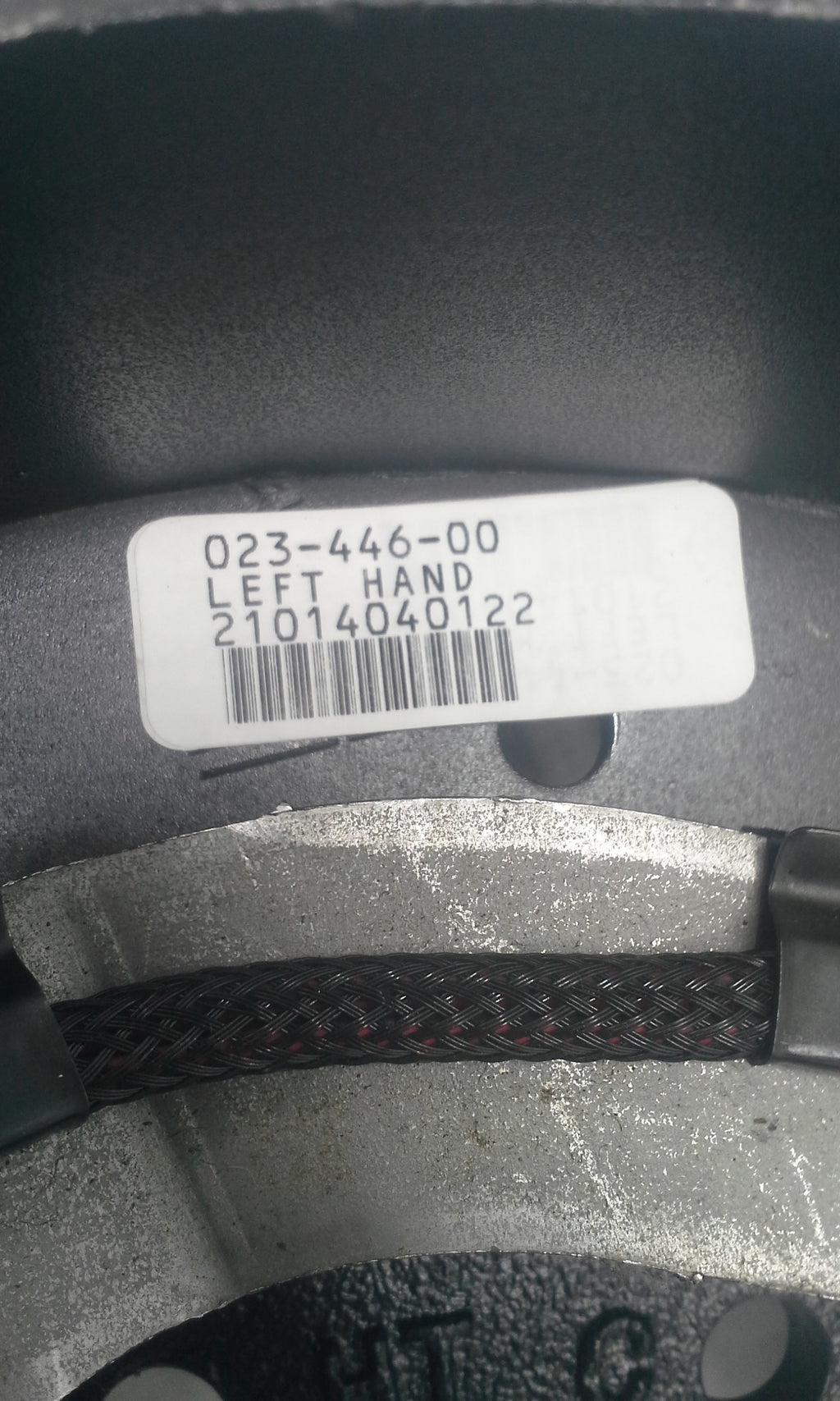

- 1 – Left Hand Electric Brake Assembly (023-446-00)

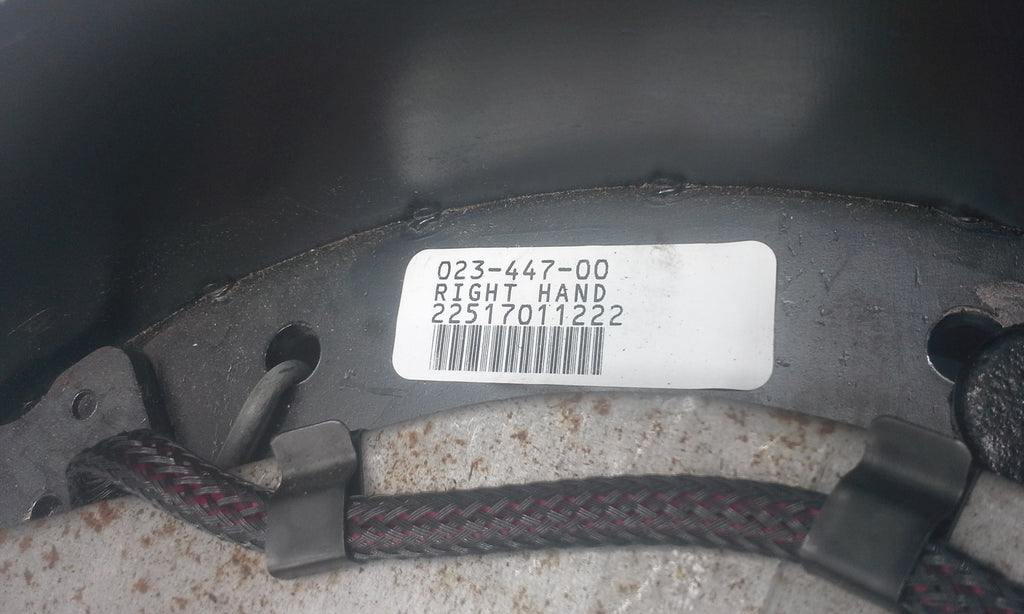

- 1 – Right Hand Electric Brake Assembly (023-447-00)
Features

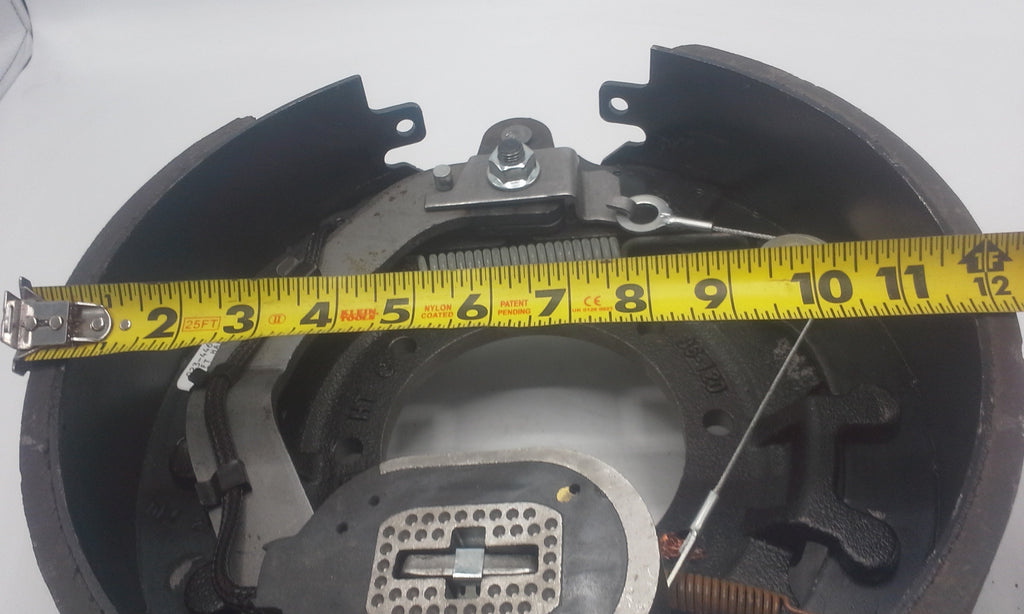

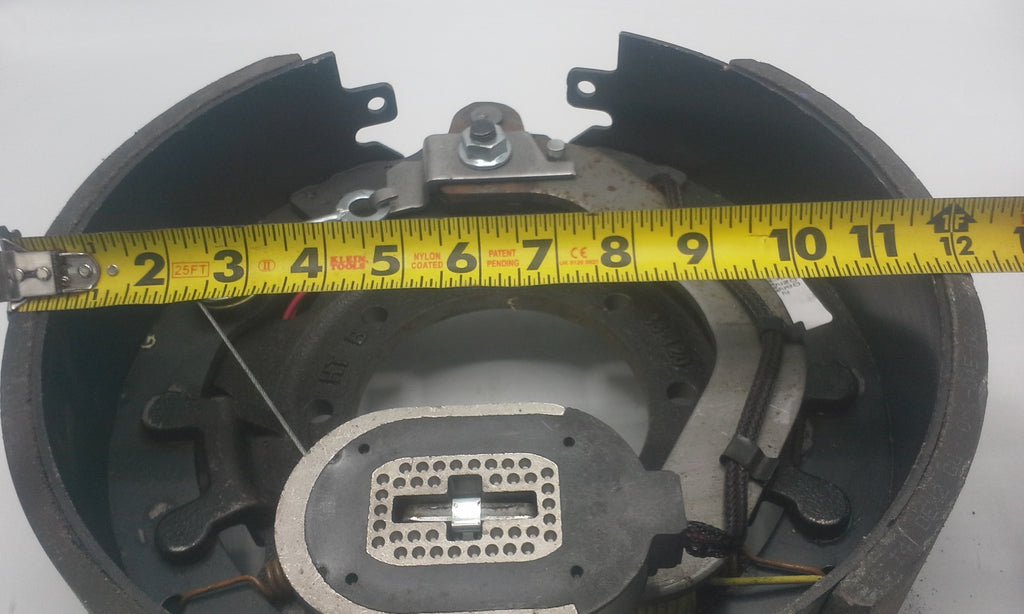

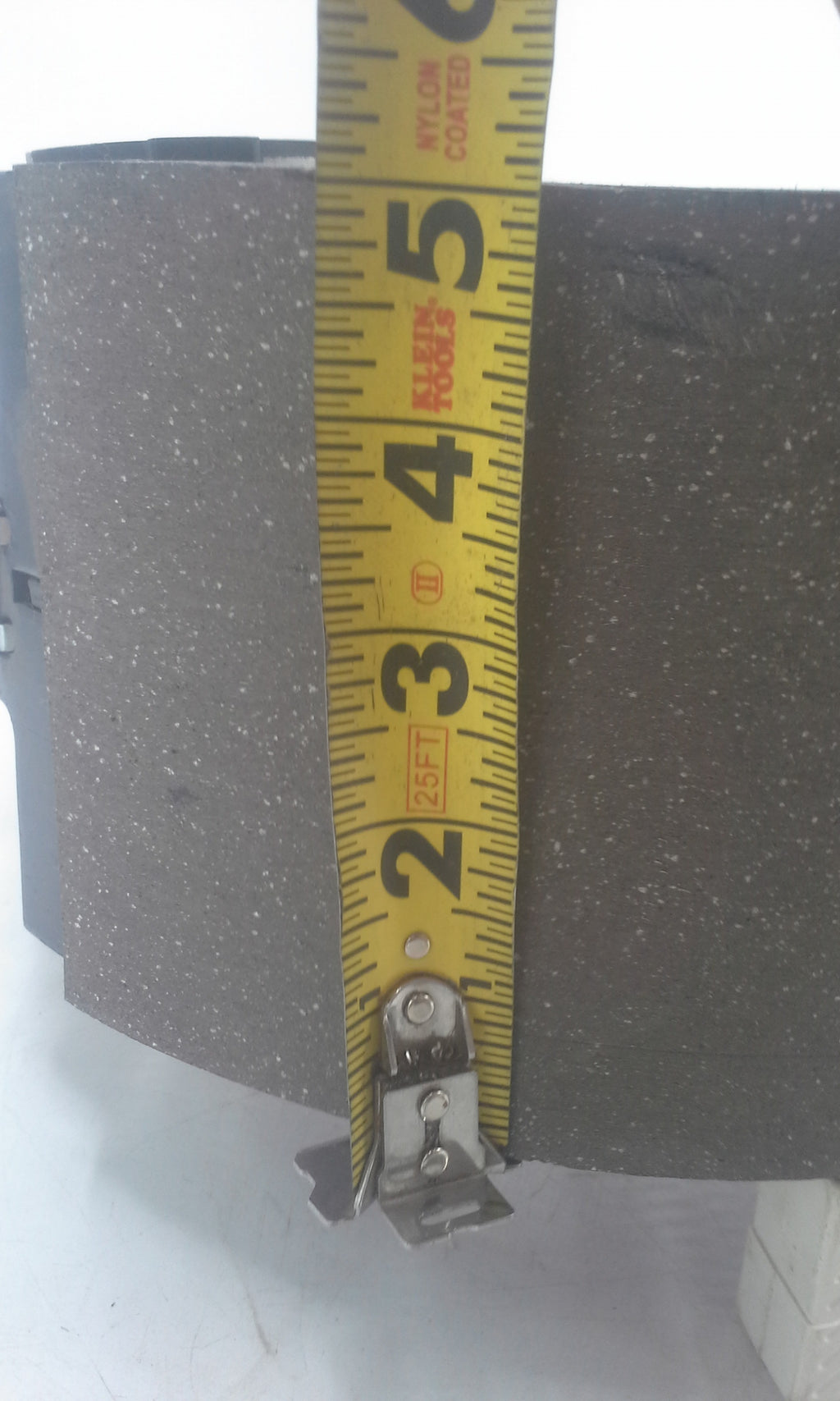

- 12.25" diameter x 5" wide brake assemblies
- Designed for 12,000–15,000 lb axle applications
- Electric drum brake operation
- Nev-R-Adjust (forward self-adjusting) mechanism

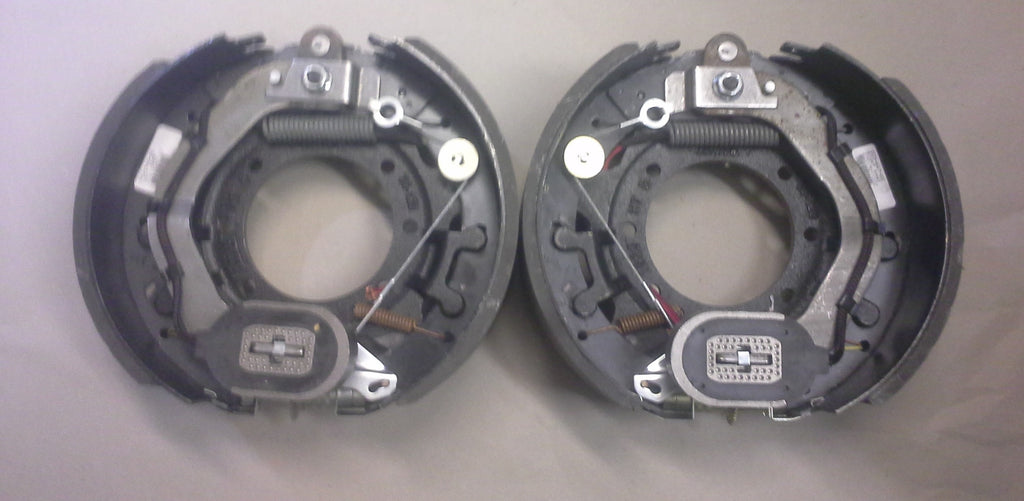

- Includes both left and right assemblies

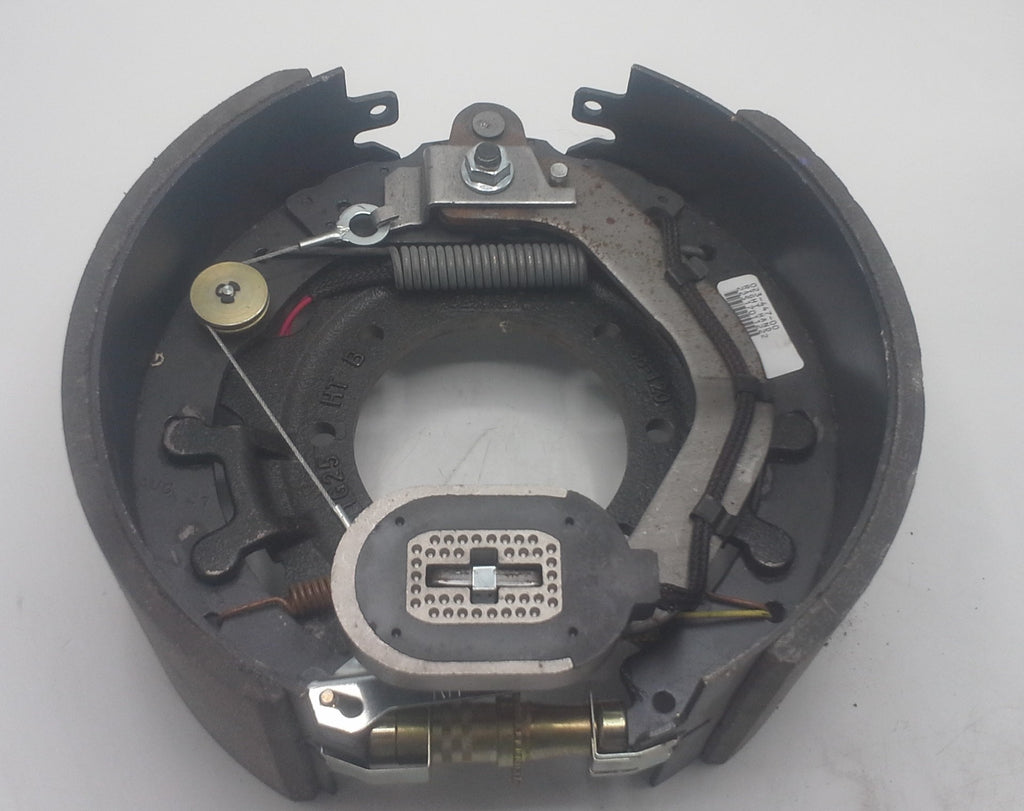

- Pre-assembled backing plate design
- Genuine Dexter components
R&P Knowledge Hub
Electric brake assemblies operate through a brake controller that energizes the magnet inside the drum. As voltage is applied, the magnet engages the drum surface and forces the brake shoes outward to create stopping power.
Dexter’s Nev-R-Adjust system automatically maintains proper shoe-to-drum clearance during forward travel, eliminating the need for routine manual brake adjustments and helping maintain consistent braking performance over time.

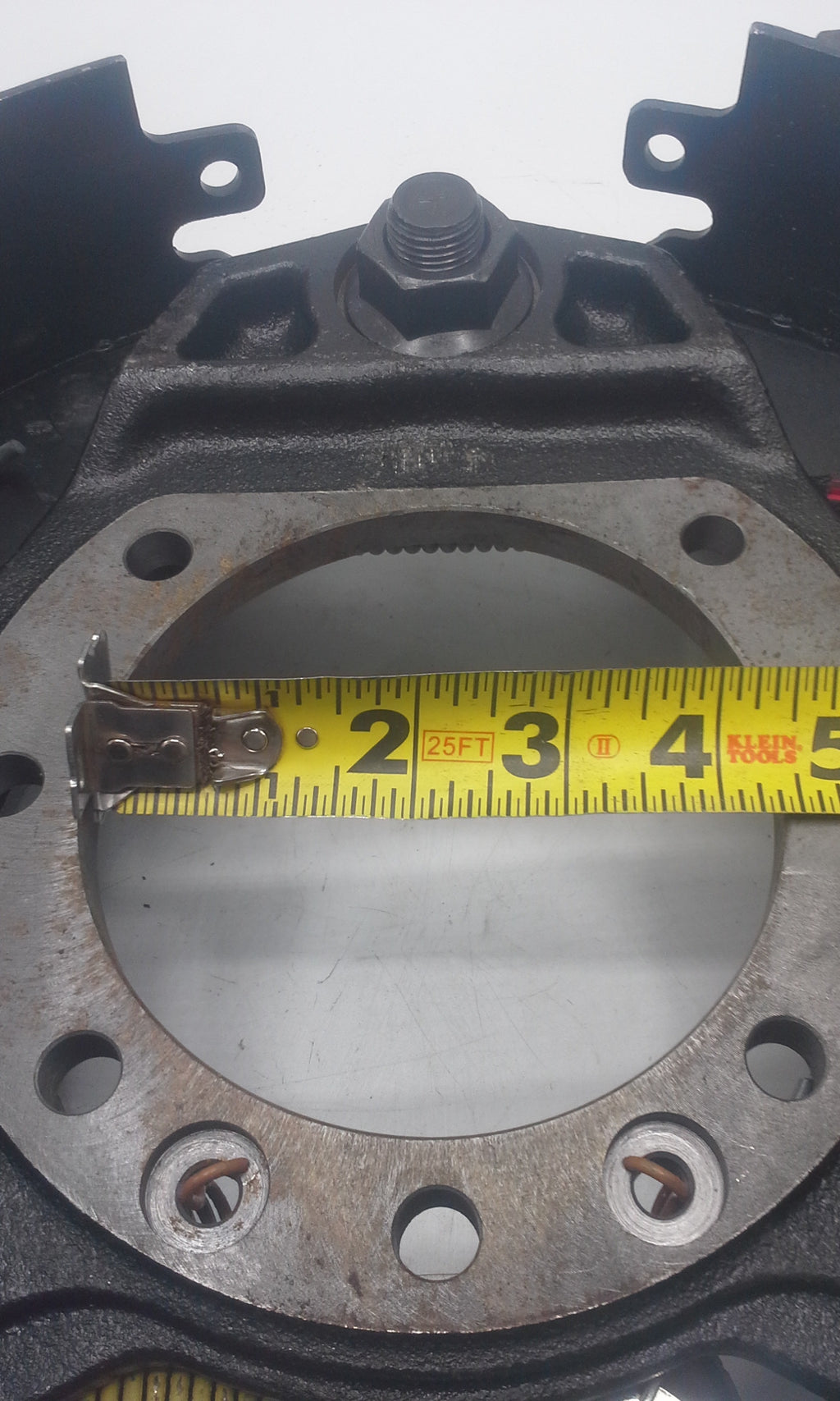

12.25" x 5" brake assemblies are used on heavy-duty 12K–15K axles commonly found on equipment trailers, commercial haulers, and industrial applications. Always confirm brake size, axle capacity, mounting flange configuration, and correct left/right orientation before installation.
Specifications
| Specification | Detail |
| Manufacturer | Dexter |
| Brake Diameter | 12.25 Inches |
| Brake Width | 5 Inches |
| Axle Capacity | 12,000–15,000 lbs |
| Configuration | Left & Right Pair |
| Adjustment Type | Nev-R-Adjust (Forward Self-Adjusting) |
| Brake Type | Electric Drum Brake |
Verify specifications before installation.
