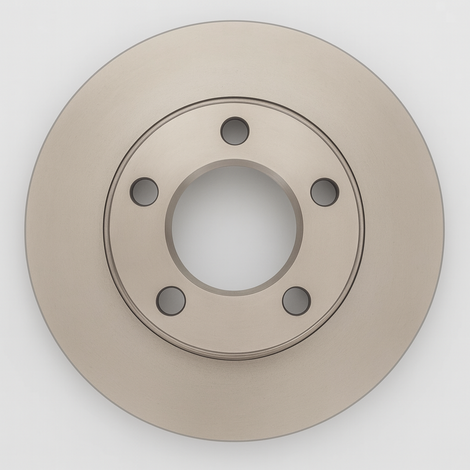

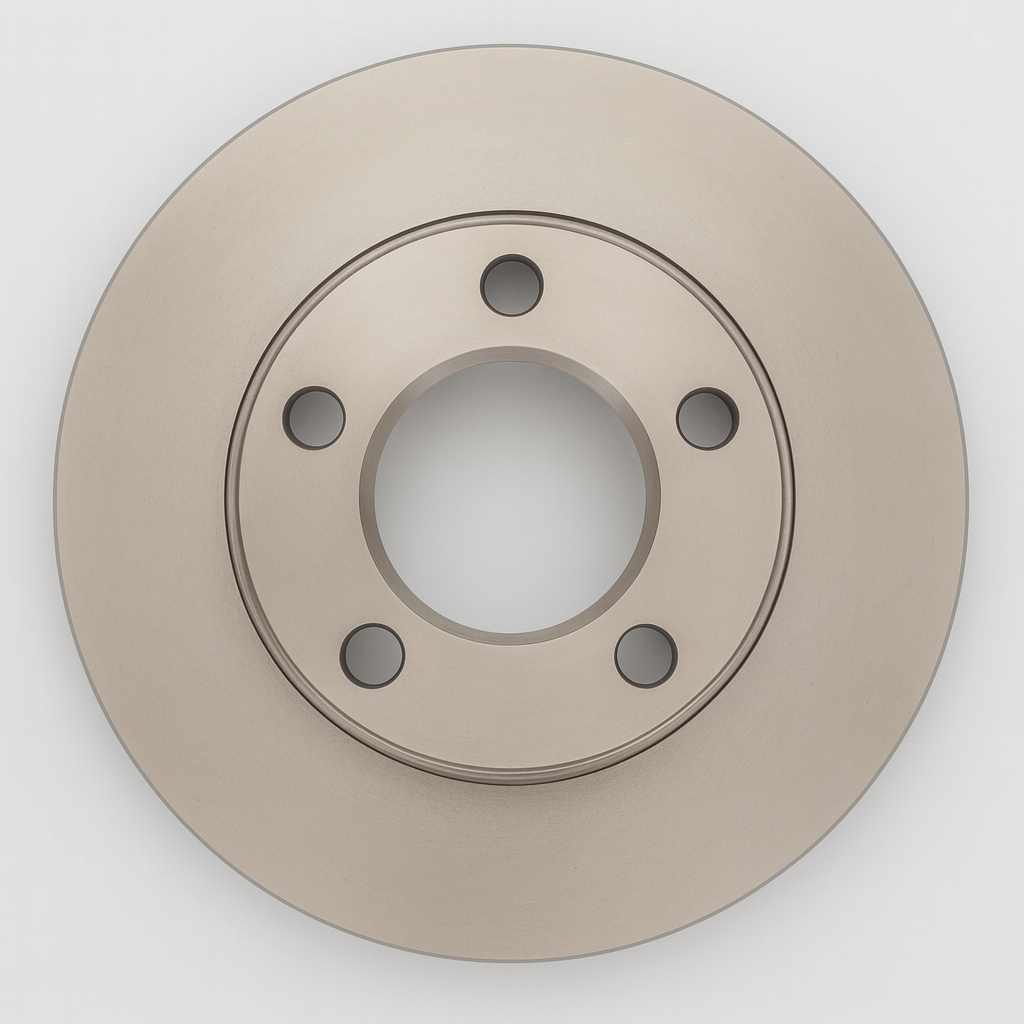

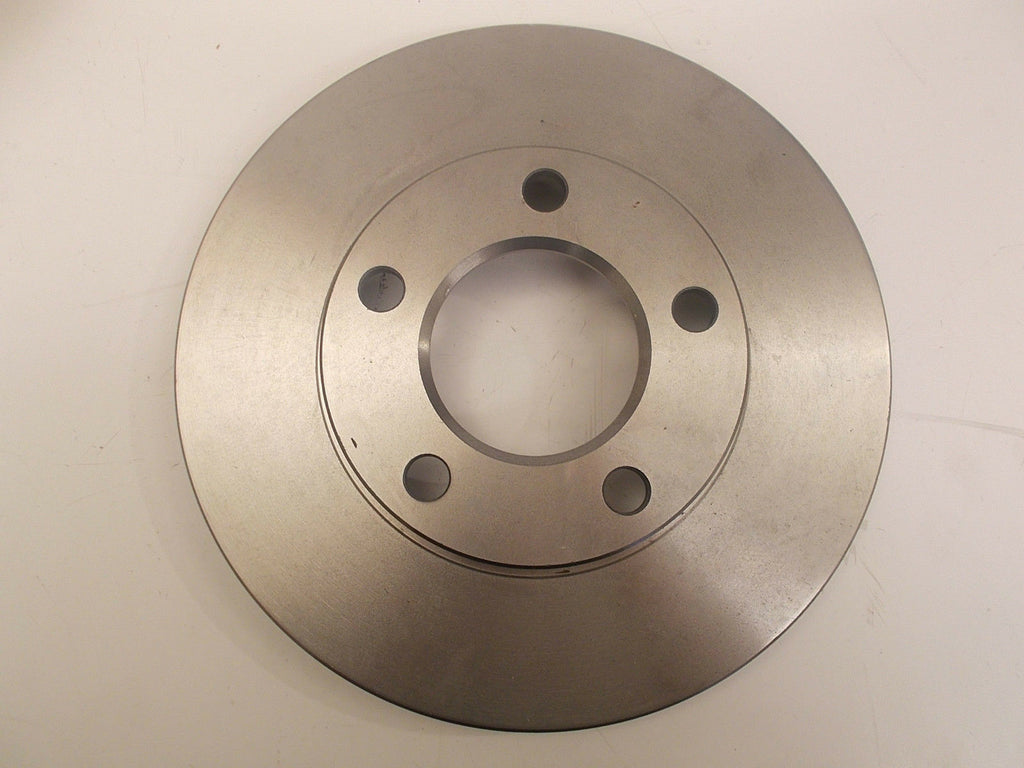

UFP Second Generation Rotor 10.25" — DB-42 Disc Brake — 3,500 lb Axle
Part Number: 32235
Direct-fit replacement rotor for UFP DB-42 second generation disc brake systems on 3,500 lb trailer axles, designed for consistent braking performance and corrosion resistance in marine environments.
R&P Knowledge Hub
Ventilated rotors improve heat dissipation during braking, reducing fade and extending component life. Regular inspection of rotor thickness and surface condition ensures safe and consistent braking performance.
Features
- Precision-machined cast-iron rotor for even braking response
- Ventilated design for improved cooling under load
- Marine-grade corrosion protection
- Direct replacement for DB-42 second generation systems
Specifications
| Part Number | 32235 |
| Rotor Outside Diameter | 10.25" (260 mm) |
| Wheel Bolt Pattern | 5 on 4.5" |
| Service (Minimum) Thickness | 22.4 mm |
| Axle Capacity | 3,500 lbs |
| Brake System | DB-42 (Second Generation) |
| Compatible Wheel Size | 13" – 15" |
Included Components
| Part Number | Quantity | Description |
|---|---|---|
| 32235 | 1 | 10.25" Rotor for DB-42 Disc Brake System |
