Part Number: STC-AH-16-KIT

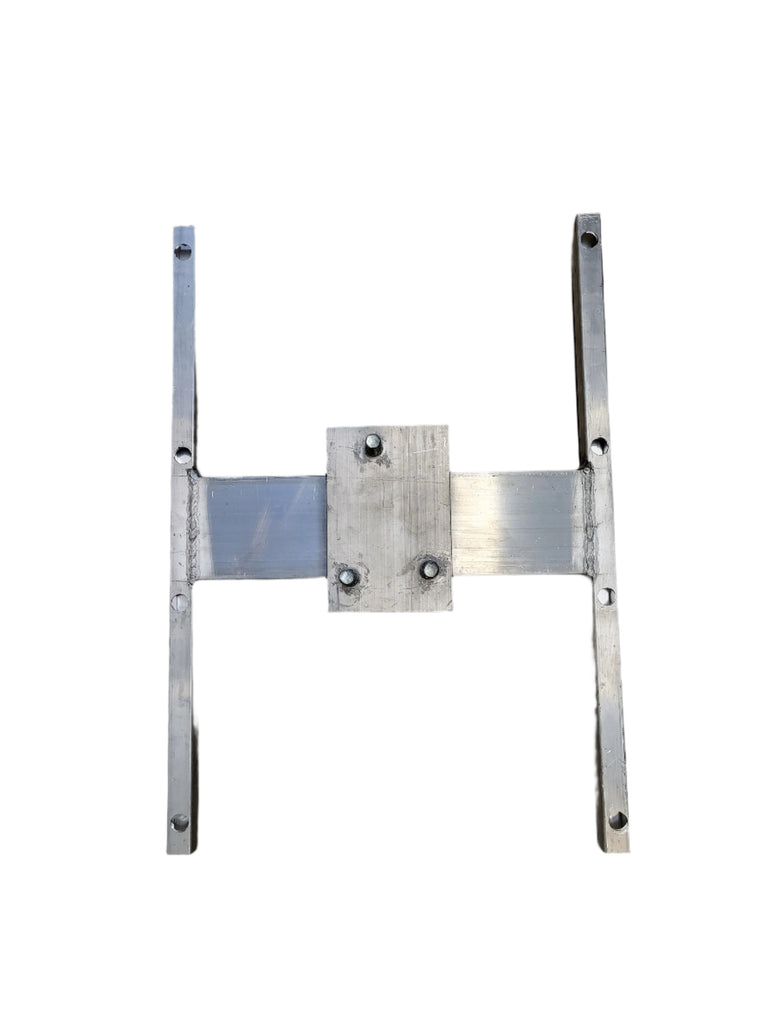

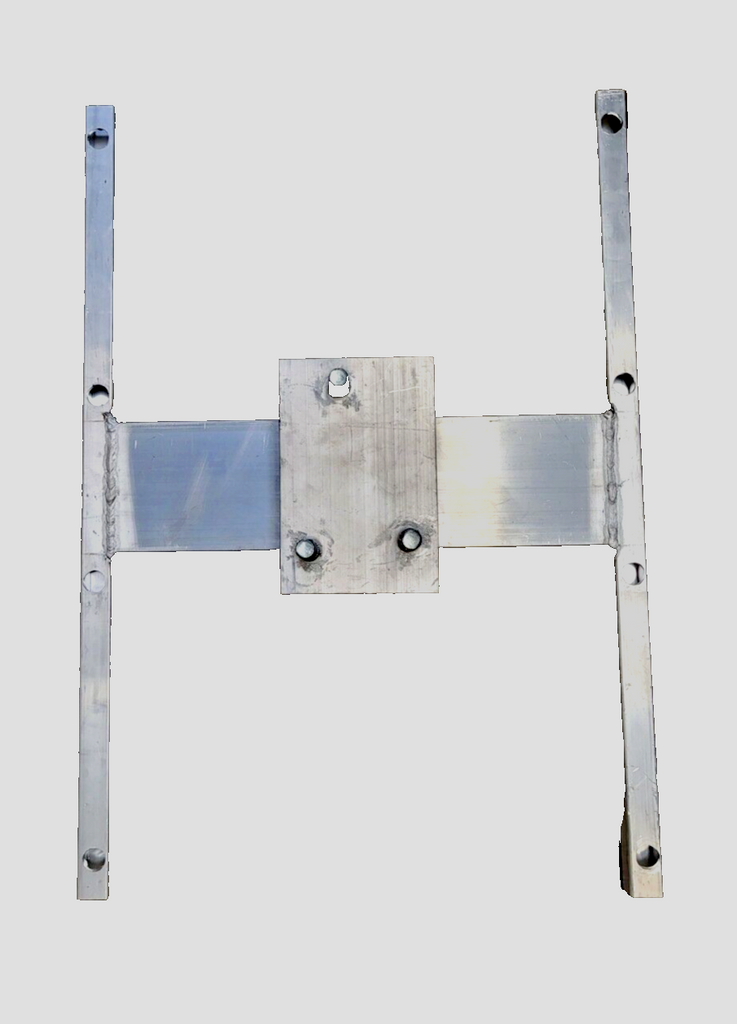

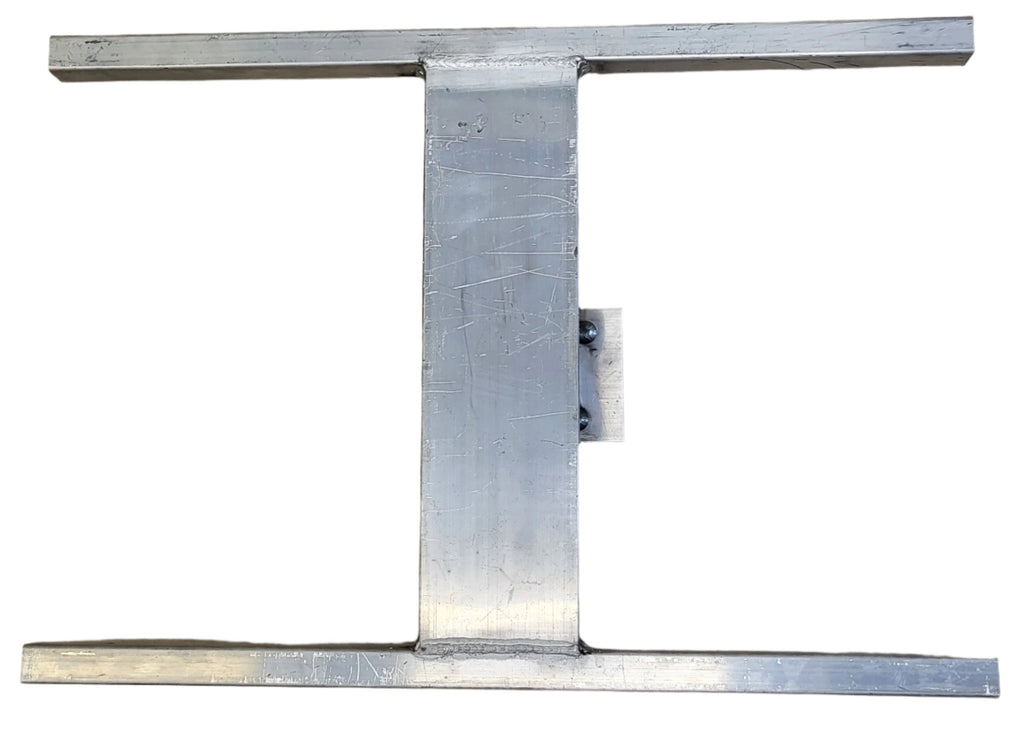

This listing is for a custom-fabricated, all-aluminum spare tire wall mount engineered specifically for enclosed and cargo trailers with 16" wall stud cross members. Designed and built exclusively for R & P Carriages, this mount provides a secure, space-efficient solution for storing a spare tire inside your trailer.
The mount supports wheels with a standard 5 x 4.5" trailer bolt pattern and uses 1/2"-20 axle-style wheel studs, allowing the use of standard lug nuts or locking lug nuts.

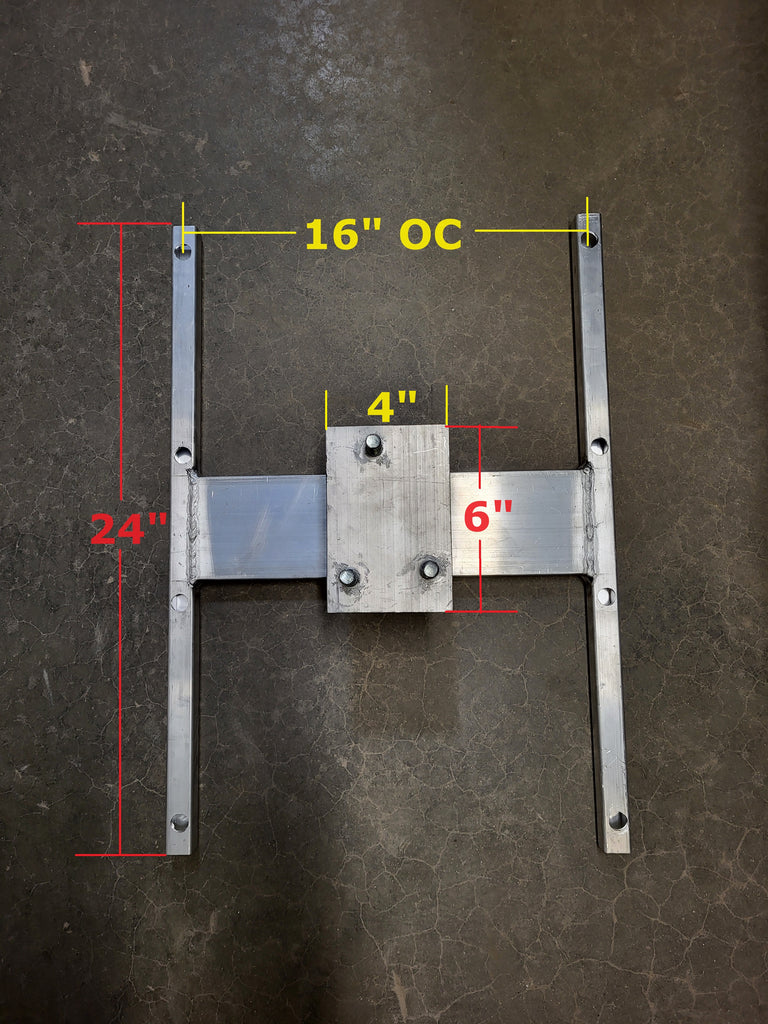

| Part Number | STC-AH-16-KIT |
|---|---|
| Wall Stud Spacing | 16" |
| Wheel Bolt Pattern | 5 x 4.5" ONLY |
| Overall Height | Approximately 24" |
| Overall Width | Approximately 17" |
| Tubing Material | 1" aluminum tubing |

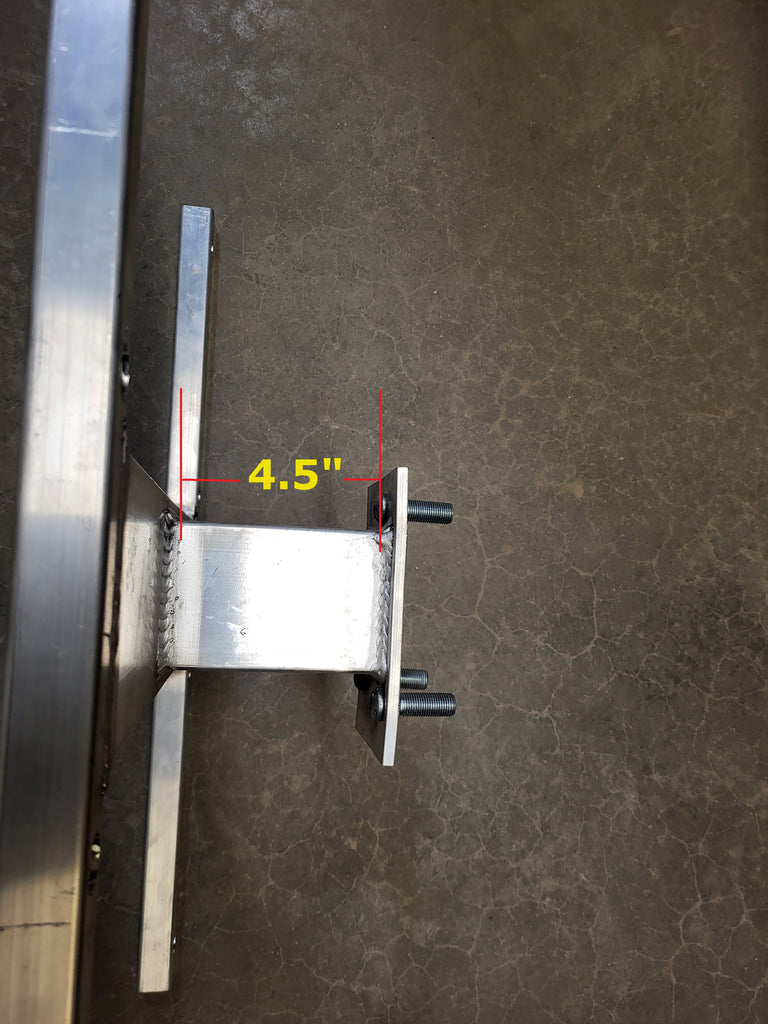

| Maximum Wheel Backspacing | 3-3/4" |
| Included Hardware | Self-drilling mounting screws and wheel lug nuts |
Wheel and tire are not included. Plastic tubing end caps are not included. This mount fits only 5 x 4.5" bolt pattern wheels — other bolt patterns will not fit. Always verify wall stud spacing and wheel backspacing before installation.
