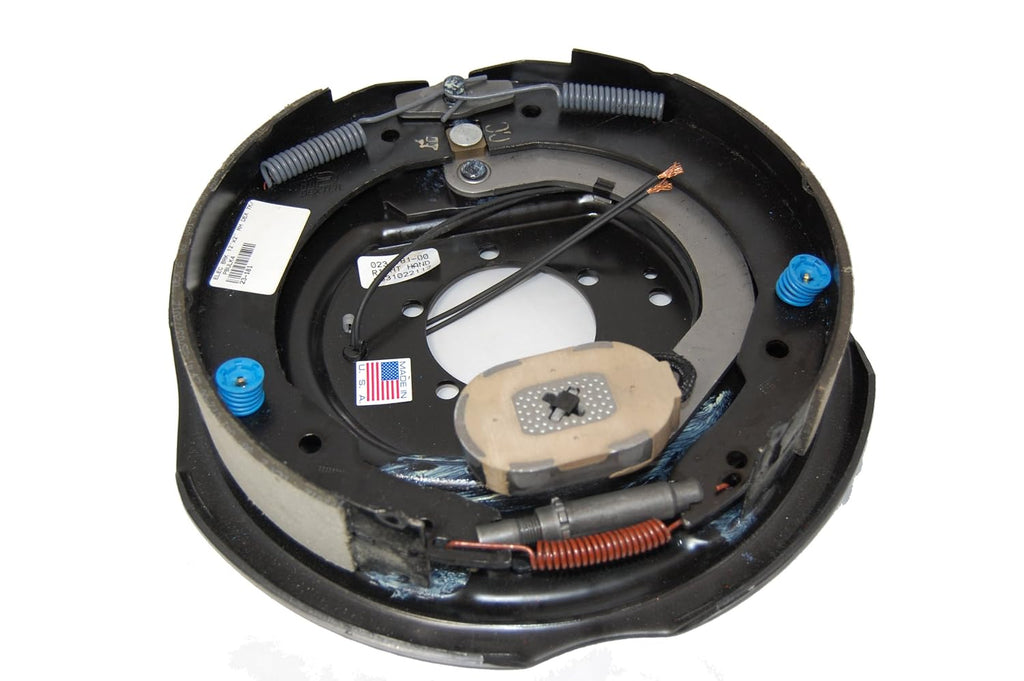

12" x 2" Genuine Dexter Electric Brake Backing Plate – 7,000 lb Axle – Right Hand
Part Number: 23-181-00
Genuine Dexter 12" x 2" passenger-side electric trailer brake backing plate assembly designed for 7,000 lb axles. Fits standard 5-bolt mounting flanges and is compatible with common hub-and-drum assemblies used on 14-1/2", 15", 16", and 16-1/2" wheels. Right-hand configuration (passenger side).
Features
- 12" diameter x 2" wide brake assembly
- Designed for 7,000 lb axle applications
- 5-bolt mounting flange configuration
- Right-hand (passenger side) orientation
- Electric drum brake operation
- Made in the USA
R&P Knowledge Hub

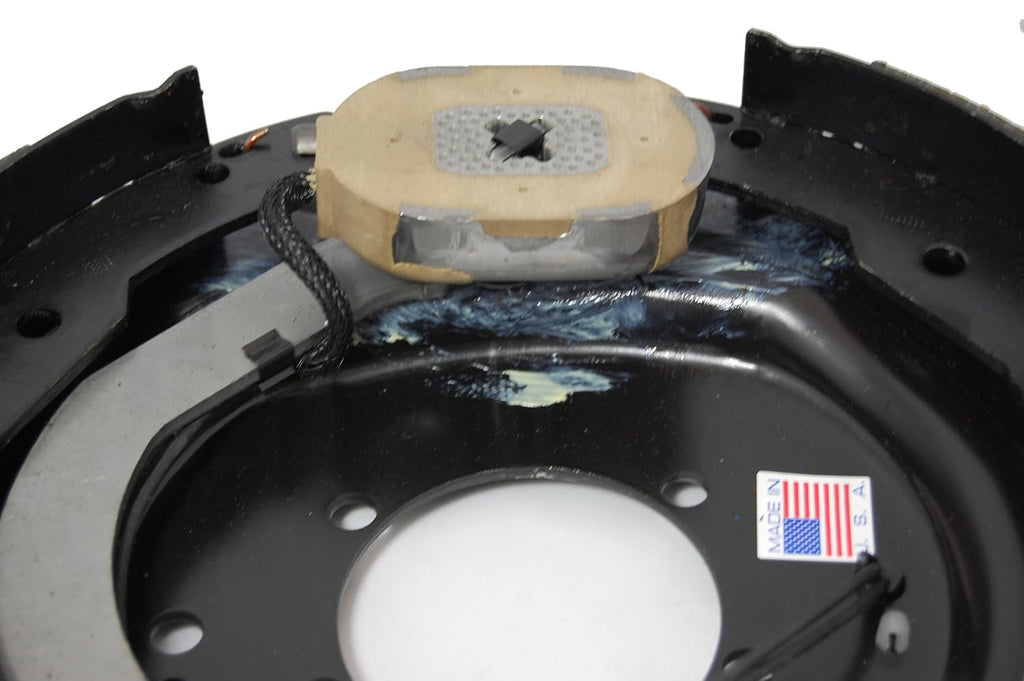

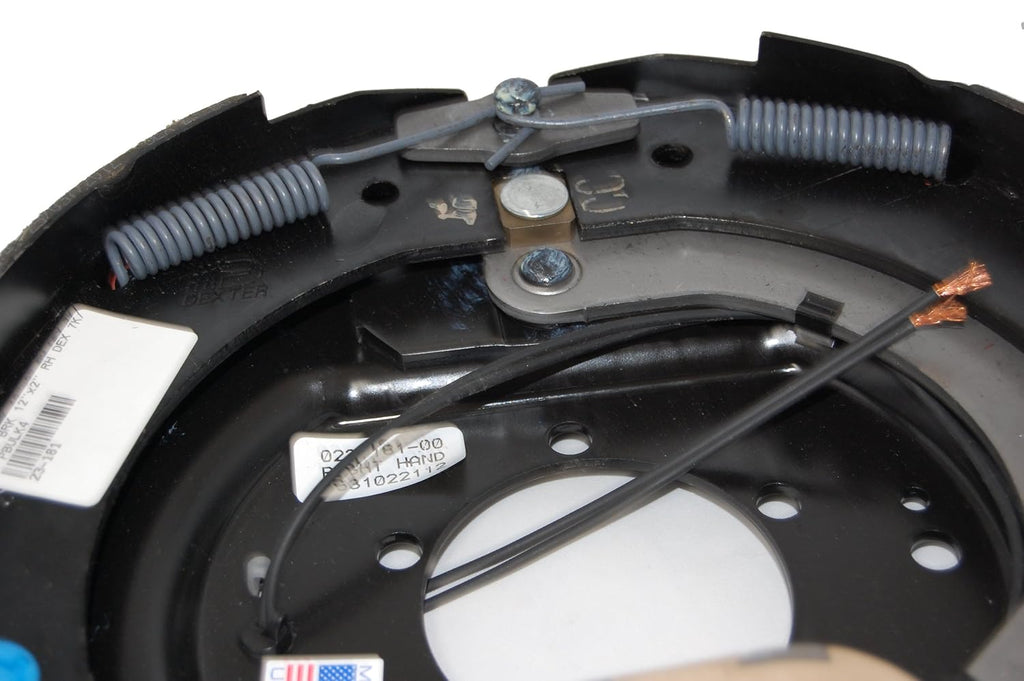

Electric brake backing plates integrate the brake shoes, return springs,
actuating arm, and magnet into a pre-assembled unit that bolts directly
to the axle flange. When voltage is supplied from a brake controller,
the magnet contacts the drum surface and expands the brake shoes.
Brake assemblies are side-specific and must match the correct left or right configuration.
Confirm axle rating, brake dimensions (12" x 2"), flange bolt count, and drum compatibility before ordering.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Dexter |
| Brake Size | 12" x 2" |
| Axle Rating | 7,000 lb |
| Mounting Flange | 5 Bolt |
| Orientation | Right Hand (Passenger Side) |
| Wheel Compatibility | 14-1/2", 15", 16", 16-1/2" |
Verify specifications before installation.
