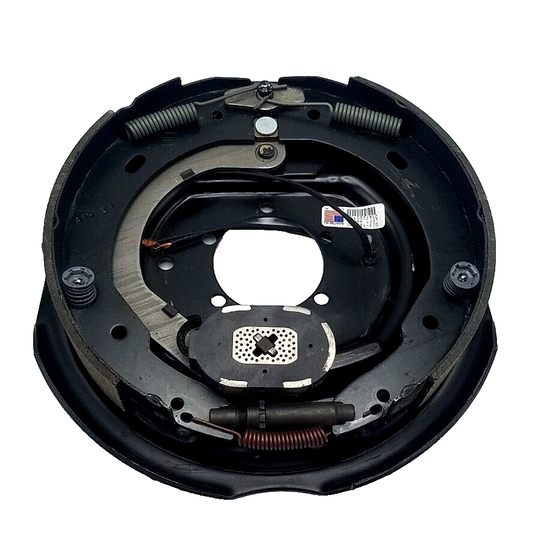

Dexter 12" x 2" Electric Trailer Brake Assembly - 7K Axle - 5 Bolt - Left Hand
Genuine Dexter left-hand electric trailer brake assembly for compatible 12" x 2" drum brake applications on 7,000 lb trailer axles. Complete backing plate assembly with mounting nuts and plugs included.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number | 023-180-00 |
| Kit Number | K23-180-00 |
| Brand | Dexter |
| Brake Size | 12" x 2" |
| Capacity | 7,000 lb capacity application |
| Orientation | Left Hand |
| Quantity Included | 1 left-hand brake assembly with included hardware listed below |
Fitment / Application
| Category | Details |
|---|---|
| System | Electric trailer drum brake system |
| Primary Fit | Compatible 12" x 2" electric brake applications using a left-hand 7K Dexter-style assembly |
| Mounting Pattern | 5-bolt brake flange applications; verify before ordering |
| Fitment Method | Confirm brake size, axle rating, flange bolt count, hub/drum compatibility, and left/right orientation |
| Important Note | Wheel size alone does not confirm brake fitment. Match the brake assembly to the axle, flange, and drum specifications. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Genuine Dexter Part | Correct selling brand for Dexter brake service applications |
| Complete Assembly | Pre-assembled backing plate service replacement |
| Left-Hand Orientation | Designed for the left side where this orientation is required |
| Hardware Included | Includes five hex nuts and two plugs with the brake assembly |
Overview

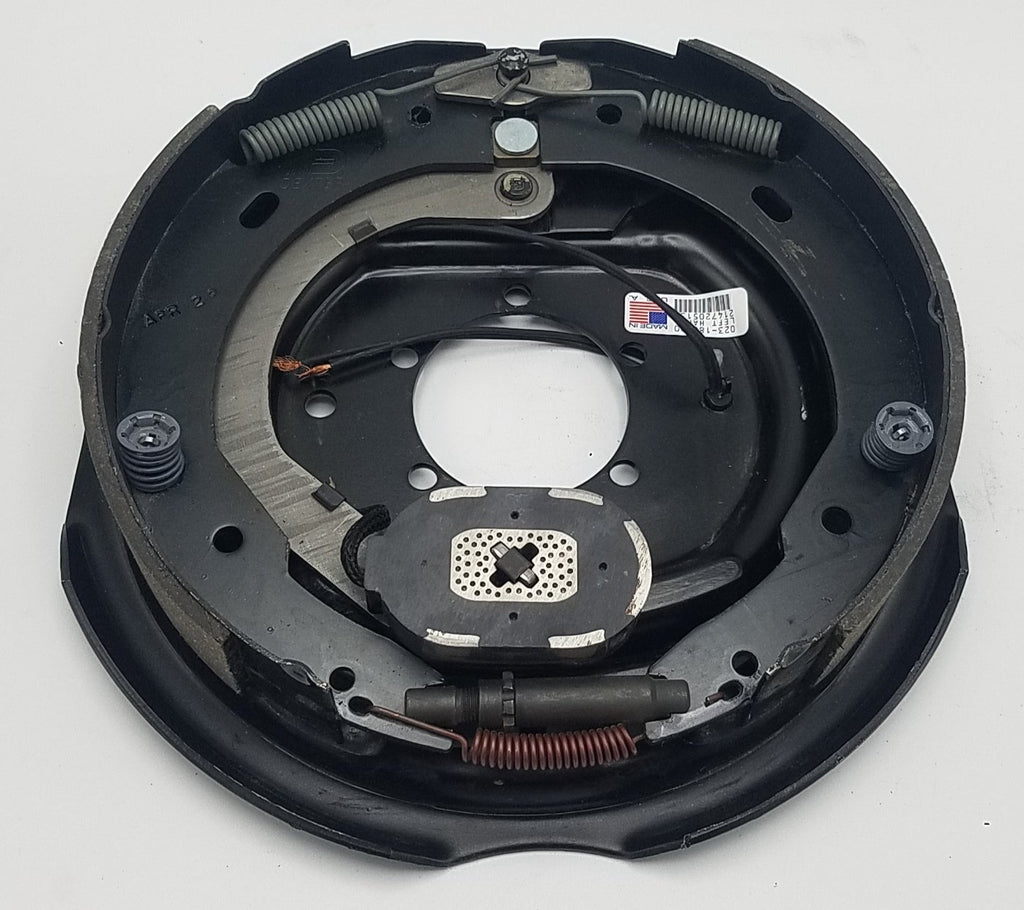

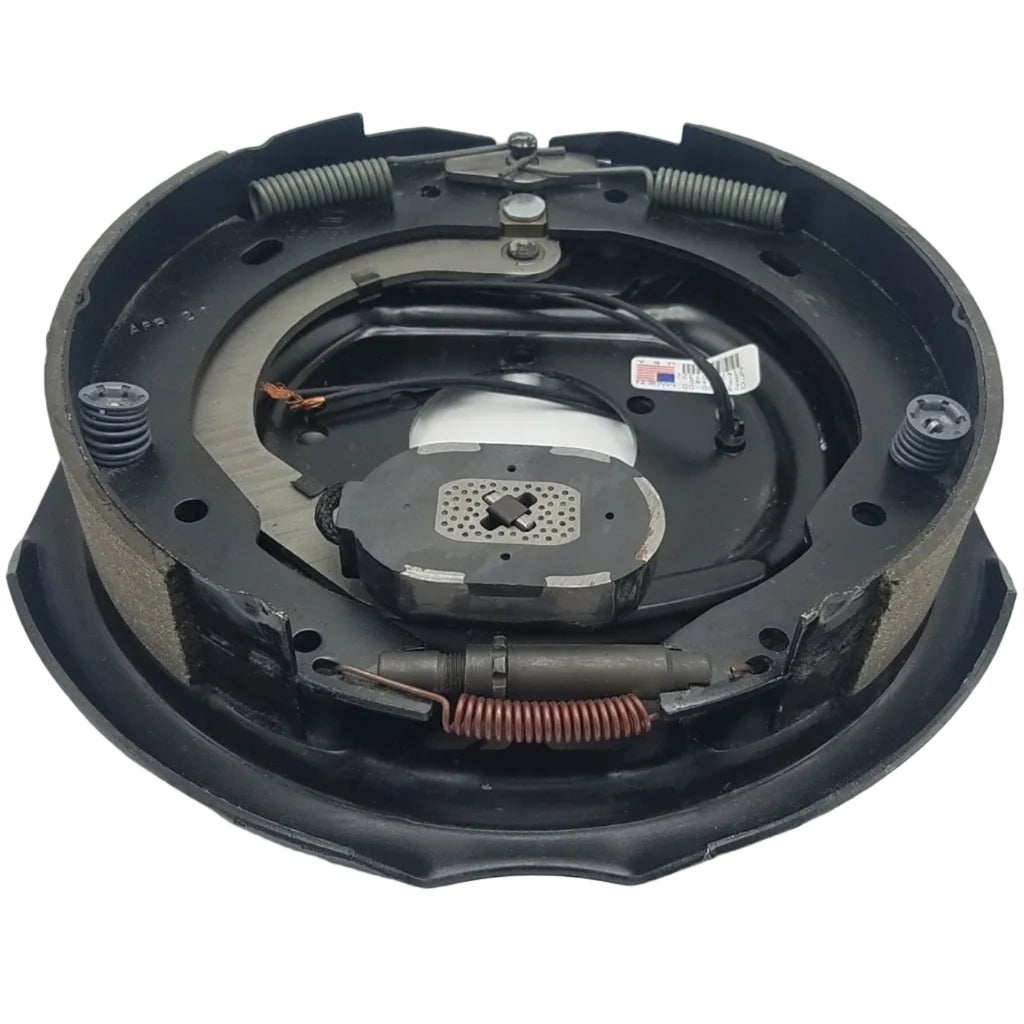

This Dexter 023-180-00 electric brake assembly is a 12" x 2" left-hand brake assembly for compatible 7,000 lb trailer axle brake systems. It is used when replacing a worn, weak, damaged, contaminated, or non-functioning electric brake backing plate assembly where the brake size, axle rating, flange pattern, and side orientation match.
R&P Service Insight
Brake assemblies should be matched by specification, not by appearance alone. Before installation, compare the existing assembly to this listing and confirm the drum and flange setup are correct.

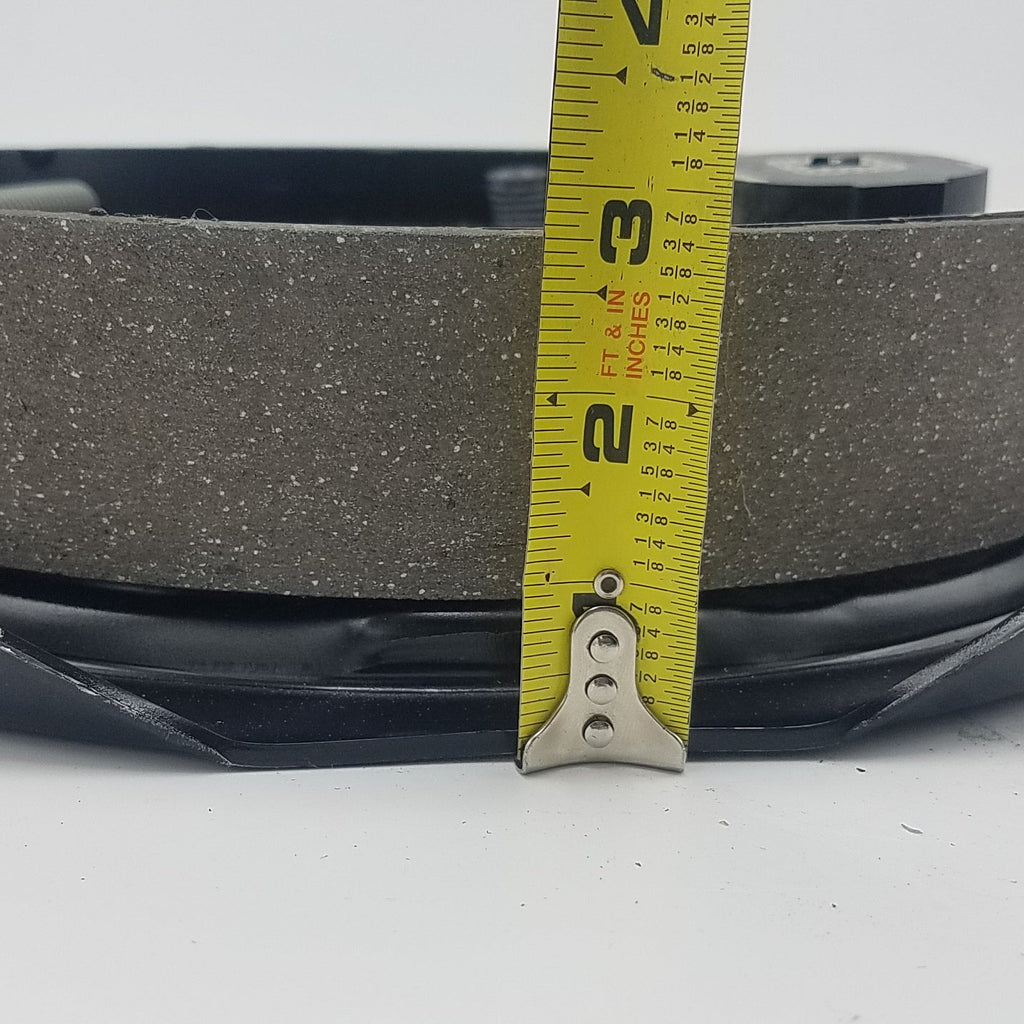

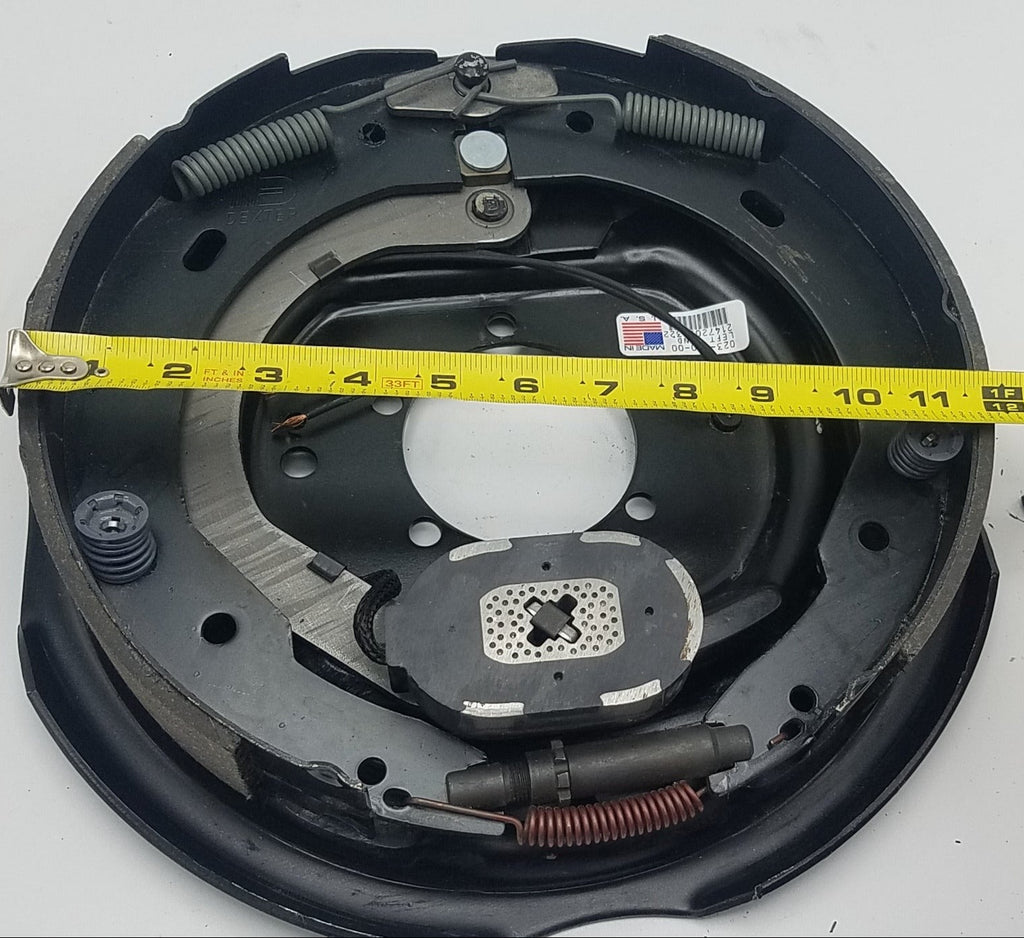

- Measure First: Confirm your existing brake size is 12" x 2".
- Check Orientation: This listing is for the left-hand assembly.
- Inspect the Drum: A new brake assembly should not be installed against a badly worn, deeply grooved, or contaminated drum surface.
R&P Knowledge Hub
Compatibility: This brake assembly is intended for compatible 12" x 2" Dexter electric drum brake applications with a 7,000 lb capacity rating and left-hand orientation.
Trailer Brake Fit: Verify the axle rating, brake size, brake flange bolt count, hub/drum compatibility, and side orientation before ordering.
Installation Notes: Inspect wiring, magnets, shoe wear, drum condition, bearings, seals, and brake adjustment during service.
Performance Insight: Electric brake assemblies use a magnet and actuating arm to expand the brake shoes against the drum surface when voltage is applied from the trailer brake controller.
Brand & Fitment Note
Selling Brand: Dexter

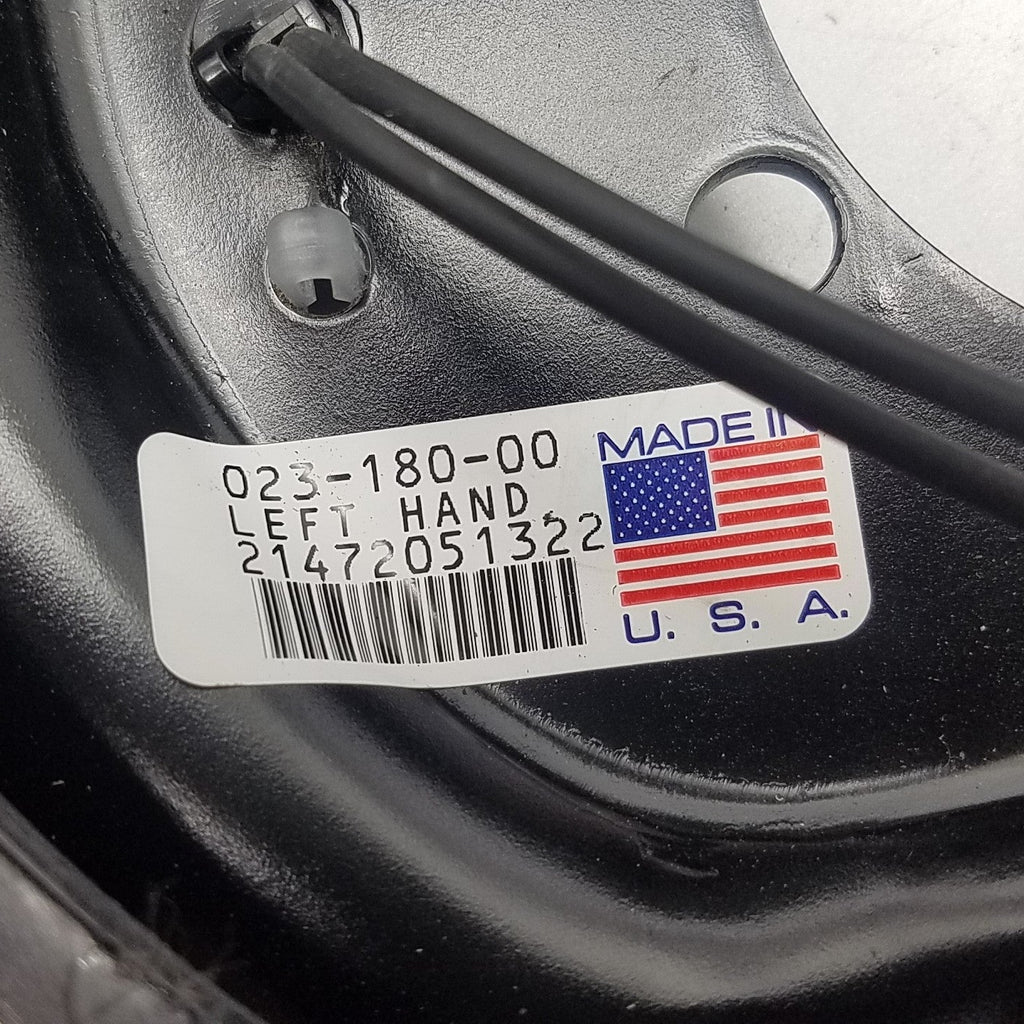

Application Reference: Dexter part number 023-180-00 and kit number K23-180-00 refer to the left-hand 12" x 2" electric brake assembly for 7,000 lb applications.
What This Means: This listing is for one genuine Dexter left-hand electric trailer brake assembly with the included components listed below.
Before Ordering: Verify brake size, mounting flange, axle rating, hub/drum compatibility, and side orientation before installation.
R&P Repair Insight
A weak or uneven trailer brake can be caused by worn shoes, a weak magnet, damaged wiring, a contaminated drum, poor adjustment, or mismatched left/right assemblies. Check the full brake system before replacing parts.
- Left vs. Right: Brake assemblies are directional. Match the side before installing.
- Drum Condition: Grease, scoring, heat damage, or uneven wear can reduce braking even with a new assembly.
- Balanced Service: If one side is heavily worn, inspect the matching right-hand assembly and consider servicing both sides of the axle.
Features
Genuine Dexter Brake Assembly
Correct Dexter-branded service replacement for compatible 12" x 2" electric trailer brake applications.
7K Trailer Axle Application
Built for compatible 7,000 lb capacity electric drum brake systems where this size and orientation match.
Left-Hand Orientation
Designed for left-hand brake locations. Always confirm orientation before ordering or installing.
Complete Backing Plate Assembly
Service assembly includes the 12" x 2" 7K left-hand electric brake assembly with listed hardware.
Included Components
| Quantity | Item |
|---|---|
| 1 | Dexter 023-180-00 12" x 2" 7K electric brake assembly, left hand |
| 5 | 006-193-00 hex nuts |
| 2 | 046-007-00 plugs |
