10K GD Trailer Equalizer Kit 15.75" Long for 2.5" Wide Springs 1" Center Bolt 3/4" Spring Bolt
Complete R&P Carriages assembled 10K GD equalizer hardware kit with two 15.75" equalizers, 1" center equalizer bolts, 3/4" spring eye bolts, and matching lock nuts for compatible heavy-duty trailer suspension service.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | 5000GD-KIT |
| Brand | R&P Carriages assembled kit using Rockwell / Lippert / AL-KO style application components |
| Product Type | 10K GD trailer equalizer suspension kit |
| Primary Measurement | 15.75" long equalizer for 2.5" wide spring applications |
| Hardware Sizes | 1"-8 center equalizer bolts and 0.75"-10 spring eye bolts |
| Quantity Included | 10 total pieces: 2 equalizers, 4 bolts, and 4 lock nuts |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / Trailer / System | Heavy-duty trailer suspension equalizer system |
| Primary Fit | Compatible 10K GD applications using 5000GD equalizers where measurements match |
| Application Reference | Rockwell / Lippert / AL-KO style 10K GD suspension reference; AL-KO references include A8319 and A8320 |
| Important Note | Do not order by axle rating alone. Verify equalizer length, spring width, bolt diameter, thread size, and hanger spacing before ordering. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Complete Service Kit | Includes the equalizers, center bolts, spring eye bolts, and matching lock nuts for the listed configuration. |
| 15.75" Equalizer Length | Matches compatible 5000GD heavy-duty equalizer suspension setups using this measurement. |
| 2.5" Spring Application | Built around heavy-duty 2.5" wide spring suspension assemblies. |
| Measurement-Based Fitment | Clear bolt and equalizer dimensions help buyers compare against existing suspension hardware before purchase. |
Overview
This 5000GD-KIT is an R&P Carriages assembled replacement kit for compatible 10K GD trailer suspension assemblies using Rockwell / Lippert / AL-KO style equalizer applications. The kit includes two 5000GD equalizers with matching dry hex-head bolts and lock nuts, making it a practical service package when replacing worn equalizers and related suspension hardware together.
R&P Service Insight
Heavy-duty equalizer service should be matched by measurement, bolt size, spring width, and existing suspension geometry.
- Equalizer Length: Uses 15.75" long equalizers for compatible 10K GD setups.
- Spring Width: Designed around 2.5" wide spring applications.
- Bolt Match: Uses 1"-8 center equalizer bolts and 0.75"-10 spring eye bolts.
R&P Knowledge Hub
Compatibility: Built around 5000GD Rockwell / Lippert / AL-KO style equalizers for compatible 10K GD trailer suspension assemblies.
Vehicle / System Fit: Trailer suspension service kit for matching 10K GD equalizer applications using 2.5" wide springs.
Installation Notes: Verify equalizer length, spring width, bolt diameter, bolt thread size, hanger spacing, and existing suspension geometry before installation.
Performance Insight: Replacing worn equalizers and related hardware together can help restore proper suspension articulation and reduce excess movement from loose or worn connection points.
Brand & Fitment Note
Selling Brand: R&P Carriages assembled replacement kit.
Application Reference: 5000GD equalizers; Rockwell / Lippert / AL-KO style 10K GD suspension reference. AL-KO reference numbers include A8319 and A8320.
What This Means: This listing includes the equalizers, center equalizer bolts, spring eye bolts, and matching lock nuts listed below. Brand and manufacturer names are used as application references only unless otherwise stated.
Before Ordering: Match your existing equalizer and hardware by measurement. Do not order by axle rating alone.
R&P Repair Insight
Equalizers and suspension bolts are high-load wear points. If the equalizer holes are elongated, the bolts are worn, or the suspension has excessive movement, replacing the equalizer hardware as a matched service set is often cleaner than replacing only one worn component.
- Check Equalizer Length: Confirm the 15.75" equalizer length matches your existing assembly.
- Check Spring Width: Confirm your suspension uses 2.5" wide springs.
- Check Bolt Sizes: This kit uses 1"-8 x 6.50" equalizer bolts and 0.75"-10 x 4.50" spring eye bolts.
Features
Complete Equalizer Service Package
Includes two 5000GD equalizers with the main equalizer bolts, spring eye bolts, and matching lock nuts needed for this listed configuration.
10K GD Suspension Reference
Built for compatible 10K GD trailer suspension applications using Rockwell / Lippert / AL-KO style equalizer components.
Dry Hex-Head Bolt Hardware
Includes dry hex-head equalizer and spring eye bolts in the listed 1" and 3/4" sizes.
Measurement-Based Fitment
Clear fitment points include 15.75" equalizer length, 2.5" wide spring application, 1" center bolt, and 3/4" spring bolt.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 5000GD-KIT |
| Listing SKU | 5000GD-KIT |
| Brand | R&P Carriages assembled kit using Rockwell / Lippert / AL-KO style components |
| Product Type | 10K GD trailer equalizer suspension kit |
| Quantity Included | 10 total pieces: 2 equalizers, 4 bolts, and 4 lock nuts |
| Application | Compatible 10K GD trailer suspension assemblies |
| Material / Finish | Dry suspension hardware; 007-359-00 bolts listed as zinc finish |
| Key Measurement | 15.75" long equalizer; 2.5" wide spring application |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Heavy-duty trailer suspension equalizer system |
| Primary Fit | 10K GD applications using 5000GD equalizers |
| Secondary Fit / Common Uses | Rockwell / Lippert / AL-KO style heavy-duty trailer suspension service where matching dimensions are confirmed |
| Notes | AL-KO reference numbers A8319 and A8320 are associated with the included 5000GD equalizer reference. Verify before ordering. |
Detailed Measurements
| Key Dimension | Measurement |
|---|---|

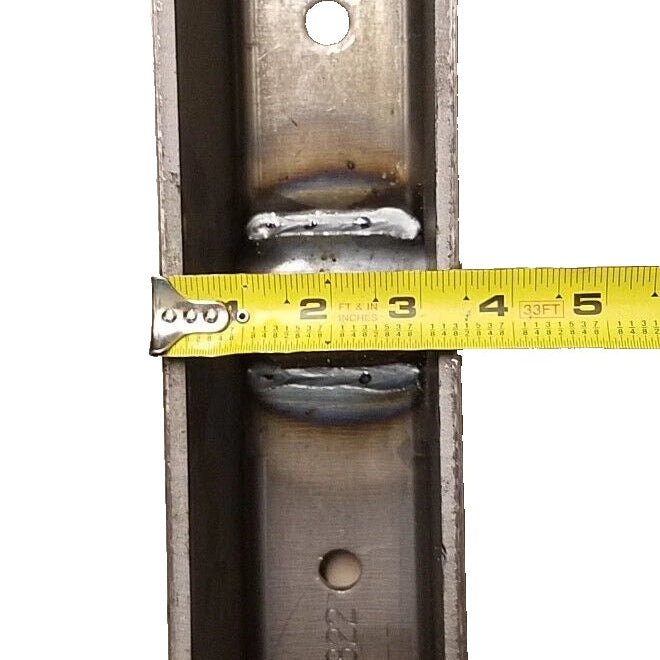

| Equalizer Length | 15.75" long |

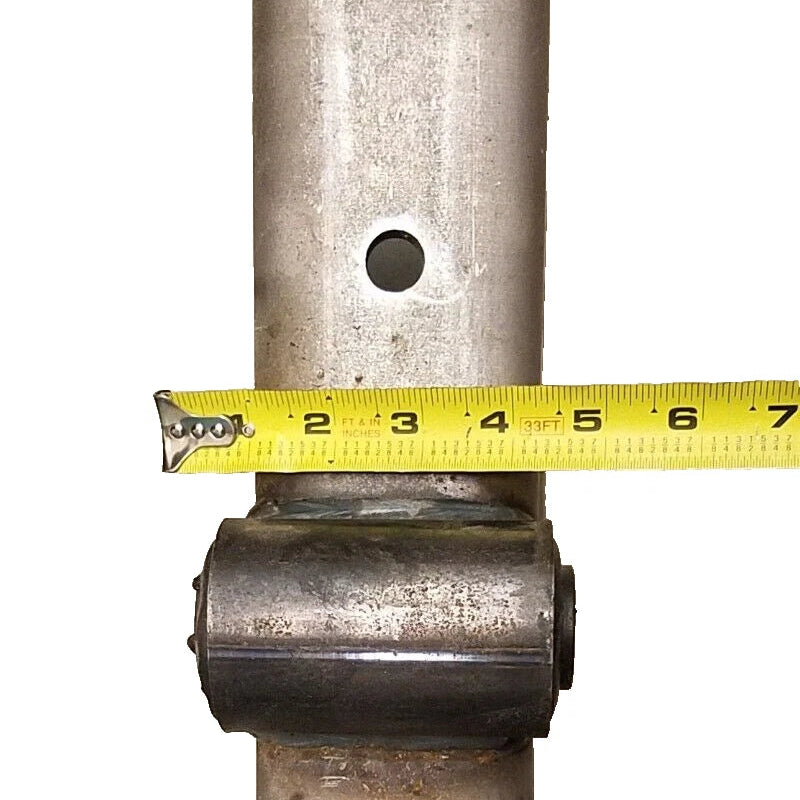

| Spring Width Application | 2.5" wide spring |

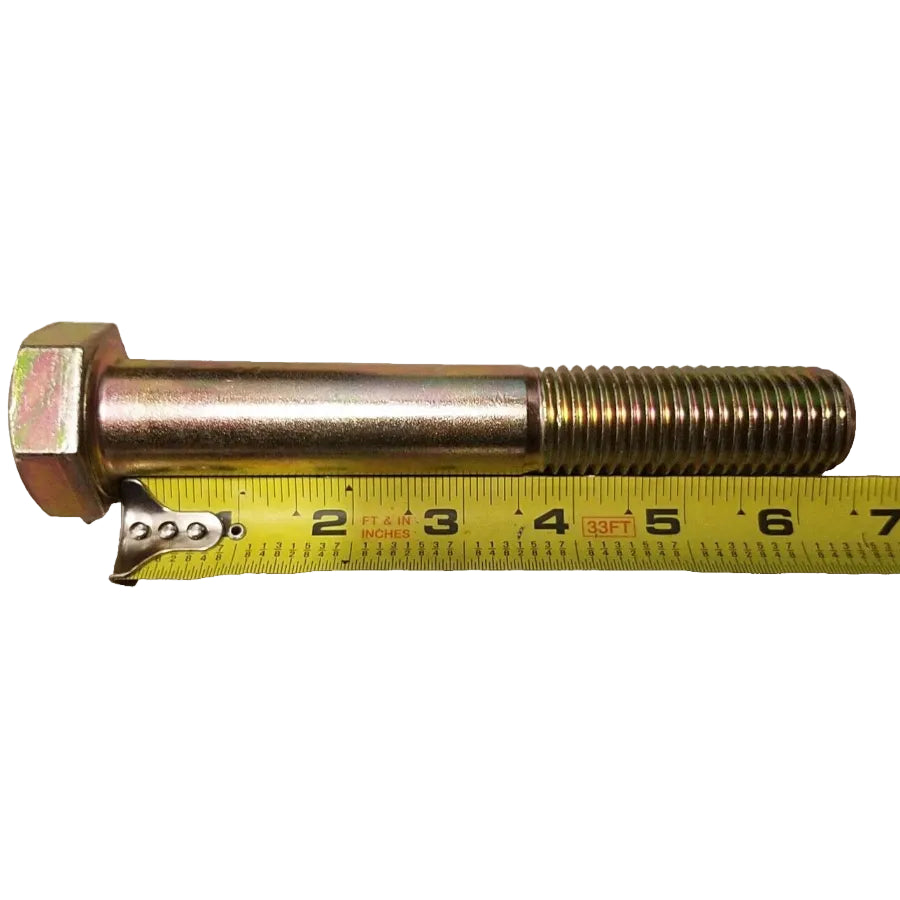

| Center / Equalizer Bolt | 1"-8 x 6.50" dry hex-head bolt |
| Spring Eye Bolt | 0.75"-10 x 4.50" dry hex-head bolt |

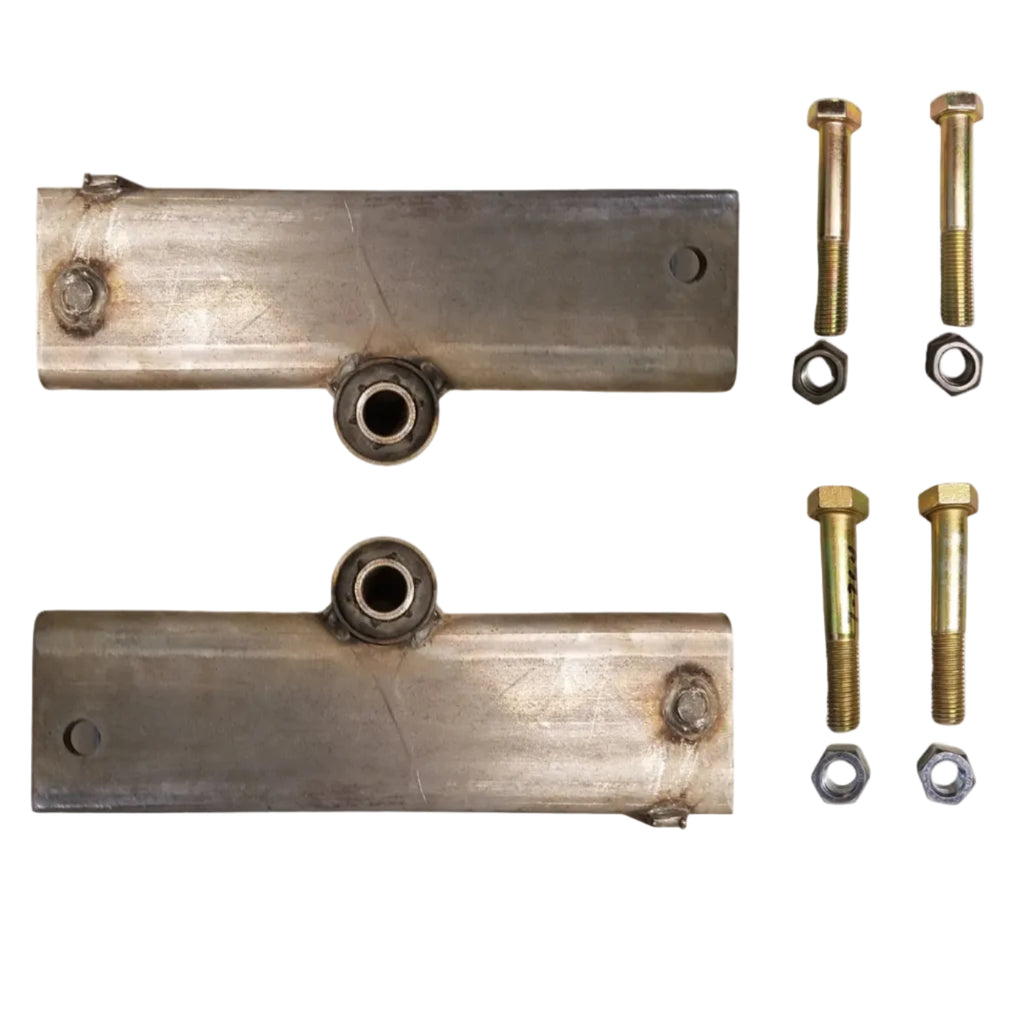

Included Components
| Quantity | Part Number | Item Included |
|---|---|---|

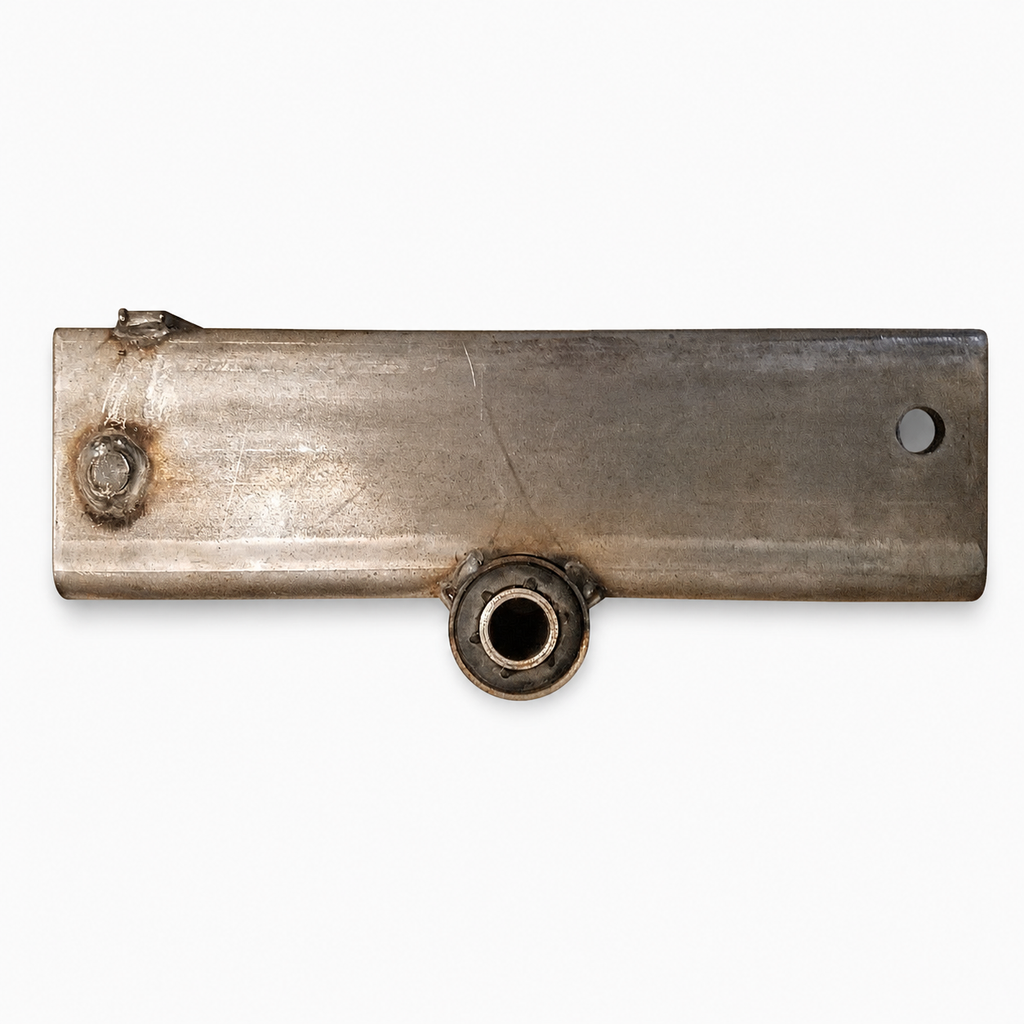

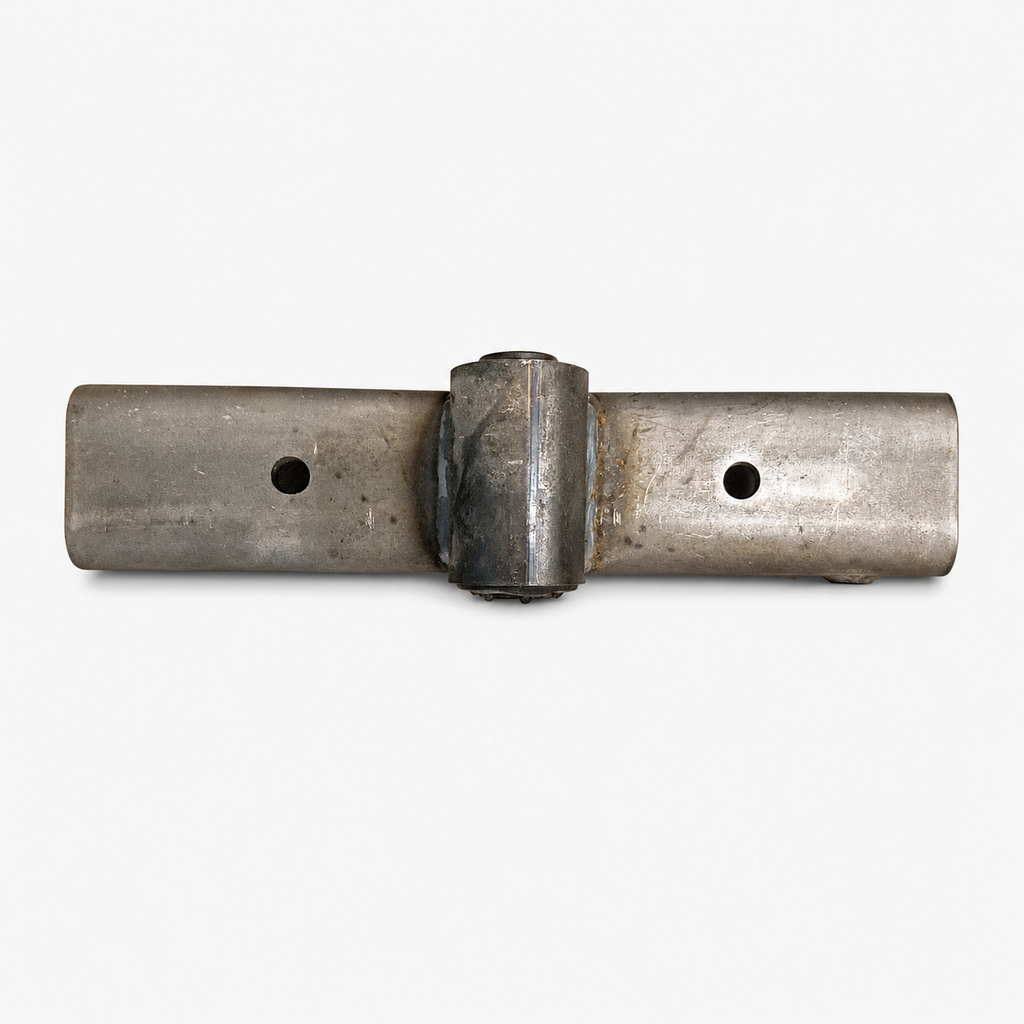

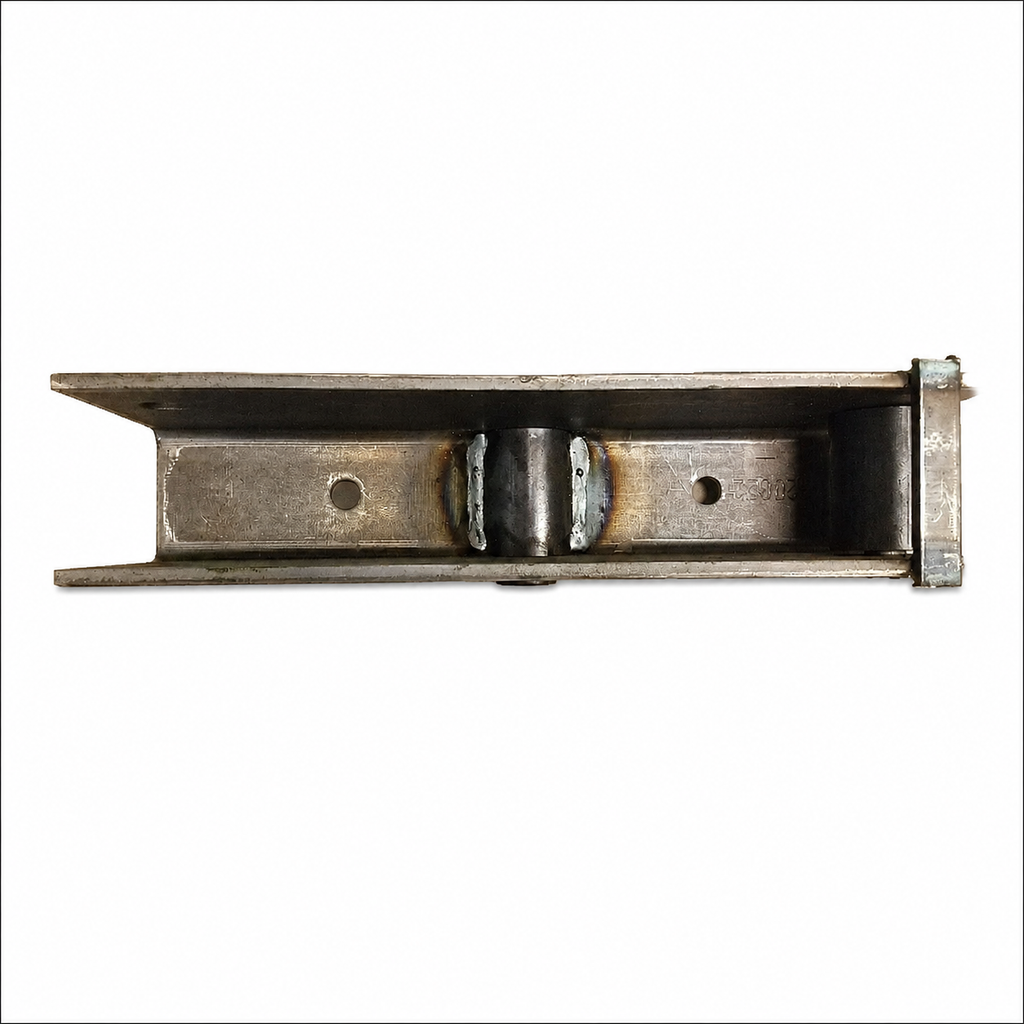

| 2 | 5000GD | Rockwell / Lippert / AL-KO style 10K equalizers, 15.75" long, for 2.5" wide spring applications. AL-KO reference numbers A8319 and A8320. |
| 2 | 007-359-00 | Equalizer bolts, hex head, 1"-8 x 6.50", dry, zinc, 10K GD. |

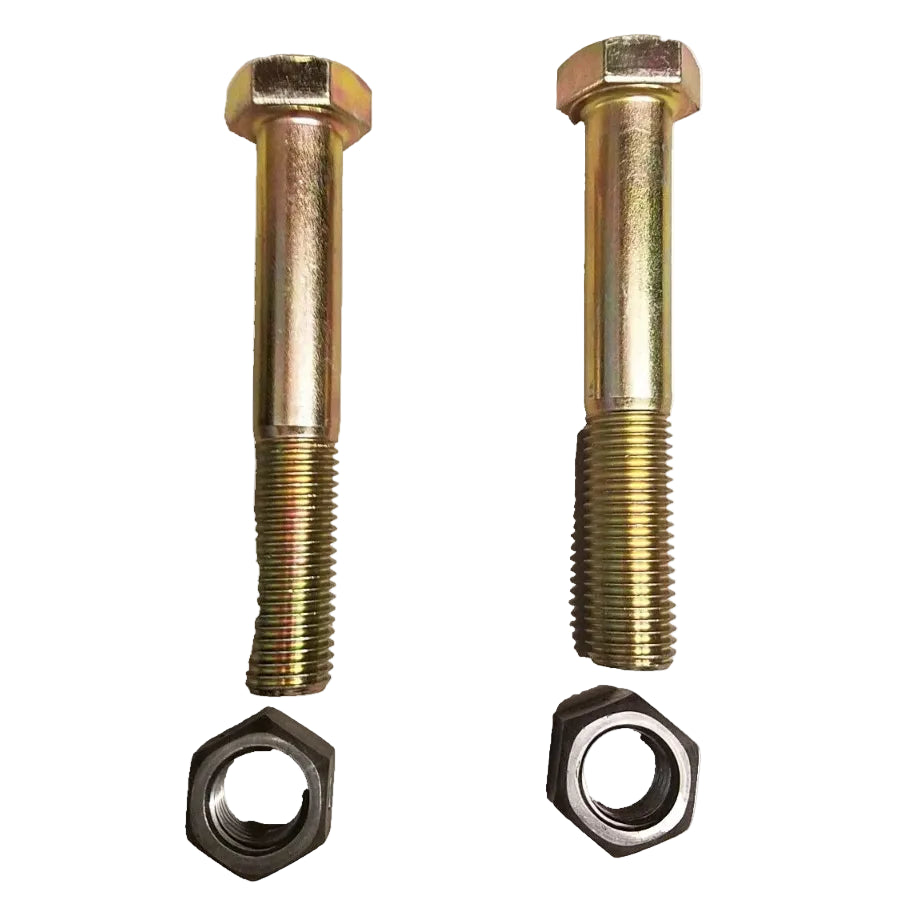

| 2 | 007-264-00 | Spring eye bolts, hex head, 0.75"-10 x 4.50", dry, 10K GD. |
| 2 | 006-112-00 | Lock nuts, 1.0"-8, fits 007-359-00 equalizer bolts. |
| 2 | 006-113-00 | Lock nuts, 0.75"-10, fits 007-264-00 spring eye bolts. |
```
