At a Glance
- >32-1/2" overall length (eye to slipper end)
- >3/4" spring eye
- >4 leaf construction
- >Rear slipper-style radius
- >Free arch camber design
- Brand: Need A Trailer Part®
- SKU: 93161
Before You Order
Match the part number, measurements and connection points that apply to your trailer.
Fitment Check
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |
Product Details
32-1/2" Slipper Leaf Spring – 4 Leaf – 3/4" Eye
Slipper Spring – 32-1/2" Overall Length
Replacement slipper-style leaf spring designed for trailer suspension systems using a front spring eye and rear slipper configuration. Commonly used on tandem axle trailers where the rear of the spring rides in a slipper hanger rather than a fixed eye.
Features
- 32-1/2" overall length (eye to slipper end)
- 3/4" spring eye
- 4 leaf construction
- Rear slipper-style radius
- Free arch camber design
R&P Knowledge Hub
Slipper springs are commonly used in tandem axle trailer suspension systems where the rear of the spring slides inside a hanger instead of using a second eye. The front eye mounts rigidly while the rear slipper allows controlled movement during axle articulation. Proper spring length, eye diameter, camber height, and center bolt location must match the existing suspension geometry. Always verify measurements against the original spring before installation to maintain ride height and axle alignment.
Slipper springs are commonly used in tandem axle trailer suspension systems where the rear of the spring slides inside a hanger instead of using a second eye. The front eye mounts rigidly while the rear slipper allows controlled movement during axle articulation. Proper spring length, eye diameter, camber height, and center bolt location must match the existing suspension geometry. Always verify measurements against the original spring before installation to maintain ride height and axle alignment.

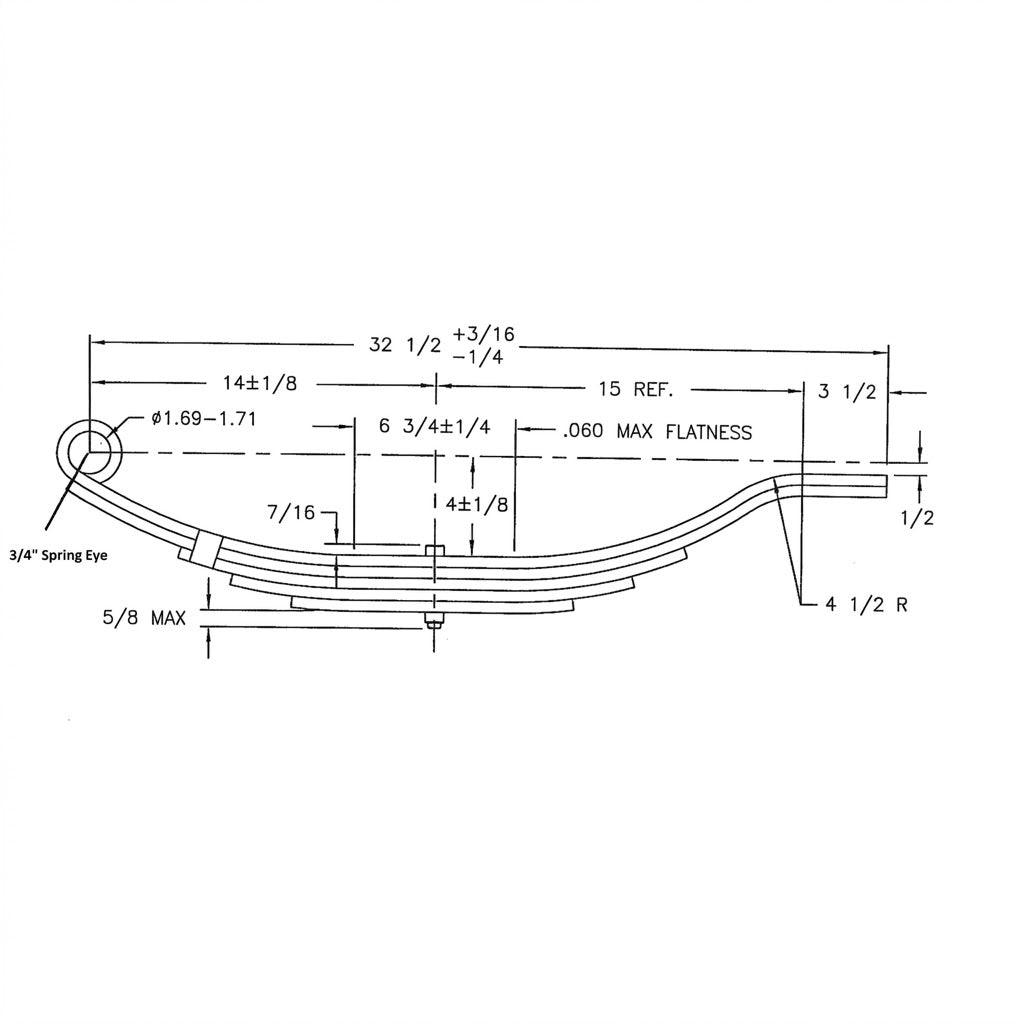

Technical Diagram
Specifications
| Specification | Measurement |
| Overall Length (Eye to Slipper End) | 32-1/2" (+3/16" / ?1/4") |
| Eye to Center Bolt | 14-1/8" |
| Center Bolt to Slipper End | 15" (Reference) |
| Slipper Tail Length | 3-1/2" |
| Spring Eye Size | 3/4" |
| Eye Inside Diameter | Ø 1.69" – 1.71" |
| Leaf Count | 4 Leaves |
| Individual Leaf Thickness | 7/16" |
| Maximum Stack Height | 5/8" Max |
| Camber Height (Free Arch) | 4" ± 1/8" |
| Rear Slipper Radius | 4-1/2" Radius |
| Maximum Flatness Tolerance | .060" Max |
Verify specifications before installation.
