At a Glance
- >10,000 lb general duty axle beam
- >New-style straight axle with camber
- >74" hub face, 74.5" track width
- >Standard 5" round tube construction
- >Designed for 1-piece hub and drum assemblies
- Brand: Dexter
- SKU: 10KGD-AF09-74-5-KIT
Before You Order
Match the part number, measurements and connection points that apply to your trailer.
Fitment Check
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |
Product Details

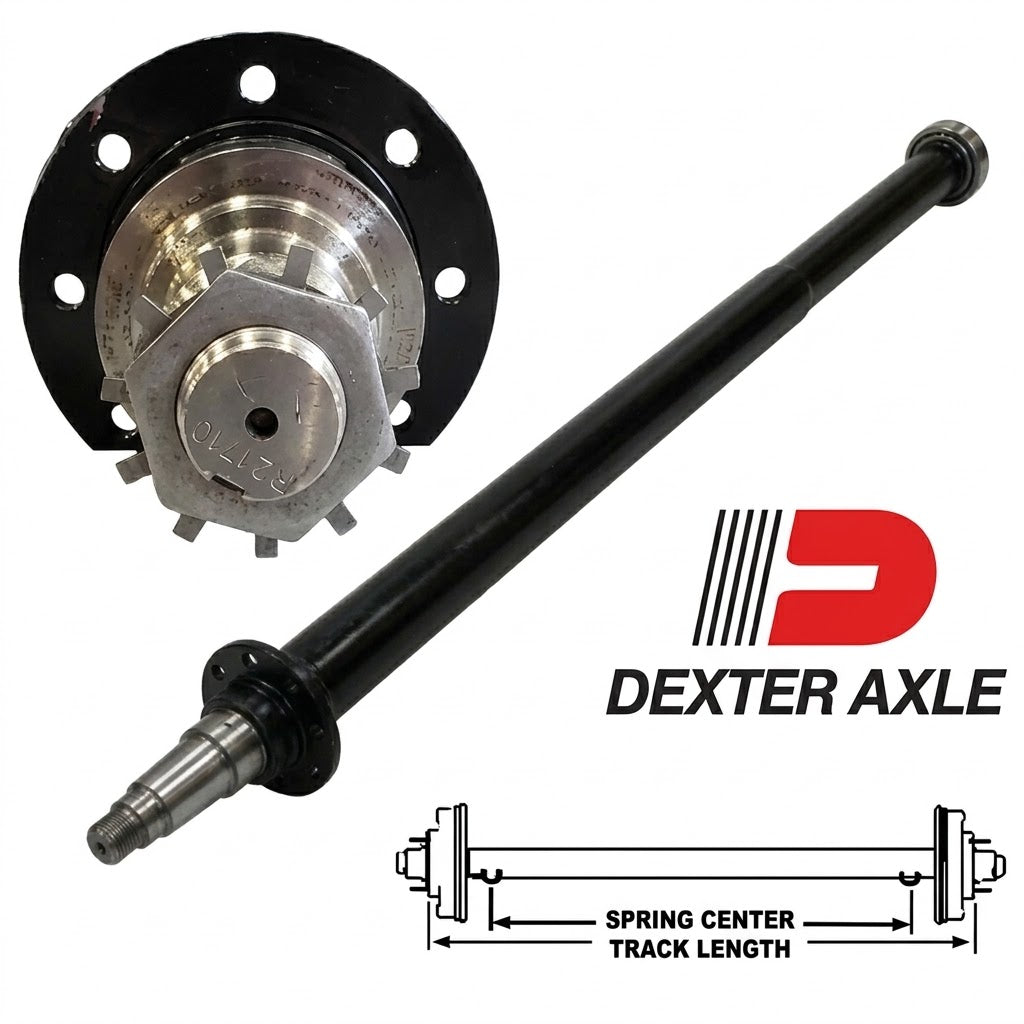

Dexter Trailer Axle Beam 10,000 lb – New Style, Straight, 5" Tube, 74" Hub Face
Part Number: 100GD-AF09-74
10,000 lb general duty trailer axle beam designed for new-style Dexter applications. This straight axle features a 5" round tube and is commonly used on car haulers, equipment trailers, and other heavy-duty trailer builds requiring a 74" hub face.
Features
- 10,000 lb general duty axle beam
- New-style straight axle with camber
- 74" hub face, 74.5" track width
- Standard 5" round tube construction
- Designed for 1-piece hub and drum assemblies
- Spring perches not installed (loose)
Reference Diagram
Diagram shown for general dimensional reference. Measurements and configurations should be confirmed prior to ordering to ensure compatibility with your trailer.
Spindle Detail
Specifications
| Axle Rating | 10,000 lb |
| Axle Style | Straight, New Style |
| Hub Face | 74" |
| Track Width | 74.5" |
| Tube Diameter | 5" Round |
| Brake / Hub Compatibility | 9-123 Drum / 8-430 Hub |
| Perches | Loose (not welded) |
