NEW Lippert MINI 5 Torsion Trailer Axle Beam – 8,000 lb – 94" HF – 77" OB – 32° Down - Kaufman Mini-5
Ask R&P About This Item
Send us the measurements from the axle under your trailer. We would rather compare the numbers before you buy.
Help Me Confirm This Axle
Send us the measurements from the axle under your trailer. We would rather compare the numbers before you buy.
Need the axle installed?
R&P Carriages also handles trailer service and axle-related repair work.
Pick Up at R&P Carriages
This exact item is available from our Seneca, Illinois location and is not set up for standard shipping.
Seneca, IL 61360 R&P Carriages
Please confirm measurements and availability before making the trip. We want to make sure the item waiting here is the one you need.
Details

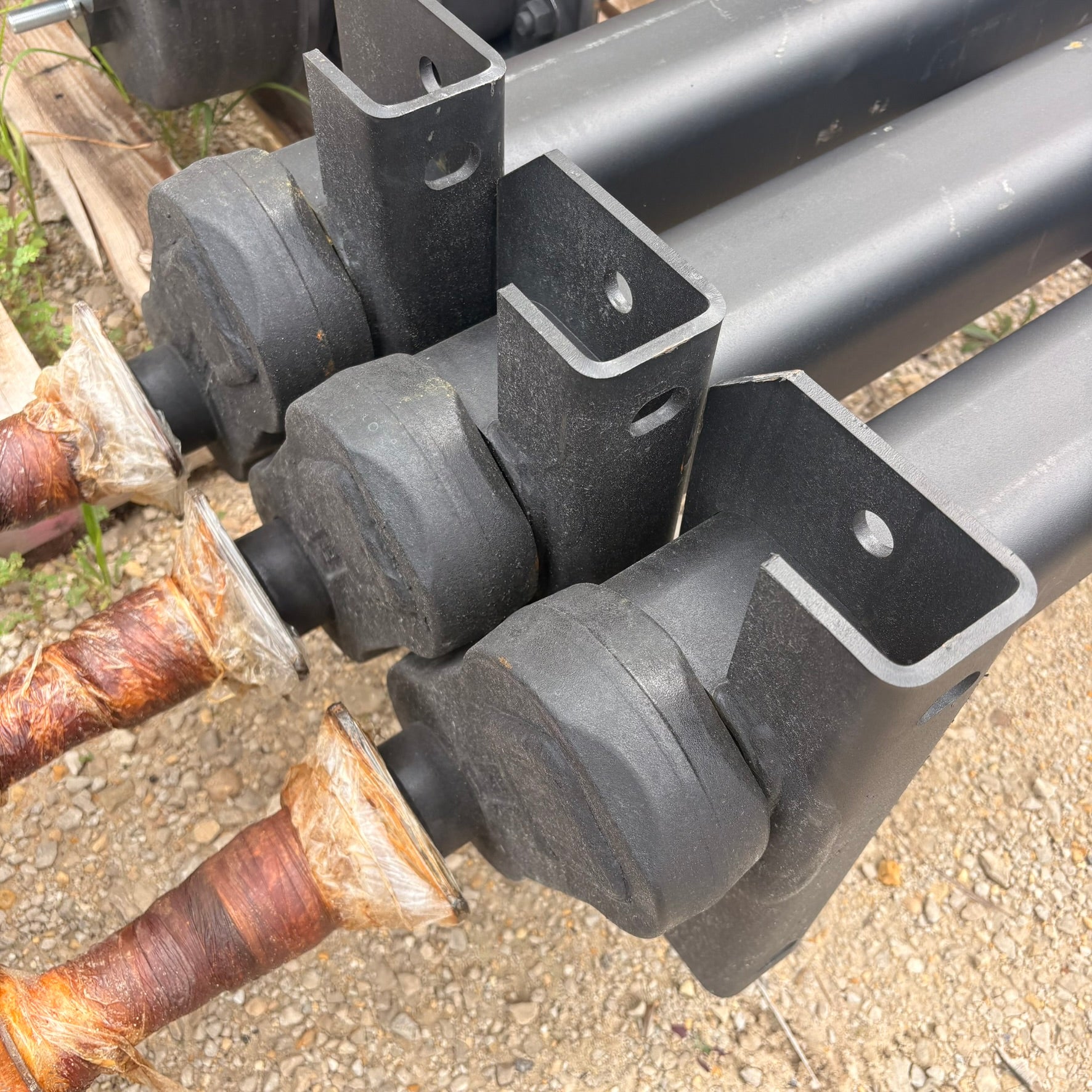

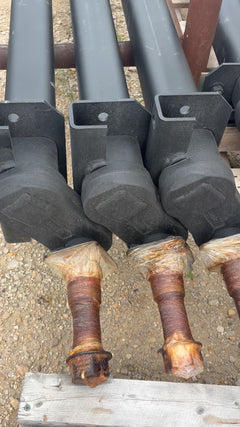

8,000 lb Torsion Axle - 94" Hub Face - 77" Outside Bracket - 32° Down - Kaufman Mini-5
New 8,000 lb torsion axle configured for certain later-model Kaufman Mini-5 trailers. This is a measurement-specific axle and should be matched by dimensions and spindle/drum configuration, not trailer year or model alone.
| Capacity | 8,000 lb |
| Hub Face | 94" |
| Outside Bracket | 77" |
| Start Angle | 32° Down |
| Spindle | 1-3/4" Lubed Straight Spindle |
| Bearings | 25580 Inner and Outer Bearings |
| Drum Casting | 696104 |
| Application | Commonly found on some Kaufman Multi-Car Haulers built after 2018 |
| SKU | 8000-94-77-TORSION-Mini-5 |
Important Fitment Note
This axle uses a specific spindle, bearing and drum configuration. The axle and drums are specific to later-model Mini-5 applications.
Before purchasing, verify the 94" hub face, 77" outside bracket measurement, 32° down start angle, 1-3/4" straight spindle, 25580 inner and outer bearings, drum casting number 696104, mounting arrangement and axle orientation against the axle currently under your trailer.
Do not purchase based on trailer year or model alone.
Availability
Contact us for shipping cost or local pickup availability.
R&P SKU: 8000-94-77-TORSION-Mini-5
