Match the part number, measurements and connection points that apply to your trailer.
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |

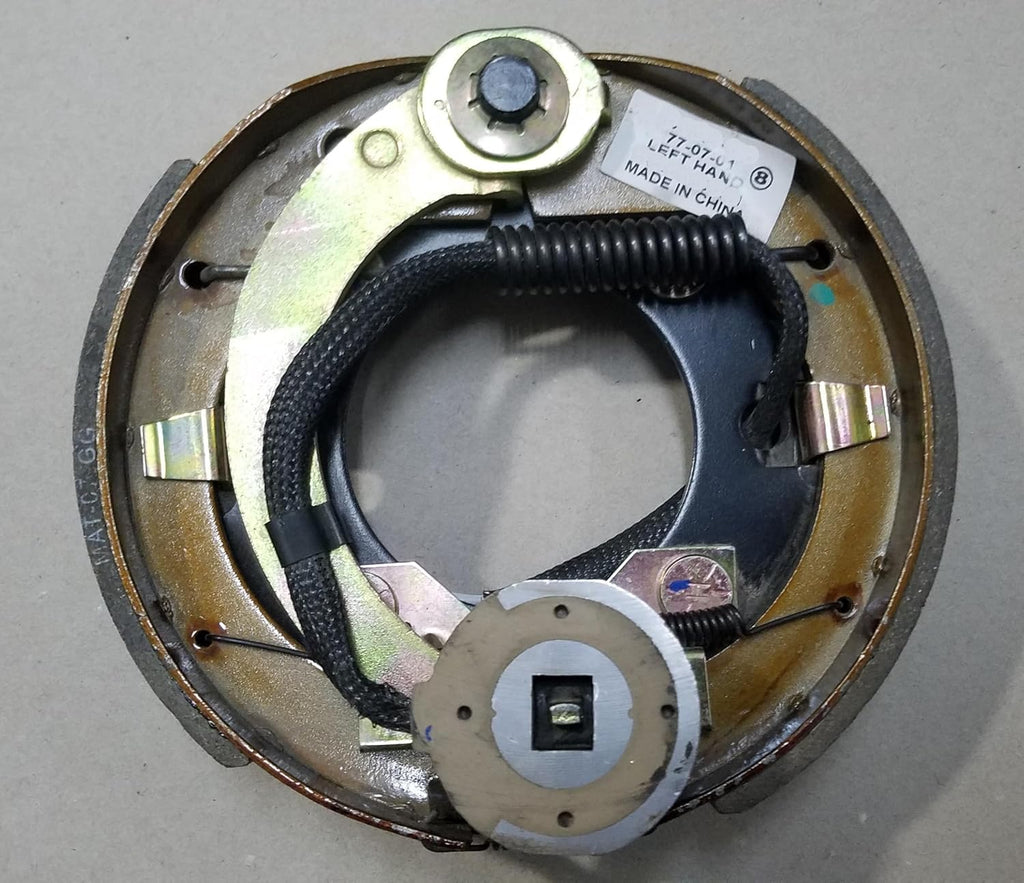

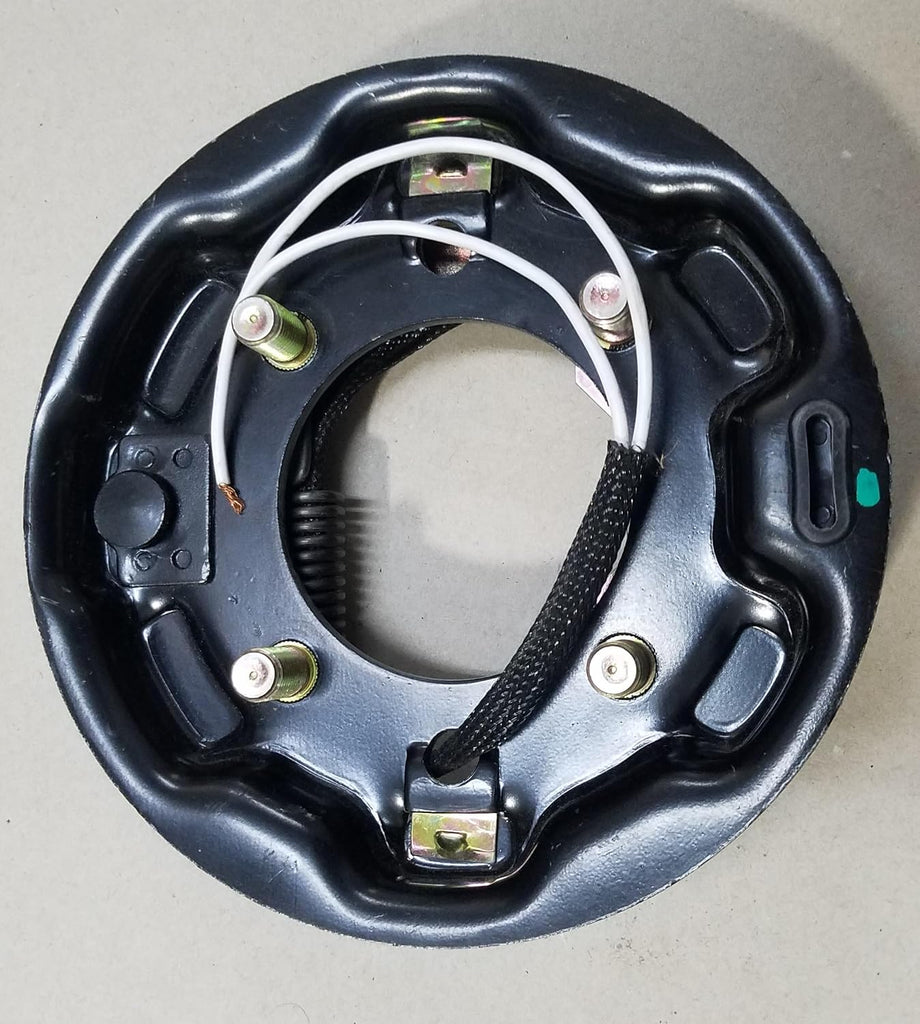

Left-hand electric trailer brake backing plate assembly for compatible 2,000 lb axle applications using a 7-inch by 1-1/4-inch brake and four-bolt mounting flange.
| Specification | Detail |
|---|---|
| Part Number / SKU | 7EBLH |
| Product Type | Electric trailer brake backing plate |
| Brake Size | 7" x 1-1/4" |
| Axle Rating | 2,000 lb application |
| Mounting Style | 4-bolt mounting flange |
| Quantity Included | 1 left-hand brake assembly |
| Category | Details |
|---|---|
| Brake System | Electric trailer drum brake system |
| Side Orientation | Left hand / driver side |
| Application Reference | Aftermarket replacement for Dexter 23-47 left-hand applications |
| Fitment Method | Confirm brake size, side orientation and four-bolt mounting pattern before ordering. |
| Important Note | This listing is for one left-hand assembly only. A right-hand assembly is not included. |
| Feature | Buyer Benefit |
|---|---|
| Left-Hand Configuration | Designed for installation on the trailer’s driver side. |
| 7-Inch Brake Size | Fits compatible applications requiring a 7" x 1-1/4" brake assembly. |
| Four-Bolt Mounting | Matches compatible axle brake flanges using a four-bolt pattern. |
| 2,000 lb Application | Intended for compatible 2,000 lb trailer axle brake systems. |
Part number 7EBLH is a left-hand electric trailer brake backing plate assembly for compatible 2,000 lb axle applications. It measures 7 inches by 1-1/4 inches and mounts to a compatible four-bolt brake flange. This listing includes one driver-side assembly.
Trailer brake assemblies are side-specific. Confirm the required side and mounting configuration before removing the existing assembly or ordering a replacement.
Compatibility: Intended for compatible 2,000 lb trailer axle applications using a 7" x 1-1/4" electric brake and four-bolt mounting flange.
System Fit: Left-hand electric drum brake applications on the trailer’s driver side.
Installation Notes: Confirm the brake dimensions, mounting pattern and side orientation before installation.
Performance Insight: Matching the brake size and side orientation is necessary for proper installation and brake operation.
Selling Type: Aftermarket replacement assembly. Manufacturer brand is not specified.
Application Reference: Compatible with listed Dexter 23-47 left-hand applications where the brake size, mounting pattern and axle specifications match.
What This Means: This listing is for an aftermarket electric trailer brake backing plate, not a Dexter-branded component.
Before Ordering: Verify the existing brake number, 7" x 1-1/4" dimensions, left-hand orientation and four-bolt mounting flange.
Do not select a replacement brake assembly by axle capacity alone. Brake dimensions, mounting style and left- or right-hand orientation must also match the existing trailer brake system.
Configured for the driver side of a compatible trailer axle.
Matches compatible electric drum brake systems requiring this brake diameter and width.
Designed for compatible axle brake flanges using four mounting bolts.
Intended for compatible 2,000 lb trailer axle brake applications.
| Quantity | Item |
|---|---|
| 1 | Left-hand 7" x 1-1/4" electric trailer brake backing plate assembly |
| Not Included | Mounting hardware is not included |
| Not included | Right-hand brake assembly |
