Match the part number, measurements and connection points that apply to your trailer.
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |

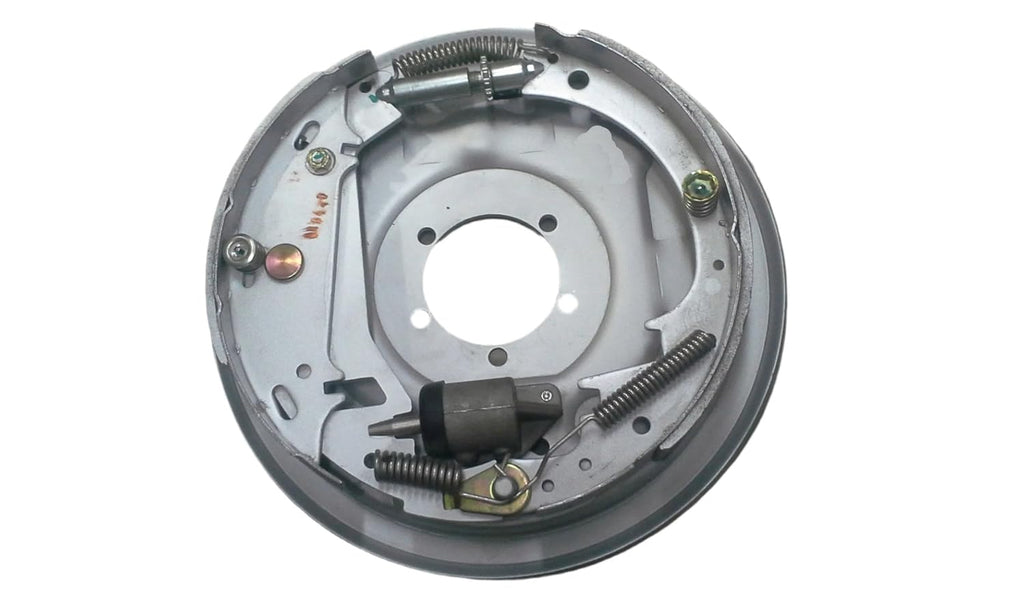

Premium Dacromet-coated hydraulic brake assembly designed for 5,200 lb to 7,000 lb axles. Features a free-backing design specifically for marine trailers using surge actuators.
This 12" x 2" hydraulic brake assembly is a high-quality replacement solution built for high-capacity trailer axles. The "free-backing" feature is essential for boat and utility trailers, as it prevents the brakes from engaging while in reverse. The Dacromet coating provides an extra layer of protection against rust and salt water, making this an ideal choice for marine applications where corrosion resistance is critical.
Hydraulic free-backing brakes disengage when reversing, preventing brake lockup during backing maneuvers. Proper orientation is critical for performance.
Compatibility: Designed for 12" x 2" drum applications. Fits 5,200 lb, 6,000 lb, and 7,000 lb trailer axles.
Vehicle / System Fit: Ideal for boat trailers and utility trailers using surge actuators.
Installation Notes: The 5-bolt flange pattern and drum size must match your existing hub configuration.
Performance Insight: Always confirm brake size and axle rating before installation. This Dacromet coating offers superior salt spray resistance over standard paint.
Selling Brand: R&P Carriages / Verified Aftermarket Solution
Application Reference: Any OEM or platform names in this listing describe compatibility, fitment target, or application style only where supported by verified dimensions, mounting points, and configuration details.
What This Means: This listing is for a high-quality replacement component, not a guaranteed OEM-branded item unless specifically stated.
Before Ordering: Verify measurements, 5-bolt mounting pattern, orientation, and axle capacity before installation.
Specifically engineered to disengage when reversing, preventing the surge actuator from locking the wheels.
High-performance zinc-chromium coating offers superior salt spray resistance for boat trailers.
Rated for axles up to 7,000 lbs, providing reliable stopping power for large equipment trailers.
Uses the industry-standard 5-hole flange pattern for quick and secure mounting.
| Specification | Detail |
|---|---|
| Part Number | 77-12H-74 |
| Brake Type | Hydraulic – Free Backing |
| Brake Size | 12" x 2" |
| Flange Pattern | 5-Bolt Pattern |
| Axle Capacity | 5,200 lb – 7,000 lb |
| Side | Right (Passenger Side) |
| Coating | Dacromet Marine Coated |
| Qty | Item Description |
|---|---|

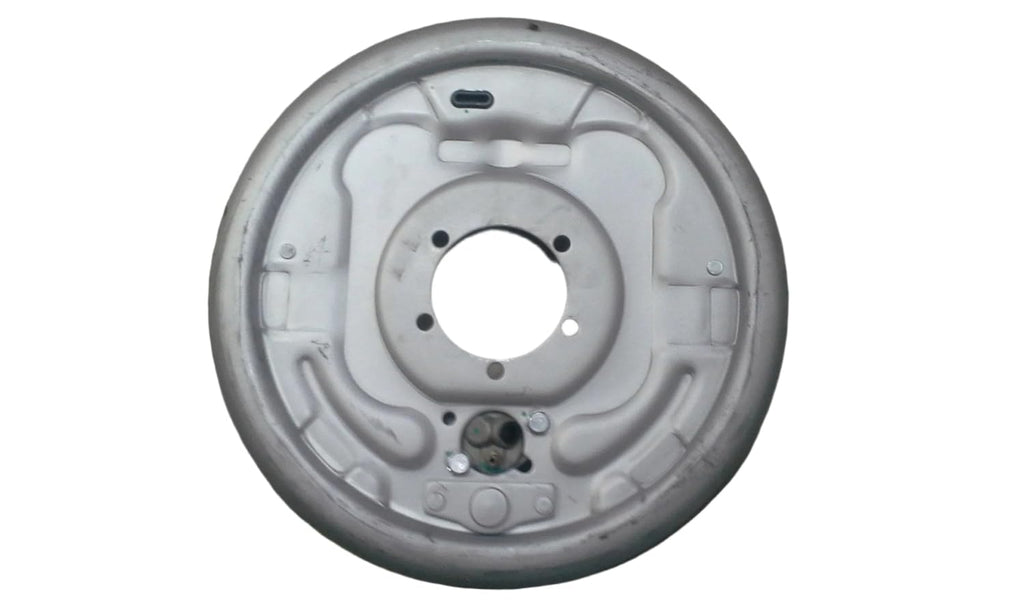

| 1 | Complete Backing Plate Assembly |
| 1 | Free-Backing Brake Shoe Set (Installed) |
| 1 | Single-Core Wheel Cylinder (Installed) |
| 1 Set | Adjuster Springs & Hardware (Installed) |
