At a Glance
- > (2) EQ-E1
- data-mce-fragment="1">New Deal Long Equalizer
- data-mce-fragment="1">7-3/4"
- > (2) EQ-105
- > 6.75" x 2"
- Brand: Need a Trailer Part
- SKU: SRK-3A-WB-105-BB
Before You Order
Match the part number, measurements and connection points that apply to your trailer.
Fitment Check
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |
Product Details
Greaseable Tri Axle Trailer Spring Suspension Rebuild Kit Camper Wet Bolt Bronze Bushings
Part Number - SRK-3A-WB-105-BB
This kit includes the following:

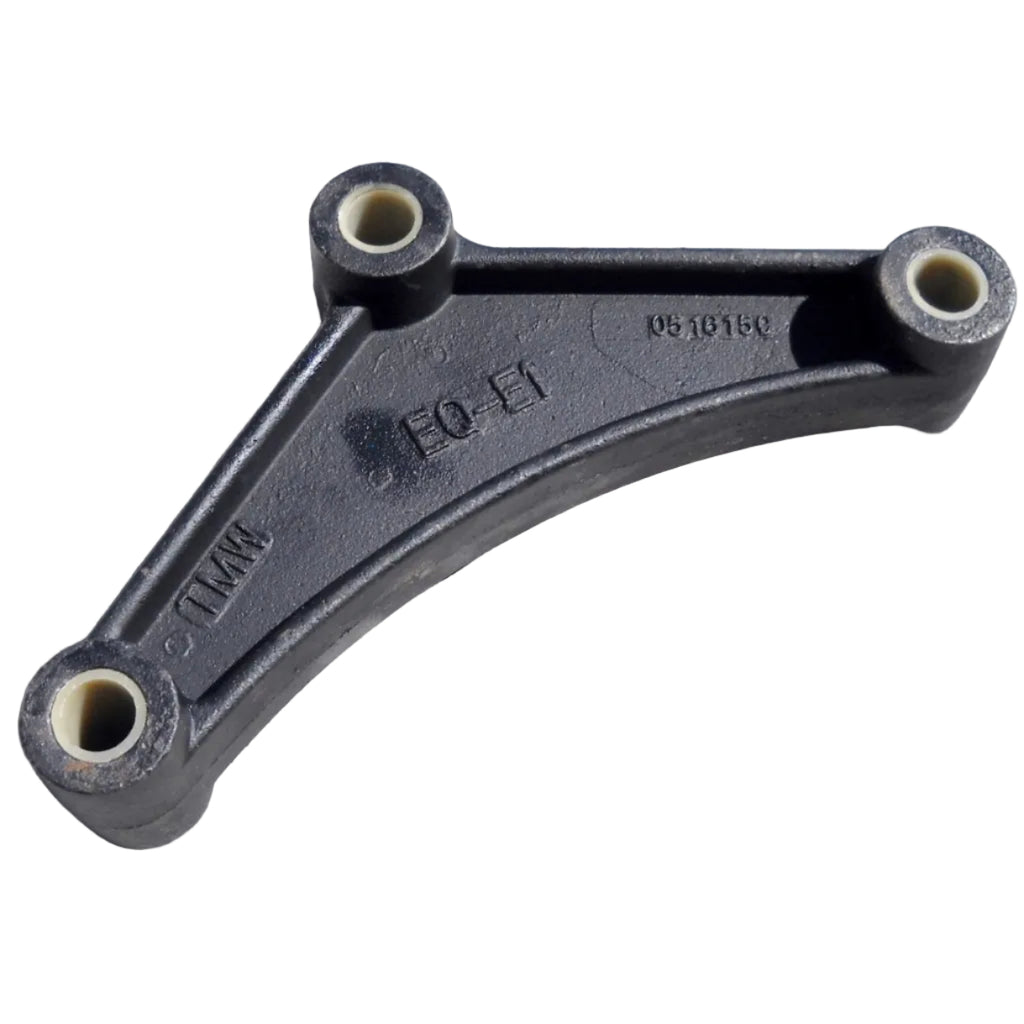

- (2) EQ-E1
- New Deal Long Equalizer
- 7-3/4"
- (2) EQ-105
- 6.75" x 2"
- 0.56" Holes
- Forked
- Triple Axle Rear Equalizer
- (12) SL-2.562
- 2.562" hole center to center
- 3.75" x 1.25" x 0.23" overall dimensions
- 1/2" holes
- (22) FA-6-92Z
- 7/16" flanged nut
- (22) FA-7-187
- Wet bolt (greaseable)
- 7//16" x 3" step down shackle bolt
- 1/2" thread length
- (22) BU1-1566B
- Bronze bushing
- 1.75" long
- 0.69" O.D.
- 0.57" I.D.
